- Page 1 Operating Instructions METRAPHASE 1 3-348-991-37 Phase Sequence Indicator 7/12.04...

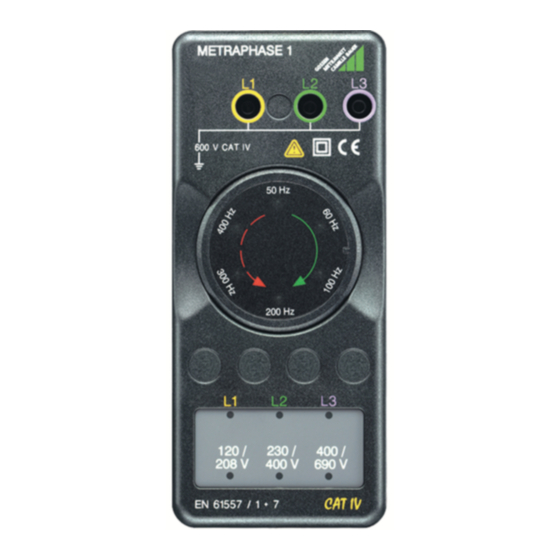

- Page 2 Dashed red arrow: counterclockwise rotation; indicates incorrect phase sequence Illuminated red LEDs rotate counterclockwise. Frequency: Indicated by brief, green illumination of corresponding LED. Phase LEDs, indicate voltage at L1 ... L3 Voltage value LEDs, indicate value of line-to-line voltage GOSSEN METRAWATT GMBH...
-
Page 3: Table Of Contents
European and national EC guidelines. We confirm this with the CE marking. The relevant declaration of conformity can be obtained from GOSSEN METRAWATT GMBH. The phase sequence indicator has been manufactured and tested in accordance with safety regulations IEC 61010-1 / DIN EN 61010-1 / VDE 0411-1. - Page 4 Warning concerning a point of danger (Attention: observe documentation) Earth Continuous, double or reinforced insulation Indicates EU conformity CAT IV The maximum allowable voltage between any given connector jack (1) and earth is equal to 600 V, category IV. GOSSEN METRAWATT GMBH...
-
Page 5: General Description
The instrument is activated automatically as soon as a voltage of at least 100 V is applied to any 2 measurement sockets. Automatic Shut-Down The instrument is shut down automatically when zero voltage is applied in order to extend battery service life. GOSSEN METRAWATT GMBH... -
Page 6: Operation
LED displays the next lowest voltage because the instrument is no longer provided with an inter- nal reference point. Attention! The L1 jack at the METRAPHASE 1 must always be contacted first, in order to avoid erroneous measurements. 3-Pole Connection... -
Page 7: 2-Pole Connection
LEDs for 60, 100, 300 and 400 Hz. The LEDs for 100 und 400 Hz are then illuminated in order to indicate that 2-pole measurement has been resumed. The same display occurs if phase L2 is inadvertently reconnected instead of changing to phase L3. GOSSEN METRAWATT GMBH... -
Page 8: Characteristic Values, Phase Sequence Indicator
Asymmetrical Lx - N/PE - Lx N/PE counterclockwise not indicated depending upon connection missing phase does not light up, Phase Missing Lx - X - Lx — the other 2 do light up GOSSEN METRAWATT GMBH... - Page 9 X) penetration of solid digit Y) penetration of water foreign matter ≥ 1.0 mm ∅ no protection Dimensions 84 mm x 195 mm x 35 mm Weight approx. 0.3 kg with batteries, without protective rubber cover GOSSEN METRAWATT GMBH...
-
Page 10: Maintenance
The phase sequence indicator is not equipped with any fuses! Housing No special maintenance is required for the housing. Keep outside surfaces clean. Use a slightly dampened cloth for cleaning. Avoid the use of cleansers, abrasives or solvents. GOSSEN METRAWATT GMBH... -
Page 11: Accessories (Not Included As Standard Equipment)
3.5 to 12 mm outlets, e.g. CEE outlets, Perilex outlets etc. For example, the test probes fit into the square PE sockets at Perilex outlets. Maximum allowable operating voltage: 600 V per IEC 61010. GOSSEN METRAWATT GMBH... -
Page 12: Repair And Replacement Parts Service Dkd Calibration Lab
Repair and Replacement Parts Service DKD Calibration Lab and Rental Instrument Service When you need service, please contact: GOSSEN METRAWATT GMBH Service Center Thomas-Mann-Strasse 20 90471 Nürnberg • Germany Phone +49 911 86 02 - 0 +49 911 86 02 - 2 53 E-mail service@gossenmetrawatt.com...
