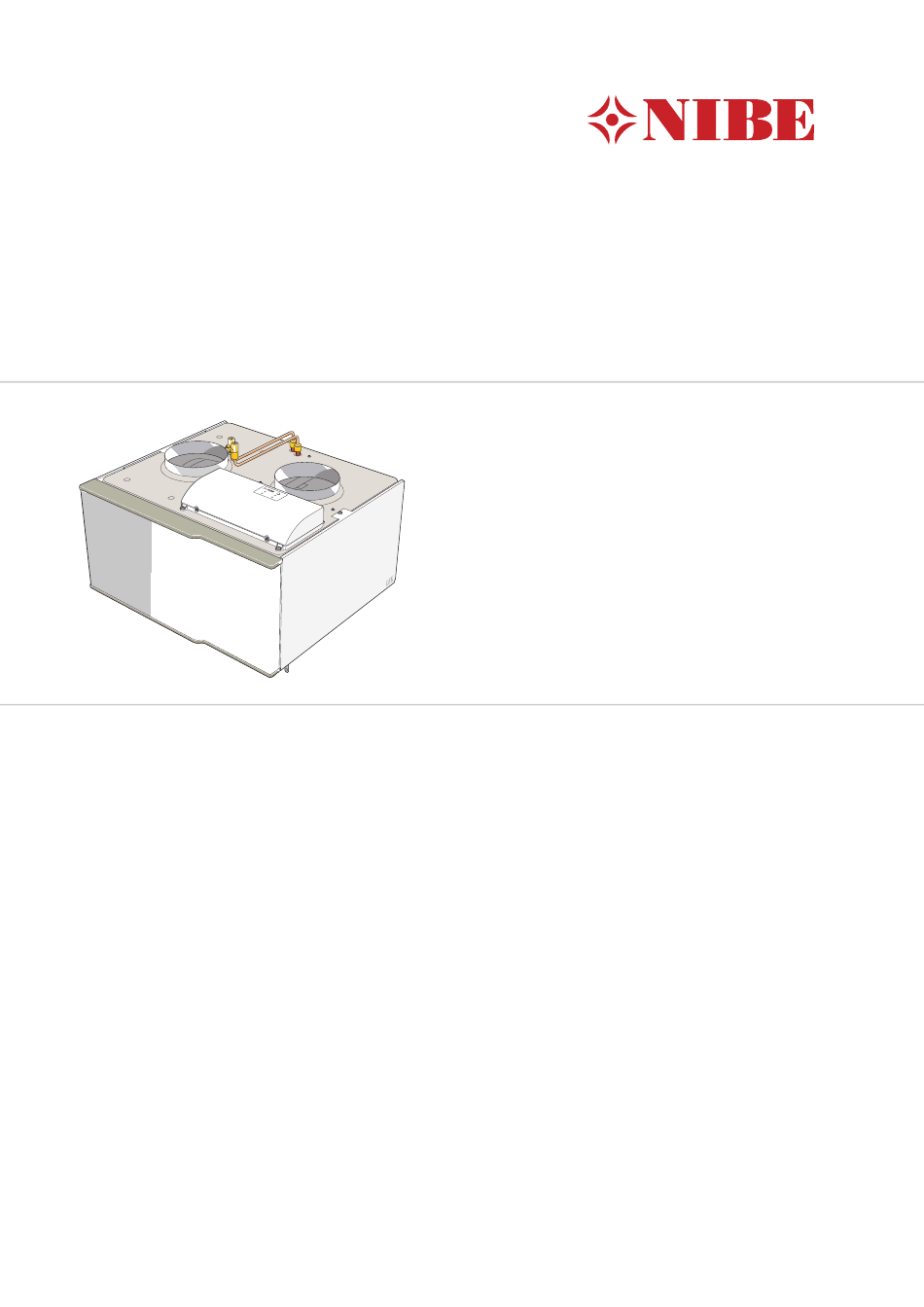

  • Page 1 Installer manual SAM 40 Supply air module IHB GB 1549-4 031934...

  • Page 3: Table Of Contents

    8 Accessories Outline diagram Dimensions and pipe connections 9 Technical data Mounting Heating medium side Dimensions and setting-out coordinates Technical specifications General ventilation connection Ventilation flow Energy labelling Adjusting ventilation Electrical circuit diagram Index SAM 40 Table of Contents |...

  • Page 4: Important Information Safety Information

    This symbol indicates tips on how to facilitate using the product. Marking SAM 40 is CE marked and fulfils IP21. The CE marking means that NIBE ensures that the product meets all regulations that are placed on it based on relevant EU directives. The CE mark is obligat- ory for most products sold in the EU, regardless where they are made.
  • Page 5 Setting ventilation flow supply air Heating medium (page 12) System flushed Accessories bled Check against output and pressure drop diagrams Connected according to outline diagram Electricity (page 17) Connections Phase voltage Supply connected 230 V Connected communication SAM 40 Chapter 1 | Important information...
  • Page 6 NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 Reyrieux Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk www.nibe.co.uk...

  • Page 7: Delivery And Handling

    Installation area Leave a free space of 500 mm in front of the supply air module. All service on SAM 40 can be carried out from the front. NOTE Ensure that there is sufficient space (300 mm) above the supply air module for installing ventilation hoses.

  • Page 8: The Design Of The Supply Air Mod- Ule

    3 The design of the supply air module BT22 XL33 QM20 XL34 BT23 PF 1 HQ11 AA100 AA5-S2 XL33 QM20 XL34 QN40 BT69 BT68 HQ11 Svenskt produktblad EP13 XL37 XL36 W102 W101 QN40 Chapter 3 | The design of the supply air module SAM 40...
  • Page 9 Temperature sensor, outdoor air BT68 Temperature sensor, flow Not visible in the image BT69 Temperature sensor, return Designations in component locations according to standard IEC 81346-1 and 81346-2. SAM 40 Chapter 3 | The design of the supply air module...

  • Page 10: Pipe And Ventilation Connections General Pipe Connections

    If several climate systems (ECS 40/ECS 41) are present, SAM 40 must be connected in parallel with climate system 1. A circulation pump must be used to ensure the flow over SAM 40. Chapter 4 | Pipe and ventilation connections...

  • Page 11: Dimensions And Pipe Connections

    Dimensions and pipe Mounting connections Installing on brackets 1. Install SAM 40 on brackets. 2. Connect heating medium and ventilation pipes. Ø22 SAM 40 Chapter 4 | Pipe and ventilation connections...

  • Page 12: Heating Medium Side

    20 litres of circulating water must be present for install- For connection of VPB 200 together with F750 ation of SAM 40 to be possible. For the correct function docking kit DEW 40 is used. of SAM 40 the total volume of the climate system (ex- cluding the internal volume in F750) must exceed 40 1.
  • Page 13 200 l/h DUT -10 ºC 3400 3200 75 l/h DUT -20 ºC 3000 2800 75 l/h DUT -10 ºC 2600 2400 2200 2000 1800 1600 Supply air flow Luftflöde 1400 (m3/h) (l/s) SAM 40 Chapter 4 | Pipe and ventilation connections...
  • Page 14 75 l/h DUT -30 ºC 4000 3800 75 l/h DUT -20 ºC 3600 3400 3200 75 l/h DUT -10 ºC 3000 2800 2600 2400 2200 2000 1800 Supply air flow Luftflöde 1600 (m3/h) (l/s) Chapter 4 | Pipe and ventilation connections SAM 40...
  • Page 15 SAM 40 Flöde (l/h) 1000 The diagram shows pressure drop across SAM 40 at different water flows. Note that the pressure drop is the same as that which prevails across the climate sys- tem 1. Check that the working point is inside the grey working area.

  • Page 16: General Ventilation Connection

    The air duct system must be a minimum of air tightness class B. Supply air Outdoor air Ø160 Chapter 4 | Pipe and ventilation connections SAM 40...

  • Page 17: Electrical Connections

    This section describes the electrical connection for controlling SAM 40 from NIBE F750. The heat pump switch must be in the " " position and the switch on SAM 40 in position 0, before any work DIP switch is carried out.

  • Page 18: Commissioning And Adjusting Preparations

    5.7. medium system Commissioning 1. Connect SAM 40 according to the outline diagram The first time the heat pump is started a start guide is on page 10. started. The start guide instructions state what needs 2.
  • Page 19 The heat pump software must be version Tillgängligt Available 3585R2 or later. tryck pressure (Pa) (Pa) 90/100% Airflow Luftflöde (m3/h) Fan capacity output (l/s) Power Effekt output 90/100% Airflow Luftflöde (m3/h) (l/s) SAM 40 Chapter 6 | Commissioning and adjusting...
  • Page 20 The angle of the graph con- tinues outside the stated points. Supply air temperature Tilluftstemperatur ºC Min. Utetemperatur ºC Outdoor temp. (BT1) Chapter 6 | Commissioning and adjusting SAM 40...

  • Page 21: Disturbances In Comfort

    Low room temperature Alarm Air in the heating medium system. ■ Vent SAM 40 using vent valve (QM20). In the event of an alarm with a red status lamp a mal- ■ function has occurred that the heat pump cannot Incorrect value set in supply air automatic control ■...
  • Page 22 Vent SAM 40 using vent valve (QM20). ■ Incorrect value set in supply air automatic control ■ system. Enter menu 5.3.9 (ext sup air md) and reduce the ■ setting for the supply air temperature. High supply air temperature Incorrect value set in supply air automatic control ■...

  • Page 23: Accessories

    8 Accessories Brackets Wall mounting of SAM 40. Part no. 067 083 Buffer vessel UKV UKV 40 Part no. 088 470 Top cabinet Top cabinet for concealing the ventilation ducts. 345 mm 395-645 mm Part no. 089 757 Part no. 089 758...

  • Page 24: Technical Data

    9 Technical data Dimensions and setting-out coordinates Ø22 Ø160 Chapter 9 | Technical data SAM 40...

  • Page 25: Technical Specifications

    The value varies with the selected fan curve. For more detailed sound data including sound to channels visit www.nibe.eu. The value can vary with the room's damping capacity. These values apply with a damping of 4 dB. SAM 40 Chapter 9 | Technical data...

  • Page 26: Energy Labelling

    Information about supply/exhaust grilles in the facade See section General ventilation connection on page 16. Information about pre-/disassembly See section Recovery on page 4. This installer manual can also be accessed at www.nibe.eu. The annual electricity consumption kWh/year Annual heating saved, kWh primary energy per year...

  • Page 27: Electrical Circuit Diagram

    Electrical circuit diagram SAM 40 Chapter 9 | Technical data...

  • Page 28: Index

    Ventilation flow, 16 Pipe connections Symbol key, 10 Preparations, 18 Removing the covers, 7 Safety information, 4 Contact information, 6 Inspection of the installation, 5 Marking, 4 Serial number, 4 Symbols, 4 Serial number, 4 Chapter 10 | Item register SAM 40...
