Example
Example
Example 1 1 1 1
Example
Use the circular interpolation command to program
%3309
N1 T0101
N2 G00 X40 Z5
N3 M03 S400
N4 G00 X0
N5 G01 Z0 F60
N6 G03 U24 W-24 R15
N7 G02 X26 Z-31 R5
N8 G01 Z-40
N9 X40 Z5
N10 M30
R5

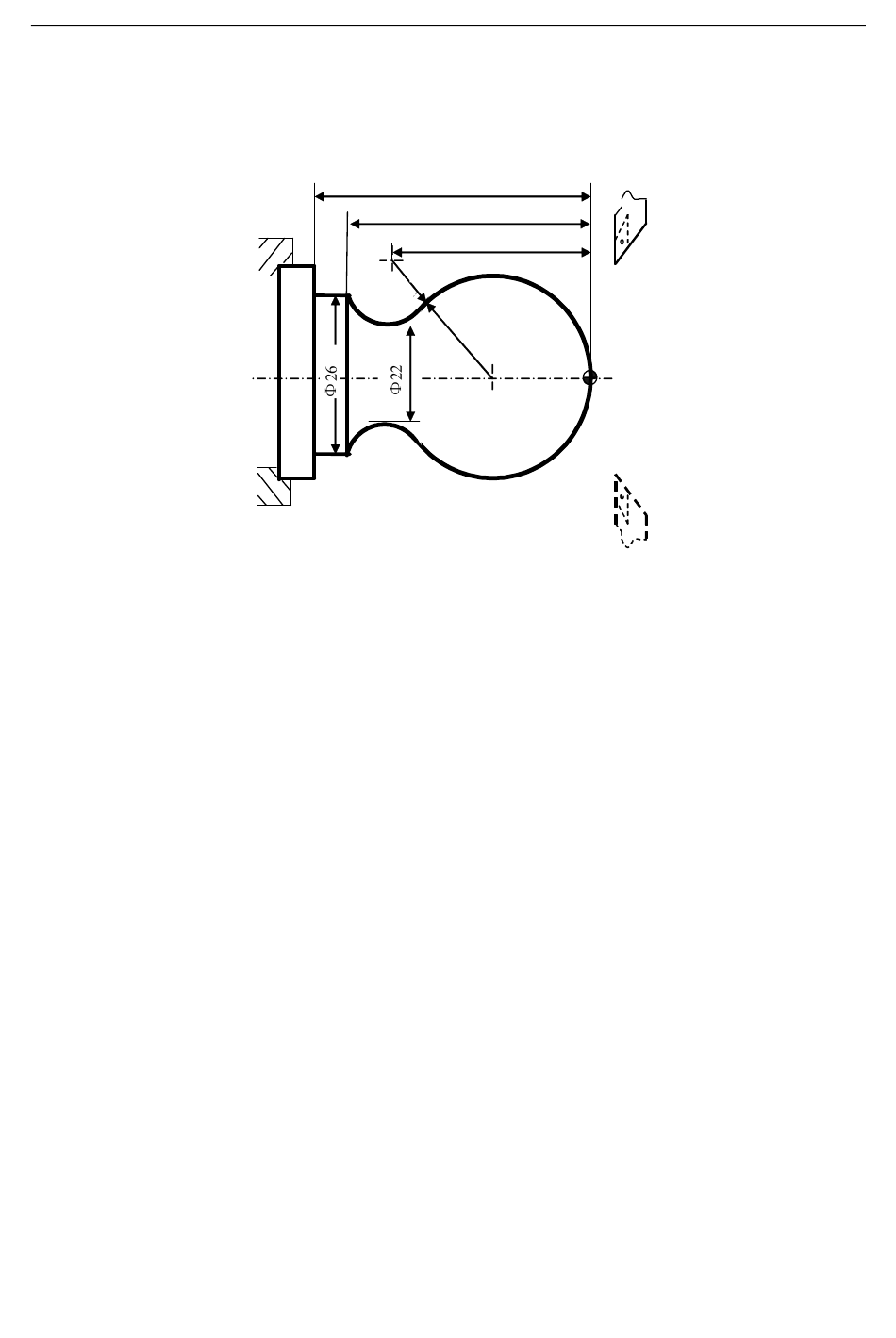

Figure 3.7 Circular Interpolation – Example 1
40
31
27
R15
34
3. Interpolation Function
