Program for the part shown in the figure. The processing condition: material: #45 steel, or
aluminum; diameter of the part is Φ54mm, length of the part is 200mm. Tool selection:
number 1 face tool is used to machine the part face, number 2 face cylindrical tool is used to
rough turning the contour, number 3 face cylindrical tool is used to finish turning the
contour, and number 4 cylindrical triple screw is used to machine the thread whose lead is
3mm, pitch is 1mm.
%3365
N1 T0101
N2 M03 S500
N3 G00 X100 Z80
N4 G00 X60 Z5
N5 G81 X0 Z1.5 F100
N6 G81 X0 Z0
N7 G00 X100 Z80
N8 T0202
50
11
R15
R25
1×45°
24

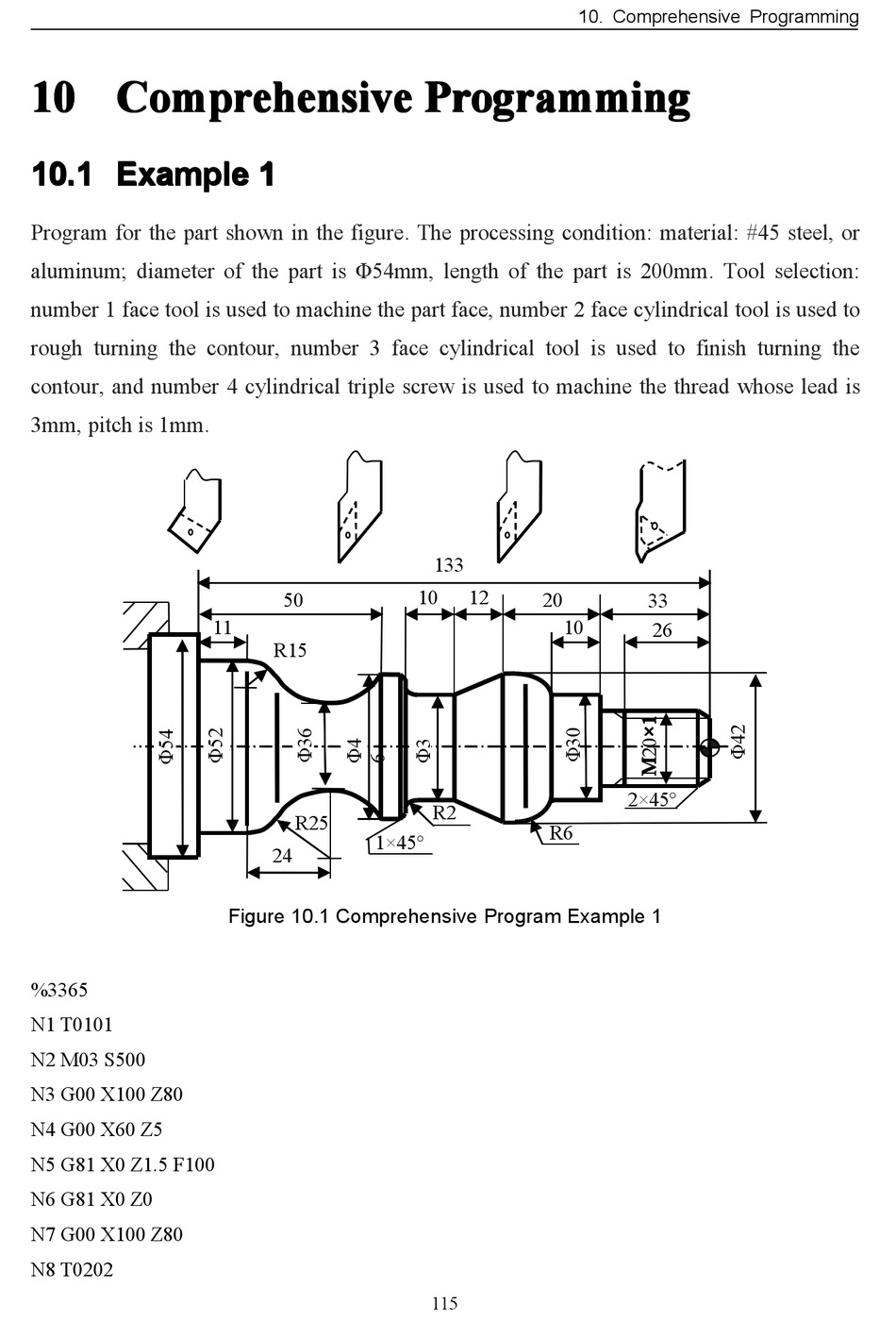

Figure 10.1 Comprehensive Program Example 1
