Absolute Commands

The absolute dimension describes a point at "the distance from zero point of the coordinate
system".
Example: These four point in absolute dimensions are the following:
P1 corresponds to X25 Z-7.5
P2 corresponds to X40 Z-15
P3 corresponds to X40 Z-25
P4 corresponds to X60 Z-35
Commands Commands
Commands
P4
P3
35

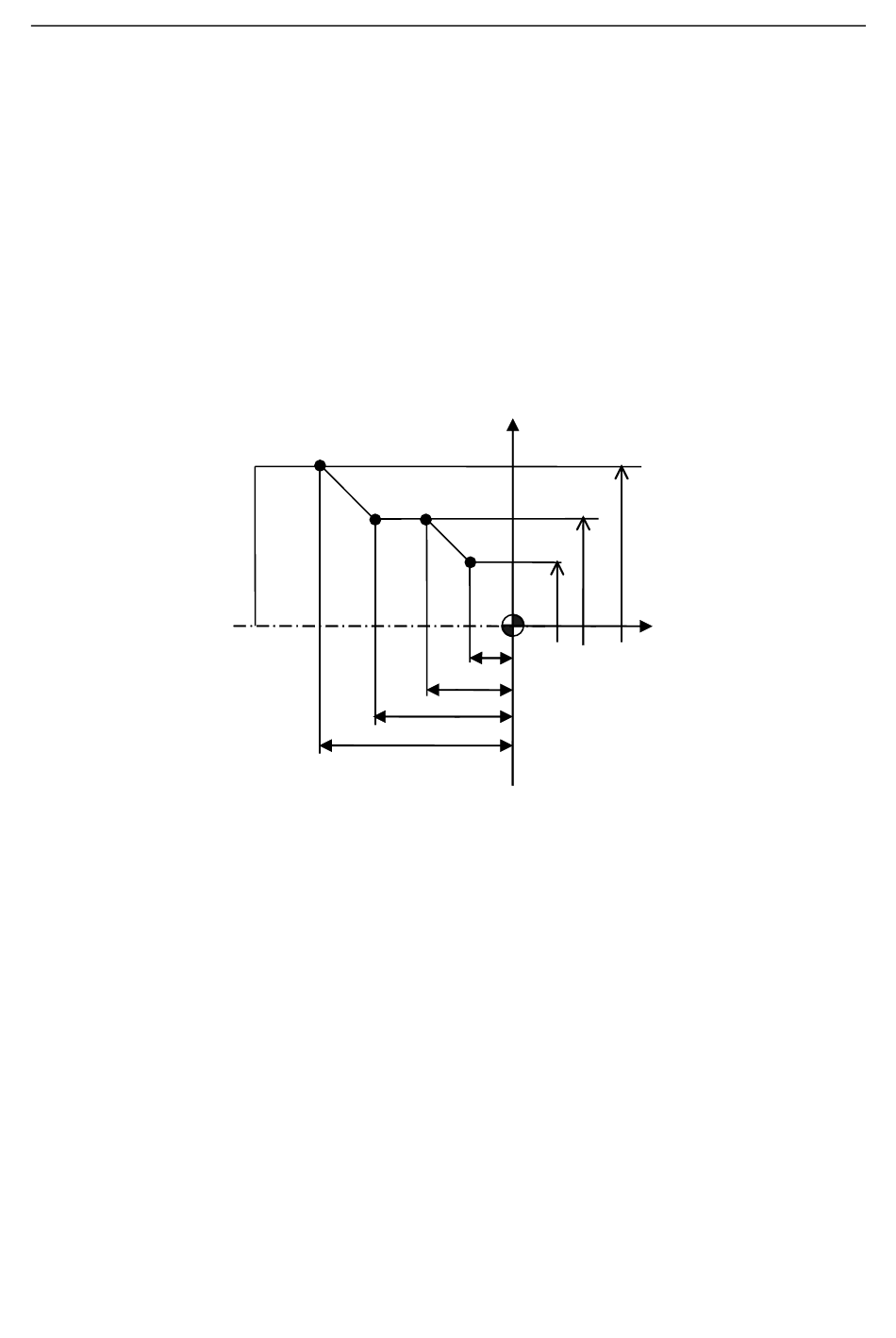

Figure 1.14 Absolute Dimension
X
Φ60
P2
Φ40
P1
Φ25
7.5
15
25
11
