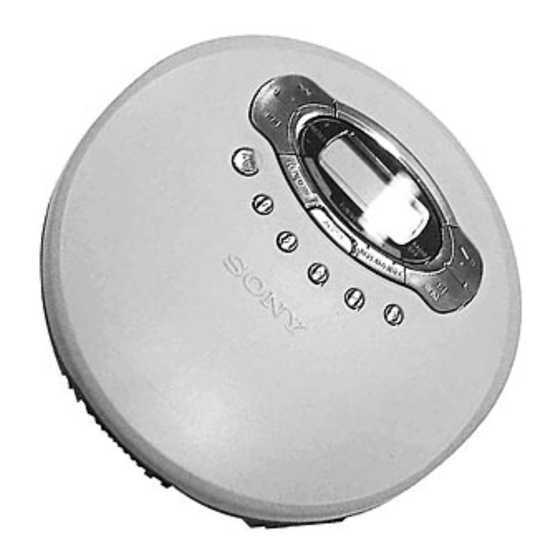

Sony D-FJ61 D-FJ65 Operating Instructions Manual

Sony fm/am portable cd player operating instructions.
Hide thumbs

Advertisement

FM/AM
Portable
CD Player

Operating Instructions

About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see "Accessories (supplied/optional)."
D-FJ61
D-FJ65
2000 Sony Corporation
3-045-816-24 (1)

Advertisement

Table of Contents

   Also See for Sony D-FJ61 D-FJ65

   Related Manuals for Sony D-FJ61 D-FJ65

   Summary of Contents for Sony D-FJ61 D-FJ65

  • Page 1: Operating Instructions

    Operating Instructions About the area code The area code of the location in which you purchased the CD player is shown on upper left of the bar code label on the package. For accessories supplied with your CD player, check the area code of your model and see “Accessories (supplied/optional).”...
  • Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. CAUTION The use of optical instruments with this product will increase eye hazard. Certain countries may regulate disposal of the battery used to power this product.
  • Page 3: Table Of Contents

    Table of Contents Getting started Locating the Controls ... 4 Playing a CD 1. Connect your CD player..6 2. Insert a CD..6 3. Play a CD..6 Playback options Playing tracks repeatedly (Repeat play) ... 10 Playing a single track (Single play) ...
  • Page 4: Getting Started

    Getting started Locating the Controls For details, see pages in parentheses. CD player (front) 1 Display (pages 7, 10 - 14, 16, 17) 2 PLAY MODE• TUNING – button (pages 9 - 12) 3 ./> (AMS/search) • PRESET –/+ buttons...
  • Page 5 (page 20) wf N(play)•> (AMS/search)• PRESET + button (pages 6, 7, 10, 11, 15) wg HOLD switch (page 17) Note Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players.
  • Page 6: Playing A Cd

    Playing a CD You can also use rechargeable batteries and dry batteries as a power source. . Connect your CD player. 1 Connect the AC power adaptor. 2 Connect the headphones/earphones. For models supplied with the AC plug adaptor If the AC power adaptor does not fit the AC outlet, use the AC plug adaptor.
  • Page 7 (D-FJ65 only) 1 Set VOL (volume) on the remote control to maximum. 2 Adjust the volume on the CD player to the level that you want it to be. This level becomes the maximum volume for the remote control. If the volume level does not increase Is AVLS set to “LIMIT”? Set AVLS to “NORM.”...
  • Page 8 Playback starts from the point you stopped Your CD player can recall the playback point where you stopped and then resume playing from the same place (resume function). There is no ON/OFF switch of the resume function on this CD player.
  • Page 9: Playback Options

    Playback options You can enjoy various ways of playback using PLAY MODE and REPEAT/ENTER. PLAY MODE button Each time you press the button, you can change the playback mode. “No indication” (Normal play) “1” (Play a single track) “SHUF” (Play tracks in random order) “PGM”...
  • Page 10: Playing Tracks Repeatedly (repeat Play)

    Playing tracks repeatedly (Repeat play) You can play tracks repeatedly in normal, single, shuffle and PGM play modes. During playback, press REPEAT/ENTER. Note on ./> During Repeat play, you can locate the first track after the last track by pressing > repeatedly. You can also locate the last track after first track by pressing .
  • Page 11: Playing Tracks In Your Favorite Order (pgm Play)

    Playing tracks in your favorite order You can program the CD player to play up to 64 tracks in your favorite order. During playback, press PLAY MODE repeatedly until “PGM” appears. Press . or > to select a track. Press REPEAT/ENTER to enter the selected track.
  • Page 12: Using The Radio

    To tune in the station quickly Hold down TUNING + or – in step 3 until the frequency digits begin to change in the display. The CD player automatically scans the radio frequencies and stops when it finds a clear station.
  • Page 13 When listening to the radio on batteries If you connect the external power source plug to the DC IN 4.5 V jack of your CD player, the CD player will turn off. Turn it on by pressing RADIO ON•BAND to continue listening to it.
  • Page 14: Presetting Radio Stations

    Presetting radio stations You can store radio stations into the CD player’s memory. You can preset up to 30 stations, 5 for each band (FM1 - 5 and AM) in any order. Tune in the station you want. Hold down one of the 1 - 5 buttons that you want to preset the new station on for more than 2 seconds.
  • Page 15: Playing Preset Radio Stations

    Playing preset radio stations You can tune in the station easily by pressing one of the 1 - 5 buttons. Press RADIO ON•BAND (RADIO ON/BAND on the remote control) to select the band. Press one of the 1 - 5 buttons or PRESET + or – (PRESET + or – on the remote control) to tune in a stored station.
  • Page 16: Available Features

    “ON.” To turn off the G-PROTECTION function Set G-PROTECTION to “OFF.” Note Sound may skip if: – the CD player receives stronger continuous shock than expected or – a dirty or scratched CD is played. Emphasizing the bass sound (SOUND) You can emphasize the bass-boosted sound.
  • Page 17: Protecting Your Hearing (avls)

    To turn off the AVLS function Set AVLS to “NORM.” Locking the controls (HOLD) You can lock the controls on your CD player to prevent accidental button presses. Slide HOLD in the direction of the arrow. Displayed when the HOLD function is working.
  • Page 18: Turning Off The Operation Beep Sound

    CD player. Connect the power source while pressing x/CHG on the CD player or x on the remote control. To turn on the beep sound Remove the power source and then connect the power source without pressing x/CHG or x.
  • Page 19: Connecting Your Cd Player

    B Connecting your CD player Connecting a stereo system You can listen to CDs through a stereo system and record CDs on a cassette tape. For details, see the instruction manual that comes with the connected device. Be sure to turn off all connected devices before making connections.
  • Page 20: Connecting A Power Source

    If the AC power adaptor does not fit the AC outlet, use the AC plug adaptor. to DC IN 4.5 V (rear) The CD player charges the batteries. The “CHG” indicator turns on in the display, and the indicator sections of up in succession. When the batteries are completely charged, the “CHG”...
  • Page 21 To remove the rechargeable batteries Remove the batteries as illustrated below. When to charge the rechargeable batteries You can check the remaining power of the batteries in the display. Battery power is full. Battery power is getting low. Battery power is low. Lo batt* Batteries are depleted.
  • Page 22: Using Dry Batteries

    Using dry batteries Use only the following dry battery type for your CD player: • LR6 (size AA) alkaline batteries Note Be sure to remove the AC power adaptor when using the dry batteries. Open the battery compartment lid. Insert two LR6 (size AA) batteries by matching the 3 to the diagram in the battery compartment.
  • Page 23: Additional Information

    IN 4.5 V (external power input) jack. On the CD player • Keep the lens on the CD player clean and do not touch it. If you do so, the lens may be damaged and the CD player will not operate properly.
  • Page 24: Troubleshooting

    Troubleshooting Should any problem persist after you have checked these symptoms, consult your nearest Sony dealer. CD player Symptom The volume does not increase even if the VOLUME control is adjusted to the maximum level. No sound, or noise is heard.
  • Page 25 The audio is weak or has poor quality. Cause and/or corrective actions c Charge the rechargeable batteries. (pages 20, 21) c Replace the batteries with new LR6 (size AA) alkaline batteries. (page 22) c Move the CD player away from the TV.
  • Page 26: Specifications

    Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NC-WMAA rechargeable batteries: 2.4 V DC • Sony NH-WM2AA rechargeable batteries: 2.4 V DC •...
  • Page 27 Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. When using G-PROTECTION Two NC-WMAA (charged for about 3 hours**) NH-WM2AA (charged for...
  • Page 28: Accessories (supplied/optional)

    Accessories (supplied/optional) Supplied accessories For the area code of the location in which you purchased the CD player, check the upper left side of the bar code on the package. AC power adaptor (1) Headphones/earphones with remote control (1) Headphones/earphones (1)
