Sony D-FJ401 Operating Instructions Manual
Sony D-FJ401 Operating Instructions Manual

Sony D-FJ401 Operating Instructions Manual

Fm/am portable cd player
Hide thumbs Also See for D-FJ401:

Advertisement

FM/AM
Portable
CD Player

Operating Instructions

About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see "Accessories (supplied/optional)."
D-FJ401
D-FJ405
 2002 Sony Corporation
3-243-448-21 (1)
"WALKMAN" is a trademark of
Sony Corporation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-FJ401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sony D-FJ401

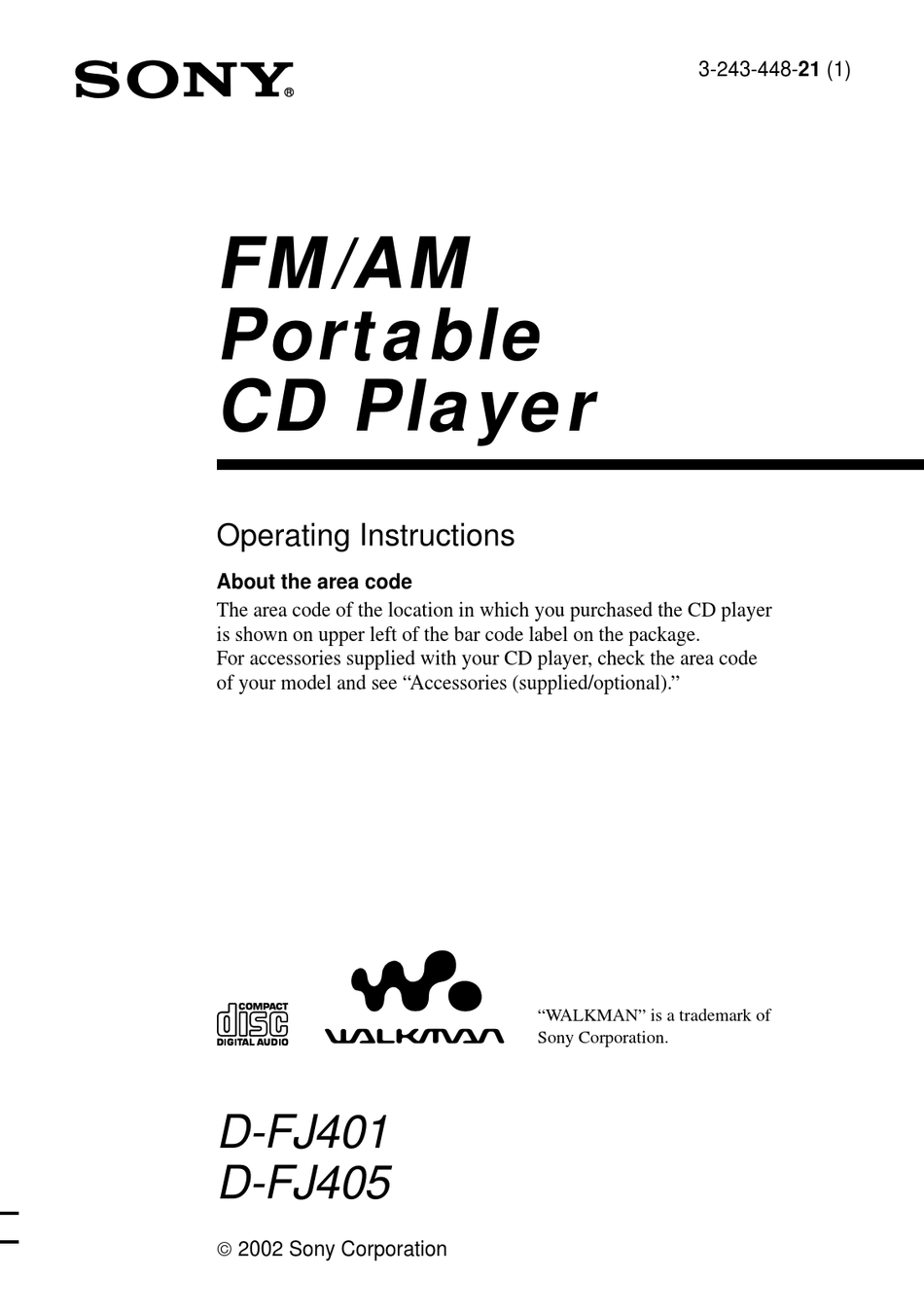

  • Page 1: Operating Instructions

    For accessories supplied with your CD player, check the area code of your model and see “Accessories (supplied/optional).” “WALKMAN” is a trademark of Sony Corporation. D-FJ401 D-FJ405  2002 Sony Corporation...
  • Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. To prevent fire, do not cover the ventilation of the apparatus with newspapers, table- cloths, curtains, etc.
  • Page 3: Table Of Contents

    Table of Contents Connecting your CD player Getting started Connecting a stereo system ....... 20 Locating the controls ........4 Connecting to a power source Playing a CD Using the rechargeable batteries ....21 1. Connect your CD player......6 Using the dry batteries .......
  • Page 4: Getting Started

    Getting started Locating the controls For details, see pages in parentheses. CD player (front) 1 1 - 5 buttons qa DC IN 4.5 V (external power (page 14) input) jack (pages 6, 21) 2 Display qs Strap holes (pages 7, 10 - 14, 17, 18) qd AM button (pages 12, 15) 3 PLAY MODE•...
  • Page 5 CD player (inside) wd AU2/JE.W models: MONO/STEREO switch (page 13) wa STEP switch Other models: (page 16) LOCAL/DX switch (page 13) ws G-PROTECTION wf Battery compartment switch (page 21) (page 17) Remote control (D-FJ405 and the AR1model of D-FJ401only) wgVOL (volume) wk N(play)/>...
  • Page 6: Playing A Cd

    Playing a CD You can also use rechargeable batteries or dry batteries as a power source. to DC IN 4.5V to an AC outlet . Connect your CD player. AC power 1 Connect the AC power adaptor. adaptor 2 Connect the headphones/earphones. For models supplied with the AC plug N/>...
  • Page 7 Press Play (from the point you stopped) N/> N/> for 2 seconds or more Play (from the first track) Pause/resume play after pause (for the CD player only) X x/CHG* Stop . once quickly* Find the beginning of the current track (AMS* Find the beginning of the previous tracks (AMS) .
  • Page 8: Removing The Cd

    About CD-Rs/CD-RWs This CD player can play CD-Rs/CD-RWs recorded in the CD-DA format*, but playback capability may vary depending on the quality of the disc and the condition of the recording device. * CD-DA is the abbreviation for Compact Disc Digital Audio. It is a recording standard used for the Audio CDs.
  • Page 9: Playback Options

    Playback options You can enjoy various ways of playback using PLAY MODE and REPEAT/ENTER. PLAY MODE button Each time you press the button, you can change the playback mode. No indication (Normal play) “1” (Play a single track) REPEAT/ENTER button “SHUF”...
  • Page 10: Playing Tracks Repeatedly (Repeat Play)

    Playing tracks repeatedly (Repeat play) You can play tracks repeatedly in normal, single, shuffle and PGM play modes. During playback, press REPEAT/ENTER. Playing a single track (Single play) During playback, press PLAY MODE repeatedly until “1” appears. Playing tracks in random order (Shuffle play) During playback, press PLAY MODE repeatedly until “SHUF”...
  • Page 11: Playing Tracks In Your Favorite Order (Pgm Play)

    Playing tracks in your favorite order (PGM play) You can program the CD player to play up to 64 tracks in your favorite order. During playback, press PLAY MODE repeatedly until “PGM” appears. Press . or N/> to select a track.
  • Page 12: Using The Radio

    Using the radio Once you’ve stored your favorite stations, you can easily tune in the station with any band and frequency setting by pressing one of the 1 - 5 buttons. Listening to the radio You can enjoy FM and AM programs. Press FM or AM to select the band (direct power-on).
  • Page 13 To improve broadcast reception For FM, extend the headphones/earphones cord. Headphones Earphones For AM, reorient the CD player itself. Note Keep the headphones/earphones connected to the i jack of the CD player even when listening to the FM program through the speakers connected to the LINE OUT jack of the CD player. The headphones/earphones cord works as the FM antenna.
  • Page 14: Presetting Your Favorite Radio Stations

    Presetting your favorite radio stations You can store your favorite radio stations into the CD player’s memory. You can store up to 5 stations with any band and frequency setting. Tune in the station you want. Hold down one of the 1 - 5 buttons that you want to store the new station on for 2 seconds or more.
  • Page 15: Presetting Radio Stations

    Presetting radio stations You can preset up to 40 stations: 30 for FM and 10 for AM. Press FM or AM to select the band (direct power-on). Press MEMORY for 2 seconds or more. Preset number 1 will flash in the display. The CD player starts scanning the stations from the lower frequencies and stops for about 3 seconds when a station is received.
  • Page 16: Changing The Tuning Interval

    Changing the tuning interval When using the CD player abroad, change the AM tuning interval, if necessary. Set the STEP switch (inside the lid) to “9 kHz” or “10 kHz” using a pointed material. 9 kHz area: Asia and Europe 10 kHz area: the U.S.
  • Page 17: Available Features

    B Available features G-PROTECTION Emphasizing the bass function sound (SOUND) The G-PROTECTION function has been You can emphasize the bass-boosted sound. developed to provide excellent protection against sound skipping while jogging. This Press SOUND to select “BASS ” or function provides a higher level of shock “BASS .”...
  • Page 18: Protecting Your Hearing (Avls)

    Protecting your hearing Locking the controls (AVLS) (HOLD) The AVLS (Automatic Volume Limiter You can lock the controls on your CD player System) function keeps down the maximum to prevent accidental button presses. volume to protect your hearing. Slide HOLD in the direction of the Hold down SOUND until “AVLS”...
  • Page 19: Turning Off The Operation Beep Sound

    Turning off the operation beep sound You can turn off the beep sound that is heard from your headphones/earphones when you operate your CD player. Remove the power source (AC power adaptor, rechargeable batteries or dry batteries) from the CD player. Connect the power source while pressing x/CHG on the CD player or x on the remote control for...
  • Page 20: Connecting Your Cd Player

    B Connecting your CD player Notes Connecting a stereo • Before you play a CD, turn down the volume of system the connected device to avoid damaging the connected speakers. • Use the AC power adaptor for recording. If you You can listen to CDs through a stereo use the rechargeable batteries or dry batteries as a system and record CDs on a cassette tape.
  • Page 21: Connecting To A Power Source

    B Connecting to a power source You can use the following power sources: Connect the AC power adaptor to • Rechargeable batteries the DC IN 4.5 V jack of your CD • AC power adaptor (see “Playing a CD”) player and an AC outlet, then •...
  • Page 22 When to replace the rechargeable Using the rechargeable batteries batteries If the battery life becomes shorter by about To remove the rechargeable batteries half, replace the batteries with new Remove the batteries as illustrated below. rechargeable batteries. Note on the rechargeable batteries If the battery is new or has not been used for a long time, it may not be charged completely until you charge and discharge it...
  • Page 23: Using The Dry Batteries

    Using the dry batteries Notes on the power source Use only the following dry battery type for your CD player: Disconnect all power sources when the CD • LR6 (size AA) alkaline batteries player is not used. Note On AC power adaptor Be sure to remove the AC power adaptor when using the dry batteries.
  • Page 24 Notice on the power source On rechargeable batteries and dry batteries • Do not charge the dry batteries. • Do not throw the batteries into fire. • Do not carry the batteries with coins or other metallic objects. It can generate heat if the positive and negative terminals of the battery are accidentally contacted by a metallic object.
  • Page 25: Additional Information

    B Additional information • Do not expose the CD to direct sunlight or Precautions heat sources such as hot air ducts. Do not leave the CD in a car parked under direct On safety sunlight. • Should any solid objects or liquid fall into the CD player, unplug it and have it checked by qualified personnel before On headphones/earphones...
  • Page 26: Troubleshooting

    Troubleshooting Should any problem persist after you have checked these symptoms, consult your nearest Sony dealer. CD player Symptom Cause and/or corrective actions The volume does not increase c Hold down SOUND until “AVLS” disappears from the display even if the VOLUME control is...
  • Page 27 CD player Symptom Cause and/or corrective actions “Hold” appears in the c The buttons are locked. Slide the HOLD switch back. (page 18) display when you press a button, and the CD does not play. c The CD player is connected to an audio device. Adjust the volume Cannot adjust the volume using the volume control on the connected device.
  • Page 28: Specifications

    For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NH-WMAA rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack):...
  • Page 29 When using G-PROTECTION RADIO Two NH-WMAA (charged for about 4 hours**) Two Sony alkaline 47 batteries LR6 (SG) (produced in Japan) * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). ** Charging time varies depending on how the rechargeable battery is used.
  • Page 30: Accessories (Supplied/Optional)

    Optional accessories Accessories (supplied/optional) AC power adaptor AC-E45HG Supplied accessories Active speaker system SRS-T55 SRS-Z500 For the area code of the location in which you Car battery cord DCC-E345 purchased the CD player, check the upper left side of the bar code on the package. Car battery cord with car connecting pack DCC-E34CP Car connecting pack...
  • Page 32 Sony Corporation Printed in China...

This manual is also suitable for:

D-fj405
