Page 7 • JL Audio, Inc., 2018

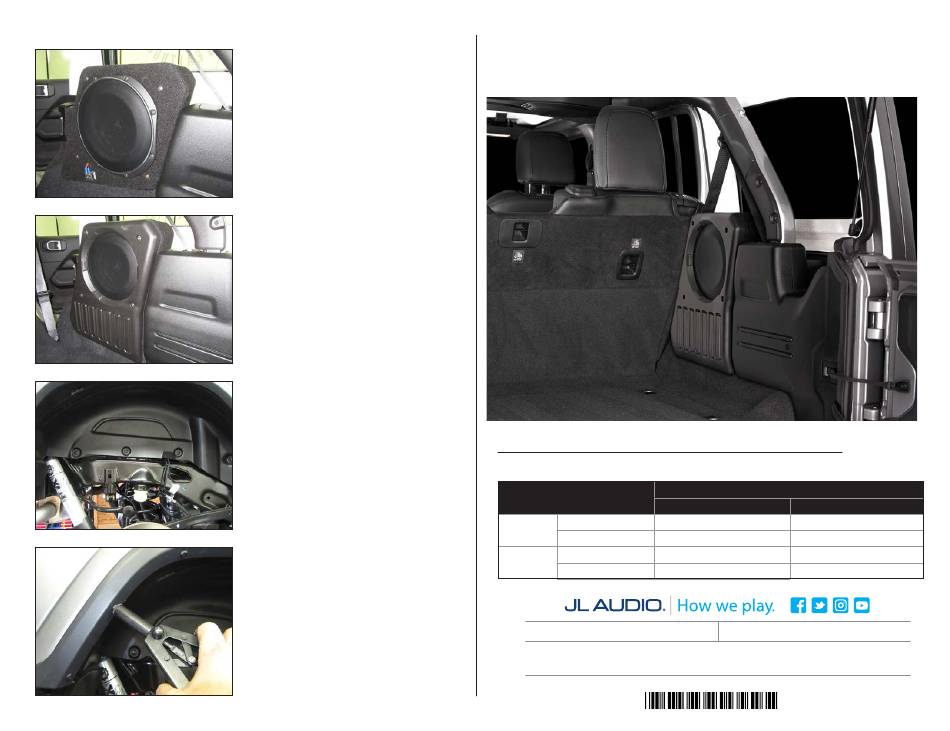

S T E P 2 5
Reinstall the batting. Connect and reinstall
the subwoofer and eight subwoofer mounting
screws.
Connect speaker cable to the barrier strip on
the front of the enclosure, and route the cable
as necessary.
S T E P 26
Reinstall the trim panel and four M6 x 45mm
Socket Flanged Button Screws.
Fold the seat back up.
S T E P 27
Reinstall the inner fender liner, and secure the
inner portion with eight Fender Shield Retainer
Clips.
S T E P 2 8
Using a poly hand riveter, secure the outer
portion of the inner fender liner with six 1/4" x
2-3/16" Nylon Expansion Rivets.
SB-J-JL4DDRV/10TW1 & SB-J-JL4DPAS/10TW1 INSTR_SKU# 011510
C O N G R AT U L AT I O N S !
You have completed the installation for this model! Enjoy your new Stealthbox®!
M I D/ H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of your vehicle.
Location / OEM
Speaker Size
Upper / 3-1/2-inch
C2-350x
Dash
Lower / 4-inch
C1-400x, C2-400x
Outer / 3-1/2-inch
C2-350x
Roll Bar
Inner / 4-inch
C1-400x, C2-400x
(954) 443-1100
All specifications are subject to change without notice. "JL Audio®" and "How we play®" are registered trademarks of JL Audio, Inc. "Ahead of the Curve" and its respective logo are trademarks
of JL Audio, Inc.
Printed in USA • ©2018 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
JLA-SKU# 011510 • ver. 11.29.2018 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
Suggested JL Audio Speaker Models
Coaxial Models
Component Models
C7-350cm
C5-400cm
C7-350cm
C5-400cm
®
