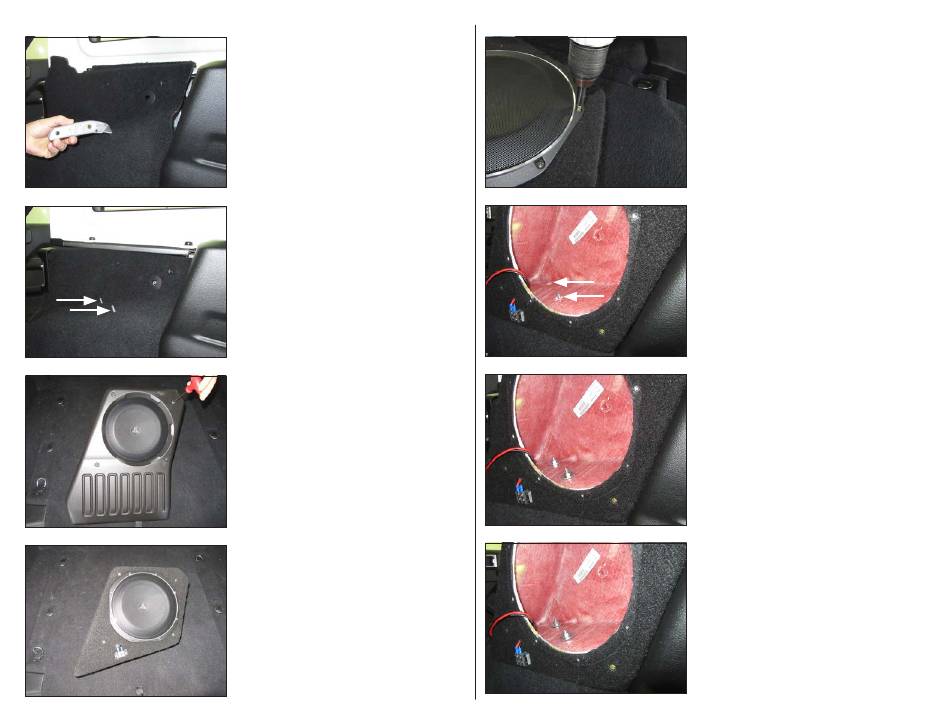

S T E P 17
Push the carpet back down to the wheel well.
Locate the locations of the two 5/16 - 18 x
1-1/4" Square Neck Carriage Bolts. Cut a small
"X" in the carpet to allow the hardware to pass
through.
S T E P 18
Pass the 5/16 - 18 x 1-1/4" Square Neck Carriage
Bolts through the cuts in the carpet, as shown.
S T E P 19
Remove the four M6 x 45mm Socket
Flanged Button Screws from the front of the
Stealthbox®.
S T E P 2 0
Remove the trim panel from the enclosure.
SB-J-JL4DDRV/10TW1 & SB-J-JL4DPAS/10TW1 INSTR_SKU# 011510
S T E P 21
Remove the eight subwoofer mounting screws.
Disconnect the subwoofer, and remove it from
the enclosure. Remove the batting from the
enclosure.
S T E P 22
Place the enclosure onto the wheel well,
allowing the two 5/16 - 18 x 1-1/4" Square Neck
Carriage Bolts to pass through the holes in the
bottom of the enclosure.
S T E P 2 3
Slide a 5/16" Oversized Flat Washer and a 5/16
- 18 Hex Nut over each of the 5/16 - 18 x 1-1/4"
Square Neck Carriage Bolts, and fully tighten.
This allows the enclosure to seat properly over
the Mounting Bracket.
Remove the 5/16 - 18 Hex Nut and 5/16"
Oversized Flat Washer from only one of the
5/16 - 18 x 1-1/4" Square Neck Carriage Bolts.
S T E P 2 4
Slide a 5/16" Rubber Sealing Washer, the
5/16" Oversized Flat Washer, a 5/16" Split Lock
Washer, and the 5/16 - 18 Hex Nut over the
empty 5/16 - 18 x 1-1/4" Square Neck Carriage
Bolt, and fully tighten.
Repeat the process for the other 5/16 - 18 x
1-1/4" Square Neck Carriage Bolt.
Continued on Next Page
