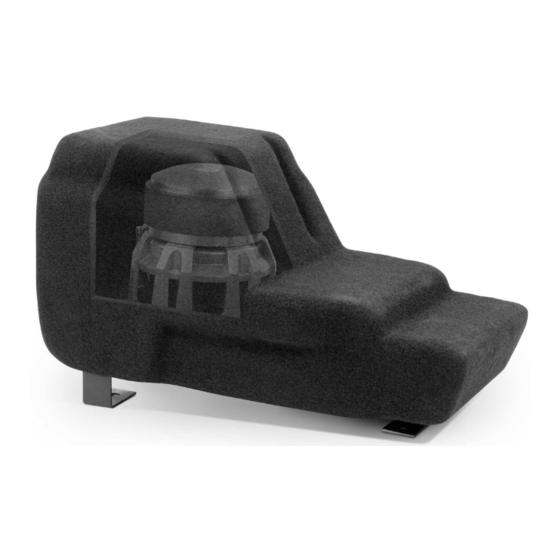

JL Audio Stealthbox SB-F-SUPRCNSL/8W7 Installation Manual

I N S T A L L A T I O N G U I D E
for the
SB-F-SUPRCNSL/8W7 SB-F-SUPRCNSL/8W7
2008-Up Ford Super Duty Trucks 2008-Up Ford Super Duty Trucks
with front bucket seating with front bucket seating
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-F-SUPRCNSL2/8W7_INSTR_SKU#011249 SB-F-SUPRCNSL2/8W7_INSTR_SKU#011249
INSTALLATION
D I F F I C U L T Y :
4
ESTIMATED TIME:
2-3 HOURS 2-3 HOURS
S T E P 1
Remove all contents from the center console.
Remove the center console from the truck.
Keep the mounting bolts that secure the console to the
floor. These are to be reused in future steps.
S T E P 2
Remove the lid.
S T E P 3
Remove the front panel / cup holders
Continued on Next Page
OUT
OF 5
