JL Audio Stealthbox SB-J-JL4DDRV/10TW1-2 Installation Manual page 4

Page 4 • JL Audio, Inc., 2018
S T E P 1
NOTE: This manual illustrates the
installation of the passenger side
Stealthbox®. The installation procedure for
the driver side Stealthbox® will be the same.
The rear wheel has been removed for
illustrative purposes only. It will not be
necessary to remove the wheel in most
instances.

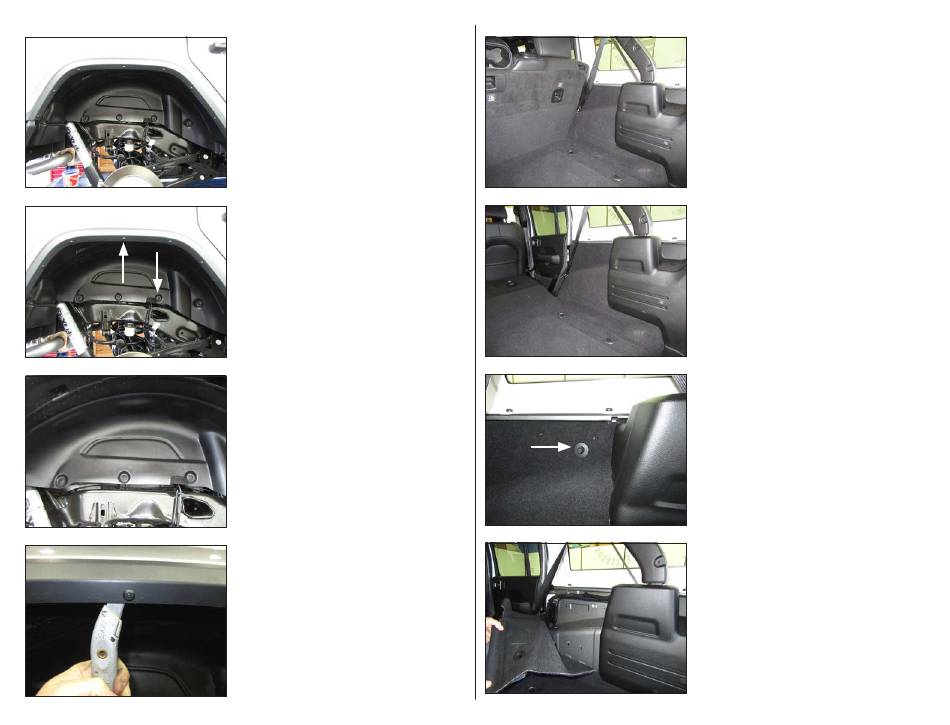

S T E P 2
Locate the eight shield retainer clips and six
nylon rivets that secure the inner fender liner
to the vehicle.
S T E P 3
Unclip and remove the eight shield retainer
clips.
S T E P 4
Using a utility knife or diagonal cutters,
carefully cut through the six nylon rivets
between the inner fender liner and the plastic
fender trim.
Note: Do not cut the two outermost nylon
rivets. They do not need to be removed.
Remove the inner fender liner from the vehicle.
SB-J-JL4DDRV/10TW1 & SB-J-JL4DPAS/10TW1 INSTR_SKU# 011510
S T E P 5
Empty the cargo area of the vehicle.
S T E P 6
Fold the seat back forward.
S T E P 7
Unclip and remove the carpet retainer clip. This
will not be reinstalled.
S T E P 8
Pull the carpet away from the wheel well.
Continued on Next Page
