JL Audio Stealthbox SB-GM-VETC6/10W3v2 Installation Manual

Stealthbox® ®
I N S T A L L A T I O N G U I D E
for the
SB-GM-VETC6/10W3v2
(fits 2005-Up Chevrolet Corvette C6)
This Stealthbox® is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox®
responsibly.
w w w . j l a u d i o . c o m
START
HERE

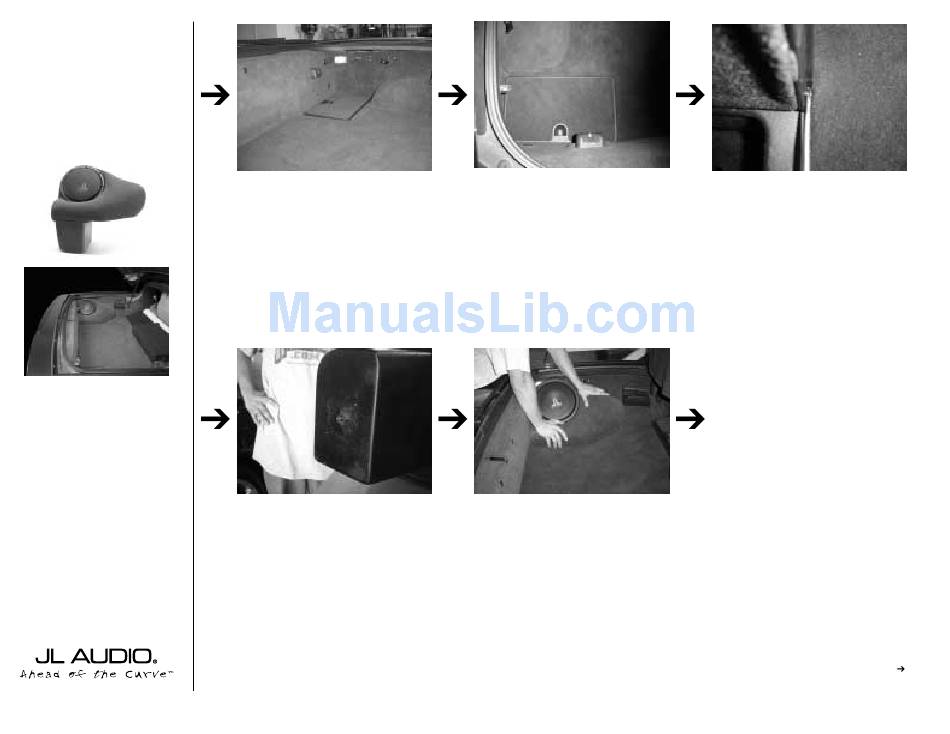

STEP 1: Remove all contents from rear hatch
area.
STEP 4: Place the supplied Socket Cup Set
Screw into the bottom of the Stealthbox®.
Leaving about an 1/2" exposed. Make sure
that the cup side is on the outside of the
enclosure.
S B - G M - V E T C 6 / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 5
STEP 2: Flip open the driver's side cargo
compartment door.
STEP 5: (a)Remove the paper backing off the
supplied wax square.
(b)From inside the right side cargo compart-
ment, place the middle of the wax square 3"
from the front wall and 4-3/4" from the right
side wall.
(c)Place the Stealthbox® into place. Press firm-
ly down onto the enclosure.This is too make
an impression of the Socket Cup Set Screw
onto the wax square. Remove the Stealthbox.
If there is no impression on the wax square,
remove the enclosure, back out the Socket
Cup Set Screw and repeat STEP5: (c).
Pa g e 1
STEP 3: With aid of a flat blade, pop the
door off the hinges. Carful, these are plastic
pieces.
STEP 6: *CAUTION*
Before drilling, make sure that you are not going
to be drilling into any gas lines, brake lines, trans-
mission lines, electrical wiring, or anything else that
might cause a reduction in your weekly pay.
Always wear eye protection when drilling.
With the use of a 1/2" drill bit and drill. Drill out
the floor at the impression on the wax square.
Continued on Next Page
