Getting started
Download and install the LEWITT Control Center 2.0
software (https://lewitt.link/CONTROLCENTER).
Follow the on-screen installation instructions.
Open the LEWITT Control Center 2.0 software.
Connect your STREAM 4x5 to your computer
via USB cable (bus-powered).
Be careful! Always check output levels before using the
STREAM 4x5 to avoid damage to your ears.
//
I/O Section
1
USB connection (bus powered) – Connect
your STREAM 4x5 to your computer
2
Input for external 5V power supply (optional)
3
Smart I/O – 3.5mm TRRS jack for bidirectional
audio transmission
4
1x 3.5mm stereo jack output – Connect your speakers
5
2x 6.3mm balanced audio jack – Connect your studio
monitor speakers.
PLEASE NOTE:
Both speaker outputs are using the same
signal. They always have identical output signal
and level.
6
2x Mic/Line XLR/Instrument combo jack – Connect
your microphone or instrument
7
1x 6.3mm headphone jack (front)
//

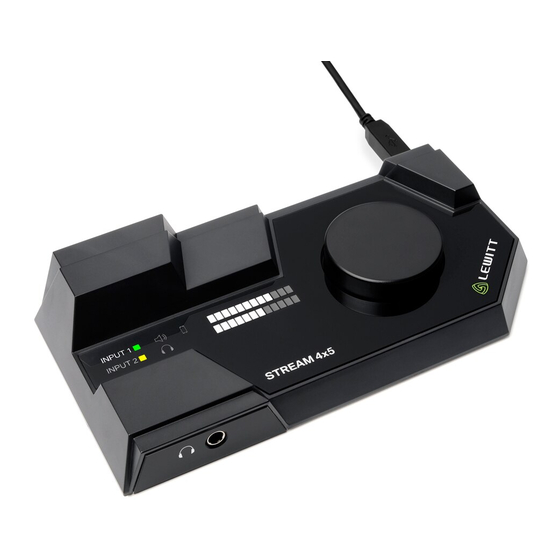

User Interface
8
Input 1
9
Input 2
10
Clipping LED – Green = Signal ok, Orange = Low headroom,
Red = Signal is clipping
11
Speaker output
12
Headphone output
13
Smartphone output
14
Top bar graph
15
Bottom bar graph
16
Jog dial
//
Jog Dial Operation
Push the jog dial to cycle through all available settings.
Rotate the jog dial to change the selected value
(e.g. set gain, output volume, etc.).
Idle State – after 5 seconds of inactivity, the bar graphs switch
to an idle state, showing input or output metering depending
on the last setting you were making.
STREAM 4x5
1
2
3

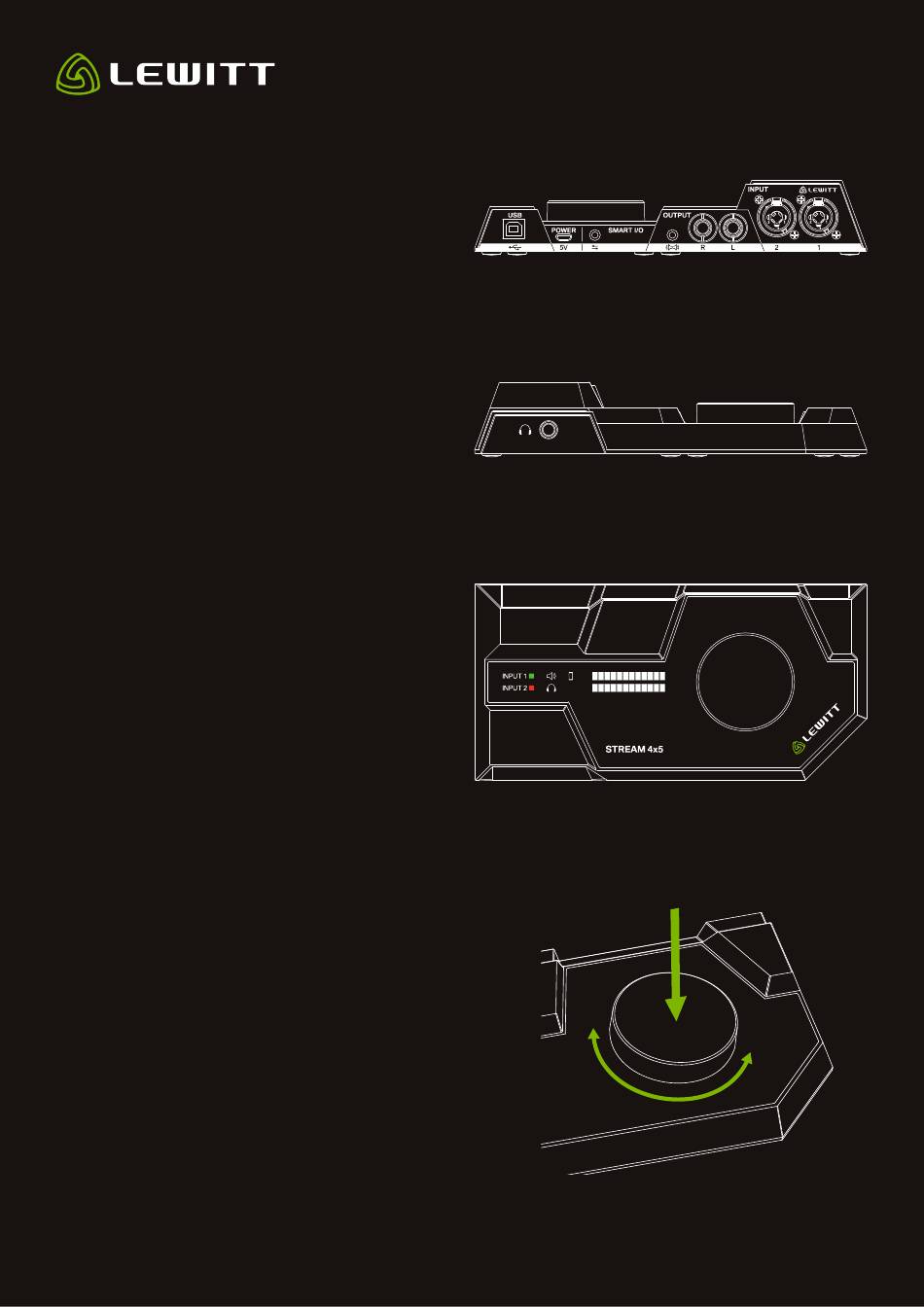

Figure 1 – I/O Section in the back of the interface
7
Figure 2 – I/O Section in the front of the interface
8
10
11 13
9
10
12
Figure 3 – User interface
Figure 4 – Jog dial
QUICKSTART GUIDE
4
5
6
14
16
15
1
