Seametrics S Series Instructions

General Information

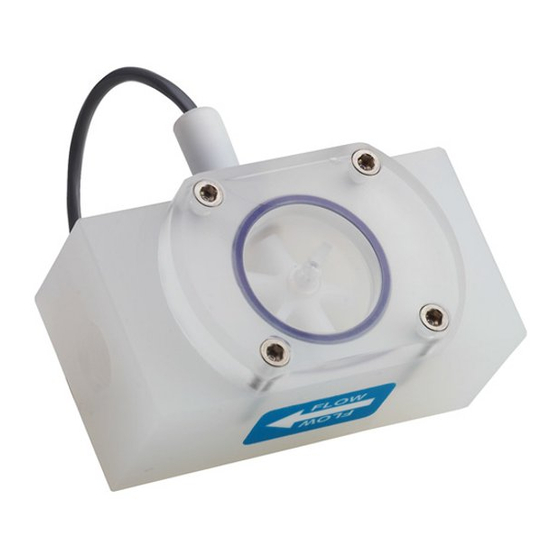

These versatile impeller flowmeters in 3/8" to 1"
nominal pipe size employ jewel bearings for very low
minimum flows. The 6-24 VDC pulse output of these
meters is compatible with many different types of
control, including a full range of SeaMetrics rate displays
and controls. The SeaMetrics FT420 provides flow rate
and total flow, with 4-20 mA ouput. For metering pump
pacing or interfacing with lowspeed counters, the PD10
divider is recommended. The AO55 is a blind 4-20mA
transmitter.
S-Series meters are available in 3/8" to 1" nominal sizes.
The SPX body material is polypropylene, with transpar-
ent a c r y l i c c o v e r s f o r v i s u a l f l o w i n d i c a t i o n .
Polypropylene covers are available as an option.
The SPT is available standard with TFE housing, TFE
cover, PVDF rotor, ceramic shaft, choice of o-ring
material (EPDM or Viton), and optional silicon carbide
shaft.

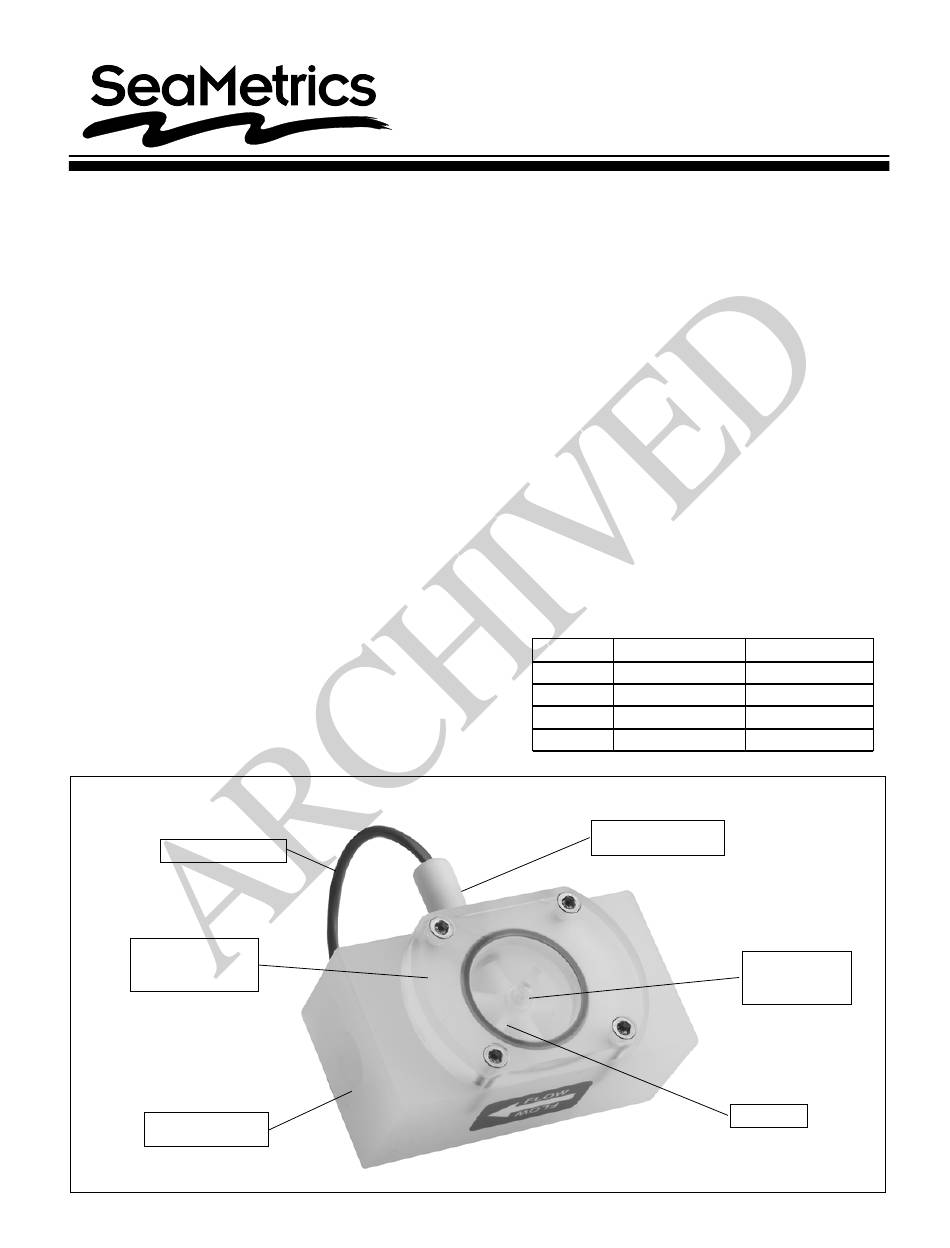

Features
18 ft. standard cable
Standard acrylic top
provides sight flow
indication
3/8"-1" NPT ports
machined into body
S-Series (SPX, SPT)
Low Flow Meter Instructions
Specifications
Connections
3/8", 1/2", 3/4", 1"
Female NPT standard,
SAE thread optional
Materials
Body SPX: Polypropylene,
SPT: TFE
Cover SPX: Acrylic, Polypro optional
SPT: TFE
Rotor PVDF
Shaft SPX: Nickel tungsten carbide,
zirconia ceramic optional
SPT: zirconia ceramic, silicon
carbide optional
Bearings Ruby
Max. Temperature 160° F (70°C)
Max. Pressure 150 PSI (10 bar)
±1% FS
Accuracy
Flow Rates
Size GPM
3/8" 0.07 - 5
1/2" 0.1 - 10
3/4" 0.2 - 20
1" 0.5 - 40
Removable thread-in
sensor 12 VDC pulse
LPM
0.27 - 18.9
0.38 - 37.9
0.75 - 75
1.90 - 150
Jewel bearings
for superior wear
and flow range
Kynar rotor
LT-10624A
