4.1.2
1. Insert the interface converter KP232 in slot A of the frequency inverter.
2. Connect the modem to the interface converter KP232 using the serial cable.
3. For the connection of the modem
4.2
If your computer is already equipped with a modem, you can also use this for
establishing a communication connection. Otherwise, install the modem supplied.
Preconditions for installation:
A free serial RS232 interface (COM) must be available on the PC.
1. Connect the modem to the PC using the serial cable.
2. For the connection of the modem
7
7

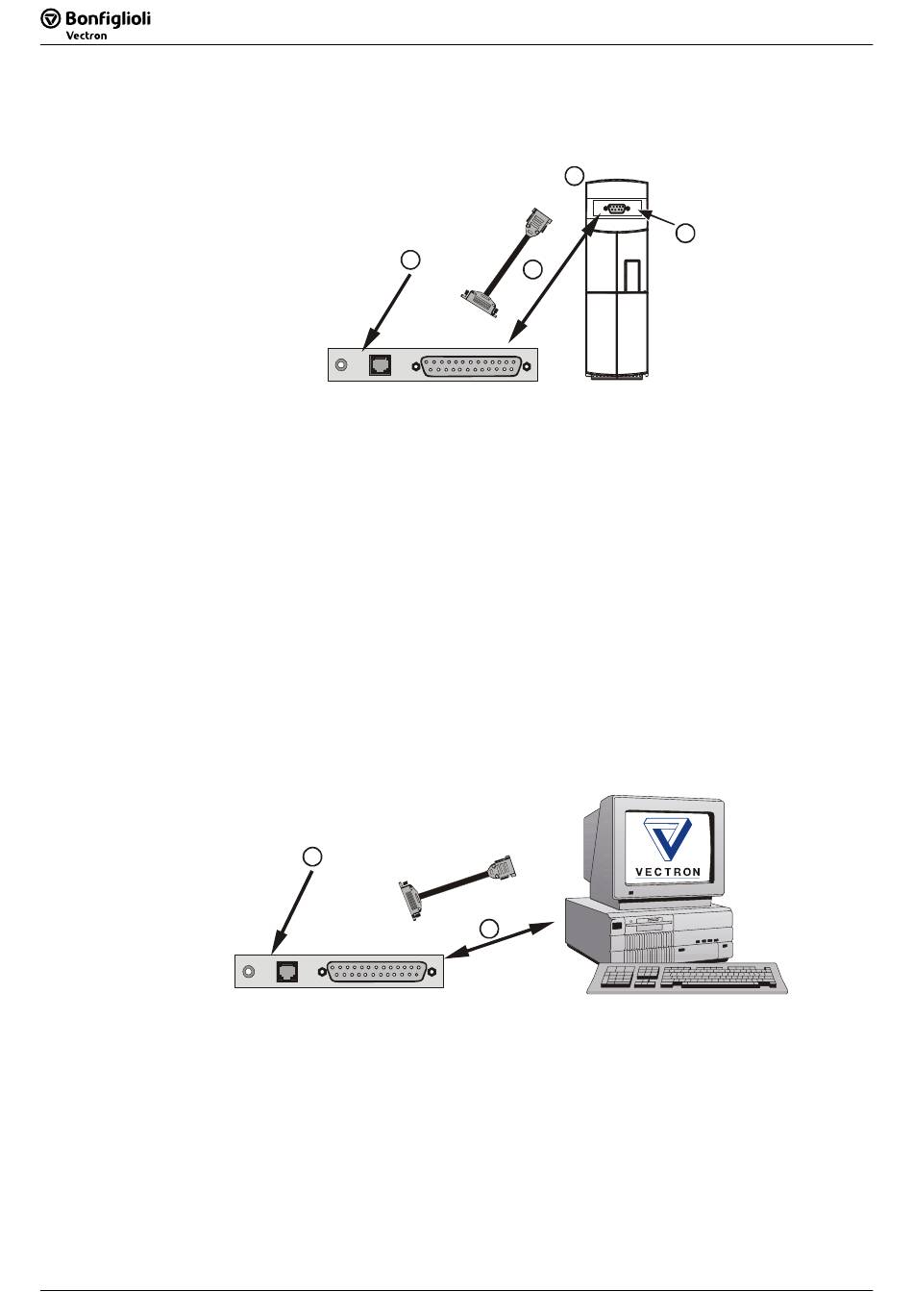

Connecting the Modem to Devices of the ACT and ACU
Series:
• To do this, plug the 25-pin Sub-D connector in the 25-pin Sub-D socket at the
modem.
• Then, plug the 9-pin Sub-D connector at the other end of the cable in the 9-pin
Sub-D socket at the at the interface converter KP232.
− to the telecommunication system and
− power supply,
please refer to the modem operating instructions.

Modem on PC Side

2
•
To do this, plug the 25-pin Sub-D connector in the 25-pin Sub-D socket at the
modem.
• Plug the 9-pin Sub-D socket on the other cable end to the serial interface port
on the computer.
− to the telecommunication system and
− power supply,
please refer to the modem operating instructions.
1
3
2
COM 1 ... 4
1
A
