Section 3 Connect the Card to the Computer
To connect the card to the computer:
1. Plug the small connector at the end of the supplied USB configuration cable
into the setup port on the card (see Figure 3).
Ethernet 10/100
100

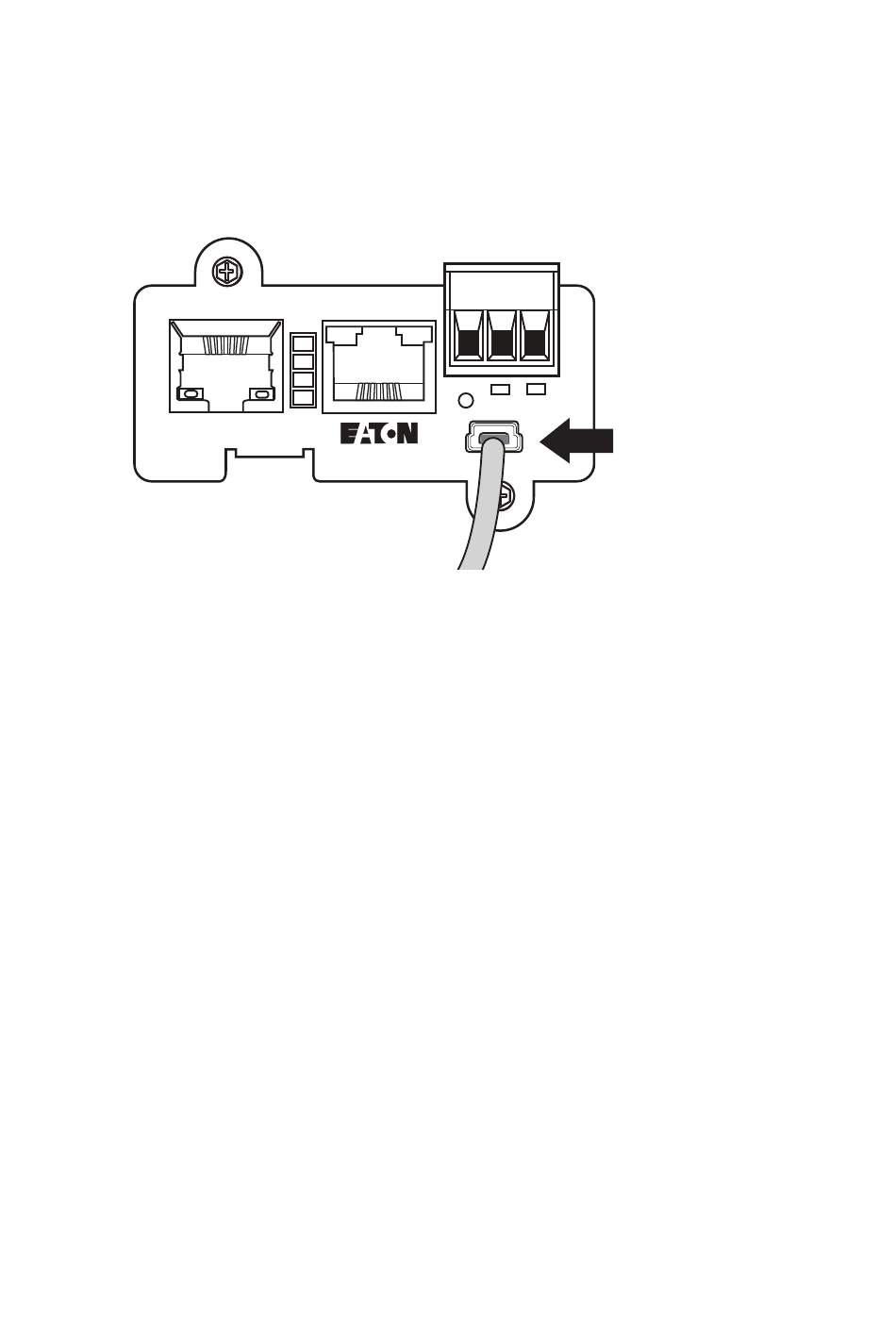

Figure 3. Install the USB Cable
2. Plug the other end of the USB cable into the USB port on the computer. The
Windows operating system detects new hardware.
Note:
Note:
Status
EMP
DHCP
Ident
Act
Power
PXGMS UPS
If a message indicates that the device driver software was not
successfully installed, click Ignore.
You may see a pop-up message window that shows "Found new
hardware. " This indicates that the hardware installed successfully.
Eaton PXGMS Card Quick Start Instructions P-164000208—Rev 2
-
+
