Infinity Interlude IL10 Technical Manual

Technical Manual

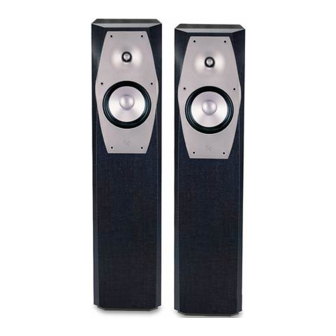

Interlude IL10
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance:
l
Max Amp Power
l
Frequency Response
l
Sensitivity:
l
Crossover Frequency:
l

SYSTEM COMPONENTS:

Cabinet
l
Grille, (Platinum)
l
Low-Frequency Transducer:
l
DC Resistance
High-Frequency Transducer:
l
DC Resistance
Crossover Network
l
PACKING
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
89
150 watts*
56 Hz - 22,000Hz (E3dB)
88dB (2.83V @ 1 meter)
2800Hz; 24dB/octave
IL10 (Not for Sale)
335770-001
6-1/2" (165mm) C.M.M.D.,
shielded (335741-001)
4.5 ohms E10%
1" (25mm) C.M.M.D.,
shielded (335225-003)
3.5 ohms E10%
335620-001

AURAL SWEEP TEST SPECIFICATIONS:

System Aural Sweep Test
l
L.F. Aural Sweep Test
l
H.F. Aural Sweep Test
l

PHYSICAL SPECIFICATIONS:

Enclosure dimensions:
l
Weight
l
WARRANTY:
Refer to Warranty Statement packed with each product.
l
* The maximum recommended amplifier power rating will
ensure proper system headroom to allow for occasional peaks.
We do not recommend sustained operation at these maximum
power levels.

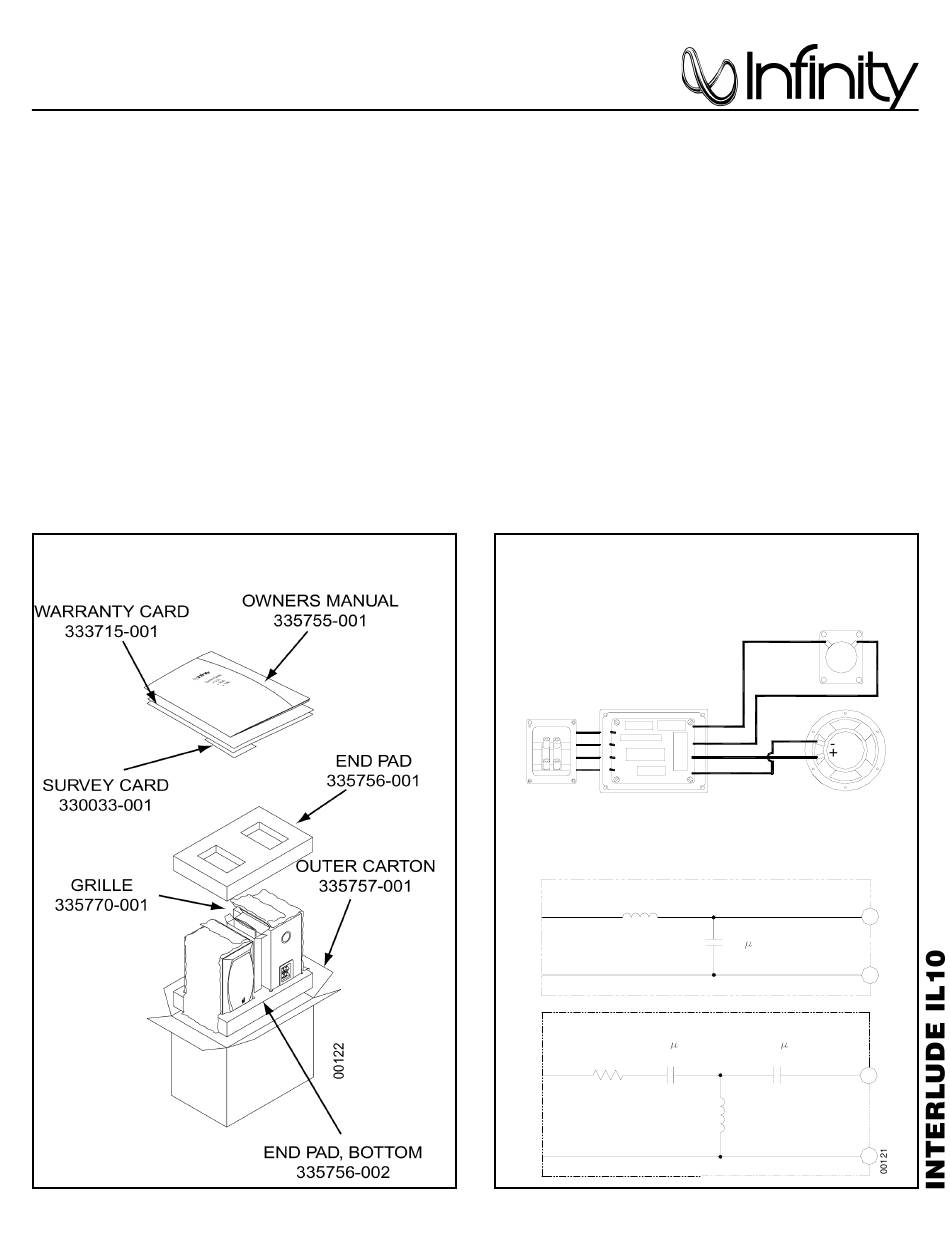

WIRING DIAGRAM
NETWORK, IL10
335620-001
IL10 SCHEMATIC
L1
2.0mH
+IN
-IN
R1
1.50 ohm 2.2 F
10W
+IN
-IN
6.0V Input 50 Hz to 22 kHz
5.0V Input 50 Hz to 3 kHz
2.83V Input 2 kHz to 22 kHz
15-5/8" x 8-1/2" x 11-1/2"
(397mm x 216mm x 292mm)
36 lbs (16.3 kg) Sold in Pairs
HIGH FREQUENCY
TRANSDUCER
335225-003
+ -
YEL
YEL/BLK
GRN
GRN/BLK
LOW FREQUENCY
TRANSDUCER
335741-001
GRN
C1
8.0 F
100V
GRN/BLK
C2 C3
22.0 F
100V 100V
YEL
L2
0.20mH
YEL/BLK
Rev1 04/03
+
L.F.
-
+
H.F.
-
