Infinity Interlude IL25c Technical Manual

Technical Manual

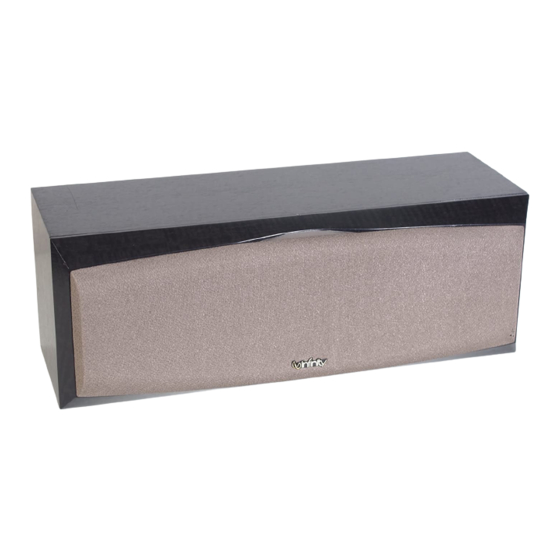

Interlude IL25c
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance:
l
Max Amp Power
l
Frequency Response
l
Sensitivity:
l
Crossover Frequency:
l
SYSTEM COMPONENTS:
Cabinet
l
Grille, (Platinum)
l
Mid-Bass Transducer:
l
DC Resistance
High-Frequency Transducer:
l
DC Resistance
Crossover Network
l
PACKING
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
89
150 watts*
80 Hz - 22kHz (E3dB)
90dB (2.83V @ 1 meter)
2200Hz; 24dB/octave
IL25c (Not for Sale)
335838-001
(2)5-1/4" (133mm) C.M.M.D.,
shielded (335764-001)
9.89 E10%
1" (25mm) C.M.M.D.,
shielded (335225-003)
3.5 ohms E10%
336024-001
AURAL SWEEP TEST SPECIFICATIONS:
System Aural Sweep Test
l
L.F. Aural Sweep Test
l
H.F. Aural Sweep Test
l
PHYSICAL SPECIFICATIONS:
Enclosure dimensions:
l
Weight
l
WARRANTY:
Refer to Warranty Statement packed with each product.
l
* The maximum recommended amplifier power rating will
ensure proper system headroom to allow for occasional peaks.
We do not recommend sustained operation at these maximum
power levels.

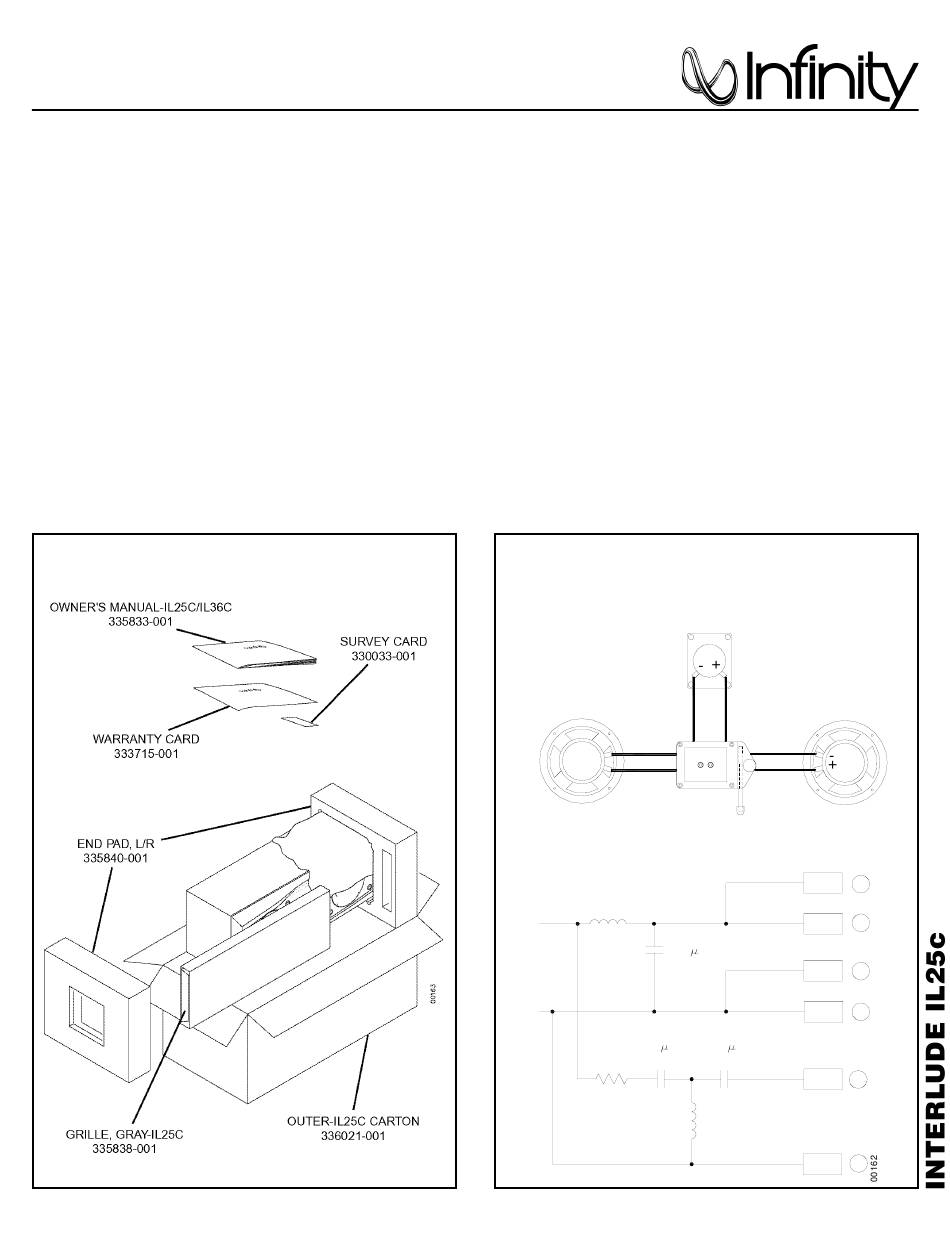

WIRING DIAGRAM

HIGH FREQUENCY
MIDBASS FREQUENCY
TRANSDUCER
YEL/BLK
335764-001
GRN/BLK
-
GRN
+
NETWORK, IL25C
IL25C SCHEMATIC
L1
1.10mH
+IN
-IN
R1 C2
1.30 ohm
3.0
10W 100V
0.33mH
6.0V Input 80 Hz to 22 kHz
5.0V Input 80 Hz to 3 kHz
2.83V Input 2 kHz to 22 kHz
7-1/2" x 20-1/2" x 7-1/2"
(19.1cm x 52.1cm x 19.1cm)
20 lbs (9.1 kg) each
TRANSDUCER
335225-003
MIDBASS FREQUENCY
TRANSDUCER
YEL
335764-001
GRN/BLK
GRN
336024-001
GRN
.250
GRN
.250
C1
20.0 F
GRN/BLK
100V
.205
GRN/BLK
.205
C3
F 28.0 F
100V
YEL
.187
L2
YEL/BLK
.110
Rev1 04/03
+
L.F.
+
-
L.F.
-
+
H.F.
-
