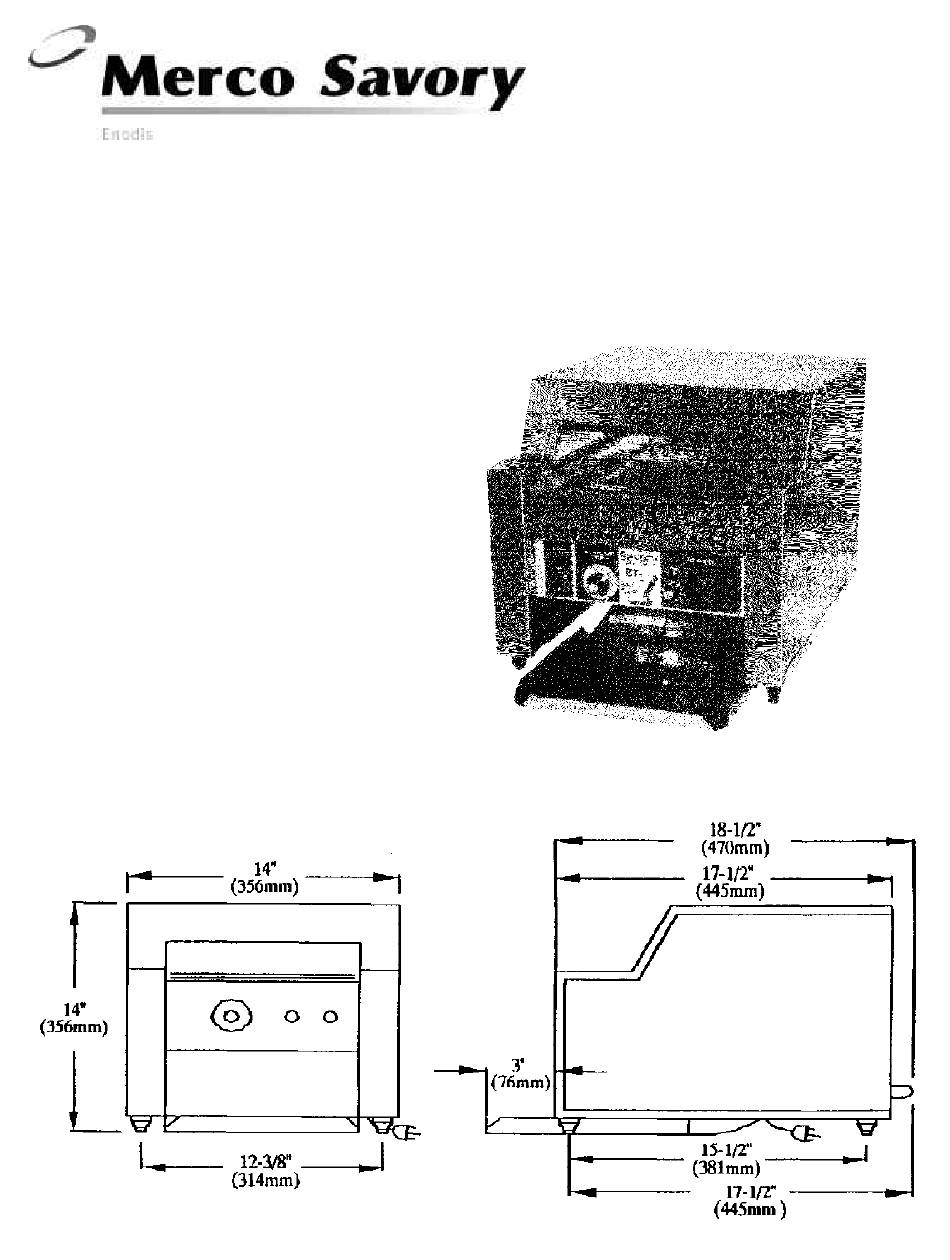

PARTS & SERVICE for BT-1 Mini Conveyor Bagel
Toaster
The BT-1 Mini-Conveyor Bagel Toaster is engineered
for efficient, dependable service throughout the years.
Like any piece of fine equipment with moving parts and
broad temperature ranges, physical wear takes its toll.
When this happens, the information found in this manual
will prove very helpful. Although the instructions are
easy to follow, all repair procedures should be carried out
by a qualified Merco/Savory Certified Service Repre-
sentative.
The savory BT-1 compact bagel toaster brings the
advantages of conveyor style toasting to your lower
volume needs. The BT-1 is designed to toast the product
on the top side only. The heater control knob and the
conveyor speed knob enable the operator to adjust to the
desired toasting requirements. The BT-1 can produce up
to 425 bagel halves per hour. (Depending on moisture
and sugar content of product as well as color preference.)
The BT-1 Bagel Toaster is available in
120 volt, single phase, AC only.
1200-JDM
07153
Advertisement
Related Manuals for Merco BT-1
Summary of Contents for Merco BT-1
- Page 1 The savory BT-1 compact bagel toaster brings the advantages of conveyor style toasting to your lower volume needs. The BT-1 is designed to toast the product on the top side only. The heater control knob and the conveyor speed knob enable the operator to adjust to the desired toasting requirements.
-
Page 2: General Information
The information on the following pages will describe how to replace the most common components of the (Figure 1 & 2) BT-1 Toaster. Though the instructions are easy to 1. Remove the bottom cover. follow, the work should be done ONLY by a qualified 2. - Page 3 C Conveyor Speed Control/ E Fan/Fan Housing/Fan Motor P.C. Board (Figure 2) (Figure 1 & 2) 1. Remove the bottom cover. 1. Remove bottom cover. 2. Rotate Fan Blades which will expose 2 nuts securing 2. Pull off speed control knob and remove the nut the fan housing to the motor.
- Page 4 F Terminal Block I Conveyor Shaft Sprocket (Figure 2) (Figure 3, 5 & 6) 1. Remove right side panel and bottom cover. 1. Remove right side panel. (Section A) 2. Remove the wires at the terminal ends, 2. Remove drive chain. (Section H) noting proper wire orientation.
- Page 5 K Front and Rear M Individual Heating Shafts and Bearings Element (Figure 3, 4, 5 & 6) (Figure 3, 4, 8, 9 & 10) 1. Remove right and left side panels. (Section A) 1. Remove heating element assembly. 2. To remove front shaft and front shaft bearings: (Section M) Remove bearing retainers on both sides of toaster.
- Page 8 1111 N. Hadley Rd. Fort Wayne, In. 46804 Tel. 800-701-2992 Fax (260) 436-0735 www.mercosavory.com...
