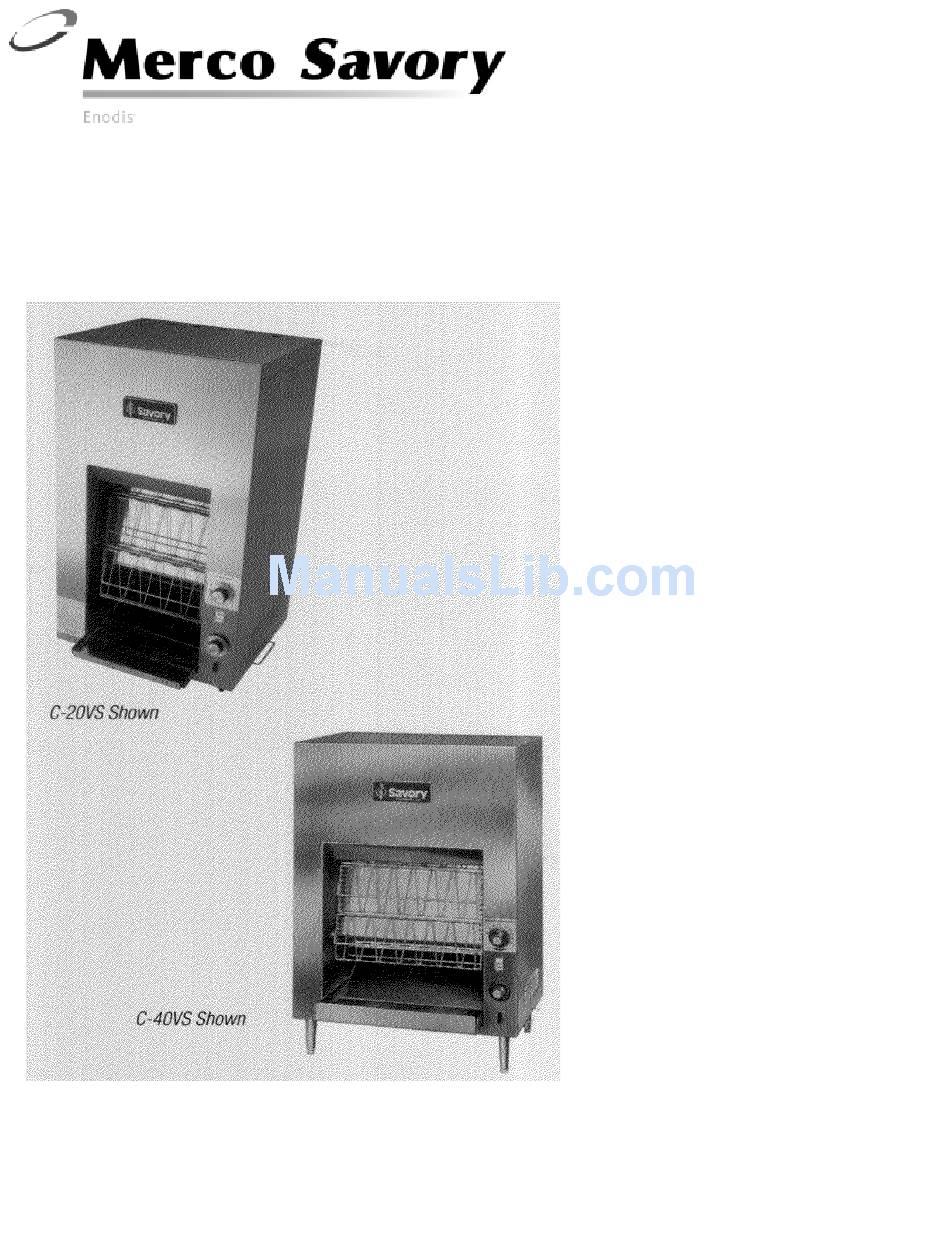

Merco C-20VS Installation & Operation Manual

Vertical conveyor toasters

INSTALLATION & OPERATION MANUAL for C-20VS and C-40VS

Vertical Conveyor Toasters

The C-20VS and C-40VS vertical conveyor

toasters are capable of toasting breads, buns,

bagels, English muffins and more. The C-

20VS produces up to 920 slices per hour and

the C-40VS produces up to 1200 slices per

hour. The C-20VS and C-40VS differ only in

size and capacity. The information contained

in this manual will pertain to both models

except where noted.

Standard features include: Front or Rear

delivery capability, variable conveyor speed,

one or two-sided toasting, durable, easy to

clean stainless steel construction.

NOTE: This manual contains important

safety, installation and operation instruc-

tions. Require all operators to read this

manual before using the unit. Failure to

follow the instructions contained in this

manual may cause injury, damage to the

unit and will void the warranthy.

THIS MANUAL SHOULD BE RETAINED FOR FUTURE USE

0101-JDM

07104

Table of Contents

Need help?

Do you have a question about the C-20VS and is the answer not in the manual?

Page 1 INSTALLATION & OPERATION MANUAL for C-20VS and C-40VS Vertical Conveyor Toasters The C-20VS and C-40VS vertical conveyor toasters are capable of toasting breads, buns, bagels, English muffins and more. The C- 20VS produces up to 920 slices per hour and the C-40VS produces up to 1200 slices per hour.
Page 2: Before Installation
2 protruding pins. 2. To install product carriers, rotate chain until master link is centered at front of toaster. Press one chain to the side so carrier can engage the first 2 pins directly under the blank space created by the master link on each chain. Make sure both sides of carrier have engaged parallel pins.
Page 3: Operation Instructions
CAUTION: UNPLUG TOASTER AND ALLOW TO COOL BEFORE CLEANING. The C-20VS and C-40VS toasters are designed for easy cleaning. Crumbs will collect only in the receiving tray. It can be readily removed for cleaning. The lustrous outer surface need nothing more than a daily wiping with a soft damp cloth.
Page 4 1111 N. Hadley Rd. Fort Wayne, In 46804 Tel. 800-701-2992 Fax (260) 436-0735 www.mercosavory.com...

C-40vs
