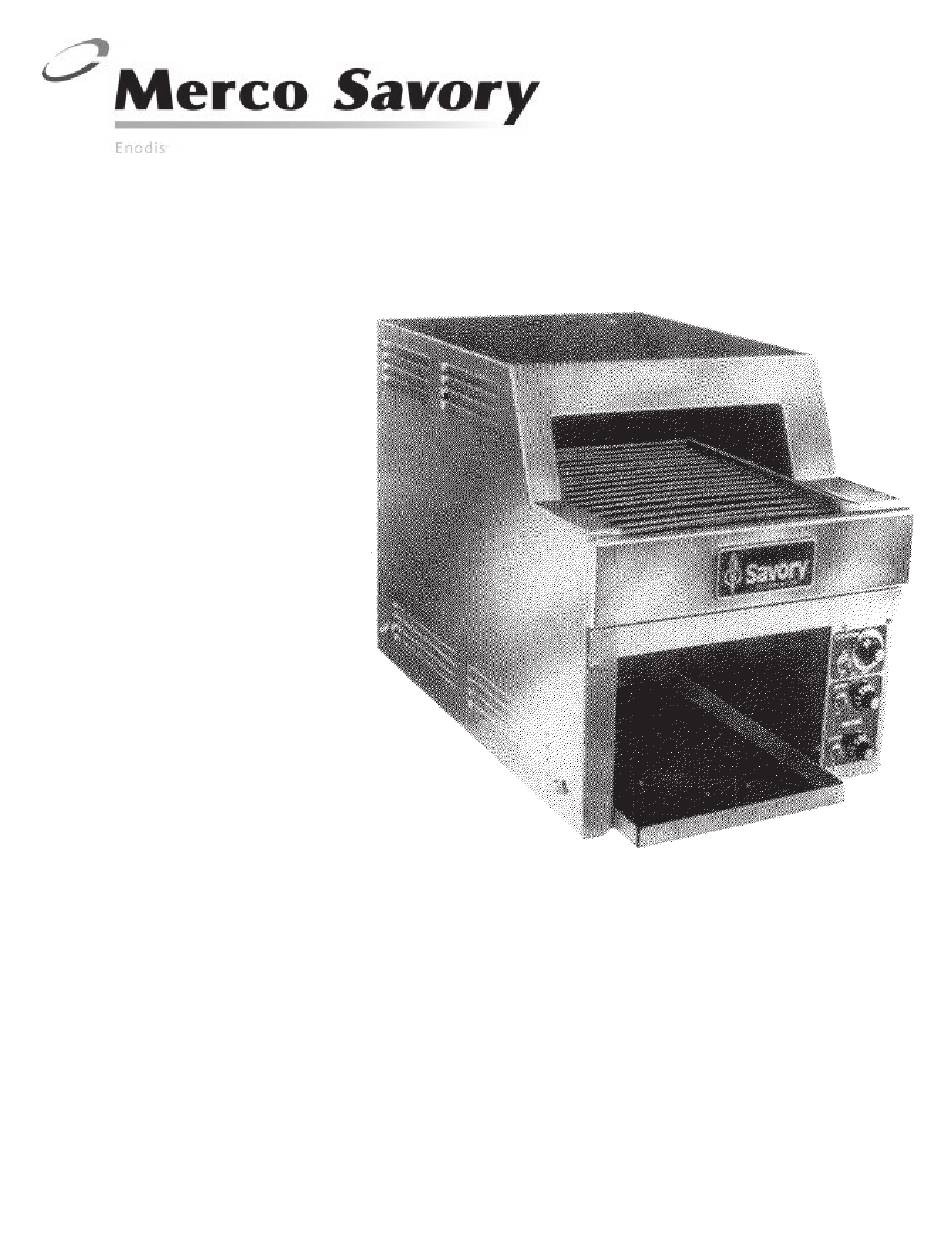

PARTS & SERVICE MANUAL for RT-2AR
The information found in this Manual
will prove very helpful. Although the
instructions are easy to follow, all
repair procedures should be carried
out by a qualified Merco/Savory
Certified Service Representative.
The RT-2AR should be placed in the
most convenient location for ease of
cleaning, maintenance, service and
general operation. Careful consider-
ation should be given to avoid drafts,
close proximity to grease or vapor-
producing appliances or high ambient
heat equipment. Minimum of ½"
clearance is required for air circula-
tion. This is assured by the rounded
"acorn" nuts protuding from the sides
and rear. Overhead clearance from the
top of the toaster should be as much
as possible and sufficient to allow heat
dissipation.
DESCRIPTION
Inf Control 208V
Inf Control 240V
Knob Inf Control
Element upper 890W 208V *
Element upper 890W 240V *
Element assy lower 208V
Element assy lower 240V
Element lower 1200W 208V *
Element lower 1185W 240V *
Element assy upper 208V
Element assy upper 240V
Motor 208/240V
Speed control 208/240V
Switch, toggle DPST 20a
Knob, speed control
05-02kdl
"Adjustable Range" Toaster
Part#
Qty
14702
2
12355
2
12919
2
21103
2
21105
2
12618
1
12620
1
12126
2
21103
1
12254
1
12266
1
22743
1
21842
1
68117
1
12447
1
DESCRIPTION
Cordset, 6-30P
Light Pilot 208/240V
Bearings
Wire harness kit(wires only)
Jumper
Terminal block
Drive chain 54 links
32T sprocket assy
8T sprocket asst
Front trim, left side
Legs 1" plastic
Control panel
Control panel decal
Savory logo
Savory lubricant
Part#
Qty
21221
1
51070
2
22754
4
12933
1
21358
4
21858
1
12412
1
21319
1
30494
1
12219
1
12668
4
12060
1
12061
1
12523
1
21720
1
07155
