INSTALLATION & OPERATION MANUAL for RT-2T
NOTE: Upon receipt of this unit, immediately unpack and inspect for possible concealed
shipping damage. If unit is found to be damaged, save all packing materials and contact your
delivery carrier within 5 days. Refer to "Shipping Damage Instructions" enclosed for detailed
instructions. Failure to follow these instructions will negate Merco/Savory's or your ability to
file claims and receive compensation for shipping damage.
This manual contains important safety and installation-operation instructions. Require all operators to read this
manual before using the unit. Failure to follow the instructions contained in this manual may cause injury, dam-
age to the unit, and will void the warranty.
THIS MANUAL SHOULD BE RETAINED FOR FUTURE USE
0201-JDM

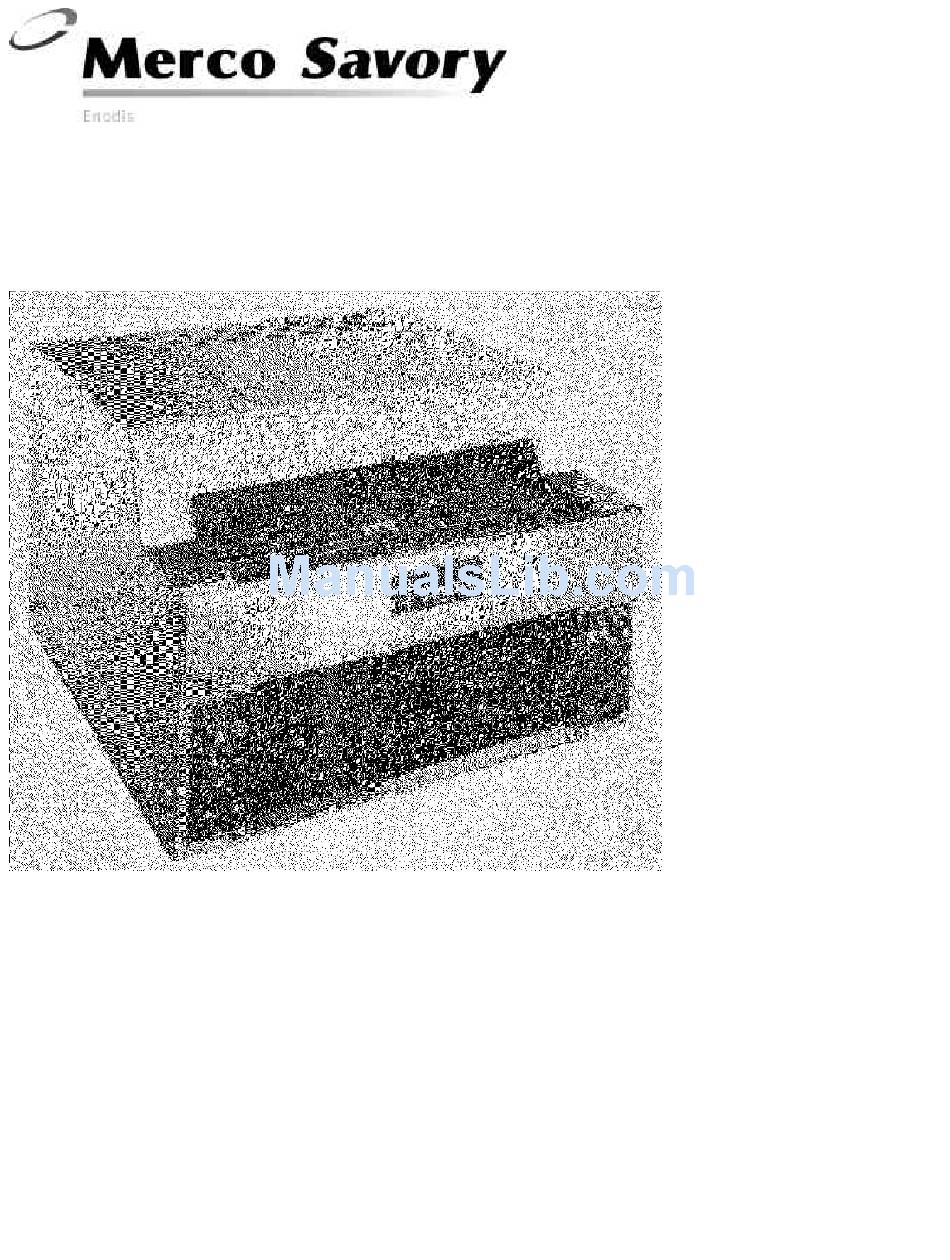

Twin Toaster
The RT-2T "Twin Toaster" is a
horizontal conveyor toaster with
two identical conveyor systems.
Each conveyor has independent
controls for speed and tempera-
ture. Products such as: sliced
breads, buns, bagels, rolls,
English muffins, pitas, frozen
waffles, French and Italian
breads can all be toasted or
warmed in almost any combina-
tion. Standard features include
the choice of toasting one side
or both sides of a product,
variable heat and variable speed
controls.
The RT-2T should be placed in
the most convenient location for
ease of cleaning, maintenance,
service and general operation.
Careful consideration should be
given to avoid drafts, close
proximity to grease or vapor-
production appliance, or other
high ambient heat equipment.
Minimum of ½" clearance is
required for air circulation. This
is assured by the rounded
"acorn" nuts protruding from the
sides and rear. Overhead clear-
ance from the top of the toaster
should be as much as possible
and sufficient to allow heat
dissipation.
07007
