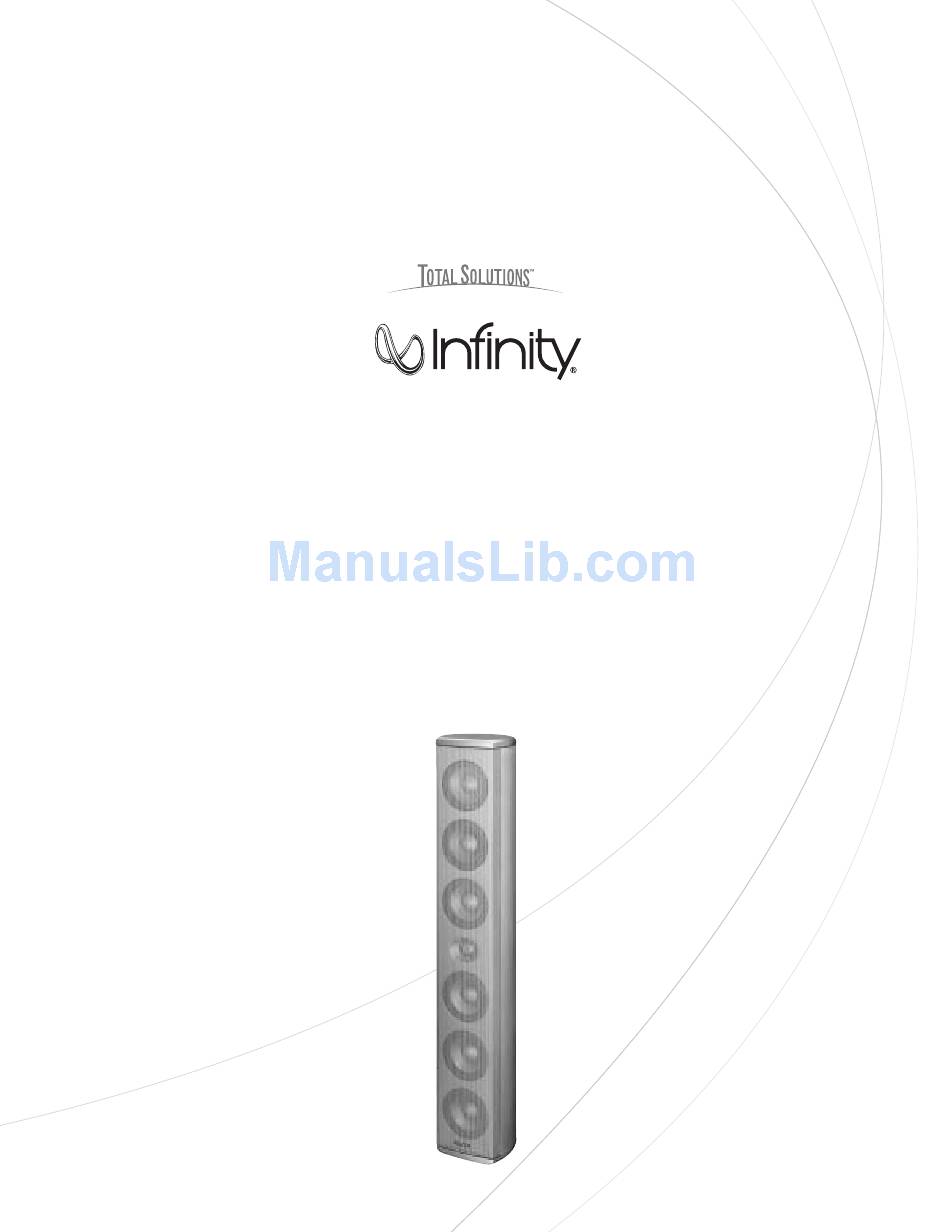

- Page 1 TSS-4000 OTAL PEAKER OLUTIONS TSS-SAT4000 Owner’s Guide...
-
Page 2: Table Of Contents
TSS-SAT4000 TSS-SAT4000 O WNER ’ S UIDE Table of Contents Introduction Planning Your System Placement Installation Tabletop/Shelf Placement Assembly Wall-Mounting the TSS-SAT4000 Using the Included Wall Bracket Wiring the Speaker Specifications... -
Page 3: Introduction
NTRODUCTION Infinity Total Solutions ™ Infinity Total Solutions continues Infinity’s longstanding commitment to accurate sound reproduction. Our proprietary Metal Matrix Diaphragm ™ (MMD ® ) drivers, precision dividing networks and rigid, well-braced enclosures combine to deliver uncompromised performance in any stereo or multichannel home theater system. -
Page 4: Planning Your System
TV without worrying about the magnetic field distorting the picture. Surround Channels For left and right surround channels, place one speaker on the left and another on the right, to the side of or slightly behind the Right Surround listening area.The surround speakers should be mounted at a... -
Page 5: Installation
TSS-SAT4000. Before proceeding, you should decide how you would like to install the TSS-SAT4000.The TSS-SAT4000 may be mounted on the included shelf stands; mounted on the wall using the included wall brackets; recessed in the wall using an optional flush-mount kit; or mounted to our optional floor stands. - Page 6 Step Two For Small Table Stand Assembly Using the included Allen wrench, remove the bottom end cap of the speaker by unscrewing the single center screw on bottom. Satellite Speaker Infinity Logo NOTE: The bottom is the side closest to the Infinity...
- Page 7 Step Two For Medium and Large Table Stand Assembly Using the included Allen wrench, remove the bottom end cap of the speaker by unscrewing the single center screw on bottom. Satellite Speaker Infinity Logo NOTE: The bottom is the side closest to the Infinity...
-
Page 8: Wall-Mounting The Tss-Sat4000 Using The Included Wall Bracket
TSS-SAT4000 Step Four Using the included Allen wrench, remove the bottom end cap of the speaker by unscrewing the single center screw on bottom. End Cap Satellite Speaker Infinity Logo NOTE: The bottom is the... -
Page 9: Surround Modes
Consult the owner’s manuals, included with your amplifier or receiver, for connection and operation procedures. Surround Modes When using the TSS-SAT4000 in a Dolby* Digital or DTS theater system, make sure the receiver’s/processor’s speaker modes are set to “Small.” Wiring and Polarity The TSS-SAT4000 speaker has gold-plated terminals that can accept bare wire.To ensure proper polarity, connect each... -
Page 10: Specifications
(584mm x 105mm x 111mm) Weight 12.7 lb (5.8kg) Infinity continually strives to update and improve existing products, as well as create new ones. The specifications and construction details in this and related Infinity publications are therefore subject to change without notice. - Page 11 OTES TSS-SAT4000...
- Page 12 Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4INF (USA only) www.infinitysystems.com * Trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theater Systems, Inc. Infinity and MMD are registered trademarks, and Total Solutions and Metal Matrix Diaphragm are trademarks, of Harman International Industries, Incorporated. Part No. 400-OMSAT 10/04...
