Unitech MS842RB Quick Start Manual

Unitech MS842RB Quick Start Manual

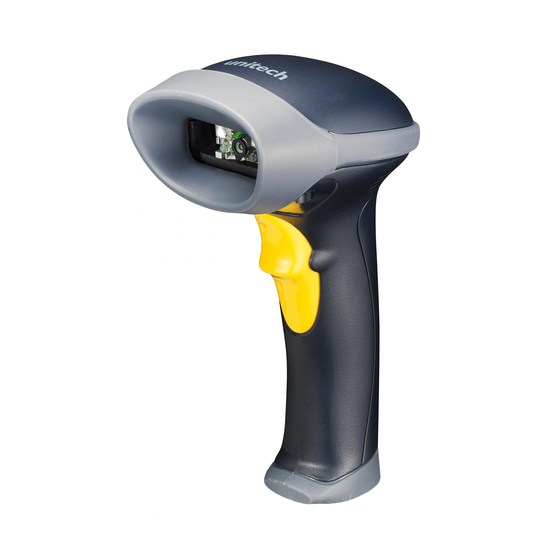

Wireless 2d imager scanner
Hide thumbs Also See for MS842RB:

Advertisement

Quick Links

STEP2:Charge
Connect the power supply cable to
the bottom of the MS842RB and to
an electrical outlet. Charge for at
least 5 hours.
Plug the power supply cable into the
MS842RB cradle and into an electrical
outlet. Plug the interface cable into the
MS842RB cradle. You must also
connect it to the USB port on your
computer. Charge for at least 5 hours.
STEP5:
Pincode Start
You will now enter a pincode to pair the
MS842RB with your device. Scan here to
indicate the beginning of the pincode
sequence. (Please follow the instruction on
the rihgt for alphanumeric barcodes setting)

Test and Finish

Open a word processing program such
If the word "Unitech" appears on the
screen you have succesfully installed
your scanner.
* :Default Option
For more detailed scanner setting, please go to www.ute.com to download the user manual and the
scanner configuration manager utility.
STEP3:Begin Pairing
The following steps will enable a direct
connection between MS842RB and the
host, without the cradle. First, scan here
to activate cradle-less mode.
Scan the barcode below to begin pairing
the MS842RB using the cradle.

Alphanumeric Barcodes

Scan the alphanumeric barcodes according to the pin code.Once finished
scanning the pin code input, Scan "Enter" barcode to exit the mode.
Scan " Backspace " barcode as single time backspace.
(0)
(4)
(7)
(Enter)
MS842RB

Setup and Installation

The following steps will walk you through
the installation process.
STEP1:Power On
Switch the power button to the ON position.
STEP4:
Turn Bluetooth On
Go to your device (phone/tablet/computer) settings
and turn the Bluetooth function on.
The MS842RB will appear on your device as
"HID Scanner" or "BT HID Scanner
"Select/Press "HID Scanner"

Scan Cradle Barcode

Scan the barcode label that appears under the
cradle. The scanner will beep one time and the
LED light will blink to indicate the pairing process
has been successful. Your device is now ready to
use.
(1)
(2)
(5)
(8)
Wireless 2D Imager Scanner

Quick Start Guide

(3)
(6)
(9)
(Backspace)
Version 1.0
401258G
