54
2. To ensure that the deck is in the lowest position, push the
pedal by hand towards the rear of the unit and install the
height adjustment pin in the 3" (7.6 cm) position to hold in
place.
3. Block up the mower deck until all hanger chains are
slack.

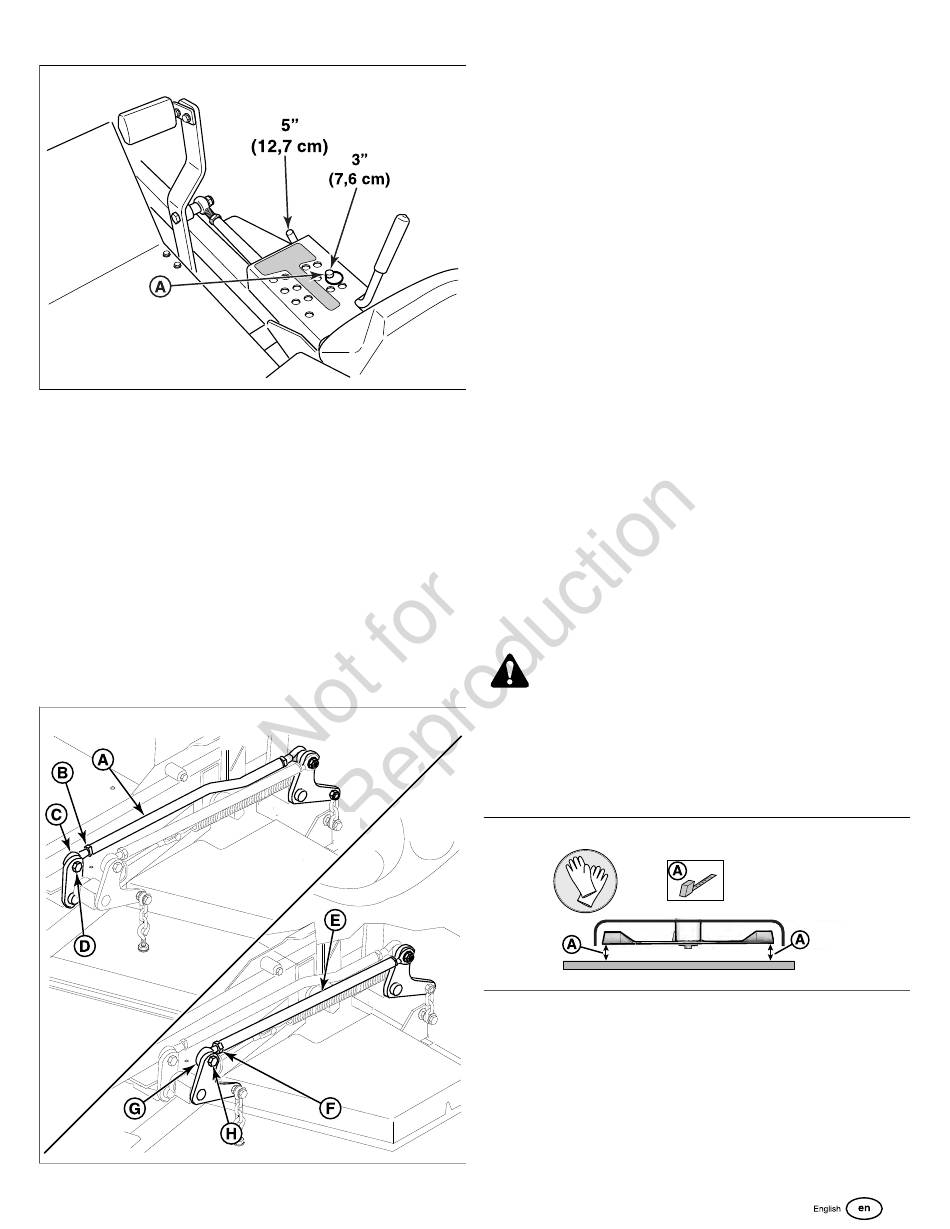

4. To adjust the inner lift rod (A, Figure 55): Loosen the
jam nut (B) on the front ball joint (C) then remove the
1/2" hardware (D) fastening the ball joint to the lift
pivot arm. Turn the ball joint clockwise to shorten the
distance between the rod pivots or counter-clockwise to
lengthen the distance between the rod pivots. Reinstall
the ball joint on the lift pivot arm and secure with the
1/2" hardware previously removed. Tighten the jam nut
against the lift rod.
55
5. To adjust the outer lift rod (E): Loosen the jam nut (F) on
the front ball joint (G) then remove the 1/2" hardware (H)
fastening the ball joint to the lift pivot arm. Turn the ball
joint clockwise to shorten the distance between the rod
pivots or counter-clockwise to lengthen the distance
between the rod pivots. Reinstall the ball joint on the lift
pivot arm and secure with the 1/2" hardware previously
removed. Tighten the jam nut against the lift rod.
6. Remove blocks from under the mower deck.
7. Remove the cutting height adjustment pin from in front
of the deck lift pedal arm. Lift mower deck and reinstall
adjustment pin in desired mowing height.

Deck Leveling Adjustment

Before adjusting the deck level, the deck lift rod timing must
be checked and/or adjusted.
Determining if the Deck Leveling Needs to be
Adjusted
1. Park the unit on a flat, level surface. Disengage the PTO,
engage the parking brake, turn the ignition switch to OFF,
and remove the ignition key.
2. Lock the deck lift pedal in the TRANSPORT position.
Place the cutting height adjustment pin in the 4" position
and lower the deck lift pedal until the deck lift arm
contacts the cutting height adjustment pin.
3. Verify that the tires are inflated to the correct pressure.
4. Verify that the mower blades are flat, and not bent or
broken. A bent or broken blade must be replaced.
WARNING
Avoid Injury! Mower blades are sharp.
Always wear gloves when handling blades or working near
blades.
5. See Figure 56. Position the outside mower blades so they
face front-to-back.
56
6. Measure the front tip (A, Figure 56) of the blade from the
cutting edge to the ground.
7. Measure the rear tip (A) of the blade from the cutting
edge to the ground.
8. Repeat the process on the other side of the machine.
• the front measurements should equal 4" (10,2 cm).
• the rear measurements should equal 4-1/4" (10,8
cm)
