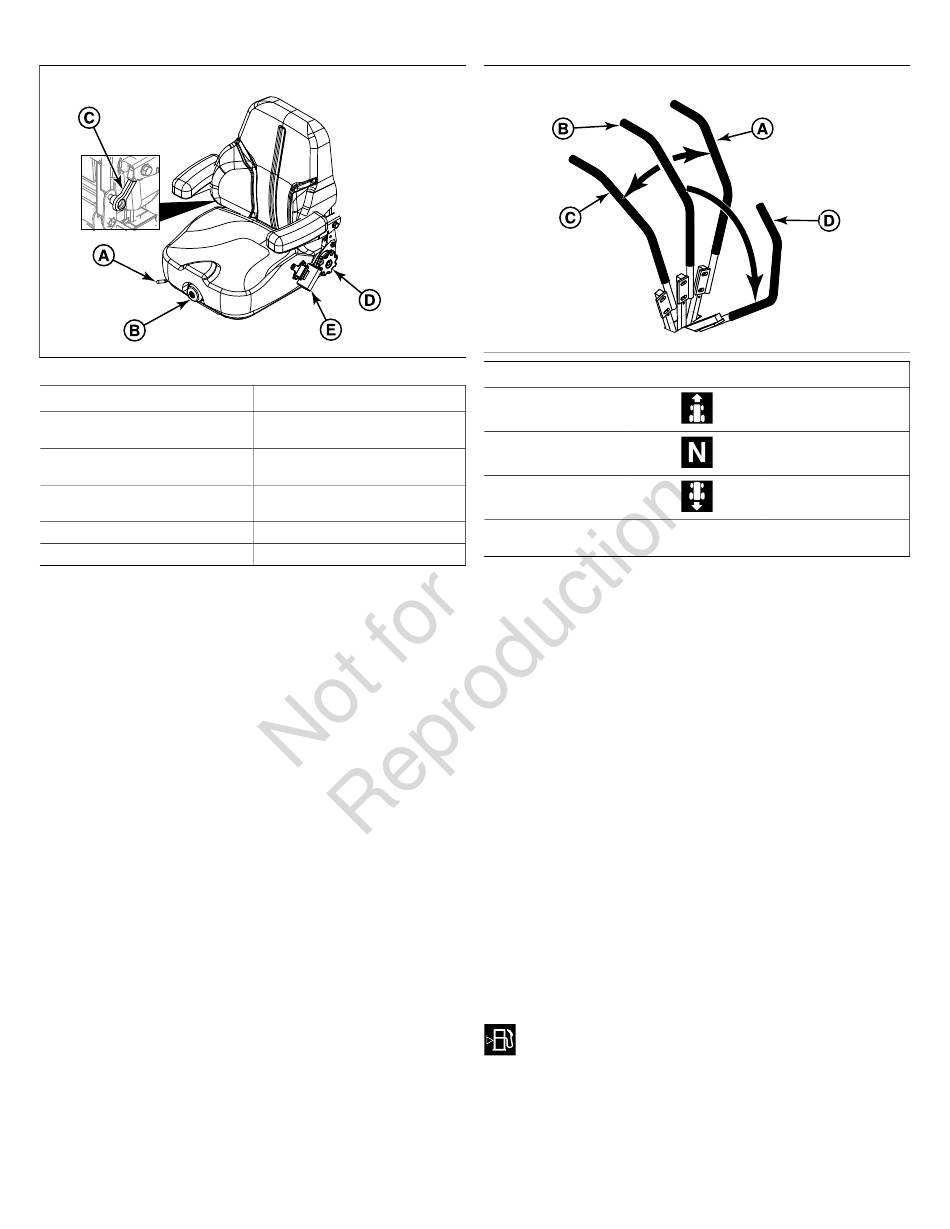

Seat Adjustment Lever (Forwards / Backwards): The
seat can be adjusted forward and back. Move the forwards /
backwards seat adjustment lever, position the seat as
desired, and release the lever to lock the seat in position.
Seat Adjustment Knob (Suspension/Ride Comfort): The
seat adjustment knob adjusts the suspension of the seat (ride
comfort). Turn the adjustment knob until the display scale has
a reading that matches the weight of the operator.
Lumbar Adjustment Lever: Turn the lumbar adjustment
knob until the desired amount of lumbar is achieved.
Back Angle Adjustment Knob: Turn the back angle
adjustment knob until the desired amount of back angle is
achieved.
Ground Speed Control Levers: These levers control the
ground speed and direction of the rider. The left lever controls
the left rear drive wheel and the right lever controls the right
rear drive wheel.
14
Control Name
Seat Adjustment Lever (Forwards /
Backwards)
Seat Adjustment Knob (Suspension/
Ride Comfort)
Lumbar Adjustment Lever (Located
underneath right hand arm rest)
Back Angle Adjustment Knob
Retractable Seat Belt
8
Callout
A
B
C
D
The parking brake must be disengaged before attempting to
move the ground speed control levers from the NEUTRAL
position.
Moving a lever forward (A) from the NEUTRAL position (B)
increases the FORWARD speed of the associated wheel, and
pulling back (C) on a lever increases the REVERSE speed.
Moving a levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL LOCKOUT position.
Note: The further a lever is moved away from the neutral
position the faster the drive wheel will turn.
See the Zero-Turn Driving Practice section for steering
instructions.
Fuel Selector Valve: Turning the handle to the desired
position determines which tank will be supplying fuel. With
the handle pointing LEFT, it will draw fuel from the left-hand
tank. With the handle pointing RIGHT, it will draw fuel from
the right-hand fuel tank. With the handle pointing towards the
operator, it will shut off fuel flow to the engine.
Fuel Tank Cap: To remove the cap, turn counter-clockwise.
Fuel Level Gauge: Displays the fuel level in the tank.
Retractable Seat Belt: The seat belt is used to secure the
operator to the seat.
Icon Description
FORWARD
NEUTRAL
REVERSE
N/A NEUTRAL LOCKOUT
POSITION
