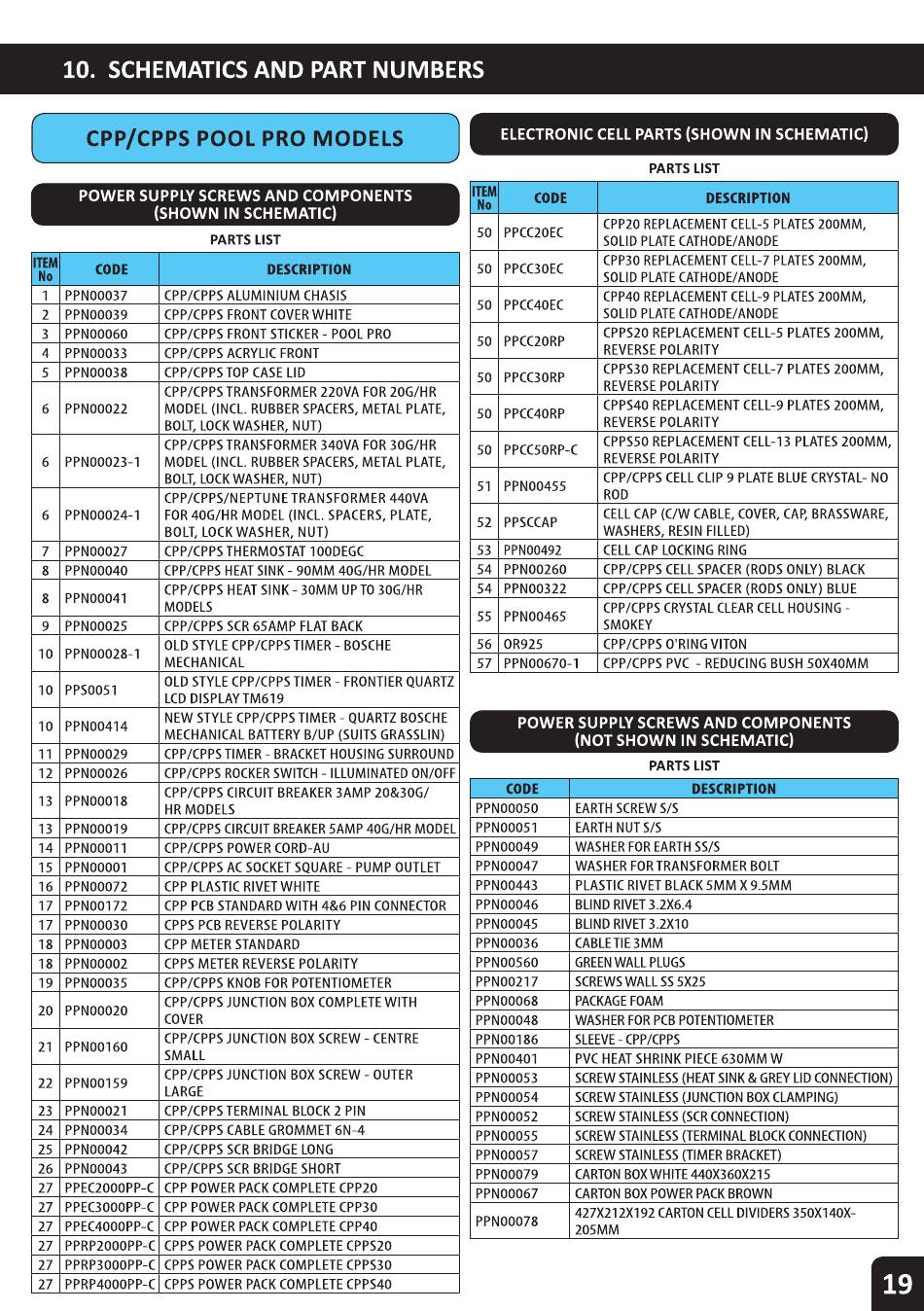

Pool Pro CPP Series Installation & Operating Instructions Manual page 19

ITEM
CODE
No
1 PPN00037 CPP/CPPS ALUMINIUM CHASIS
2 PPN00039 CPP/CPPS FRONT COVER WHITE
3 PPN00060 CPP/CPPS FRONT STICKER - POOL PRO
4 PPN00033 CPP/CPPS ACRYLIC FRONT
5 PPN00038 CPP/CPPS TOP CASE LID
CPP/CPPS TRANSFORMER 220VA FOR 20G/HR
6 PPN00022 MODEL (INCL. RUBBER SPACERS, METAL PLATE,
BOLT, LOCK WASHER, NUT)
CPP/CPPS TRANSFORMER 340VA FOR 30G/HR
6 PPN00023-1 MODEL (INCL. RUBBER SPACERS, METAL PLATE,
BOLT, LOCK WASHER, NUT)
CPP/CPPS/NEPTUNE TRANSFORMER 440VA
6 PPN00024-1 FOR 40G/HR MODEL (INCL. SPACERS, PLATE,
BOLT, LOCK WASHER, NUT)
7 PPN00027 CPP/CPPS THERMOSTAT 100DEGC
8 PPN00040 CPP/CPPS HEAT SINK - 90MM 40G/HR MODEL
CPP/CPPS HEAT SINK - 30MM UP TO 30G/HR
8 PPN00041
MODELS
9 PPN00025 CPP/CPPS SCR 65AMP FLAT BACK
OLD STYLE CPP/CPPS TIMER - BOSCHE
10 PPN00028-1
MECHANICAL
OLD STYLE CPP/CPPS TIMER - FRONTIER QUARTZ
10 PPS0051
LCD DISPLAY TM619
NEW STYLE CPP/CPPS TIMER - QUARTZ BOSCHE
10 PPN00414
MECHANICAL BATTERY B/UP (SUITS GRASSLIN)
11 PPN00029 CPP/CPPS TIMER - BRACKET HOUSING SURROUND
12 PPN00026 CPP/CPPS ROCKER SWITCH - ILLUMINATED ON/OFF
CPP/CPPS CIRCUIT BREAKER 3AMP 20&30G/
13 PPN00018
HR MODELS
13 PPN00019 CPP/CPPS CIRCUIT BREAKER 5AMP 40G/HR MODEL
14 PPN00011 CPP/CPPS POWER CORD-AU
15 PPN00001 CPP/CPPS AC SOCKET SQUARE - PUMP OUTLET
16 PPN00072 CPP PLASTIC RIVET WHITE
17 PPN00172 CPP PCB STANDARD WITH 4&6 PIN CONNECTOR
17 PPN00030 CPPS PCB REVERSE POLARITY
18 PPN00003 CPP METER STANDARD
18 PPN00002 CPPS METER REVERSE POLARITY
19 PPN00035 CPP/CPPS KNOB FOR POTENTIOMETER
CPP/CPPS JUNCTION BOX COMPLETE WITH
20 PPN00020
COVER
CPP/CPPS JUNCTION BOX SCREW - CENTRE
21 PPN00160
SMALL
CPP/CPPS JUNCTION BOX SCREW - OUTER
22 PPN00159
LARGE
23 PPN00021 CPP/CPPS TERMINAL BLOCK 2 PIN
24 PPN00034 CPP/CPPS CABLE GROMMET 6N-4
25 PPN00042 CPP/CPPS SCR BRIDGE LONG
26 PPN00043 CPP/CPPS SCR BRIDGE SHORT
27 PPEC2000PP-C CPP POWER PACK COMPLETE CPP20
27 PPEC3000PP-C CPP POWER PACK COMPLETE CPP30
27 PPEC4000PP-C CPP POWER PACK COMPLETE CPP40
27 PPRP2000PP-C CPPS POWER PACK COMPLETE CPPS20
27 PPRP3000PP-C CPPS POWER PACK COMPLETE CPPS30
27 PPRP4000PP-C CPPS POWER PACK COMPLETE CPPS40
DESCRIPTION
ITEM
CODE
No
CPP20 REPLACEMENT CELL-5 PLATES 200MM,
50 PPCC20EC
SOLID PLATE CATHODE/ANODE
CPP30 REPLACEMENT CELL-7 PLATES 200MM,
50 PPCC30EC
SOLID PLATE CATHODE/ANODE
CPP40 REPLACEMENT CELL-9 PLATES 200MM,
50 PPCC40EC
SOLID PLATE CATHODE/ANODE
CPPS20 REPLACEMENT CELL-5 PLATES 200MM,
50 PPCC20RP
REVERSE POLARITY
CPPS30 REPLACEMENT CELL-7 PLATES 200MM,
50 PPCC30RP
REVERSE POLARITY
CPPS40 REPLACEMENT CELL-9 PLATES 200MM,
50 PPCC40RP
REVERSE POLARITY
CPPS50 REPLACEMENT CELL-13 PLATES 200MM,
50 PPCC50RP-C
REVERSE POLARITY
CPP/CPPS CELL CLIP 9 PLATE BLUE CRYSTAL- NO
51 PPN00455
ROD
CELL CAP (C/W CABLE, COVER, CAP, BRASSWARE,
52 PPSCCAP
WASHERS, RESIN FILLED)
53 PPN00492 CELL CAP LOCKING RING
54 PPN00260 CPP/CPPS CELL SPACER (RODS ONLY) BLACK
54 PPN00322 CPP/CPPS CELL SPACER (RODS ONLY) BLUE
CPP/CPPS CRYSTAL CLEAR CELL HOUSING -
55 PPN00465
SMOKEY
56 OR925 CPP/CPPS O'RING VITON
57 PPN00670-1 CPP/CPPS PVC - REDUCING BUSH 50X40MM
CODE
PPN00050 EARTH SCREW S/S
PPN00051 EARTH NUT S/S
PPN00049 WASHER FOR EARTH SS/S
PPN00047 WASHER FOR TRANSFORMER BOLT
PPN00443 PLASTIC RIVET BLACK 5MM X 9.5MM
PPN00046 BLIND RIVET 3.2X6.4
PPN00045 BLIND RIVET 3.2X10
PPN00036 CABLE TIE 3MM
PPN00560 GREEN WALL PLUGS
PPN00217 SCREWS WALL SS 5X25
PPN00068 PACKAGE FOAM
PPN00048 WASHER FOR PCB POTENTIOMETER
PPN00186 SLEEVE - CPP/CPPS
PPN00401 PVC HEAT SHRINK PIECE 630MM W
PPN00053 SCREW STAINLESS (HEAT SINK & GREY LID CONNECTION)
PPN00054 SCREW STAINLESS (JUNCTION BOX CLAMPING)
PPN00052 SCREW STAINLESS (SCR CONNECTION)
PPN00055 SCREW STAINLESS (TERMINAL BLOCK CONNECTION)
PPN00057 SCREW STAINLESS (TIMER BRACKET)
PPN00079 CARTON BOX WHITE 440X360X215
PPN00067 CARTON BOX POWER PACK BROWN
427X212X192 CARTON CELL DIVIDERS 350X140X-
PPN00078
205MM
DESCRIPTION
DESCRIPTION
