Extron electronics OCS 100C Setup Manual page 5

Installation
OCS 100C Parts
Nut
Cutting End
Threaded
Mounting Post
NOTE: *
Only use a mask if the PIR sensor needs to be blocked.
Only one mask should be installed at any given time.
ATTENTION:
• All structural steps and electrical installation must be performed
by qualified personnel in accordance with local and national
building codes and electrical codes.
• Toute étape structurelle et installation électrique, doit être
effectuée par un personnel qualifié, conformément aux codes
du bâtiment, aux codes incendie et sécurité, et aux codes
électriques, locaux et nationaux.
• Only connect to Class III SELV systems.
• Connectez l'unité uniquement à des systèmes fonctionnant en
très basse tension de sécurité (TBTS) de classe III.

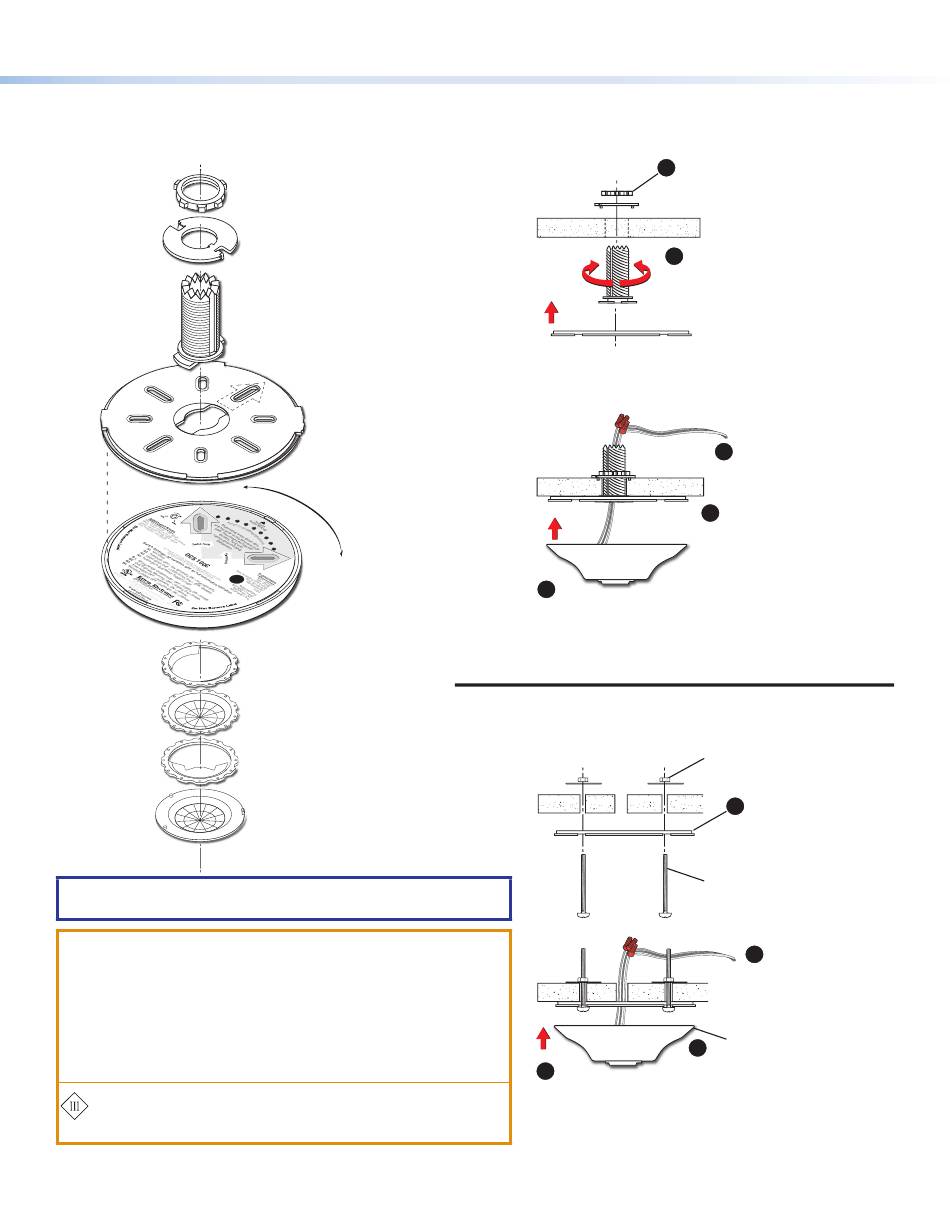

Figure 5.
Installation Diagram
Washer
C Cover Plate
30˚ Adjustment
S Sensor Body
*
Conference Room
Mask
*
Full Mask
*
180º Mask
Infrared Lens w/
Retainer Ring
Installation Method 1
Ceiling
Mounting
Post
Cover Plate
Ceiling
Cover Plate
Sensor Body Body
5
Attach sensor body to cover plate
by aligning arrows and twist lock
into place.
Installation Method 2
Ceiling
Ceiling
2
Insert wiring through
cover plate.
2
Secure mounting
post to the ceiling tile with
nut and washer.
1
Twist and lock threaded
mounting post into the
cover plate. Drill into
ceiling tile.
4
Connect building wiring to
wiring harness with wire nuts.
3
Insert wiring through
mounting post.
Nut and Washer (2 ea)
1
Secure cover
plate to the ceiling.
Mounting Bolts (2)
3
Connect building wiring to
wiring harness with wire nuts.
Sensor Body
4
Screw and mount the
twist-lock cover plate.
5
