Microdyn Nadir Bio-Cel L-1 Technical Instructions page 8

5.
6.


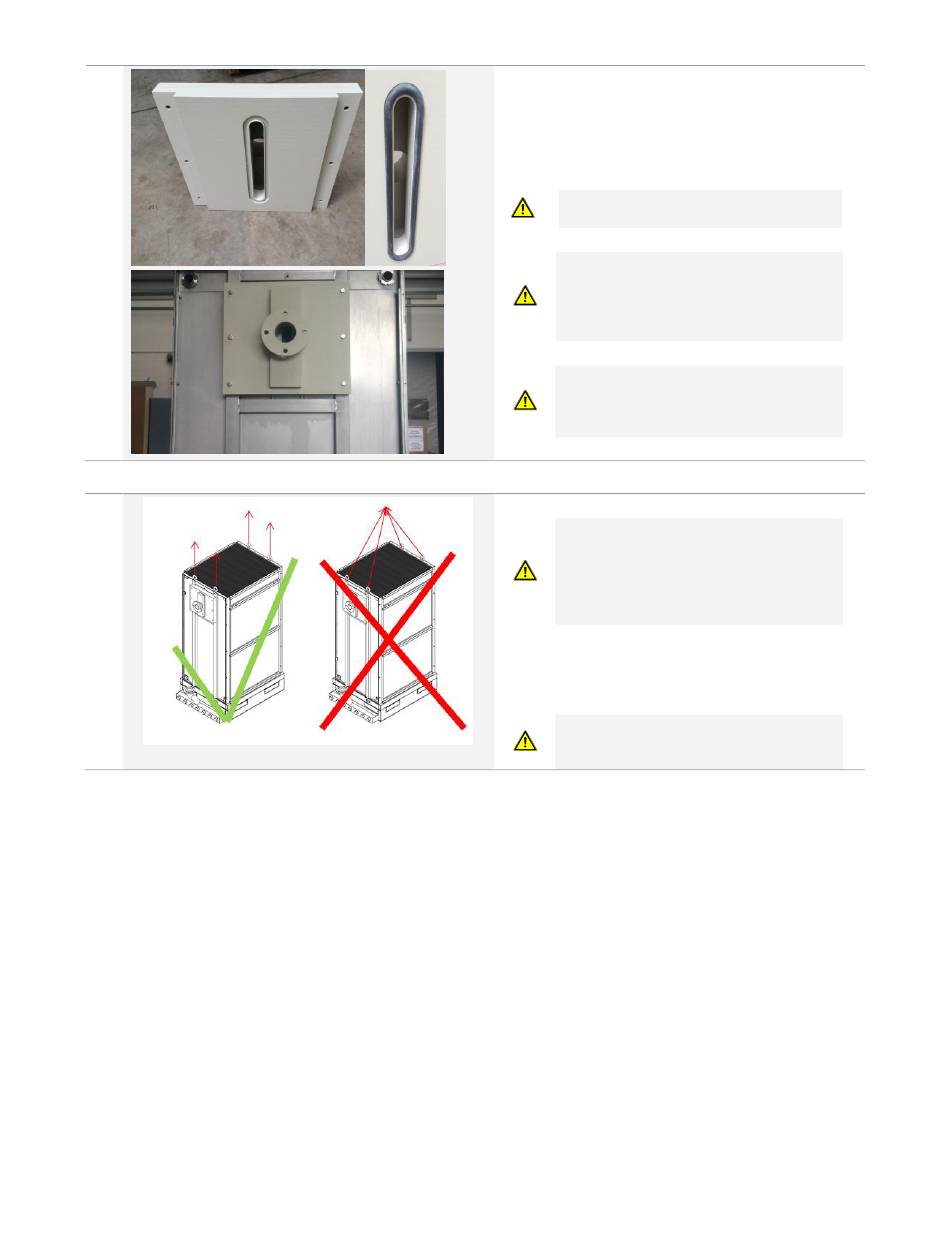

Make sure the o-ring is seated in the groove
correctly.

Mount the permeate connector on the
cassette (open side of permeate channel)
with 6 M10x90 screws.
Do apply some screw lock (Loctite 243)
on the screws before mounting
Do apply some screw lock (Loctite 243)
on the screws before mounting and
torque the screws with 14Nm. Do not
overtighten, otherwise the nuts may be
damaged.
This work should be done by 2 men,
since the permeate connector is very
heavy and the o-ring has to be hold in the
groove.
Before installing the new cassette on the
diffuser frame, check the diffuser status.
Depending on their status, recovery or
mechanical diffuser cleaning might be
necessary (please refer to our diffuser
maintenance document TSG-C-WW002).

Lift the cassette into the diffuser frame.
Please consider the lifting notes above.
Make sure the lifting equipment does not
touch the white membrane sheets when
being attached to the module
Form-No: TI-WW006 // Revision: B // Date: Jul. 5, 18
8 | 13
