Spare Part - Microdyn Nadir Bio-Cel L-1 Technical Instructions

Part
Position
Number
00350123
S1
00350124
00350125
S2
00350126
S3 00350120
S4 00350129
S5 On request
00350127
S6
00350128
- 00350072
Figure 2. BIO-CEL
Table 3. Available Spare Parts for MICRODYN BIO-CEL

Spare Part

®
BIO-CEL L-1 Spare cassette C L-UP150
®
BIO-CEL L-1 Base frame including diffusors
®
BIO-CEL L-1 Set of 7 tube diffusers
including connectors and sealing
®
BIO-CEL L-1 Permeate connector,
Polypropylene DN80, PN6,
including O-Ring
O-Ring permeate connector
®
BIO-CEL Lifting eye bolts
®
BIO-CEL Diffuser assembling tool, Torque
wrench with special socket
®

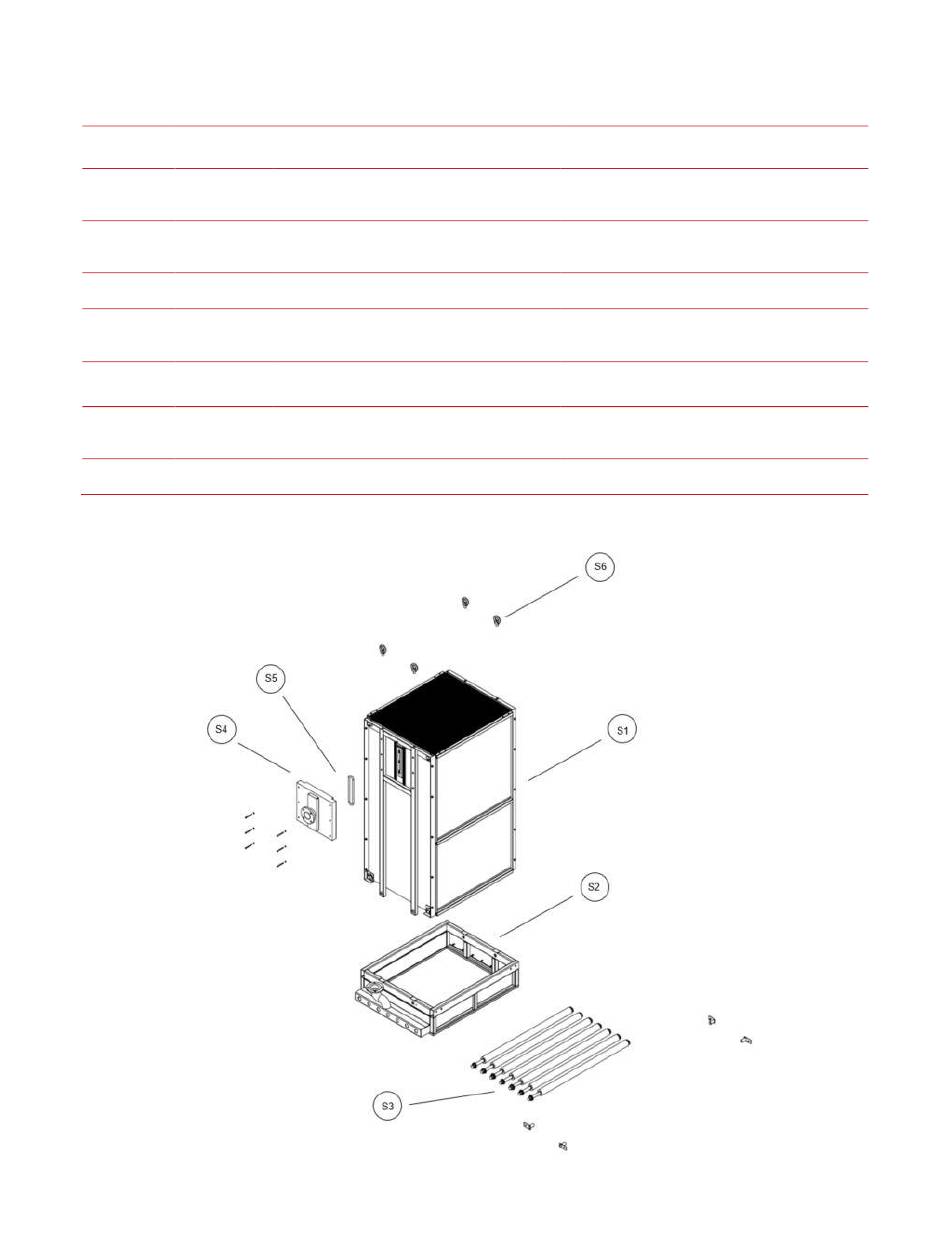

L-1 Exploded drawing showing available spare parts
®
L-1
Stainless Steel Grade
Standard: 1.4301/304 (V2A)
On request: 1.4571/316Ti or 1.4404/316L (V4A)
Standard: 1.4301/304 (V2A)
On request: 1.4571/316Ti or 1.4404/316L (V4A)
-
-
-
Standard: 1.4301/304 (V2A)
On request: 1.4571/316Ti or 1.4404/316L (V4A)
-
