Microdyn Nadir Bio-Cel L-1 Technical Instructions

Replacement of cassette and diffuser
Hide thumbs

Advertisement

Quick Links

Download this manual
Technical Instruction
MICRODYN BIO-CEL
Replacement of Cassette and Diffuser
Safety Precautions & Storage Conditions
i
Important Information
The regional safety precautions must be fulfilled that the required work can be performed
onsite. The fulfillment of these safety precautions is not a duty of MICRODYN-NADIR.

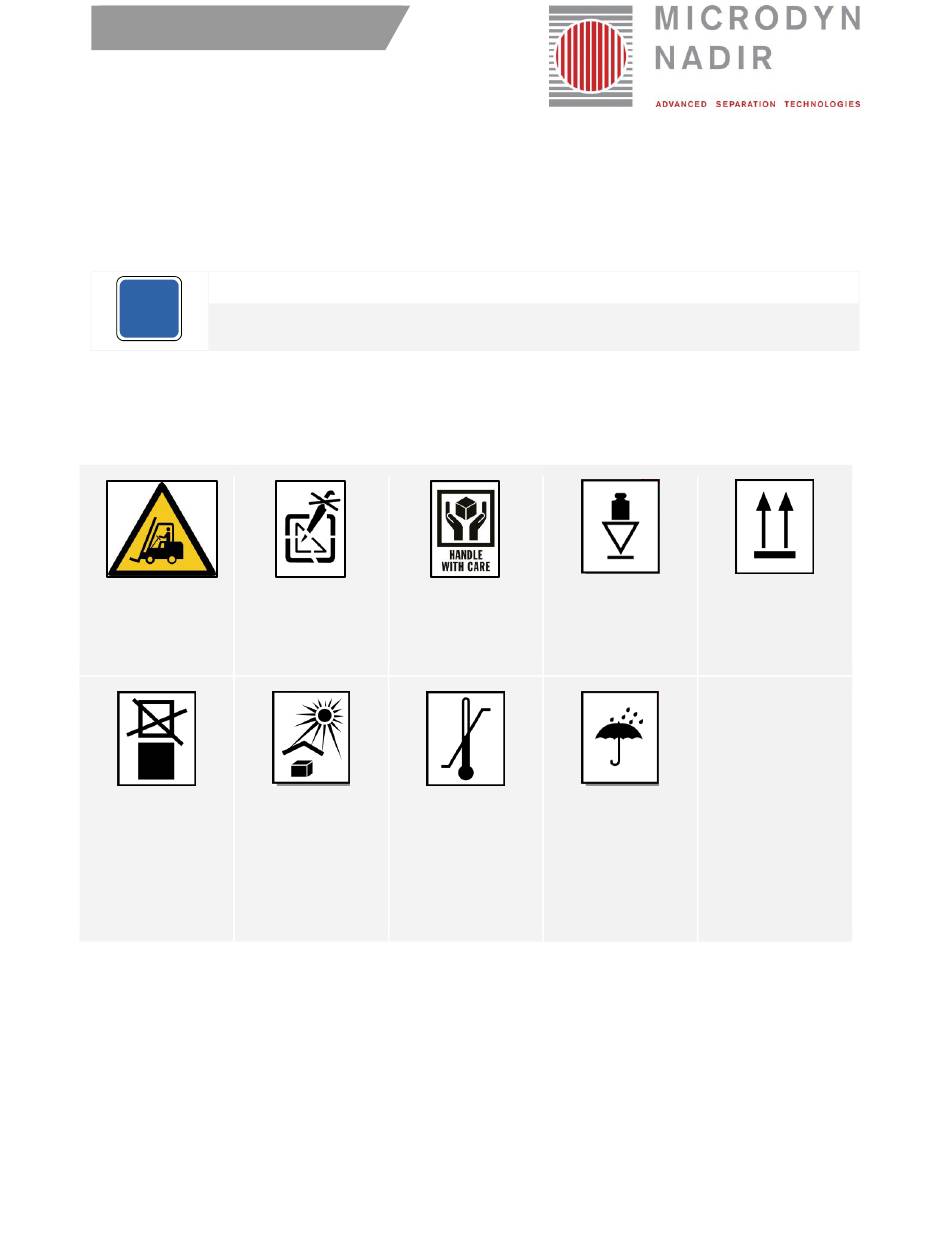

To transport and temporarily store the module before installation, please consider the safety instructions
listed below. These instructions are also listed on the packaging.
Please note that diffusers are very sensitive against direct sunlight and sharp materials. Be careful when
opening the package and handling with the diffusers.
Transport with
Do not damage
forklift only.
outer packaging
Do not stack the
Protect from
modules.
direct sunlight.
®
Handle the
product with care.
at the top.
Store in the
following
temperature
range only:
5°C - 40°C
(40°F - 104°F).
L-1
Packaging is
top-heavy.
Protect from
moisture
(< 70 %).
Form-No: TI-WW006 // Revision: B // Date: Jul. 5, 18
Store packaging
upright with arrows
directed upwards.
1 | 13
