Microdyn Nadir Bio-Cel L-1 Technical Instructions page 13

11.
12.
13.
A MANN + HUMMEL Company
Europe
Germany: +49 611 962 6001
Italy: +39 0721 1796201
info@microdyn-nadir.de

Make sure that the flat seal is correctly
adjusted.


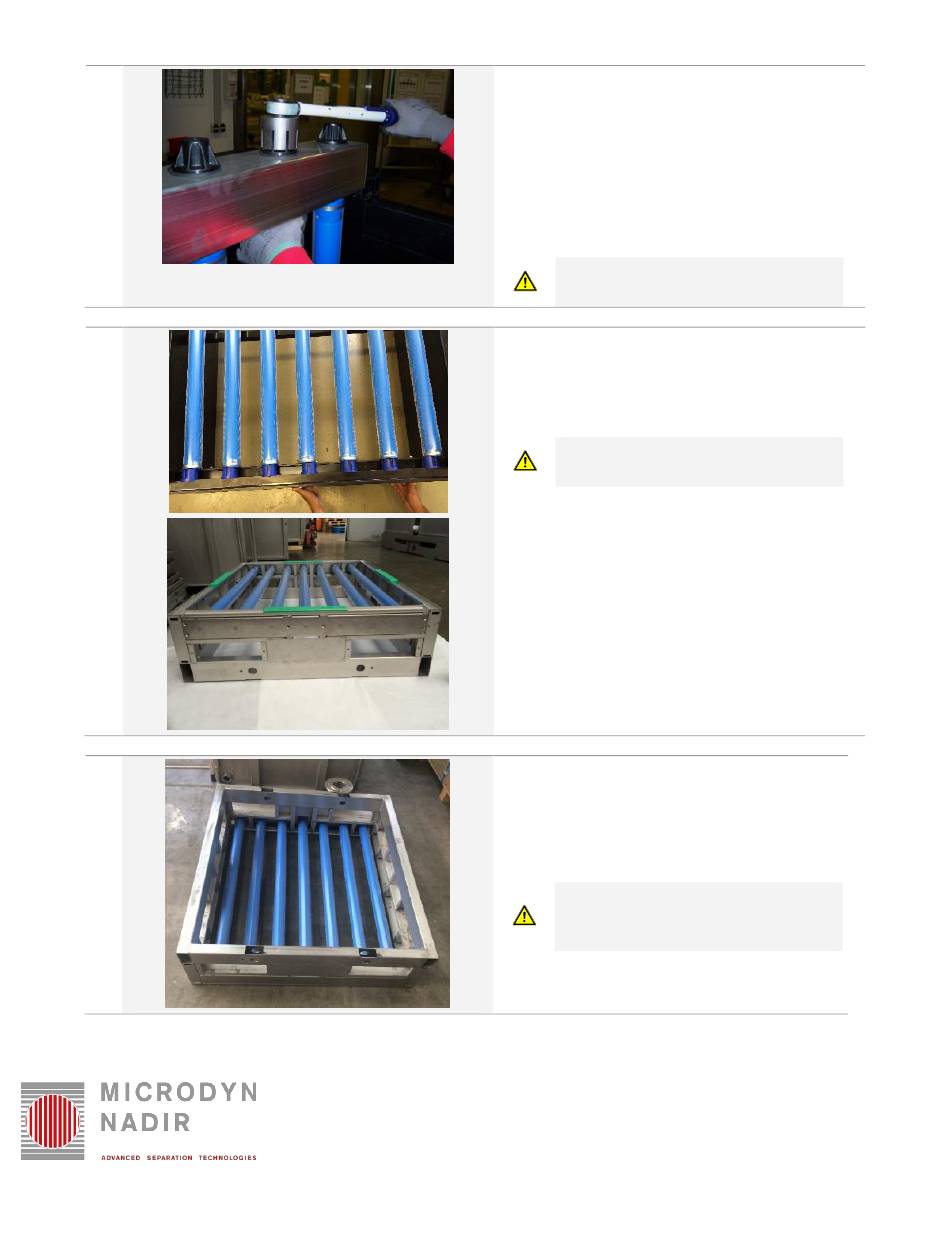

Use the special socket wrench to assemble
the blind cap of the diffusor tube. Make sure
the diffusor tube did not turn and the
perforation is still on the right position (3 & 9
o'clock)

Tighten the diffusors at 30 Nm (265 lbf in).
Tighten the diffusers slowly to avoid the
flat seals squeezing out!

Insert the counter part with the end caps into
the diffusor tubes.

Mount the counter plate with the delivered
M6x16 screws on the diffuser frame.
Do not use the old screws, since screw
lock is gone!

Turn around the diffuser frame and
continue with module assembly as
described above (feet installation is not
mentioned in this document, since there
are different solutions for feet realisation)
Make sure, the diffusers are protected
against direct sunlight
impact!
Americas
USA: +1 805 964 8003
Brazil: +55 11 3378 7500
info@microdyn-nadir.com
Form-No: TDS-WW006 // Revision: C // Date: July 05, 2018
