SEM 0101 Product Operation & Maintenance Procedure
Serial number 3174 and up
Hide thumbs
Also See for 0101:
- Product operation & maintenance procedure (27 pages) ,
- Operation and maintenance manual (25 pages) ,
- Operational & maintenance manual (14 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for SEM 0101
Summary of Contents for SEM 0101

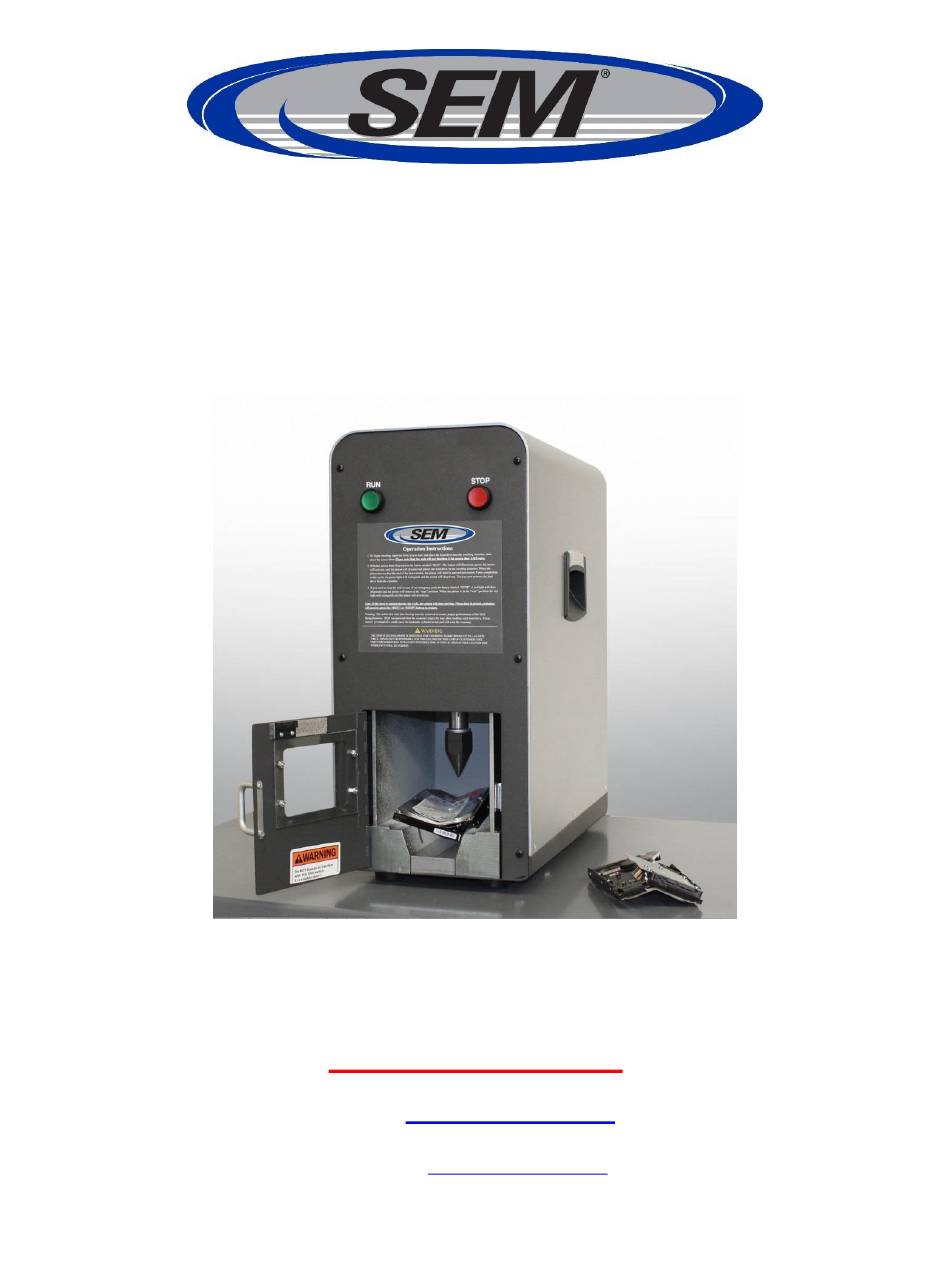

- Page 1 PRODUCT OPERATION & MAINTENANCE PROCEDURE SEM Model 0101 Crusher (Serial number 3174 and up) POP-0112 Rev. 0 Created 09/11/2018 Security Engineered Machinery Co., Inc. NATIONWIDE SERVICE Phone: (800)225-9293 Email: service@semshred.com Fax: (508) 366-6814 Website: www.semshred.com...
-
Page 2: Table Of Contents
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 Table of Contents IMPORTANT SAFETY PRECAUTIONS................3 ABOUT YOUR CRUSHER ....................4 UNBOXING AND SET-UP ....................4 DETERMINING IF YOUR CRUSHER IS SSD CAPABLE ........... 6 SSD - OPERATION ......................7 SSD MANUAL OVERRIDE OPERATION ................ 10 HDD - OPERATION ...................... -
Page 3: Important Safety Precautions
Model 0101 IMPORTANT SAFETY PRECAUTIONS The SEM Model 0101 crusher incorporates powerful, heavy duty pressing mechanisms. Serious and permanent injury may result if proper precautions are not followed. 1. This equipment should never be operated by children or individuals who are untrained or incapable of understanding these safety precautions. -
Page 4: About Your Crusher
ABOUT YOUR CRUSHER INTENDED USE The Model 0101 is designed for crushing rotating platter hard drives up to 1.85 inches thick and SSD media if the unit was purchased with the SSD kit option. Trying to crush other objects or material other than rotating platter hard drives or SSD media for units equipped with the SSD kit option will void the warranty. - Page 5 PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 Place rear panel to the side being cautious of the wire connections Remove back panel by Remove the red unscrewing the six shipping plug and Phillips head screws thread into storage hole Make sure unit is De-...
-
Page 6: Determining If Your Crusher Is Ssd Capable
NOTE: SSD destruction with the Model 0101 is only possible with units that were originally purchased with the SSD kit option. SSD kits cannot be purchased separately and added to the Model 0101 later on; they must be purchased with the Model 0101 at the time of ordering the unit. -
Page 7: Ssd - Operation
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 SSD - OPERATION Note: SSD destruction is only possible with the SSD anvil installed. Warning: • Gloves are recommended for this operation as the SSD anvil has many sharp tines and the crushed SSD material may also be sharp. - Page 8 PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 Channels in crushing chamber Wear plate SSD media Steel press plate Solid state media placed in chamber for crushing 4. Position the SSD media onto the wear plate, if the SSD has any end-mounted connectors attached, allow them to hang over the edge of the wear plate so the media can rest as flat as possible.
- Page 9 PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 Solid state media with attached connector overhanging the wear plate to allow the media to rest as flat as possible. 5. Close the access door and press the green button labelled RUN. The button will illuminate, the motor will activate, and the hydraulic ram will descend to pierce the SSD within the crushing chamber.
-
Page 10: Ssd Manual Override Operation
Model 0101 SSD MANUAL OVERRIDE OPERATION The automated crushing operation for the Model 0101 is designed to perform a complete cycle before coming to a stop after crushing materials. A manual override method is acceptable when crushing SSD materials; this method may save the user time; in lieu of having to wait for the hydraulic ram to complete its full cycle and return to its starting/resting position;... -
Page 11: Hdd - Operation
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 HDD - OPERATION 1. To begin crushing rotational platter hard drives up to 1.85" in thickness, ensure the correct anvil is installed within the crushing chamber. Open the access door and look inside the crushing chamber. The proper anvil for HDD crushing is shown below. - Page 12 PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 Channels in crushing chamber Typical desktop PC 1” thick drive Typical notebook / laptop drive Note: The crushing chamber was designed to allow hard drives with caddies or rails typically used in rack mount or server systems to be crushed without having to remove them from the caddy.
- Page 13 Warning: The debris that falls into the collection drawer must be removed to ensure proper performance of the system. SEM recommends the drawer be emptied after the crushing of each hard drive. If the drawer is not emptied, it could cause the hydraulic cylinder to fail and will void the warranty.
-
Page 14: Overloading
180° and send it through another crushing cycle. SSD MAINTENANCE Inside the crusher chamber SEM recommends the SSD anvil be replaced as needed depending on type and quantity of media being destroyed. Warning: If the anvil is not replaced, it could cause damage to the hydraulic ram and void the warranty. -
Page 15: Removing The Ssd Anvil
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 REMOVING THE SSD ANVIL The following is a list of tools required to complete this job: • 7/8" open-end wrench • 1-1/4" open-end wrench • 3/8” hex wrench • Gloves 1. De-energize the unit by unplugging the power cord from the electrical outlet. -
Page 16: Installing The Ssd Anvil
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 INSTALLING THE SSD ANVIL The SSD Anvil Kit consists of the following items pictured below: 1 SSD Anvil 1 SSD Anvil Shaft 1 Wedge Lock Washer 1 Steel Press Plate 1 Wear Plate... - Page 17 PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 4. Hold the SSD anvil assembly and wear plate in the crushing chamber and align the anvil s haft with the hydraulic ram shaft. See picture below. Spin threads out of anvil and into piston shaft.
- Page 18 PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 6. Now place the wear plate inside the recessed area on top of the steel press plate. 7. With the wear plate on top of the steel press plate, slide the steel press plate into the bottom of the crusher chamber all the way to the back of the machine, this plate will only fit inside the chamber in one direction.
-
Page 19: Hdd Maintenance
Double Wedge Lock Washer SEM recommends the HDD anvil be replaced yearly or as needed depending on the type and quantity of hard drives being destroyed. Warning: If the anvil is not replaced, it could cause damage to the cylinder and void the warranty. -
Page 20: Removing The Hdd Anvil
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 REMOVING THE HDD ANVIL Tools and proper protection equipment required: • 7/8" open-end wrench • 1-1/2" open-end wrench • Gloves 1. De-energize the unit by unplugging and removing the power cord. 2. Open the access door. Place the 1-1/2" open-end wrench onto the anvil and turn both the anvil and hydraulic ram shaft until the two flat edges on the hydraulic ram shaft are perpendicular to the door opening. -
Page 21: Installing The Hdd Anvil
FLUID The Model 0101 crusher has two quarts of automatic transmission fluid in the reservoir. SEM recommends the fluid be changed yearly to maintain optimal performance. • Note: Fluid should be changed by a SEM authorized technician only. See the section titled “Preventative Maintenance Options.”... -
Page 22: Troubleshooting
4. Clean the entire system. 5. Perform final test to ensure proper operation. Note: Spare replacement parts are not included. All parts are genuine factory parts. SEM will contact the user for authorization prior to the implementation of any out of warranty parts. -
Page 23: Cabinet Exploded View
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 CABINET EXPLODED VIEW PART NUMBER DESCRIPTION ITEM NO. 850HDCHOUSASSY-1 BOTTOM PLATE 850HDCHOUSASSY-2 FRONT ASSEMBLY 850HDCHOUSASSY-3 BACK COVER 850HDCHOUSASSY-4 TOP COVER 850HDCHANDLE HANDLE 850HDCFOOTMT RUBBER FOOT POP-0112 – Rev. 0... -
Page 24: Tower Exploded View
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 TOWER EXPLODED VIEW ITEM NO. PART NUMBER DESCRIPTION QTY. 850HDCTOWER-6 TOWER ASSEMBLY 850HDCTOEWR-7 DRAWER 850HDCTOWER-8 LIMIT SWITCH BRACKET 850HDCTOWER-4 E-MOUNT 850HDCANVIL HDD ANVIL DOUBLE WEDGE 850HDCWASHER LOCK WASHER POP-0112 – Rev. 0... -
Page 25: Ssd-Kit Exploded View
PRODUCT OPERATION & MAINTENANCE PROCEDURE Model 0101 SSD-KIT EXPLODED VIEW ITEM NO. PART NUMBER DESCRIPTION QTY. 01-8339 SSD ANVIL MC91375A861 HEX SOCKET SET SCREW DOUBLE WEDGE 850HDCWASHER LOCK WASHER 01-8304-10 WEAR PLATE 01-8304 PRESS PLATE POP-0112 – Rev. 0... - Page 26 Security Engineered Machinery For sales, service, parts and customer support, contact us: E-Mail: service@semshred.com Website: www.semshred.com Phone: 508-366-1488 Toll Free US: 800-225-9293 Address: 5 Walkup Drive, Westborough, Massachusetts 01581 Follow us on social media: Facebook: https://www.facebook.com/sitessem Twitter: https://twitter.com/sitessem LinkedIn: https://www.linkedin.com/company/secureitengineeredsolutions/ Visit our YouTube page for product videos: YouTube: https://www.youtube.com/user/DataDestruction...
