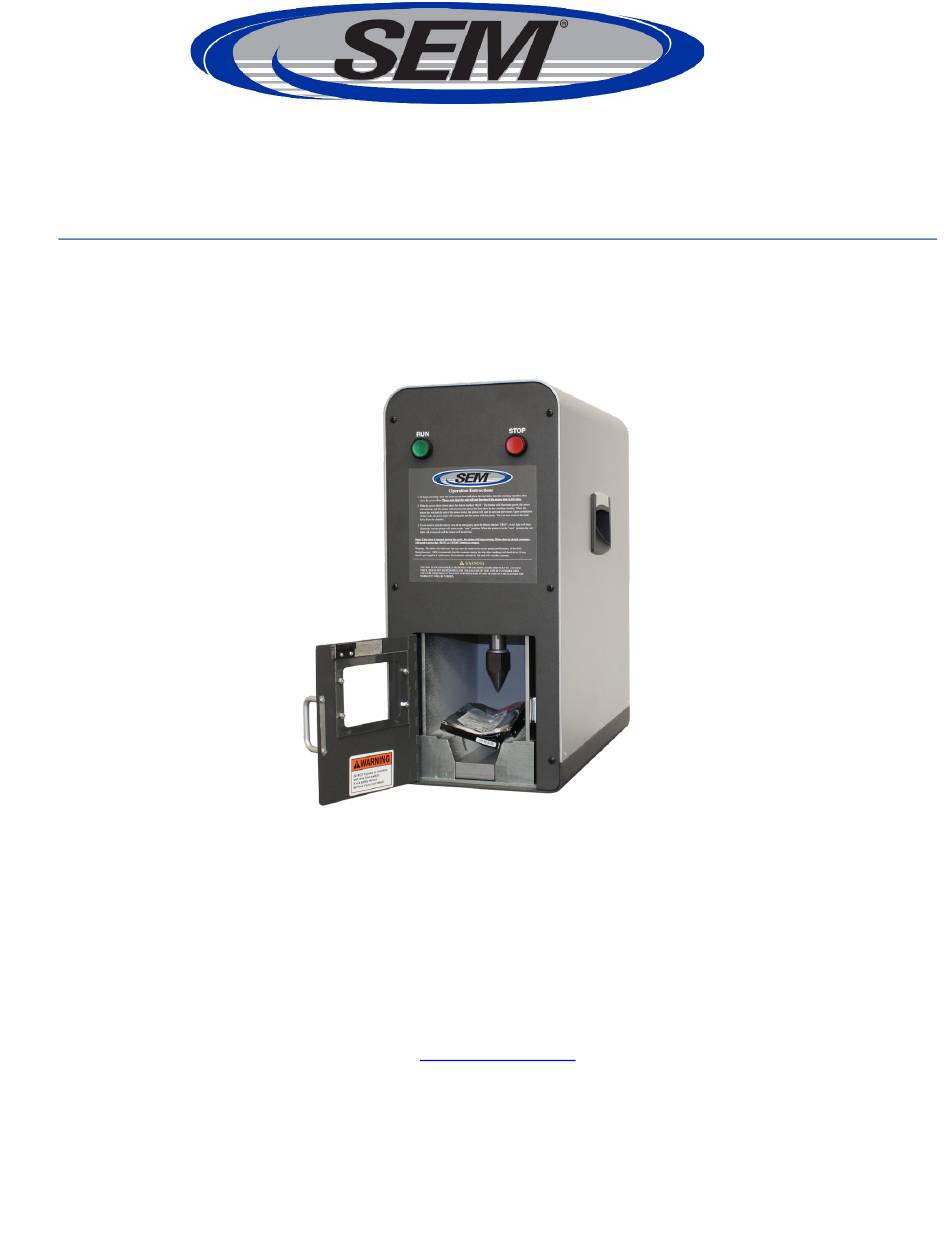

Operation and Maintenance Manual
SEM Model 0101 Crusher
(Serial number 3174 and up)
POP-0112 Rev. 1 | Created 11/18/2019 | ECN: 00501
For service, parts, and customer support, contact us:
SECURITY ENGINEERED MACHINERY
5 Walkup Drive • Westborough, MA 01581
service@semshred.com
1-508-366-1488
www.semshred.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEM 0101

Summary of Contents for SEM 0101

  • Page 1 Operation and Maintenance Manual SEM Model 0101 Crusher (Serial number 3174 and up) POP-0112 Rev. 1 | Created 11/18/2019 | ECN: 00501 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 service@semshred.com...

  • Page 2: Table Of Contents

    TABLE OF CONETENTS IMPORTANT SAFETY PRECAUTIONS ....................3 1. ABOUT YOUR CRUSHER ........................4 2. UNBOXING AND SET-UP ......................... 4 3. CONFIGURATIONS .......................... 6 3.1 D SSD C ..................... 6 ETERMINING IF RUSHER IS APABLE 4. SSD OPERATION ..........................7 5.

  • Page 3: Important Safety Precautions

    Important Safety Precautions The SEM Model 0101 crusher incorporates powerful, heavy duty pressing mechanisms. Serious and permanent injury may result if proper precautions are not followed. 1. This equipment should never be operated by children or individuals who are untrained or incapable of understanding these safety precautions.

  • Page 4: About Your Crusher

    INTENDED USE The Model 0101 is designed for crushing rotating platter hard drives up to 1.85 inches thick and SSD media if the unit was purchased with the SSD kit option. Trying to crush other objects or material other than rotating platter hard drives or SSD media for units equipped with the SSD kit option will void the warranty.
  • Page 5 3. To replace the red shipping plug with the black breather plug, locate and remove the back panel on the crusher. THE CRUSHER SHOULD NOT BE PLUGGED INTO AN ELECTRICAL OUTLET WHEN COMPLETING THIS PROCESS. The back panel is secured by six Phillips head screws. Begin by removing these screws and slide the back panel next to the system.

  • Page 6: Configurations

    NOTE: SSD destruction with the Model 0101 is only possible with units that were originally purchased with the SSD kit option. SSD kits cannot be purchased separately and retrofitted to the Model 0101. They must be purchased with the Model 0101 at the time of ordering .

  • Page 7: Ssd Operation

    Below is an example of a Model 0101 serial number tag that was purchased with the SSD kit. SSD prefix designating crusher was purchased with SSD Kit 4. SSD Operation Note: SSD destruction is only possible with the SSD anvil installed.
  • Page 8 2. If the HDD anvil is installed in lieu of the SSD anvil, the anvil will need to be changed. To remove the HDD anvil, see section HDD Maintenance. Once the HDD anvil has been removed, see section SSD Maintenance for instructions regarding installation of the SSD anvil. 3.
  • Page 9 4. Position the solid state media onto the wear plate. If the SSD has any end-mounted connectors attached, allow them to hang over the edge of the wear plate so the media is as horizontal as possible. See picture. Solid state media with attached connector overhanging the wear plate to allow the media to rest as horizontal possible.

  • Page 10: Hdd Operation

    5. HDD Operation To begin crushing rotational platter hard drives up to 1.85" in thickness, ensure the correct anvil is installed within the crushing chamber. Open the access door and look inside the crushing chamber. The proper anvil for HDD crushing is shown below. If the correct anvil is installed, proceed to Step 3.
  • Page 11 Channels Crushing Chamber Desktop PC 1” Thick Drive Notebook Laptop Drive Note: The crushing chamber was designed to allow hard drives with caddies or rails typically used in rack mount or server systems to be crushed without having to remove them from the caddy. However, be sure to align all hard drive platters with the anvil before crushing.
  • Page 12 Warning: The debris that falls into the collection drawer must be removed to ensure proper performance of the system. SEM recommends the drawer be emptied after the crushing of each hard drive. If the drawer is not emptied, it could cause the hydraulic cylinder to fail and will void the warranty.

  • Page 13: Overloading

    This may happen when crushing 1.85" hard drives. You may want to remove and rotate the drive by 180° and send it through another crushing cycle. 6. SSD Maintenance SEM recommends the SSD anvil be replaced as needed depending on type and quantity of media being destroyed. Warning: If the anvil is not replaced, it could cause damage to the hydraulic ram and void the warranty.

  • Page 14: Removing The Ssd Anvil

    6.1 Removing the SSD Anvil The following is a list of tools required: • 7/8" open-end wrench • 1-1/4" open-end wrench • 3/8” hex wrench • Gloves 1. De-energize the unit by unplugging the power cord from the electrical outlet. 2.

  • Page 15: Installing The Ssd Anvil

    6.2 Installing the SSD Anvil The SSD Anvil Kit consists of the following items: • 1 SSD Anvil • 1 SSD Anvil Shaft • 1 Wedge Lock Washer • 1 Steel Press Plate • 1 Wear Plate SSD Anvil Shaft SSD Anvil Wear Plate Steel Press Plate...
  • Page 16 Spin threads out of anvil and into piston shaft. Anvil should not spin if done correctly. 5. With the two shafts aligned, begin to thread the anvil shaft into the hydraulic ram shaft by spinning the threaded portion until a few threads catch in the shaft. Lower the press plate and let the anvil hang on the threaded shaft.
  • Page 17 7. With the wear plate on top of the steel press plate, slide the steel press plate into the bottom of the crusher chamber all the way to the back of the machine. This plate will only fit inside the chamber in one direction.

  • Page 18: Hdd Maintenance

    Double Wedge Lock Washer SEM recommends the HDD anvil be replaced yearly or as needed depending on the type and quantity of hard drives being destroyed. Warning: If the anvil is not replaced, it could cause damage to the cylinder and void the warranty.

  • Page 19: Removing The Hdd Anvil

    7.1 Removing the HDD Anvil Tools and proper protection equipment required: • 7/8" open-end wrench • 1-1/2" open-end wrench • Gloves 1. De-energize the unit by unplugging and removing the power cord. 2. Open the access door. Place the 1-1/2" open-end wrench onto the anvil and turn both the anvil and hydraulic ram shaft until the two flat edges on the hydraulic ram shaft are perpendicular to the door opening.

  • Page 20: Installing The Hdd Anvil

    Note: Using anything other than open-end wrenches will not provide the required torque for tightening the anvil. 8. Fluid The Model 0101 crusher has two quarts of automatic transmission fluid in the reservoir. SEM recommends the fluid be changed yearly to maintain optimal performance.

  • Page 21: Troubleshooting

    SEM provides preventative maintenance contracts for many of its products. Contact SEM for a preventative maintenance contract to fit your needs at (800) 225-9293. 11. Electrical Schematics A PDF version of the schematics can be provided for all voltages upon request. Contact SEM for more information. 508.366.1488 | www.semshred.com...

  • Page 22: Cabinet Exploded View

    12. Cabinet Exploded View PART NUMBER DESCRIPTION ITEM NO. 850HDCHOUSASSY-1 BOTTOM PLATE 850HDCHOUSASSY-2 FRONT ASSEMBLY 850HDCHOUSASSY-3 BACK COVER 850HDCHOUSASSY-4 TOP COVER 850HDCHANDLE HANDLE 850HDCFOOTMT RUBBER FOOT 508.366.1488 | www.semshred.com...

  • Page 23: Tower Exploded View

    13. Tower Exploded View ITEM NO. PART NUMBER DESCRIPTION QTY. 850HDCTOWER-6 TOWER ASSEMBLY 850HDCTOEWR-7 DRAWER 850HDCTOWER-8 LIMIT SWITCH BRACKET 850HDCTOWER-4 E-MOUNT 850HDCANVIL HDD ANVIL DOUBLE WEDGE 850HDCWASHER LOCK WASHER 508.366.1488 | www.semshred.com...

  • Page 24: Ssd Kit Exploded View

    14. SSD Kit Exploded View ITEM NO. PART NUMBER DESCRIPTION QTY. 01-8339 SSD ANVIL MC91375A861 HEX SOCKET SET SCREW DOUBLE WEDGE 850HDCWASHER LOCK WASHER 01-8304-10 WEAR PLATE 01-8304 PRESS PLATE 508.366.1488 | www.semshred.com...
  • Page 25 For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive • Westborough, MA 01581 service@semshred.com 1-508-366-1488 www.semshred.com Follow us on social media: Facebook: https://www.facebook.com/semshred Twitter: https://twitter.com/semsecure Linkedin: https://www.linkedin.com/company/security-engineered-machinery Youtube: https://www.youtube.com/user/datadestruction 508.366.1488 | www.semshred.com...
