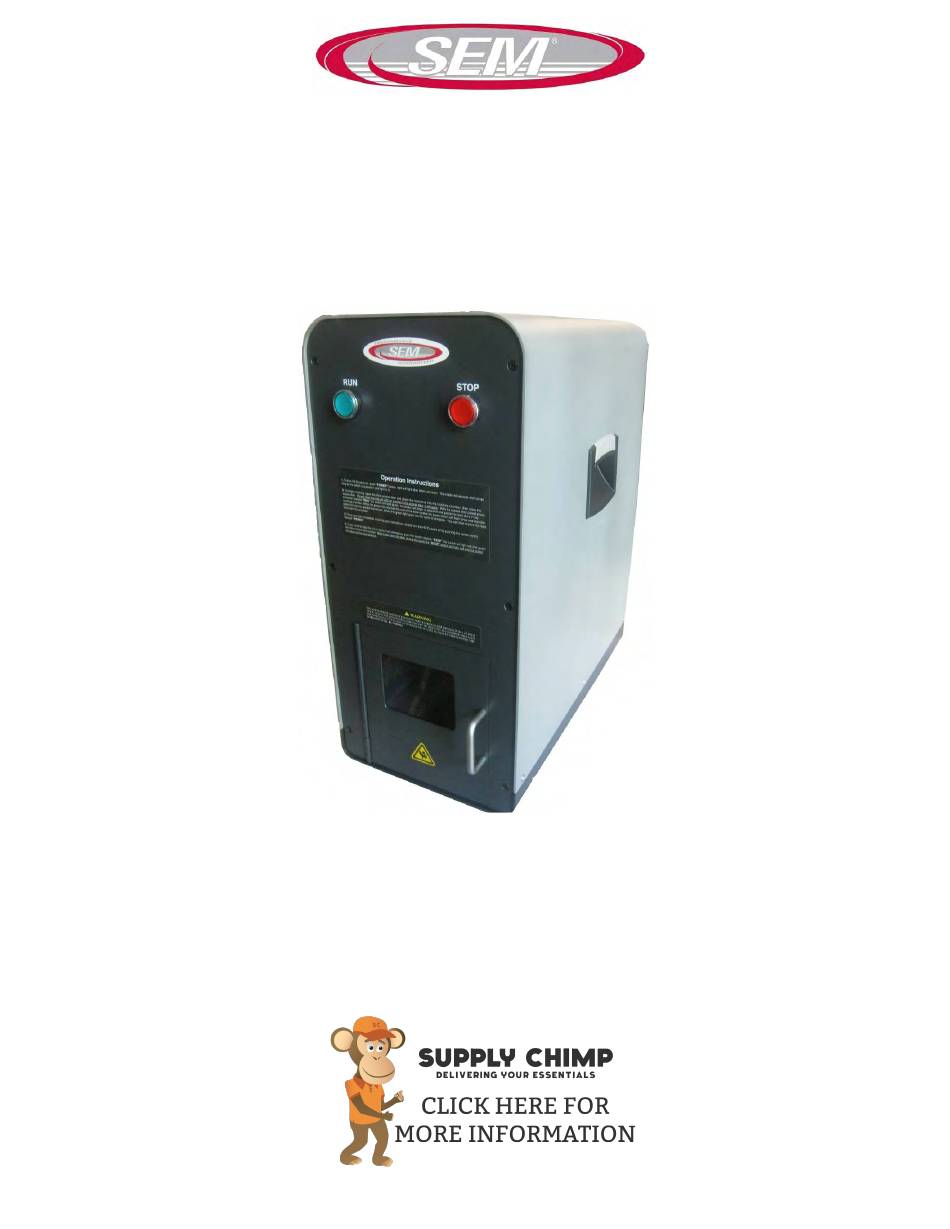

Page 1 Security Engineered Machinery Co., Inc OPERATIONAL & MAINTENANCE MANUAL SEM Model 0101 Hard Drive Crusher 110 volt or 220 volt (Serial Numbers 2000 and up)
Page 2: Table Of Contents
https://www.supplychimp.com/ Contents____________________________________________________ IMPORTANT SAFETY PROCEDURES ......................3 INSTALLATION AND SET-UP ........................4 INSTALLATION AND SET-UP: Continued ............Error! Bookmark not defined. HDD – OPERATION ............................. 5 SSD - OPERATION ............................8 OVERLOADING ..............................9 ...
Page 3: Important Safety Procedures
WARNING: The Model 0101 is designed for crushing hard drives up to 1.85 inch thick. Trying to crush other objects or material other then hard drives will void the warranty. SEM is not responsible for failure of this unit if...
Page 4: Installation And Set-Up
INSTALLATION AND SET-UP _______________ The SEM Model 0101 must be installed according to Customer’s incoming power.  110 volt Versions are equipped with a 15 Amp (3) three prong plug on the power cord.  220 volt Versions are equipped with a 10 Amp (2) two prong European plug on the power cord.
Page 5 https://www.supplychimp.com/ Back Panel Remove Shipping Plug (RED) and replace with the Breather Plug (BLACK) which is supplied Remove Back Panel by in the bag located in crushing un-screwing the six chamber. Phillips Head Screws Removed Back Panel – Lean against side of system. STEP 4: Once the Red Plug is removed and the Black Plug is installed, re-secure the access door by replacing the (6) screws in the following sequence: Begin with the two bottom bolts, followed by the two top bolts and finally with...
Page 6: Hdd - Operation
https://www.supplychimp.com/ HDD – OPERATION____ 1. To begin crushing, open the front access door and place the hard drive into the crushing chamber. Close the access door and press “RUN”. NOTE: the unit will not function if the access door is open. Note: There are two channels inside the crushing chamber to properly align the hard drives inside the chamber.
Page 7 Warning: The debris that falls into the “Collection Draw” must be removed to ensure proper performance of the system. SEM recommends that the draw be emptied after the crushing of each hard drive or as needed. If the Draw does not get emptied, it could cause the hydraulic cylinder to fail and will void the warranty.
Page 8: Overloading
https://www.supplychimp.com/ MANUAL OVERRIDE OPERATION As the automated crushing operation for the SSD anvil requires it to perform a complete cycle before stopping, a manual override method is acceptable for crushing SSD material in order to save the time wasted by allowing the anvil to return to its resting position.
Page 9: Hdd Maintenance
Lock Washer Anvil HDD Anvil SEM recommends that the Anvil be replaced as needed depending on type and quantity of hard drives being destroyed. Warning: If Anvil is not replaced, it could cause damage to the cylinder and void warranty.
Page 10 https://www.supplychimp.com/ HDD MAINTENANCE Continued Replacing HDD Anvil: Tools needed: 7/8” and 1 1/2” Open-End Wrench (1 1/4” for older anvils) Removing HDD Anvil: 1) With the system UN-PLUGGED, open the access door. Using a 1-1/4" Open-End Wrench, turn cylinders shaft until the two flat edges on cylinder are perpendicular to door opening. This will allow the 7/8”...
Page 11 Answer: Be sure that the front access door is closed, check to make sure that the power is on. If there still is an issue, contact the SEM service department. Issue: Crushing capacity has dropped or the machine jams easily.
Page 12: Preventive Maintenance Options
Automatic transmission fluid (Approx 2 Quarts) Fluid The Model 0101 Hard Drive Crusher has (2) quarts of fluid in the reservoir. SEM recommends the fluid be changed once a year to maintain optimal performance. Note: Fluid should be changed by an SEM authorized tech only. See Preventative Maintenance Options.
Page 13: Cabinet Exploded View
https://www.supplychimp.com/ CABINET EXPLODED VIEW ITEM PART NUMBER DESCRIPTION 850HDCHOUSASSY-1 BOTTOM PLATE 850HDCHOUSASSY-2 FRONT ASSEMBLY 850HDCHOUSASSY-3 BACK COVER 850HDCHOUSASSY-4 TOP COVER 850HDCHANDLE HANDEL 850DRHANDLE DOOR HANDLE...
Page 14: Tower Exploded View
https://www.supplychimp.com/ TOWER EXPLODED VIEW ITEM PART NUMBER DESCRIPTION QTY. 850HDCTOWER-6 TOWER ASSEMBLY 850HDCTOEWR-7 DRAW 850HDCTOWER-8 LIMIT SWITCH BRAKET 850HDCTOWER-4 E-MOUNT 850HCDTOWER-5 CATCH...
