Medela Symphony Quick Instructions

Symphony
Quick Instructions

Assembling the Pump Set

It is very important that these components
are cleaned thoroughly after every use.
Carefully push the
1
membrane onto the valve
head until it engages.
Push the breastshield
2
onto the connector.
Push the valve head and
3
membrane onto the
connector ➞ position
valve head laterally.
Screw the bottle onto the
4
connector.
Insert the tubing into the
5
corresponding opening in
the connector.
Place the protective membrane
6
onto a flat surface and carefully push
the membrane cap down until it
engages.
Insert the second end of the
7
tubing into the opening in the
membrane cap.
Press the membrane cap (during
8
double pumping both membrane caps)
properly onto the breastpump
diaphragms.
Note: These short instructions are not a replacement
for standard instructions. For cleaning of the pump set
see standard instructions, REF 200.7068
EFFICIENCY

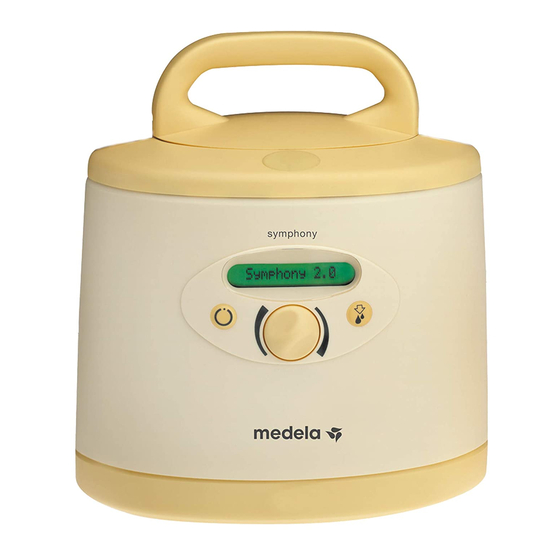

Breastpump
®

Use of the Breastpump

The Stimulation Phase

1
Check that the cable on the back of
the breastpump is connected behind
the cover with an arrow on it. Start the
breastpump with the On/Off button.
Pumping always starts at the same
vacuum level. This is indicated by three
drops on the display.

The Expression Phase

2
Switch between the Stimulation and
Expression Phase in two ways:
automatically, the breastpump
1
switches after two minutes of the
Stimulation Phase or
manually, by pressing the right-
2
hand button (
see milk flow.
When switching from the Stimulation
Phase to the Expression Phase the
vacuum level increases gradually
within 4 seconds by adding three bars
to the last stimulation setting.
Easy to switch between Stimulation
and Expression. When the breast-
pump automatically switches to the
Expression Phase you can press the
right-hand button to return to the
Stimulation Phase. If milk has not
begun to flow after two consecutive
Stimulation Phases, take a break and
try again after 15 – 30 minutes. Try
breast massage (ask your lactation
consultant or doctor) and then try to
pump again using the Expression
Phase.
Remembers the last vacuum
3
setting in the Stimulation Phase.
A memory function remembers the last
vacuum level in the Stimulation Phase.
Adjust the vacuum during pumping by
turning the button clockwise (increase)
or counterclockwise (decrease).
button ) when you
