Summary of Contents for Kramer UTBUS-1xl

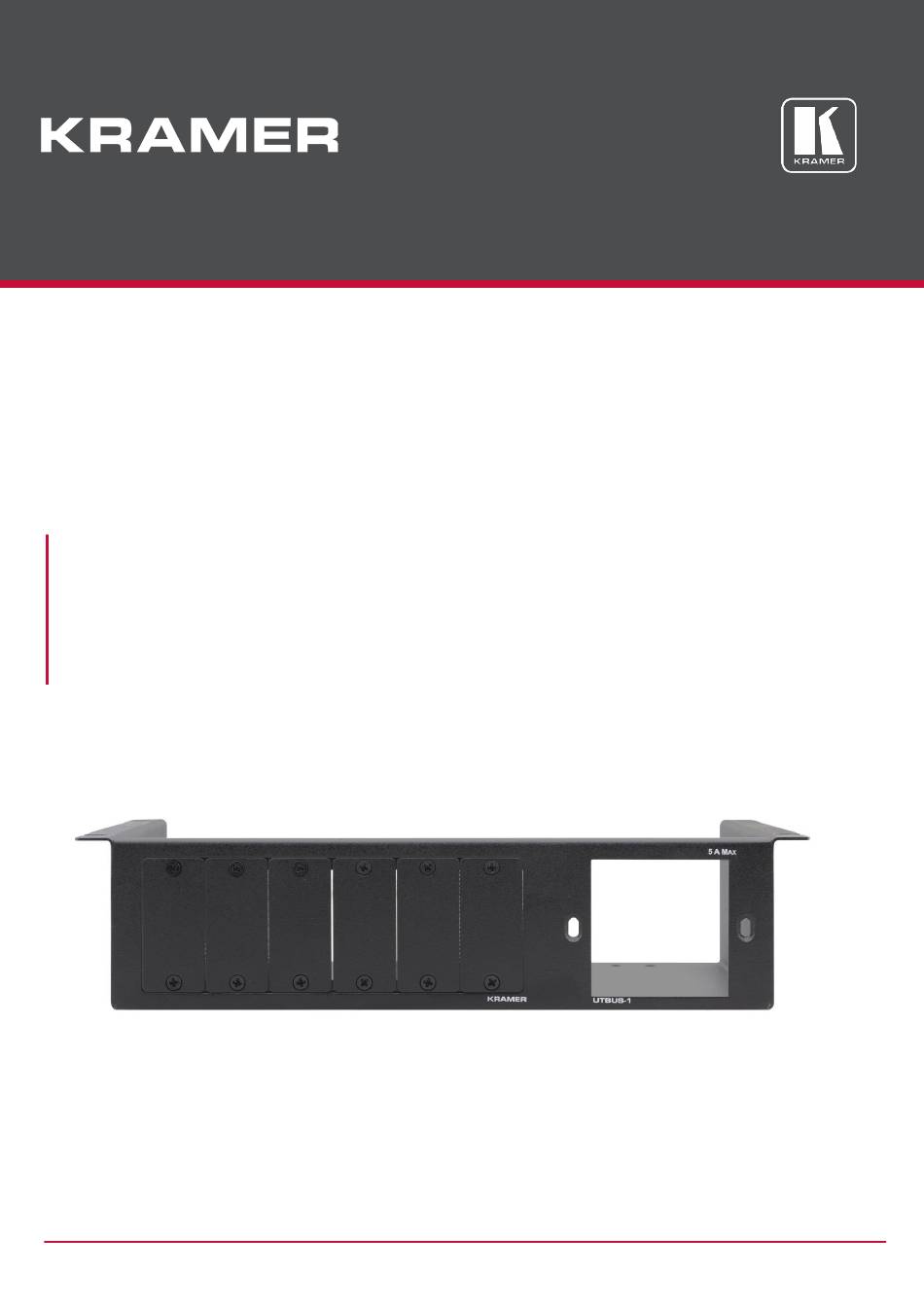

- Page 1 USER MANUAL MODEL: UTBUS-1xl Under the Table Connection Bus P/N: 2900-300076 Rev 5 www.kramerAV.com...
-
Page 2: Table Of Contents
Defining the UTBUS-1xl Enclosure Power Socket Options Power Cord Options Installing the UTBUS-1xl Installing the Required Wall Plate Inserts Installing the Power Socket Installing the Cables Securing the UTBUS-1xl Enclosure to the Table Technical Specifications of the Assembled UTBUS-1xl UTBUS-1xl – Contents... -
Page 3: Introduction
In recent years, we have redesigned and upgraded most of our line, making the best even better! Thank you for purchasing the Kramer UTBUS-1xl, which is ideal for boardrooms, conference and training rooms! - Page 4 European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling/.
-
Page 5: Overview
Has a power socket opening that is suitable for any of the following power sockets: for the USA, Germany (the Europlug), Belgium-France, Italy, Australia, Israel, Switzerland, UK, Brazil, South Africa or “Universal” for use anywhere (see compatibility restrictions in Technical Specifications of the Assembled UTBUS-1xl on page 8). Power sockets are ordered separately. -
Page 6: Defining The Utbus-1Xl Enclosure
Kramer Electronics Ltd. Defining the UTBUS-1xl Enclosure Figure 2: UTBUS-1xl Under the Table Connection Bus Feature Function Blank Plates Six blank covers that can be replaced with wall plate inserts as required (see Installing the Required Wall Plate Inserts on page 6). -
Page 7: Power Socket Options
C-AC/JP (125V) 91-000699 6ft/220V (Europe) C-AC/EU (220V) 91-000199 6ft/220V (Israel) C-AC/IL (220V) 91-000999 6ft/250V (UK) C-AC/UK (250V) 91-000299 6ft/250V (India) C-AC/IN (250V) 91-001099 6ft/250V/10A (China) C-AC/CN (250V) 91-001199 6ft/250V/10A (South Africa) C-AC/ZA (250V) 91-001299 UTBUS-1xl – Defining the UTBUS-1xl Enclosure... -
Page 8: Installing The Utbus-1Xl
Each blank plate can be removed and replaced with a Kramer passive wall plate insert or connector module for interfacing A/V type signals, if required. To install a wall-plate insert or connector module, do the following: 1. -
Page 9: Installing The Cables
2. Insert the self-locking ties through the tie holes to secure the cables to the inside walls of the enclosure. Securing the UTBUS-1xl Enclosure to the Table To install the UTBUS-1xl underneath the table (as illustrated in Figure 1. Place the unit to the underside of the table and mark the correct location. -
Page 10: Technical Specifications Of The Assembled Utbus-1Xl
250.2mm x 137.5mm x 65mm (9.85" x 5.41" x 2.56") W, D, H WEIGHT: 0.7kg (1.54lbs) approx. ACCESSORIES: Self-locking ties, wood screws OPTIONS: Passive wall plates and interfaces, power socket kits, power cord Specifications are subject to change without notice at www.kramerav.com UTBUS-1xl – Technical Specifications of the Assembled UTBUS-1xl... - Page 11 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 12 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
