PROPANE
SPACE HEATERS
47063, 47100, 47101 & 47105.

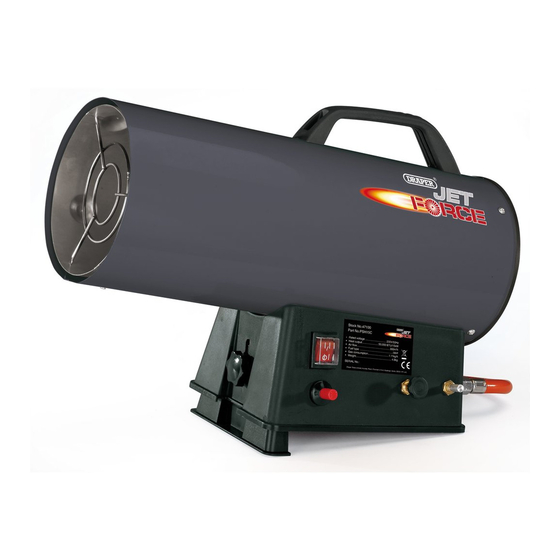

*47101 shown.
IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save
these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the
product with which it is enclosed and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Related Manuals for Draper 47063
Summary of Contents for Draper 47063
- Page 1 IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references.
-
Page 2: Introduction
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING AND STORAGE .................. -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
This range of portable, direct fired gas heaters are designed for well ventilated industrial applications to give save, efficient and reliable operation. 4.2 SPECIFICATION Stock No: .............47063 ............47100 Part No: ............PSH10C ..........PSH15C Rated voltage ..........230V~50Hz .......... 230V~50Hz Rated input ............30W ............30W... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION 5.1 GENERAL HEATER SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1) Work area safety a) Keep work area clean and well lit. -
Page 7: Heater Use And Care
HEALTH AND SAFETY INFORMATION 4) Heater use and care DO NOT move the heater when it is in operation or when plugged into the mains supply. Only move heater once it has cooled and it has been unplugged. a) Use the correct heater for your application. The correct heater will do the job better and safer at the rate for which it was designed. -
Page 8: Use In Environments With Permanent Presence Of People
- If you need assistance or heater information such as instructions manual, labels etc. Please contact Draper Tools. - Check the heater thoroughly for damage. DO NOT operate a damaged heater. - DO NOT modify the heater or operate a heater which has been modified from its original condition. -
Page 9: Connection To The Power Supply
HEALTH AND SAFETY INFORMATION Caution: Due to the high surface and exhaust temperatures, adults and children must observe clearances to avoid burns or clothing ignition. Do not touch. Keep children, clothing, and combustibles away. Never point the heater directly at persons nearby. Install the heater such that it is not directly exposed to water spray, rain and / or water. -
Page 10: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION *47063 shown. Mains plug Gas control button Outer shell Air inlet Heat adjustment knob Hot air outlet. Base Ignitor button Gas hose Gas inlet Power switch Gas regulator Protection cap Top handle - 10 -... -
Page 11: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine. -
Page 12: Assembling The Space Heater
ASSEMBLING THE SPACE HEATER GUIDELINES OF FUEL GASES This heater is intended for the use of temporary heating of buildings under construction, alteration or repairing, in accordance with BSEN449:2002+A1:2007(E). There may also be other local standards or regulations governing the use of fuel gases and heating products, of which you can get advice from your relevant local authority. -
Page 13: Ventilation
ASSEMBLING THE SPACE HEATER VENTILATION Warning: Be sure that the heater is only ever used with correct ventilation. Make sure that no object may obstruct the fan air intake. (Fig.2.) OXYGEN DELETION: The combustion of propane will consume a lot of oxygen (with butane even more). -
Page 14: Space Heater Instruction
SPACE HEATER INSTRUCTION VENTILATION WARNING: PROVIDE AT LEAST A 1.5 ft (1400 cm ) OPENING OF FRESH, OUTSIDE AIR WHILE RUNNING HEATER. IF PROPER FRESH, OUTSIDE AIR VENTILATION IS NOT PROVIDED, CARBON MONOXIDE POISONING CAN OCCUR. PROVIDE PROPER FRESH, OUTSIDE AIR VENTILATION BEFORE RUNNING HEATER STARTING PROCEDURE WARNING: BEFORE STARTING THE HEATER, YOU MUST ENSURE THAT THE MINIMUM VENTILATION REQUIREMENTS ARE OBSERVED TO AVOID THE RISK OF CARBON... -
Page 15: Shut-Down Procedure
SPACE HEATER INSTRUCTION SHUT-DOWN PROCEDURE TO STOP THE HEATER Tightly close propane supply valve on propane tank(s). • Allow the heater to burn any gas left In supply hose. Allow the heater to continue to run and cool down for 5 minutes, then switch off the heater. Unplug the heater. -
Page 16: Maintenance
10. MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your heater in good working condition. The motor must be correctly ventilated during the heater’s operation. For this reason avoid blocking the air inlets. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. -
Page 17: Troubleshooting
11. TROUBLESHOOTING Trouble Reason Remedy Fan doesn’t No electricity. Check power supply. work. Blade stalled by housing/ Repair/replace housing. foreign body. Heater will not Ignition cable damaged Only by a qualified person. ignite. Ignition cable disconnected. Only by a qualified person. Distance between electrode Adjust distance within 3-8mm. -
Page 18: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Warning! Read the instruction manual. - 18 -... -
Page 19: Disposal
13. DISPOSAL 13.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 20 NOTES - 20 -...
- Page 21 NOTES - 21 -...
- Page 22 NOTES - 22 -...
- Page 23 NOTES - 23 -...
- Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
