1 Scope of delivery
The chlorine gas changeover unit C 7520 is delivered either as a
ready-to-connect unit with a mounting plate or an assembly kit for
integration in the pipe line. When unpacking, please ensure that
the installation material (included in the scope of delivery) for wall
fixing is not lost.
2 Device description
2.1 Technical data
Description
Throughput
Chlorine gas
Fluid chlorine
Connections
Threaded connection
depending on the
Flange connection
device version
Voltage supply
Power consumption
In standby
During changeover
Material in contact with the media
Pressure gauge
Measuring range
Accuracy
Nominal size
Load capacity of the relay contacts
Changeover time
Operating pressure
Protection class
Permissible ambient temperature
Weight with mounting plate
Table 1: Technical data
12.15
2.2 Dimensions
All dimensions in mm
Value
up to 200 kg/h
up to 1400 kg/h
External thread 1" NPT
Flange DN25 / PN40 with key and slot
according to EN1092
Inputs: Groove flange (Form D)
Output: Tongue flange (Form C)
100 ... 240 V AC
5 W
max. 100 W
steel, Monel, stainless steel, PTFE, silver
0...16 bar (vacuum resistant)
± 2.5 %
Ø 63 mm
max. 3 A / 250 V AC
max. 25 s
0...16 bar
IP 65
0-60°C
approx. 17 kg
BW 2 24 04 / 1
600
550
1" NPT
~
550
300

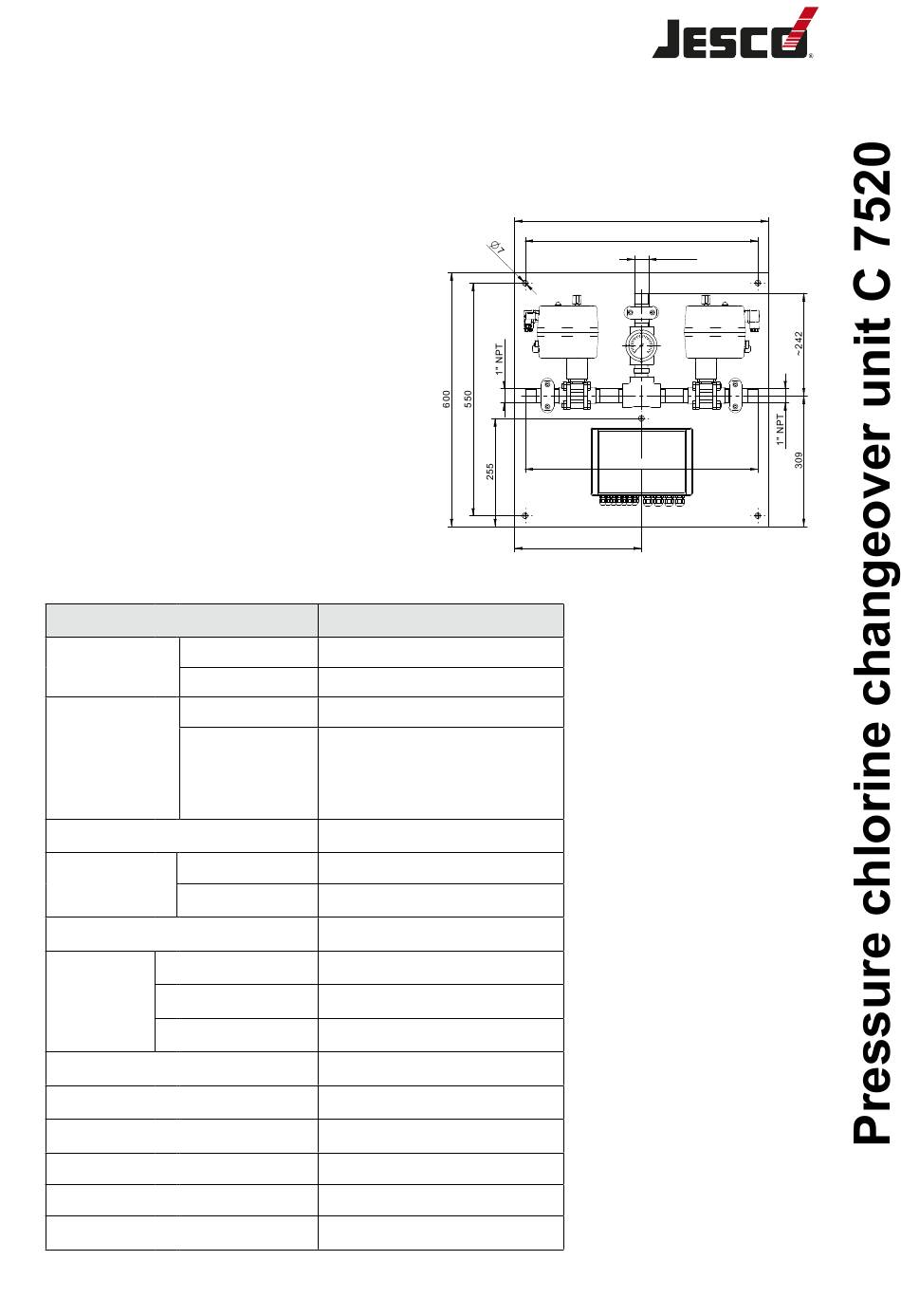

Fig. 1:
Dimensions
