Summary of Contents for Inalto IDO68S

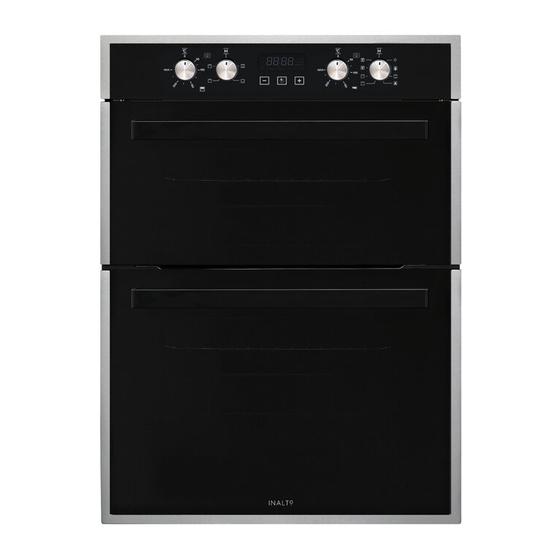

- Page 1 MODEL CODE / S PRODUCT DOCUMENT IDO68S Double User Oven Manual...
- Page 2 Again, thank you for choosing an Inalto appliance and we look forward to being of service to you. Kind Regards,...
-
Page 3: Table Of Contents
PAGE 03 PAGE CONTENT General Warnings & Safety Your InAlto Oven Installation Control Panel Key Operating Your Oven Technical Data Cooking Guides Maintenance & Cleaning Troubleshooting Warranty Information Purchase Details... -
Page 4: General Warnings & Safety
USER MANUAL PAGE 04 General Warnings & Safety GENERAL WARNINGS SAFETY It is important that you read all the information within this user ¬ This appliance is designed for household use only and not instruction and installation manual. It provides you with important suitable for commercial use. - Page 5 PAGE 05 General Warnings & Safety Continued For long life and good cooking practices please adhere to the INDICATOR LIGHTS following: When the oven or grill is in use the indicator lamps on the ¬ Only use the appliance to cook food control panel will light up.
-
Page 6: Your Inalto Oven
USER MANUAL PAGE 06 Your InAlto Oven OVEN DETAILS The fi rst time you use your appliance, heat the empty oven with the door closed at its maximum temperature for at least half an The top oven has a 43 litre capacity and the hour. -
Page 7: Installation
PAGE 07 Installation IMPORTANT IMPORTANT Unplug your oven before installing or for maintenance ¬ During use the appliance becomes hot, Care should be taken to avoid touching heating elements inside the oven. Installation should be carried out according to these instructions ¬... - Page 8 USER MANUAL PAGE 08 Installation Continued ELECTRICAL CONNECTION Ovens equipped with a three-power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
-
Page 9: Control Panel Key
COOKING and a small amount of washing up liquid. AUTOMATIC Mode OVEN FUNCTIONS & OPERATION Your InAlto Double Oven combines the advantages of MANUAL Mode traditional convection ovens with those of modern fan forced L1 L2 L3 Audible Tone Volume air ventilation ovens. - Page 10 USER MANUAL PAGE 10 Operating Your Oven Continued TOUCH CONTROLS USING THE COOKING DURATION FUNCTION ¬ The programmable timer features 3 touch control buttons; ¬ Press the Confirm/Set button until the Cooking Duration icon (page 11) is displayed and flashing. ¬...
- Page 11 PAGE 1 1 Operating Your Oven Continued TOP OVEN FUNCTIONS FUNCTION SYMBOL FUNCTION TYPE FUNCTION DESCRIPTION Grill Top Heat/Grill Element For grilling and toasting bread, open sandwiches etc. and browning baked dishes. Conventional Heat Heat/Grill Element + Bottom Heat Element For baking and roasting traditional recipes, preparing soufflés and cooking at low temperatures.
-
Page 12: Technical Data
USER MANUAL PAGE 12 Technical Data Operating Your Oven Continued Height 888mm CHILD LOCK To avoid an unwanted selection or tampering, your InAlto Width 595mm oven features a Child Lock. Depth 546mm Usable Volume 42 + 60 litres To activate the Child Lock whilst cooking in Manual cooking mode: ¬... -
Page 13: Cooking Guides
PAGE 13 Cooking Guides COOKING TABLE FOR TOP OVEN: CONVENTIONAL COOKING It is recommended to preheat the oven 10 minutes. DISHES LEVEL TEMPERATURE COOKING TIME Yorkshire Pudding 200°C 30–40 min. Fatless Sponge Cake 180ºC 25–30 min. Small Cakes 190ºC 15–20 min. Fruit Plate Tart 200ºC 40–45 min. - Page 14 USER MANUAL PAGE 14 Cooking Guides Continued Using the selector switch select the function for the type of ROASTING GUIDE cooking required. Preheat the oven, setting the thermostat to the ¬ Frozen meat should be thoroughly thawed before cooking. required temperature. Once the oven has heated to the selected For large pieces of frozen meat it is advisable to thaw overnight.
-
Page 15: Maintenance & Cleaning
PAGE 15 Maintenance & Cleaning This appliance is for household use only, it is not for outdoor use! REPLACING THE LAMP IN THE OVEN 1. Unplug the appliance or turn off the appliance by isolating IMPORTANT from your power board. Unplug your oven before cleaning, or performing maintenance! µ... - Page 16 USER MANUAL PAGE 16 Maintenance & Cleaning Continued REMOVING THE GLASS DOOR PANES FITTING OVEN SHELVES The oven door is made up of 3 panes of glass and has vents at 1. Ensure shelf orientation is correct (refer picture to the right) the top and bottom.
-
Page 17: Troubleshooting
PAGE 17 Troubleshooting USEFUL NOTES FOR COOKING In the following table, some indicative hints for cooking: FAULTS CAUSES REMEDIES The upper crust is dark and the lower part Not enough heat from the bottom • Use the centre convection position too pale •... -
Page 18: Warranty Information
USER MANUAL PAGE 18 Warranty Information WARRANTY TERMS & CONDITIONS You will bear the cost of transportation, travel and COOKING APPLIANCES delivery of the Appliance to and from Residentia (BUILT-IN OVENS, COOKTOPS) Group or its ASR. If you reside outside of the service area, you will bear the cost of: This document sets out the terms and conditions of the travel of an authorised representative;... -
Page 19: Purchase Details
RECEIPT PAGE 19 Warranty Information Continued 10. For Appliances and services provided by Residentia To enquire about claiming under this warranty, please Group in Australia, the Appliances come with a follow these steps: guarantee by Residentia Group that cannot be carefully check the operating instructions, user excluded under the Australian Consumer Law. - Page 20 MODEL CODE / S IDO68S...
