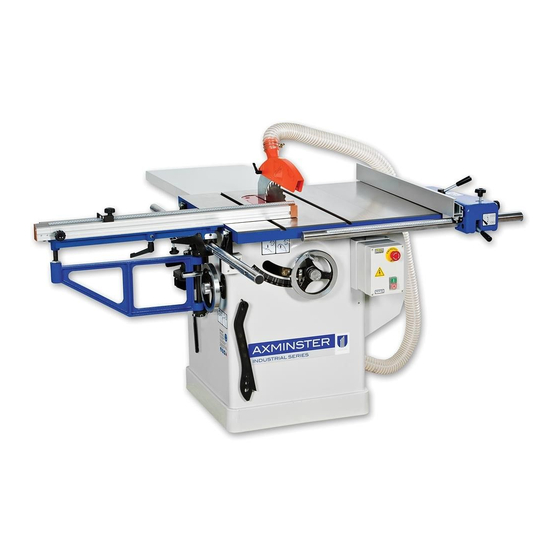

TSCE-12R 305mm
Table Saw
Code 700158
Code 600807

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSCE-12R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axminster TSCE-12R

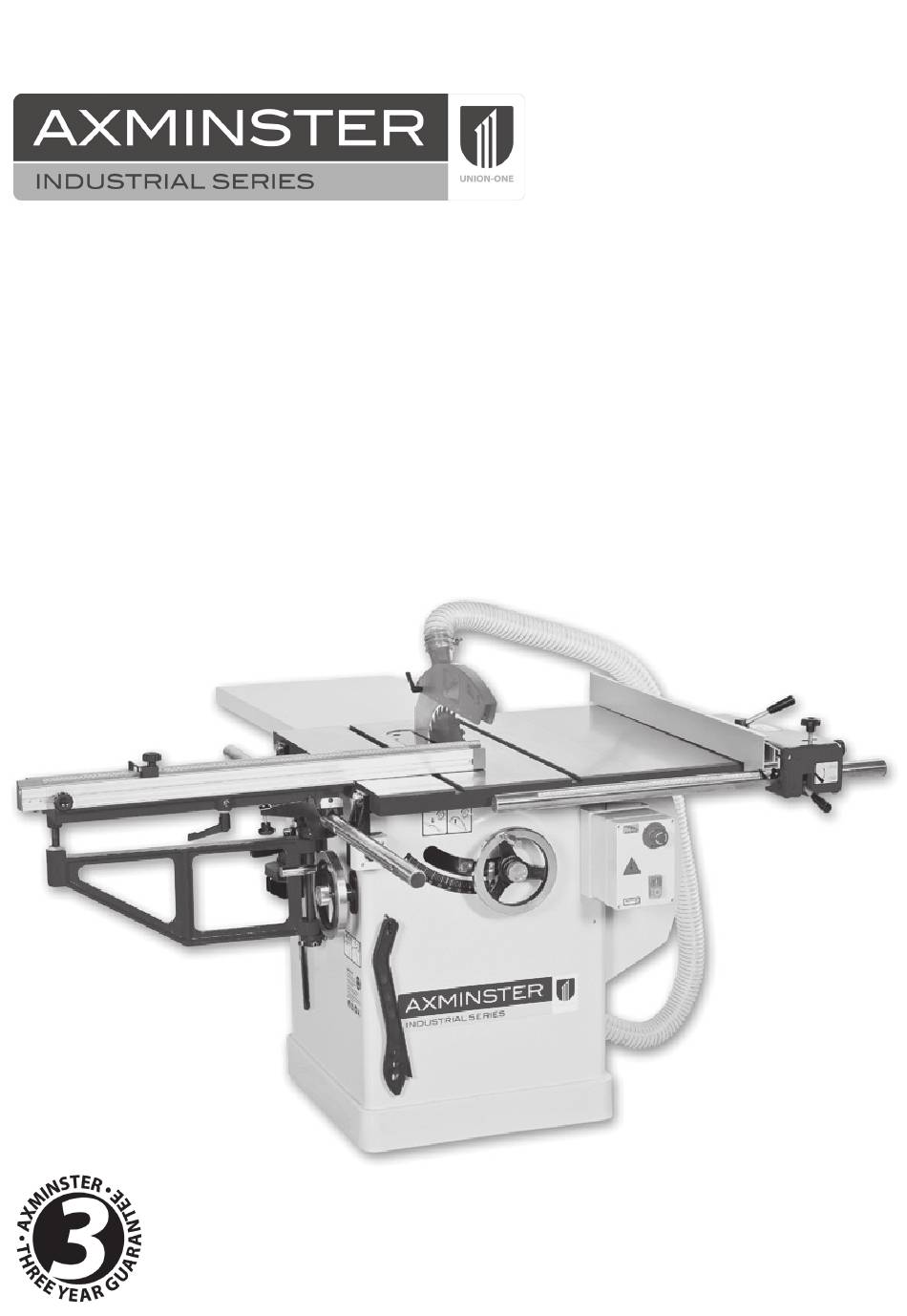

  • Page 1 Code 700158 Code 600807 TSCE-12R 305mm Table Saw...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents............................Warnings ............................... Specifications ..............................Shipping Contents............................Unpacking..............................Cleaning ..............................Contents of the Shipping Container ......................Assembly............................... Motor Cover............................... Handwheel Assembly ..........................Miter Gauge and Fence Storage Hooks....................Extension Wing............................Blade Installation/Replacement....................... Riving Knife and Guard Installation ......................Mounting Rails &...
  • Page 3: Warnings

    1. Read and understand the entire owner's manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. Replace the warning labels if they become obscured or removed. 4.
  • Page 4 19. Keep visitors a safe distance from the work area. Keep children away. 20. Make your workshop child proof with padlocks, master switches or by removing safety keys. 21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury.
  • Page 5: Shipping Contents

    Shipping Contents Unpacking Remove box and wood crating completely from around saw. Check for shipping damage. Report any damage immediately to your distributor and shipping agent. Do not discard any shipping material until the Table Saw is assembled and running properly. Compare the contents of your container with the parts lists in the next two pages to make sure all parts are intact.
  • Page 6 Specification Model TSCE-12R Code 600087 Rating Industrial Power 3.75kW (415V) Blade Dia/Bore 305mm/30mm Blade Tilt 0° - 45° Max Depth of Cut @ 45˚ 72mm Max Depth of Cut @ 90˚ 102mm Max Width of Cut with Fence 620mm Table Size...
  • Page 9: Extension Wing

    Extension Wing Referring to Figures 4 and 5: Hardware: (6) 7/16”x1-1/2” Hex Cap Bolts, (6) 7/16” Lock Washers, (6) 7/16” Flat Washers & (2) Extension Tables Tools: 17mm Wrench, Straight Edge 1. Attach the left extension wing (A) to the table (B) with three each hex cap screws (E), lock washers (F) and flat washers (G).
  • Page 10: Riving Knife And Guard Installation

    Riving Knife and Guard Installation Description Referring to Figure 7: The complete riving knife and guard assembly is shown in A. Installation Referring to Figure 8: 1. Set the saw blade to the 90 degree position and raise it all the way (refer to Handwheel Adjustments on page 13).
  • Page 13: Riving Knife Adjustment

    Riving Knife Adjustment Lateral alignment The saw blade and riving knife must be in line as close possible with each other (lateral alignment) for the prevention of kickback. Upon initial blade guard and riving knife installation no further adjustment should be necessary. Alignment should be checked and adjusted, if required, after each blade change.
  • Page 14: Blade Alignment

    4. Tighten the socket head flat screws ( (E). 5. Reinsert the riving knife; tighten the lock handle (A, Fig. 14) and check that the saw blade/knife gap is between 3 - 8mm (Figure 16). Note: Attempt to make the gaps as even as possible.
  • Page 15: Adjusting 45 And 90 Positive Stops

    Adjusting 45 and 90 Positive Stops The stops have been adjusted at the factory. After a period of use, or, after moving the saw to another location, the stops may no longer be set properly. To check and adjust the stops: Tools: 12mm wrench, combination square 1.
  • Page 16: Changing The Belt

    Changing the Belt Make all machine adjustments or maintenance with the machine unplugged from the power source. Failure to comply may cause serious injury! Referring to Figure 22: 1. Disconnect the machine from the power source, unplug. 2. Lower the blade to its lowest point. 3.
  • Page 17: Troubleshooting

    Troubleshooting Trouble Possible Cause Solution Overload tripped Allow motor to cool and reset by pushing off switch Saw stops or will Saw unplugged from wall or motor Check all plug connections not start Fuse blown or circuit breaker tripped Replace fuse or reset circuit breaker Cord damaged Replace cord Stops not adjusted correctly...
  • Page 19 Table and Cabinet Assembly(Right tilt) lndex Part Description Size Qty. 1………… UOTS10-1…………….…… Lock Knob………………. ……………..…1 2………… UOTS10-2.………………… Miter Gauge Body.……… ……………..…1 3………… UOTS10-3.………………… Hex Nut………………….. M5…………. .…3 4………… UOTS10-4.………………… Pointer…………………… ……………..…1 5………… UOTS10-5.………………… Stop Link………………... ……………..…1 6…………...
  • Page 20: Table & Cabinet Assembly

    Table and Cabinet Assembly(Right tilt) lndex Part Description Size Qty. 28……….. UOTS10-28…..……………. Tilt Scale…………………… ……………..…1 29……….. UOTS10-29…..……………. Logo Lable………………… ……………..…1 30……….. TSCE10-30………………..Power Cord………………... ……….……. .…1 …………. TSCE12-30…………..…..… Power Cord………………... ……….……. .…1 31……….. UOTS10-31……………….… Carriage Bolt……………… 1/4” 3/4”..… .…4 32………..
  • Page 21 Table and Cabinet Assembly(Right tilt) lndex Part Description Size Qty. 54……….. 901M06016…………………. Hex Socket Head Screw.…. M6 16……..…2 3/16 1/2…… .…2 55……….. 906316012…………………… Screw…………………….. 56……….. S12200015…………………... Foot Stop Switch…………... ……………..…1 57……….. 914M051001………………… Flat Washer………………... M5…………. .…2...
  • Page 23: Motor And Trunnion Assembly

    Motor and Trunnion Assembly lndex Part Description Size Qty. 101……… UOTS10-101……………….. Arbor Nut……………..… ……………..…1 …………. UOTS12-101……………….. Arbor Nut……………….. ……………..…1 102……… UOTS10-102……………….. Arbor Flange…………..…..…………. .…1 ….……… TSCE12-102……………..…. Arbor Flange……………. ……………..…1 103……… UOTS10-103……………….. Saw Blade(Optional)…..10”(254mm) .…1 …….…… UOTS12-103………………... Saw Blade(Optional)……...
  • Page 30 Rip Fence Assembly lndex Part Description Size Qty. 1………... CE12F-1……………………. Rip Fence Body………… …………….. .…1 2………... CE12F-2……………………. Clamping Block………..……………. .…1 3………... CE12F-3……………………. Nylon Nut……………….. M10………. .…1 4………... CE12F-4……………………. Flat Washer…………….. M10………. .…1 5………... CE12F-5……………………. Knob…………………….. ……………. .…1 6………... CE12F-6……………………. Fiber Washer……………. M10………. .…1 7………...
  • Page 31 Rip Fence Assembly lndex Part Description Size Qty. 33………. CE12F-33…………………… Ball Bearing…………….. 6200zz……... ….2 34………. CE12F-34…………………… Stop Profile……………… …………….. ….1 35……….. CE12F-35…………………… Sticker…………………… …………….. ….1...
  • Page 33 Sliding Table Assembly (Optional) lndex Part Description Size Qty. 1………… 231-4101……………………... Hex Socket Cap Screw… 3/8”x1”…..…2 2………… 231-4102……………………... Guide Shaft……………… ……………..…1 3………… 231-4103……………………... Guide Rail Bracket…..…..…………. .…2 4………… 231-4104……………………... Plate……………………… ……………..…1 5………… 231-4105……………………... Hex Nut………….……... M8………..…1 6…………...
  • Page 34 Sliding Table Assembly (Optional) lndex Part Description Size Qty. 34……….. 231-41034……………………. Round Head Screw………... M4x10…….. .…2 35……….. 231-41035……………………. Nylon Nut………………….. 5/16”…….… .…1 36……….. 231-41036……………………. Plate ………………………... …………..… .…1 37……….. 231-41037……………………. Work Table………………… …………..… .…1 38……….. 231-41038……………………. Cross Shaft………………… ……………..…1 39………..
  • Page 36 Normal wear and tear, misuse, abuse and neglect are excluded and the machine should not have been engineering machines, Axminster Air compressors and Air Tools, and bench top grinders - no modified in any way. Please do not attempt to service the product without first contacting us; we are registration necessary just proof of purchase.
