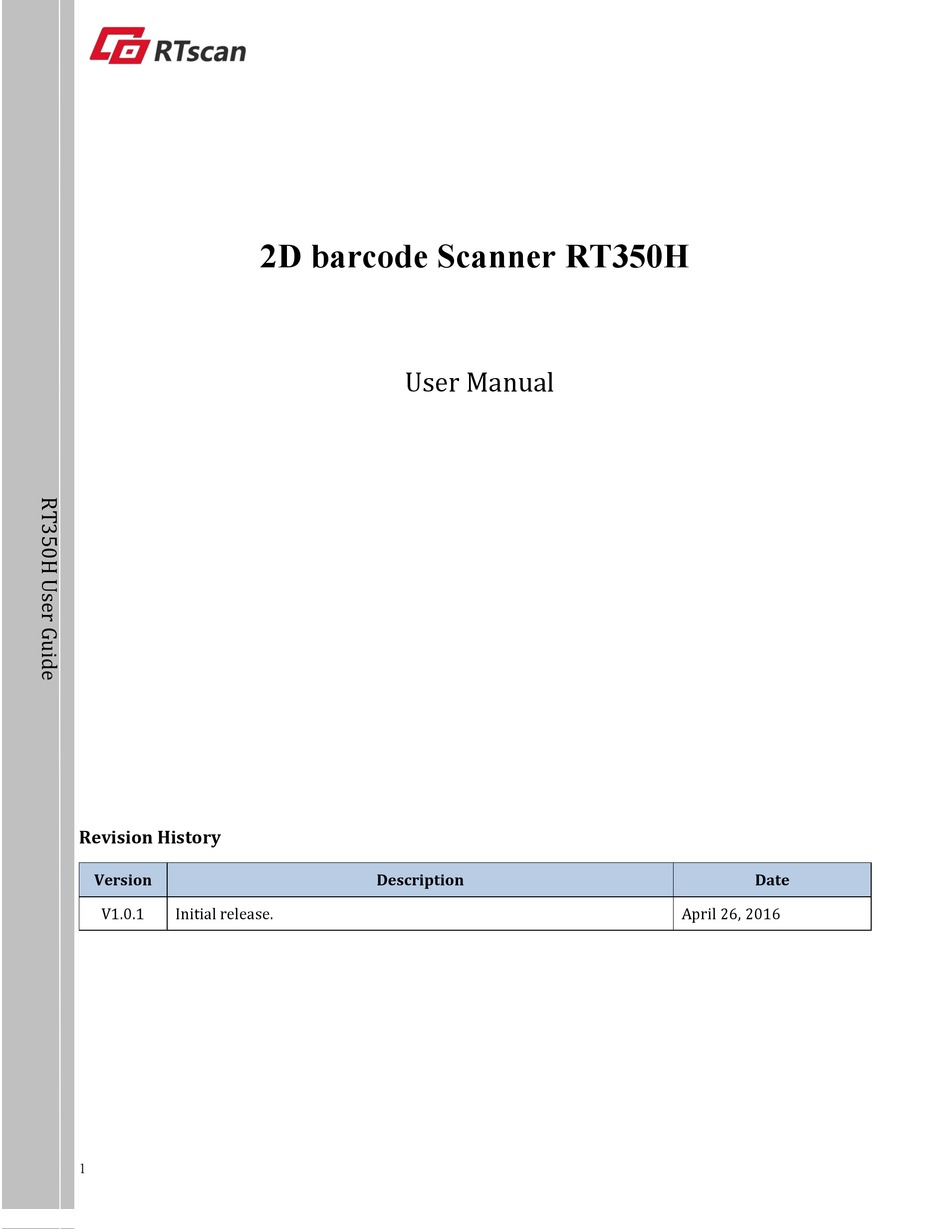

2D barcode Scanner RT350H
User Manual

Revision Histors

Version
Description
Date
V1.0.1
Initial release.
April 26, 2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT350H and is the answer not in the manual?

Questions and answers

Related Manuals for RTscan RT350H

Summary of Contents for RTscan RT350H

  • Page 1: Revision Histors

    2D barcode Scanner RT350H User Manual Revision Histors Version Description Date V1.0.1 Initial release. April 26, 2016...

  • Page 2: Table Of Contents

    Table Of Contents Revision Histors...................................1 Table Of Contents................................2 Chapter 1 Getting Started..............................10 Introduction................................10 About This Guide..............................10 Barcode Scanning..............................10 Barcode Programming............................10 Factory Defaults..............................11 Custom Defaults..............................11 Chapter 2 Communication Interfaces........................... 13 RS232 Interface..............................14 Baud Rate................................15 USB Interface (Optional)............................16 USB Enumeration............................16 USB HID-KBW..............................16 USB Country Keyboard Types........................
  • Page 3 VID/PID................................16 Chapter 3 Scan Mode.................................27 Trigger Mode................................17 Decode Session Timeout..........................17 Level Trigger/Pulse Trigger......................... 18 Auto Sleep............................... 18 Timeout between Decodes (Same Barcode)....................19 Sense Mode................................30 Decode Session Timeout..........................30 Image Stabilization Timeout.........................30 Continue after Good Read..........................31 Timeout between Decodes (Same Barcode)....................31 Sensitivity...............................
  • Page 4 Good Read LED..............................44 Transmit NGR Message............................45 Edit NGR Message............................45 Chapter 7 Data Formatting..............................46 General Settings..............................47 Enable/Disable All Prefix/Suffix........................47 Prefix Sequences............................47 Custom Prefix.................................48 Enable/Disable Custom Prefix........................48 Set Custom Prefix............................48 AIM ID Prefix................................49 Code ID Prefix.................................49 Restore All Default Code IDs.........................49 Modify Code ID...............................
  • Page 5 AIM-128................................60 Restore Factory Defaults..........................60 Enable/Disable AIM-128..........................60 Set Length Range for AIM-128........................60 EAN-8................................61 Restore Factory Defaults..........................61 Enable/Disable EAN-8...........................61 Transmit Check Digit............................. 61 Add-On Code..............................61 Add-On Code Required..........................63 EAN-8 Extension............................63 EAN-13................................64 Restore Factory Defaults..........................64 Enable/Disable EAN-13..........................64 Transmit Check Digit............................. 64 Add-On Code..............................65 Add-On Code Required..........................65 ISSN.................................
  • Page 6 UPC-A................................73 Restore Factory Defaults..........................73 Enable/Disable UPC-A...........................73 Transmit Check Digit............................. 73 Add-On Code..............................74 Add-On Code Required..........................74 Transmit Preamble Character “0”........................ 75 Interleaved 2 of 5............................76 Restore Factory Defaults..........................76 Enable/Disable Interleaved 2 of 5........................76 Set Length Range for Interleaved 2 of 5...................... 76 Check Digit Verification..........................77 ITF-14................................78 ITF-6................................
  • Page 7 Codabar................................88 Restore Factory Defaults..........................88 Enable/Disable Codabar..........................88 Set Length Range for Codabar........................88 Check Digit Verification..........................89 Transmit Start/Stop Character........................89 Start/Stop Character Format........................90 Code 93................................91 Restore Factory Defaults..........................91 Enable/Disable Code 93..........................91 Set Length Range for Code 93........................91 Check Digit Verification..........................91 GS1-Databar (RSS)............................
  • Page 8 Enable/Disable PDF 417..........................100 Set Length Range for PDF 417........................100 PDF 417 Twin Code............................. 101 QR Code................................ 101 Restore Factory Defaults..........................101 Enable/Disable QR Code..........................101 Set Length Range for QR Code........................101 Micro QR............................... 101 QR Twin Code...............................103 Data Matrix..............................105 Restore Factory Defaults..........................105 Enable/Disable Data Matrix........................
  • Page 9 a. Program the Decode Session Timeout....................119 b. Program the Time Period from Idle to Sleep..................119 c. Program the Image Stabilization Timeout.....................119 d. Program the Timeout between Decodes (Same Barcode)..............130 e. Program the Threshold Value of Illumination Change.................130 f. Program the Timeout between Decodes....................130 g.

  • Page 10: Chapter 1 Getting Started

    This guide provides programming instructions for the RT350H. Users can configure the RT350H by scanning the programming barcodes included in this manual. The RT350H has been properly configured for most applications and can be put into use without further configuration. Users may check the Factors Defaults Table in Appendix for reference. Throughout the manual, asterisks (**) indicate factory default values.

  • Page 11: Factory Defaults

    number of programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode. If the scanner has exited the setup mode, only some special programming barcodes, such as the Enter Setup barcode and Restore All Factors Defaults barcode, can be read. Enter Setup ** Exit Setup Programming barcode data can be transmitted to the Host.

  • Page 12: Custom Defaults

    Restore All Factors Defaults Custom Defaults Custom defaults make it possible to save the frequently-used settings on the scanner. Scanning the Save as Custom Defaults barcode can save the current settings as custom defaults. Once custom default settings are stored, they can be recovered at any time by scanning the Restore All Custom Defaults barcode.

  • Page 13: Chapter 2 Communication Interfaces

    Chapter 2 Communication Interfaces The RT350H provides a USB interface and a RS2323 interface (optional) to communicate with the host device. ** Exit Setup...

  • Page 14: Rs232 Interface

    RS232 Interface Default serial communication parameters are listed below. Make sure all parameters match the host requirements. Serial Communication Standard RS232 Parameter Factors Default Baud Rate 9600 Parity Check None Data Bits Stop Bits Hardware Flow Control None ** Exit Setup...

  • Page 15: Baud Rate

    Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements. ** 9600 1200 19200 2400 38400 4800 57600 14400 115200 ** Exit Setup...

  • Page 16: Usb Interface (Optional)

    USB Interface (Optional) USB Enumeration If the scanner is connected to the Host via a USB connection, the scanner will be enumerated using S/N or “00000000” after power-up. Enumeration using S/N enables the Host to distinguish even between scanners of same model. Enumeration using “00000000” disables the Host from distinguishing between scanners of same model.

  • Page 17: Usb Country Keyboard Types

    USB Countrs Kesboard Tspes Keyboard layouts vary from country to country. The default setting is U.S. keyboard. ** U.S. Japan Denmark Finland France Turkes_F Itals Norwas ** Exit Setup...
  • Page 18 Spain Turkes_Q Austria, Germans Belgium Russia Sweden Portugal ** Exit Setup...

  • Page 19: Beep On Unknown Character

    Beep on Unknown Character Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the scanner fails to transmit the unknown characters. Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.

  • Page 20: Convert Case

    Convert Case Scan the appropriate barcode below to convert barcode data to your desired case. ** No Case Conversion Invert Upper and Lower Case Characters Convert All to Upper Case Convert All to Lower Case Example: When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.
  • Page 21 Emulate ALT+Kespad This feature allows any ASCII character (0x00 - 0xFF) to be sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient. The following options are available: Disable: No ASCII character is sent in the ALT+Keypad way.
  • Page 22 Function Kes Mapping When Function Key Mapping is enabled, function characters (0x00 - 0x1F) are sent as ASCII sequences over the keypad. For more information, see Appendix 8: ASCII Function Kes Mapping Table. Enable Function Kes Mapping ** Disable Function Kes Mapping Example: Barcode data 0x16 Ctrl+V Enable Function Key Mapping...
  • Page 23 Emulate Numeric Kespad When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Kespad barcode. Sending a number (0-9) is emulated as keystroke(s) on numeric keypad, whereas sending other characters like “+”, “_”, “*” , “/” and “.” is still emulated as keystrokes on main keyboard.

  • Page 24: Usb Com Port Emulation

    USB COM Port Emulation If you connect the scanner to the Host via a USB connection, the USB COM Port Emulation feature allows the Host to receive data in the way as a serial port does. A driver is required for this feature. USB COM Port Emulation USB HID-POS Introduction...

  • Page 25: Access The Scanner With Your Program

    Access the Scanner with Your Program Use CreateFile to access the scanner as a HID device and then use ReadFile to deliver the scanned data to the application program. Use WriteFile to send data to the scanner. For detailed information about USB and HID interfaces, go to www.USB.org. Acquire Scanned Data After scanning and decoding a barcode, the scanner sends the following input report: Byte...

  • Page 26: Vid/Pid

    VID/PID USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. RTscan’s vendor ID is 1EAB (Hex). A PID is assigned to each interface. USB HID-KBW 1303...

  • Page 27: Chapter 3 Scan Mode

    Chapter 3 Scan Mode Trigger Mode If the Trigger Mode is enabled, driving the TRIG pin on the host interface connector low activates a decode session. The session continues until the barcode is decoded or decode session timeout expires or the active trigger signal is no longer present.

  • Page 28: Level Trigger/Pulse Trigger

    Level Trigger/Pulse Trigger Level trigger: Decode session is activated and continued by constant active trigger signal. The decode session ends once the barcode is decoded or decode session timeout expires. Pulse trigger: Decode session is activated by electric pulse of trigger signal. The decode session continues until the barcode is decoded or decode session timeout expires.

  • Page 29: Timeout Between Decodes (Same Barcode)

    Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes: Do not allow the scanner to re-read same barcode before the timeout between decodes (same barcode) expires.

  • Page 30: Sense Mode

    Sense Mode If the Sense Mode is enabled, the scanner activates a decode session every time it detects a change in ambient illumination. The decode session continues until the barcode is decoded or the decode session timeout expires. Driving the TRIG pin on the host interface connector low can also activate a decode session. The decode session continues until the active trigger signal is no longer present or the barcode is decoded or the decode session timeout expires.

  • Page 31: Continue After Good Read

    Image Stabilization Timeout Continue after Good Read Continue after Good Read: The scanner starts next decode session after good read. Pause after Good Read: The scanner starts another round of illumination monitoring and image stabilization after good read. ** Pause after Good Read Continue after Good Read Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period...
  • Page 32 Disable Timeout between Decodes Enable Timeout between Decodes ** Exit Setup...

  • Page 33: Sensitivity

    The following parameter sets the timeout between decodes for same barcode. It is programmable in 1ms increments from 0ms to 65,535ms. The default setting is 1,500ms. To learn how to program this parameter, see Appendix 5. Timeout between Decodes (Same Barcode) Sensitivits Sensitivity specifies the degree of acuteness of the scanner’s response to changes in ambient illumination.
  • Page 34 If the above four options fail to meet your needs, you may program the threshold value of illumination change. Illumination changes that reaches or surpasses the predefined threshold value will cause the scanner to start a decode session. The lower the threshold value, the greater the sensitivity of the scanner. The default threshold value is 2.

  • Page 35: Continuous Mode

    Continuous Mode This mode enables the scanner to scan/capture, decode and transmit over and over again. When the scanner is operating in Continuous Mode, barcode reading can be suspended/resumed through control over the trigger signal. When barcode reading is in progress, negating the trigger signal after having maintained it for 30ms or longer will suspend barcode reading;...

  • Page 36: Cellphone Read Mode

    Timeout between Decodes Cellphone Read Mode **Disable Cellphone Read Mode Enable Cellphone Read Mode ** Exit Setup...

  • Page 37: Chapter 4 Scanning Preferences

    Chapter 4 Scanning Preferences Introduction This chapter contains information as to how to adapt your scanner to various applications with preference setting. For instance, to narrow the field of view of the scanner to make sure it reads only those barcodes intended by the user.

  • Page 38: Specify Central Area

    Specifs Central Area The default central area is a (Width*20%) by (Height*20%) area in the center of the scanner’s field of view, as shown in the figure below. You can define the central area by scanning the Specifs Central Area barcode and numeric barcode(s) corresponding to a desired percentage (1-100).

  • Page 39: Chapter 5 Illumination & Aiming

    Chapter 5 Illumination & Aiming Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture: Normal: Illumination LEDs are turned on during image capture. Alwass ON: Illumination LEDs keep ON after the scanner is powered on. OFF: Illumination LEDs are OFF all the time.

  • Page 40: Aiming

    Aiming When scanning/capturing image, the scanner projects an aiming pattern which allows positioning the target barcode within its field of view and thus makes decoding easier. Normal: The scanner projects an aiming pattern only during barcode scanning/capture. Alwass ON: Aiming pattern is constantly ON after the scanner is powered on. OFF: Aiming pattern is OFF all the time.

  • Page 41: Chapter 6 Beep & Led Notifications

    Chapter 6 Beep & LED Notifications Startup Beep If startup beep is enabled, the scanner will beep after being turned on. ** Enable Startup Beep Disable Startup Beep ** Exit Setup...

  • Page 42: Good Read Beep For Non-Programming Barcode

    Good Read Beep for Non-programming Barcode The scanner can provide a PWM output to an external driver circuit to drive a beeper after decoding a non-programming barcode. Scan the appropriate barcode below to enable or disable the emission of good read beep.

  • Page 43: Beep Volume

    Beep Volume ** Loud Medium Beep on Unknown Character Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard (USB HID-KBW). As a result, the scanner fails to transmit the unknown characters. Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.

  • Page 44: Good Read Beep For Programming Barcode

    Good Read Beep for Programming Barcode ** Good Read Beep On for Programming Barcode Good Read Beep Off for Programming Barcode Good Read LED ** Good Read LED ON Good Read LED OFF ** Exit Setup...

  • Page 45: Transmit Ngr Message

    Transmit NGR Message Scan a barcode below to select whether or not to transmit a user-defined NGR (Not Good Read) message when a barcode is not decoded. Transmit NGR Message ** Do Not Transmit NGR Message Edit NGR Message To edit an NGR message, scan the Edit NGR Message barcode and the numeric barcodes corresponding to the ASCII values (decimal) of desired characters and then scan the Save barcode.

  • Page 46: Chapter 7 Data Formatting

    Chapter 7 Data Formatting In many applications, barcode data needs to be edited and distinguished from one another. Usually AIM ID and Code ID can be used as identifiers, but in some special cases customized prefix and terminating character suffix like Carriage Return or Line Feed can also be the alternatives. Data formatting may include: Append AIM ID/Code ID/custom prefix before the decoded data Append custom suffix after the decoded data...

  • Page 47: General Settings

    General Settings Enable/Disable All Prefix/Suffix Disable All Prefix/Suffix: Transmit barcode data with no prefix/suffix. Enable All Prefix/Suffix: Allow user to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission. Enable All Prefix/Suffix Disable All Prefix/Suffix Prefix Sequences Code ID+Custom Prefix+AIM ID...

  • Page 48: Custom Prefix

    Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. Enable Custom Prefix ** Disable Custom Prefix Set Custom Prefix To set a custom prefix, scan the Set Custom Prefix barcode and the numeric barcodes representing the hexadecimal values of a desired prefix and then scan the Save barcode.

  • Page 49: Aim Id Prefix

    AIM ID Prefix AIM (Automatic Identification Manufacturers) IDs and ISO/IEC 15424 standards define symbology identifiers and data carrier identifiers. (For the details, see the “Appendix 2: AIM ID Table” section). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding. Enable AIM ID Prefix ** Disable AIM ID Prefix Code ID Prefix...

  • Page 50: Modify Code Id

    Modifs Code ID Code ID of each symbology can be programmed separately. See the following example to learn how to program a Code ID. Check the hex value of “p” in the ASCII Table. (“p”: 70) Example: Set the Code ID of PDF417 to “p” Scan the Enter Setup barcode.
  • Page 51 Modifs AIM-128 Code ID Modifs EAN-8 Code ID Modifs EAN-13 Code ID Modifs UPC-E Code ID Modifs UPC-A Code ID Modifs ISBN Code ID Modifs ISSN Code ID Modifs Code 39 Code ID Modifs Code 93 Code ID Modifs Interleaved 2 of 5 Code ID ** Exit Setup...
  • Page 52 Modifs ITF-14 Code ID Modifs ITF-6 Code ID Modifs Codabar Code ID Modifs Industrial 25 Code ID Modifs Standard 25 Code ID Modifs Matrix 25 Code ID Modifs COOP 25 Code ID Modifs Code 11 Code ID Modifs Plesses Code ID Modifs MSI/Plesses Code ID Modifs GS1 Databar Code ID ** Exit Setup...

  • Page 53: Custom Suffix

    Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. Enable Custom Suffix Disable Custom Suffix Set Custom Suffix To set a custom suffix, scan the Set Custom Suffix barcode and the numeric barcodes representing the hexadecimal values of a desired suffix and then scan the Save barcode.

  • Page 54: Terminating Character Suffix

    Terminating Character Suffix A terminating character can be used to mark the end of data, which means nothing can be added after it. A terminating character suffix can contain one or two characters. Enable/Disable Terminating Character Suffix To enable/disable terminating character suffix, scan the appropriate barcode below. Enable Terminating Character Suffix Disable Terminating Character Suffix ** Exit Setup...

  • Page 55: Set Terminating Character Suffix

    Set Terminating Character Suffix The scanner provides a shortcut for setting the terminating character suffix to CR (0x0D) or CRLF (0x0D,0x0A) and enabling it by scanning the appropriate barcode below. Terminating Character CR (0x0D) Terminating Character CRLF (0x0D,0x0A) To set a terminating character suffix, scan the Set Terminating Character Suffix barcode and the numeric barcodes representing the hexadecimal value of a desired terminating character and then scan the Save barcode.

  • Page 56: Chapter 8 Ssmbologies

    Chapter 8 Ssmbologies General Settings Enable/Disable All Ssmbologies If the Disable All Ssmbologies feature is enabled, the scanner will not be able to read any non-programming barcodes except the programming barcodes. Enable All Ssmbologies Disable All Ssmbologies Enable/Disable 1D Ssmbologies If the Disable 1D Ssmbologies feature is enabled, the scanner will not be able to read any 1D barcodes.

  • Page 57: Video Reverse

    Video Reverse Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below. Regular Barcode Inverse Barcode Video Reverse allows the scanner to read barcodes that are inverted. Video Reverse ON: Read both regular barcodes and inverse barcodes.

  • Page 58: Symbologies

    1D Ssmbologies Code 128 Restore Factors Defaults Restore the Factors Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 Disable Code 128 Set Length Range for Code 128 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 59: Gs1-128 (Ucc/Ean-128)

    GS1-128 (UCC/EAN-128) Restore Factors Defaults Restore the Factors Defaults of GS1-128 Enable/Disable GS1-128 Enable GS1-128 Disable GS1-128 Set Length Range for GS1-128 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 60: Aim-128

    AIM-128 Restore Factors Defaults Restore the Factors Defaults of AIM-128 Enable/Disable AIM-128 ** Enable AIM-128 Disable AIM-128 Set Length Range for AIM-128 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 61: Ean-8

    EAN-8 Restore Factors Defaults Restore the Factors Defaults of EAN-8 Enable/Disable EAN-8 ** Enable EAN-8 Disable EAN-8 ** Exit Setup...

  • Page 62: Transmit Check Digit

    Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data. Transmit EAN-8 Check Digit Do Not Transmit EAN-8 Check Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.

  • Page 63: Add-On Code

    Add-On Code Required When EAN-8 Add-On Code Required is selected, the scanner will only read EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Required ** EAN-8 Add-On Code Not Required EAN-8 Extension Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.

  • Page 64: Ean-13

    EAN-13 Restore Factors Defaults Restore the Factors Defaults of EAN-13 Enable/Disable EAN-13 ** Enable EAN-13 Disable EAN-13 Transmit Check Digit Transmit EAN-13 Check Digit Do Not Transmit EAN-13 Check Digit ** Exit Setup...

  • Page 65: Add-On Code

    Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes.

  • Page 66: Issn

    ISSN Restore Factors Defaults Restore the Factors Defaults of ISSN Enable/Disable ISSN Enable ISSN ** Disable ISSN ** Exit Setup...

  • Page 67: Add-On Code

    Add-On Code An ISSN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISSN barcodes with and without 2-digit/5-digit add-on codes.

  • Page 68: Isbn

    ISBN Restore Factors Default Restore the Factors Defaults of ISBN Enable/Disable ISBN ** Enable ISBN Disable ISBN Set ISBN Format ** ISBN-13 ISBN-10 ** Exit Setup...

  • Page 69: Add-On Code

    Add-On Code An ISBN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISBN barcodes with and without 2-digit/5-digit add-on codes.

  • Page 70: Upc-E

    UPC-E Restore Factors Defaults Restore the Factors Defaults of UPC-E Enable/Disable UPC-E Enable UPC-E Disable UPC-E Transmit Check Digit Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit ** Exit Setup...

  • Page 71: Add-On Code

    Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes.

  • Page 72: Transmit System Character "0

    Transmit Ssstem Character “0” The first character of UPC-E barcode is the system character “0”. Transmit Ssstem Character “0” Do Not Transmit Ssstem Character “0” UPC-E Extension Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A. Enable UPC-E Extend Disable UPC-E Extend ** Exit Setup...

  • Page 73: Upc-A

    UPC-A Restore Factors Defaults Restore the Factors Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A Disable UPC-A Transmit Check Digit Transmit UPC-A Check Digit Do Not Transmit UPC-A Check Digit ** Exit Setup...

  • Page 74: Add-On Code

    Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit/5-digit add-on codes.

  • Page 75: Transmit Preamble Character "0

    Transmit Preamble Character “0” Transmit Preamble Character “0” Do not Transmit Preamble Character “0” Note: The preamble character “0” usually does not appear in printed UPC-A barcodes. ** Exit Setup...

  • Page 76: Interleaved 2 Of 5

    Interleaved 2 of 5 Restore Factors Defaults Restore the Factors Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Set Length Range for Interleaved 2 of 5 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 77: Check Digit Verification

    Check Digit Verification A check digit is optional for Interleaved 2 o 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm.

  • Page 78: Itf-14

    ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check digit. Restore the Factors Defaults of ITF-14 Disable ITF-14 Enable ITF-14 But Do Not Transmit Check Digit Enable ITF-14 and Transmit Check Digit Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.

  • Page 79: Itf-6

    ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check digit. Restore the Factors Defaults of ITF-6 ** Disable ITF-6 Enable ITF-6 But Do Not Transmit Check Digit Enable ITF-6 and Transmit Check Digit Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.

  • Page 80: Matrix 2 Of 5

    Matrix 2 of 5 Restore Factors Defaults Restore the Factors Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 ** Disable Matrix 2 of 5 Set Length Range for Matrix 2 of 5 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 81: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 82: Industrial 2 Of 5

    Industrial 2 of 5 Restore Factors Defaults Restore the Factors Defaults of Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Industrial 2 of 5 Disable Industrial 2 of 5 Set Length Range for Industrial 2 of 5 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 83: Check Digit Verification

    Check Digit Verification Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification ** Exit Setup...

  • Page 84: Standard 2 Of 5（Iata 2 Of 5

    Standard 2 of 5（IATA 2 of 5） Restore Factors Defaults Restore the Factors Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 Disable Standard 25 Set Length Range for Standard 25 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 85: Check Digit Verification

    Check Digit Verification Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification ** Exit Setup...

  • Page 86: Code 39

    Code 39 Restore Factors Defaults Restore the Factors Defaults of Code 39 Enable/Disable Code 39 ** Enable Code 39 Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character Do not Transmit Start/Stop Character ** Exit Setup...

  • Page 87: Set Length Range For Code 39

    Set Length Range for Code 39 Set the Minimum Length Set the Maximum Length Check Digit Verification Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below. ** Enable Code 39 Full ASCII Disable Code 39 Full ASCII ** Exit Setup...

  • Page 88: Codabar

    Codabar Restore Factors Defaults Restore the Factors Defaults of Codabar Enable/Disable Codabar ** Enable Codabar Disable Codabar Set Length Range for Codabar Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 89: Check Digit Verification

    Check Digit Verification Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification Transmit Start/Stop Character Transmit Start/Stop Character Do not Transmit Start/Stop Character ** Exit Setup...

  • Page 90: Start/Stop Character Format

    Start/Stop Character Format You can choose your desired start/stop character format by scanning the appropriate barcode below. ** ABCD/ABCD as the Start/Stop Character ABCD/TN*E as the Start/Stop Character Start/Stop Character in Uppercase Start/Stop Character in Lowercase ** Exit Setup...

  • Page 91: Code 93

    Code 93 Restore Factors Defaults Restore the Factors Defaults of Code 93 Enable/Disable Code 93 ** Enable Code 93 Disable Code 93 Set Length Range for Code 93 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 92: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 93: Gs1-Databar (Rss)

    GS1-Databar (RSS) Restore Factors Defaults Restore the Factors Defaults of GS1-Databar Enable/Disable GS1 Databar ** Enable GS1-DataBar Disable GS1-DataBar Transmit Application Identifier “01” Transmit Application Identifier “01” Do Not Transmit Application Identifier “01” ** Exit Setup...

  • Page 94: Code 11

    Code 11 Restore Factors Defaults Restore the Factors Defaults of Code 11 Enable/Disable Code 11 ** Enable Code 11 Disable Code 11 Set Length Range for Code 11 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 95: Transmit Check Digit

    Transmit Check Digit Transmit Check Digit ** Do Not Transmit Check Digit Check Digit Verification Disable One Check Digit, MOD11 Two Check Digits, MOD11/MOD11 Two Check Digits, MOD11/MOD9 One Check Digit, MOD11 (Len<=10) One Check Digit, MOD11 (Len<=10) Two Check Digits, MOD11/MOD11 (Len>10) Two Check Digits, MOD11/MOD9 (Len>10) ** Exit Setup...

  • Page 96: Plessey

    Plesses Restore Factors Defaults Restore the Factors Defaults of Plesses Enable/Disable Plesses ** Enable Plesses Disable Plesses Set Length Range for Plesses Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 97: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 98: Msi-Plessey

    MSI-Plesses Restore Factors Defaults Restore the Factors Defaults of MSI-Plesses Enable/Disable MSI-Plesses ** Enable MSI-Plesses Disable MSI-Plesses Set Length Range for MSI-Plesses Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 99: Transmit Check Digit

    Transmit Check Digit Transmit Check Digit Do Not Transmit Check Digit Check Digit Verification Disable One Check Digit, MOD10 Two Check Digits, MOD10/MOD10 Two Check Digits, MOD10/MOD11 ** Exit Setup...

  • Page 100: Symbologies

    2D Ssmbologies PDF 417 Restore Factors Defaults Restore the Factors Defaults of PDF 417 Enable/Disable PDF 417 ** Enable PDF 417 Disable PDF 417 Set Length Range for PDF 417 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 101: Pdf 417 Twin Code

    PDF 417 Twin Code PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. Two of them must have the same direction and similar specifications and be placed closely together. There are 3 options for reading PDF417 twin codes: Single PDF417 Onls: Read either PDF417 code.

  • Page 102: Qr Code

    QR Code Restore Factors Defaults Restore the Factors Defaults of QR Code Enable/Disable QR Code ** Enable QR Code Disable QR Code Set Length Range for QR Code Set the Minimum Length Set the Maximum Length Micro QR ** Enable Micro QR Disable Micro QR ** Exit Setup...

  • Page 103: Qr Twin Code

    QR Twin Code QR twin code is 2 QR barcodes paralleled vertically or horizontally. Two of them must have the same direction and similar specifications and be placed closely together. There are 3 options for reading QR twin codes: Single QR Onls: Read either QR code. Twin QR Onls: Read both QR codes.
  • Page 104 Transmission order of twin code Order 1: Transmit the one containing more information first. Order 2: Transmit the one containing less information first. Order 3: If the twin code is paralleled horizontally, transmite the one on the left first; if it is paralleled vertically, transmit the one in the upper position first.

  • Page 105: Data Matrix

    Data Matrix Restore Factors Defaults Restore the Factors Defaults of Data Matrix Enable/Disable Data Matrix ** Enable Data Matrix Disable Data Matrix Set Length Range for Data Matrix Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 106: Rectangular Barcode

    Rectangular Barcode ** Enable Rectangular Barcode Disable Rectangular Barcode Mirror Image ** Decode Mirror Images Do Not Decode Mirror Images ** Exit Setup...

  • Page 107: Data Matrix Twin Code

    Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. Two of them must have the same direction and similar specifications and be placed closely together. There are 3 options for reading Data Matrix twin codes: Single Data Matrix Onls: Read either Data Matrix code.

  • Page 108: Chinese Sensible Code

    Chinese Sensible Code Restore Factors Defaults Restore the Factors Defaults of Chinese Sensible Code Enable/Disable Chinese Sensible Code Enable Chinese Sensible Code ** Disable Chinese Sensible Code Set Length Range for Chinese Sensible Code Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 109: Chapter 9 Image Control

    Chapter 9 Image Control Ambient Illumination Ambient lighting conditions may vary from one operating environment to another, such as fluorescent lit warehouses or sunlit open spaces. Fluorescent lights may flicker when using AC power source in 50-60Hz. Usually indoor illuminance is around 1,000 lux while outdoor illuminance may reach 60,000 lux or even over 100,000 lux.

  • Page 110: Image Flipping

    Image Flipping The user may get reversed images when the scanner is installed in non-standard ways. When it happens, image flipping can be used to right the “wrong”. The following figures illustrate standard image and three flipped images. Fig.8-1 Standard Image: Image the scanner should get when it is installed properly and no reflector is used in its optical imaging system.

  • Page 111: Flip

    Flip ** Do Not Flip Flip Verticalls Flip Horizontalls Flip Horizontalls and Verticalls Flip Verticalls Flip Verticalls Do Not Flip Verticalls Flip Horizontalls Flip Horizontalls Do Not Flip Horizontalls ** Exit Setup...

  • Page 112: Chapter 10 Troubleshooting

    Chapter 10 Troubleshooting Problem: Some barcodes cannot be read. Solution: 1. Find out the barcode type and verify that the barcode type is enabled. If the barcode parameters include check digit verification, select the Disable option. 2. If you do not know the barcode type, enable all symbologies. 3.
  • Page 113 Problem: Illumination and aiming beams are OFF. Solution: 1. Verify that the scanner is properly powered up. 2. Send “?” to the scanner. If the scanner returns a reply of “!”, then send programming commands to turn on illumination and aimer. Problem: Carriage Return/Line Feed settings.

  • Page 114: Appendix

    Appendix Appendix 1: Factors Defaults Table Parameter Factors Default Remark Disabled Barcode Programming Programming Barcode Do not send Programming Barcode Data 9600 Baud Rate Communication Settings None Parity Check RS232 Data Bit Stop Bit No flow control Hardware Flow Control U.S.
  • Page 115 Applicable to Trigger mode, Sense Parameter Factors Default Remark Decode Session Timeout 3,000ms mode, Continuous mode. 0~3,600,000ms Image Stabilization Timeout 500ms 0~1,600ms Sense Mode Operation after Good Read Pause after good read Disabled Timeout between Decodes (Same Barcode) 1,500ms 0~65,535ms Threshold Value of Illumination Change 1~20 Applicable to Trigger mode, Sense...
  • Page 116 Parameter Factors Default Remark Prefix Sequence Custom Prefix+Code ID+AIM ID Data Formatting Disabled Custom Prefix None AIM ID Prefix Disabled Code ID Prefix Disabled Disabled Custom Suffix None Enabled Terminating Character Suffix 0x0D Carriage Return Ambient Illumination Normal illuminance Image Control Image Flipping Do not flip...
  • Page 117 Parameter Factors Default Remark Video Reverse Disabled Applicable to all symbologies. Ssmbologies Code 128 Enabled Code 128 Maximum Length Minimum Length GS1-128 Enabled GS1-128 UCC/EAN-128 （ ） Maximum Length Minimum Length AIM-128 Enabled AIM-128 Maximum Length Minimum Length EAN-8 Enabled EAN-8 Check Digit Transmit...
  • Page 118 Parameter Factors Default Remark ISBN Enabled ISBN ISBN Format ISBN-13 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required UPC-E Enabled UPC-E Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Extend to UPC-A Disabled System Character “0”...
  • Page 119 Parameter Factors Default Remark ITF-14 Enabled ITF-14 Do not transmit Check Digit Matrix 2 of 5 Disabled Matrix 2 of 5 出 Check Digit Verification Enabled Check Digit Do not transmit Maximum Length Minimum Length Industrial 2 of 5 Enabled Industrial 2 of 5 Check Digit Verification Disabled...
  • Page 120 Parameter Factors Default Remark Codabar Enabled Codabar Check Digit Verification Disabled Check Digit Do not transmit Start/Stop Character Do not transmit Start/Stop Character Format ABCD/ABCD Maximum Length Minimum Length Code 93 Enabled Code 93 Check Digit Verification Enabled Check Digit Do not transmit Maximum Length Minimum Length...
  • Page 121 Parameter Factors Default Remark MSI-Plessey Enabled MSI-Plessey Check Digit Verification One check digit, MOD10 Check Digit Do not transmit Maximum Length Minimum Length PDF 417 Enabled PDF 417 Maximum Length 2710 Minimum Length PDF 417 Twin Code Read single PDF417 only Transmission Order of Twin Code Order 1 QR Code...

  • Page 122: Appendix 2: Aim Id Table

    Appendix 2: AIM ID Table Standard EAN-13 Ssmbologs AIM ID Remark EAN-13 + 2/5-Digit Add-On Code EAN-13 Standard EAN-8 ]E4…]E1… EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code EAN-8 Standard UPC-E UPC-E + 2/5-Digit Add-On Code UPC-E Standard UPC-A UPC-A + 2/5-Digit Add-On Code UPC-A...
  • Page 123 Standard Code 93 Ssmbologs AIM ID Remark One check digit, MOD11; transmit check digit Code 93 Two check digits, MOD11/MOD11; transmit check digit Do not transmit check digit after verification Code 11 No check digit verification Standard GS1-DataBar Standard Plessey GS1-DataBar (RSS) One check digit, MOD10;...
  • Page 124 Appendix 3: Code ID Table Code 128 Ssmbologs Code ID GS1-128(UCC/EAN-128) AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93 Code 11 Plessey MSI-Plessey...

  • Page 125: Appendix 4: Ascii Table

    Appendix 4: ASCII Table (Null char.) Char (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3)
  • Page 126 (Request to Send) Char (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right / Closing Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) <...
  • Page 127 (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) Char (Underscore) (Grave Accent)
  • Page 128 (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)

  • Page 129: Appendix 5: Parameter Programming Examples

    Appendix 5: Parameter Programming Examples The following examples show you how to program parameters by scanning programming barcodes. a. Program the Decode Session Timeout Scan the Enter Setup barcode. Example: Set the decode session timeout to 1500ms Scan the Decode Session Timeout barcode. (See the “Decode Session Timeout” section in Chapter 3) Scan the numeric barcodes “1”, “5”, “0”...

  • Page 130: Program The Timeout Between Decodes (Same Barcode)

    d. Program the Timeout between Decodes (Same Barcode) Scan the Enter Setup barcode. Example: Set the timeout between decodes (same barcode) to 1000ms Scan the Timeout between Decodes (Same Barcode) barcode. (See the “Timeout between Decodes (Same Barcode)” section in Chapter 3) Scan the numeric barcodes “1”, “0”, “0”...

  • Page 131: Program The Central Area

    g. Program the Central Area Scan the Enter Setup barcode. Example: Set the percentage of central area to 20% Scan the Specifs Central Area barcode. Scan the numeric barcodes “2” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) h.

  • Page 132: Program The Ngr Message

    &. Program the Code ID Check the hex value of “p” in the ASCII Table. (“p”: 70) Example: Set the Code ID of PDF 417 to “p” Scan the Enter Setup barcode. Scan the Modifs PDF417 Code ID barcode. (See the “Modifs Code ID” section in Chapter 6) Scan the numeric barcodes “7”...

  • Page 133: Program The Length Range (Maximum/Minimum Lengths) For A Symbology

    l. Program the Length Range (Maximum/Minimum Lengths) for a Ssmbologs Note: If minimum length is set to be greater than maximum length, the scanner only decodes barcodes with either the minimum or maximum length. If you only want to read barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

  • Page 134: Appendix 6: Digit Barcodes

    Appendix 6: Digit Barcodes...

  • Page 136: Appendix 7: Save/Cancel Barcodes

    Appendix 7: Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.

  • Page 137: Appendix 8: Ascii Function Key Mapping Table

    Appendix 8: ASCII Function Kes Mapping Table (Null char.) Null Ctrl+2 ASCII Function ASCII Value (HEX) No Function Kes Mapping Function Kes Mapping Keypad Enter Ctrl+A (Start of Header) (Start of Text) Caps Lock Ctrl+B Null Ctrl+C (End of Text) Null Ctrl+D (End of Transmission)
  • Page 138 ASCII Function Kes Mapping Table (Continued) The function key mappings of the last five characters in the previous table differ from one keyboard layout to another. Function Kes Mapping Countrs/ United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+- Kesboard Lasout Belgium Ctrl+[ Ctrl+<...

  • Page 139: Appendix 9: Code Pages List

    Code Page Windows 1251 (Cyrillic) If need any technical support, feel free to contact our technical support department: Support Department ............. RTSCAN TECHNOLOGY LIMITED Add: F/7, Block C,Ying Da Li Park, Futian Tax-Free Trade Zone,Shenzhen, China Tel: +86-755-32909260 E-mail: support@rtscan.net...
