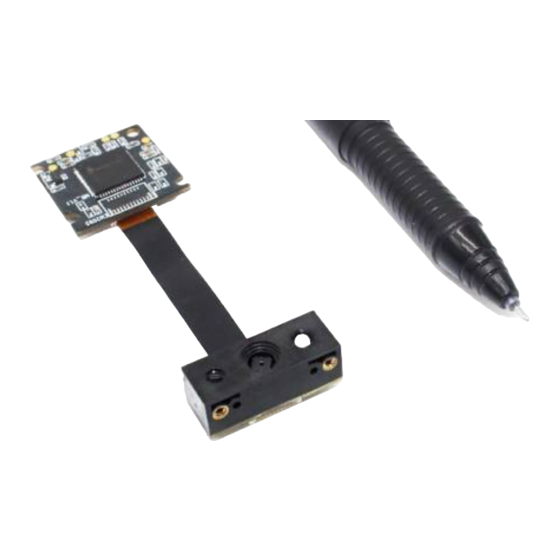

OEM 2D barcode Scanner RT207
Revision History
Version
V1.0.0
Initial release.
Setting Codes User Manual
Description
1
Date
July 26, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT207 and is the answer not in the manual?

Questions and answers

Related Manuals for RTscan RT207

Summary of Contents for RTscan RT207

  • Page 1: Revision History

    OEM 2D barcode Scanner RT207 Setting Codes User Manual Revision History Version Description Date V1.0.0 Initial release. July 26, 2015...

  • Page 2: Table Of Contents

    Table Of Contents Revision History .............................. 1 Table Of Contents .............................. 2 Chapter 1 Getting Started ..........................10 Introduction ............................10 About This Guide ........................... 10 Connecting EVK to PC ..........................10 Barcode Scanning ..........................11 Barcode Programming .......................... 11 Factory Defaults ............................ 12 Custom Defaults ............................ 12 Chapter 2 Communication Interfaces ......................13 Power-Saving Mode ..........................13 TTL-232 Interface ..........................14 Baud Rate ............................
  • Page 3 USB HID-POS ..........................26 Introduction ........................... 26 Access the Engine with Your Program ..................... 27 Acquire Scanned Data ........................27 Send Data to the Engine ........................27 VID/PID ............................28 Chapter 3 Scan Mode ............................29 Batch Mode ............................29 Trigger Mode ............................30 Decode Session Timeout ......................... 30 Level Trigger/Pulse Trigger ......................31 Auto Sleep ............................31 Timeout between Decodes (Same Barcode) ..................32 Sense Mode ............................33 Decode Session Timeout .........................
  • Page 4 Startup Beep ............................43 Good Read Beep for Non-programming Barcode ..................44 Beep Type ............................44 Beep Volume ..........................45 Beep on Unknown Character ......................... 45 Good Read Beep for Programming Barcode ................... 46 Good Read LED ............................46 Transmit NGR Message .......................... 47 Edit NGR Message .......................... 47 Chapter 7 Data Formatting ..........................48 General Settings ............................ 49 Enable/Disable All Prefix/Suffix ..................... 49 Prefix Sequences ..........................49 Custom Prefix ............................50 Enable/Disable Custom Prefix ......................
  • Page 5 Enable/Disable Code 128 ....................... 62 Set Length Range for Code 128 ....................... 62 GS1-128 (UCC/EAN-128) ........................ 63 Restore Factory Defaults ........................ 63 Enable/Disable GS1-128 ......................... 63 Set Length Range for GS1-128 ......................63 AIM-128 ............................64 Restore Factory Defaults ........................ 64 Enable/Disable AIM-128 ........................ 64 Set Length Range for AIM-128 ......................64 EAN-8 ............................65 Restore Factory Defaults ........................ 65 Enable/Disable EAN-8 ........................65 Transmit Check Digit ........................66 Add-On Code ..........................
  • Page 6 Enable/Disable UPC-E ........................74 Transmit Check Digit ........................74 Add-On Code ..........................75 Add-On Code Required ........................75 Transmit System Character “0” ....................... 76 UPC-E Extension ..........................76 UPC-A ............................77 Restore Factory Defaults ........................ 77 Enable/Disable UPC-A ........................77 Transmit Check Digit ........................77 Add-On Code ..........................78 Add-On Code Required ........................78 Transmit Preamble Character “0” ....................79 Interleaved 2 of 5 ........................... 80 Restore Factory Defaults ........................
  • Page 7 Restore Factory Defaults ........................ 90 Enable/Disable Code 39 ......................... 90 Transmit Start/Stop Character ....................... 90 Set Length Range for Code 39 ......................91 Check Digit Verification ........................91 Enable/Disable Code 39 Full ASCII ....................91 Codabar ............................92 Restore Factory Defaults ........................ 92 Enable/Disable Codabar ......................... 92 Set Length Range for Codabar ......................92 Check Digit Verification ........................93 Transmit Start/Stop Character ....................... 93 Start/Stop Character Format ......................94 Code 93 ............................95 Restore Factory Defaults ........................
  • Page 8 Set Length Range for MSI-Plessey ....................102 Transmit Check Digit ........................103 Check Digit Verification ........................ 103 2D Symbologies ........................... 104 PDF 417 ............................104 Restore Factory Defaults ......................104 Enable/Disable PDF 417 ....................... 104 Set Length Range for PDF 417 ....................... 104 PDF 417 Twin Code ........................105 QR Code ............................106 Restore Factory Defaults ......................106 Enable/Disable QR Code ....................... 106 Set Length Range for QR Code ....................... 106 Micro QR ............................106 QR Twin Code ..........................
  • Page 9 Appendix ................................ 119 Appendix 1: Factory Defaults Table ..................... 119 Appendix 2: AIM ID Table ........................127 Appendix 3: Code ID Table ........................129 Appendix 4: ASCII Table ........................130 Appendix 5: Parameter Programming Examples .................. 134 a. Program the Decode Session Timeout ..................134 b. Program the Time Period from Idle to Sleep ................134 c. Program the Image Stabilization Timeout .................. 134 d. Program the Timeout between Decodes (Same Barcode) ............135 e. Program the Threshold Value of Illumination Change ..............135 f. Program the Timeout between Decodes ..................135 g. Program the Central Area ......................136 h. Program the Custom Prefix/Suffix ..................... 136 i. Program the Terminating Character Suffix .................

  • Page 10: Chapter 1 Getting Started

    This guide provides programming instructions for the RT207. Users can configure the RT207 by scanning the programming barcodes included in this manual. The RT207 has been properly configured for most applications and can be put into use without further configuration. Users may check the Factory Defaults Table in Appendix for reference. Throughout the manual, asterisks (**) indicate factory default values.

  • Page 11: Barcode Scanning

    Enter Setup Barcode Scanning Powered by area-imaging technology and RTscan new technology, the RT207 features fast scanning and accurate decoding. Barcodes rotated at any angle can still be read with ease. When scanning a barcode, simply center the aiming beam or pattern projected by the RT207 over the barcode. Barcode Programming Scanning the Enter Setup barcode can enable the engine to enter the setup mode. Then you can scan a number of programming barcodes to configure your engine. To exit the setup mode, scan the Exit Setup...

  • Page 12: Factory Defaults

    Enter Setup Factory Defaults Scanning the following barcode can restore the engine to the factory defaults. See Appendix 1: Factory Defaults Table for more information. Note: Use this feature with discretion. Restore All Factory Defaults Custom Defaults Custom defaults make it possible to save the frequently-used settings on the engine. Scanning the Save as Custom Defaults barcode can save the current settings as custom defaults. Once custom default settings are stored, they can be recovered at any time by scanning the Restore All Custom Defaults barcode.

  • Page 13: Chapter 2 Communication Interfaces

    Enter Setup Chapter 2 Communication Interfaces The RT207 provides a TTL-232 interface and a USB interface (optional) to communicate with the host device. The host device can receive scanned data and send commands to control the engine or to access/alter the configuration information of the engine via the interface. Power-Saving Mode By default, the engine adopts the Power-Saving Mode to conserve power. However, if this mode is selected, you can only use TTL-232 communication. If the Normal Mode is selected, you can use either TTL-232 or USB.

  • Page 14: Ttl-232 Interface

    Enter Setup TTL-232 Interface Serial communication interface is usually used when connecting the engine to a host device (like PC, POS). However, to ensure smooth communication and accuracy of data, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) to match the host device. The serial communication interface provided by the engine is based on TTL-level signals. TTL-232 can be used for most application architectures. For those requiring RS-232, an external conversion circuit is needed. The conversion circuit is available only to some models. ** Serial Communication Default serial communication parameters are listed below. Make sure all parameters match the host requirements.

  • Page 15: Baud Rate

    Enter Setup Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements. ** 9600 1200 19200 2400 38400 4800 57600 14400 115200 ** Exit Setup...

  • Page 16: Parity Check

    Enter Setup Parity Check When the number of data bits is set to 7, you can only select either Even Parity or Odd Parity. The None option will be regarded as Even Parity in this case. ** None Even Parity Odd Parity Data Bit When the number of data bits is set to 7, you can only select either Even Parity or Odd Parity. 7 Data Bits ** 8 Data Bits ** Exit Setup...

  • Page 17: Data Bit & Parity Check

    Enter Setup Data Bit & Parity Check 7 Data Bits/Even Parity 7 Data Bits/Odd Parity ** 8 Data Bits/ No Parity 8 Data Bits/Even Parity 8 Data Bits/Odd Parity Stop Bit ** 1 Stop Bit 2 Stop Bits ** Exit Setup...

  • Page 18: Usb Interface (Optional)

    Enter Setup USB Interface (OptionalV USB Enumeration If the engine is connected to the Host via a USB connection, the engine will be enumerated using S/N or “00000000” after power-up. Enumeration using S/N enables the Host to distinguish even between engines of same model. Enumeration using “00000000” disables the Host from distinguishing between engines of same model. Driver installation is required for each USB device distinguished from others by the Host in the process of enumeration. Enumeration Using S/N ** Enumeration Using “00000000” USB HID-KBW When you connect the engine to the Host via a USB connection, you can enable the USB HID-KBW feature by scanning the barcode below. Then engine’s transmission will be simulated as USB keyboard input. The Host receives keystrokes on the virtual keyboard. It works on a Plug and Play basis and no driver is required. USB HID-KBW ** Exit Setup...

  • Page 19: Usb Country Keyboard Types

    Enter Setup USB Country Keyboard Types Keyboard layouts vary from country to country. The default setting is U.S. keyboard. ** U.S. Japan Denmark Finland France Turkey_F Italy Norway ** Exit Setup...
  • Page 20 Enter Setup Spain Turkey_Q Austria, Germany Belgium Russia Sweden Portugal ** Exit Setup...

  • Page 21: Beep On Unknown Character

    Enter Setup Beep on Unknown Character Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the engine fails to transmit the unknown characters. Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected. ** Do Not Beep on Unknown Character Beep on Unknown Character Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. ** No Delay Short Delay (20msV Long Delay (40msV ** Exit Setup...

  • Page 22: Convert Case

    Enter Setup Convert Case Scan the appropriate barcode below to convert barcode data to your desired case. ** No Case Conversion Invert Upper and Lower Case Characters Convert All to Upper Case Convert All to Lower Case Example: When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”. ** Exit Setup...

  • Page 23: Emulate Alt+Keypad

    Enter Setup Emulate ALT+Keypad This feature allows any ASCII character (0x00 - 0xFF) to be sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient. The following options are available: Ÿ Disable: No ASCII character is sent in the ALT+Keypad way. Ÿ Mode 1: ASCII characters not supported by the selected keyboard type but falling into 0x20~0xFF are sent in the ALT+Keypad way. Mode 2: ASCII characters falling into 0x20~0xFF are sent in the ALT+Keypad way. Ÿ Mode 3: All ASCII characters (0x00~0xFF) are sent in the ALT+Keypad way. Ÿ Note: In the event of a conflict between Function Key Mapping and Mode 3, Function Key Mapping shall govern. ** Disable Mode 1 Mode 2 Mode 3 Example: Supposing US keyboard is selected, barcode data ”AÐF” (65/208/70) is sent as below: (1) Mode 1 is enabled: “A” -- Keystroke “A”...

  • Page 24: Function Key Mapping

    Enter Setup Function Key Mapping When Function Key Mapping is enabled, function characters (0x00 - 0x1F) are sent as ASCII sequences over the keypad. For more information, see Appendix 8: ASCII Function Key Mapping Table. Enable Function Key Mapping ** Disable Function Key Mapping Example: Barcode data 0x16 Ctrl+V Enable Function Key Mapping Disable Function Key Mapping ** Exit Setup...

  • Page 25: Emulate Numeric Keypad

    Enter Setup Emulate Numeric Keypad When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Keypad barcode. Sending a number (0-9) is emulated as keystroke(s) on numeric keypad, whereas sending other characters like “+”, “_”, “*” , “/” and “.” is still emulated as keystrokes on main keyboard. ** Do Not Emulate Numeric Keypad Emulate Numeric Keypad Code Page In order to support more international characters, the Code Page programming feature is provided. This feature is only effective when ASCII characters are sent in the ALT+Keypad way. Programming a code page requires scanning numeric barcode (For more information, see Appendix 9: Code Pages List). The default code page is Windows 1252 (Latin I). To learn how to program it, see Appendix 5.

  • Page 26: Usb Com Port Emulation

    Enter Setup USB COM Port Emulation If you connect the engine to the Host via a USB connection, the USB COM Port Emulation feature allows the Host to receive data in the way as a serial port does. A driver is required for this feature. USB COM Port Emulation USB HID-POS Introduction The USB HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than keyboard emulation. Features: ² HID based, no custom driver required. ² Way more efficient in communication than keyboard emulation and traditional RS-232 interface. Note: USB HID-POS does not require a custom driver. However, a HID interface on Windows 98 does. All HID interfaces employ standard driver provided by the operating system. Use defaults when installing the driver. USB HID-POS ** Exit Setup...

  • Page 27: Access The Engine With Your Program

    Enter Setup Access the Engine with Your Program Use CreateFile to access the engine as a HID device and then use ReadFile to deliver the scanned data to the application program. Use WriteFile to send data to the engine. For detailed information about USB and HID interfaces, go to www.USB.org. Acquire Scanned Data After scanning and decoding a barcode, the engine sends the following input report: Bit Byte Report ID = 0x02 Length of the barcode 2-57 Decoded data (1-56) 58-60 AIM ID 61-62 Reserved Decoded Data Continued Send Data to the Engine This output report is used to send data to the device. All programming commands can be used. Bit Byte Report ID = 0x04 Length of the output data 2-63 Output data (1-62) ** Exit Setup...

  • Page 28: Vid/Pid

    Enter Setup VID/PID USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. RTscan’s vendor ID is 1EAB (Hex). A PID is assigned to each interface. Product Interface PID (HexV PID (DecV USB HID-KBW 1303 4867 RT207 USB COM Port Emulation 1306 4870 USB HID-POS 1310 4880 ** Exit Setup...

  • Page 29: Chapter 3 Scan Mode

    Enter Setup Chapter 3 Scan Mode Batch Mode If the Batch Mode is enabled, driving the TRIG pin on the host interface connector low activates a round of multiple decode sessions. This round of multiple scans continues until the active trigger signal is no longer present. Rereading the same barcode is not allowed if it was decoded previously in the same round. For good read, the engine transmits decoded data via communication port. To activate another round of multiple scans, the Host needs to first negate the trigger, waits 20ms or longer and then drive the TRIG pin low. ** Batch Mode ** Exit Setup...

  • Page 30: Trigger Mode

    Enter Setup Trigger Mode If the Trigger Mode is enabled, driving the TRIG pin on the host interface connector low activates a decode session. The session continues until the barcode is decoded or decode session timeout expires or the active trigger signal is no longer present. For good read, the engine transmits decoded data via communication port. To activate another session, the Host needs to first negate the trigger, waits 20ms or longer and then drive the TRIG pin low. Trigger Mode Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 0ms to 3,600,000ms. The default setting is 3,000ms. To learn how to program this parameter, see Appendix 5. Decode Session Timeout ** Exit Setup...

  • Page 31: Level Trigger/Pulse Trigger

    Enter Setup Level Trigger/Pulse Trigger Level trigger: Decode session is activated and continued by constant active trigger signal. The decode session ends once the barcode is decoded or decode session timeout expires. Pulse trigger: Decode session is activated by electric pulse of trigger signal. The decode session continues until the barcode is decoded or decode session timeout expires. ** Level Trigger Pulse Trigger Auto Sleep Auto Sleep allows the engine in the Trigger Mode to automatically enter the sleep or low power mode if no operation or communication is performed for a time period (user programmable). When the engine is in the sleep mode, receiving trigger signal or communication from the Host can awake the engine. The engine returns to full operation within 100ms.

  • Page 32: Timeout Between Decodes (Same Barcode)

    Enter Setup Timeout between Decodes (Same BarcodeV Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes: Do not allow the engine to re-read same barcode before the timeout between decodes (same barcode) expires. Disable Timeout between Decodes: Allow the engine to re-read same barcode. ** Disable Timeout between Decodes Enable Timeout between Decodes The following parameter sets the timeout between decodes for same barcode. It is programmable in 1ms increments from 0ms to 65,535ms. The default setting is 1,500ms. To learn how to program this parameter, see Appendix 5. Timeout between Decodes (Same BarcodeV ** Exit Setup...

  • Page 33: Sense Mode

    Enter Setup Sense Mode If the Sense Mode is enabled, the engine activates a decode session every time it detects a change in ambient illumination. The decode session continues until the barcode is decoded or the decode session timeout expires. Driving the TRIG pin on the host interface connector low can also activate a decode session. The decode session continues until the active trigger signal is no longer present or the barcode is decoded or the decode session timeout expires. The trigger signal needs to be negated before the engine is able to monitor ambient illumination again.

  • Page 34: Continue After Good Read

    Enter Setup Image Stabilization Timeout Continue after Good Read Continue after Good Read: The engine starts next decode session after good read. Pause after Good Read: The engine starts another round of illumination monitoring and image stabilization after good read. ** Pause after Good Read Continue after Good Read Timeout between Decodes (Same BarcodeV Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes: Do not allow the engine to re-read same barcode before the timeout between decodes (same barcode) expires. Disable Timeout between Decodes: Allow the engine to re-read same barcode. ** Disable Timeout between Decodes Enable Timeout between Decodes ** Exit Setup...

  • Page 35: Sensitivity

    Enter Setup The following parameter sets the timeout between decodes for same barcode. It is programmable in 1ms increments from 0ms to 65,535ms. The default setting is 1,500ms. To learn how to program this parameter, see Appendix 5. Timeout between Decodes (Same BarcodeV Sensitivity Sensitivity specifies the degree of acuteness of the engine’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the engine. You can select an appropriate degree of sensitivity that fits the ambient environment. Medium Sensitivity Low Sensitivity High Sensitivity Enhanced Sensitivity ** Exit Setup...
  • Page 36 Enter Setup If the above four options fail to meet your needs, you may program the threshold value of illumination change. Illumination changes that reaches or surpasses the predefined threshold value will cause the engine to start a decode session. The lower the threshold value, the greater the sensitivity of the engine. The default threshold value is 2. To learn how to program this parameter, see Appendix 5.

  • Page 37: Continuous Mode

    Enter Setup Continuous Mode This mode enables the engine to scan/capture, decode and transmit over and over again. When the engine is operating in Continuous Mode, barcode reading can be suspended/resumed through control over the trigger signal. When barcode reading is in progress, negating the trigger signal after having maintained it for 30ms or longer will suspend barcode reading; when barcode reading is suspended, performing the same control over the trigger signal will resume barcode reading. Continuous Mode Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 0ms to 3,600,000ms. The default setting is 3,000ms. To learn how to program this parameter, see Appendix 5. Decode Session Timeout Timeout between Decodes This parameter sets the timeout between decode sessions. When a decode session ends, next session will not...

  • Page 38: Cellphone Read Mode

    Enter Setup Timeout between Decodes Cellphone Read Mode **Disable Cellphone Read Mode Enable Cellphone Read Mode ** Exit Setup...

  • Page 39: Chapter 4 Scanning Preferences

    Enter Setup Chapter 4 Scanning Preferences Introduction This chapter contains information as to how to adapt your engine to various applications with preference setting. For instance, to narrow the field of view of the engine to make sure it reads only those barcodes intended by the user.

  • Page 40: Specify Central Area

    Enter Setup Specify Central Area The default central area is a (Width*20%) by (Height*20%) area in the center of the engine’s field of view, as shown in the figure below. You can define the central area by scanning the Specify Central Area barcode and numeric barcode(s) corresponding to a desired percentage (1-100). If Central Area Decoding is enabled by scanning the Central Area Decoding barcode, the engine only reads barcodes that intersect the predefined central area. To learn how to program this parameter, see the “Appendix 5: Parameter Programming Examples”. Specify Central Area ** Exit Setup...

  • Page 41: Chapter 5 Illumination & Aiming

    Enter Setup Chapter 5 Illumination & Aiming Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture: Normal: Illumination LEDs are turned on during image capture. Always ON: Illumination LEDs keep ON after the engine is powered on. OFF: Illumination LEDs are OFF all the time. ** Normal OFF Always ON ** Exit Setup...

  • Page 42: Aiming

    Enter Setup Aiming When scanning/capturing image, the engine projects an aiming pattern which allows positioning the target barcode within its field of view and thus makes decoding easier. Normal: The engine projects an aiming pattern only during barcode scanning/capture. Always ON: Aiming pattern is constantly ON after the engine is powered on. OFF: Aiming pattern is OFF all the time. ** Normal OFF Always ON ** Exit Setup...

  • Page 43: Chapter 6 Beep & Led Notifications

    Enter Setup Chapter 6 Beep & LED Notifications Startup Beep If startup beep is enabled, the engine will beep after being turned on. ** Enable Startup Beep Disable Startup Beep ** Exit Setup...

  • Page 44: Good Read Beep For Non-Programming Barcode

    Enter Setup Good Read Beep for Non-programming Barcode The engine can provide a PWM output to an external driver circuit to drive a beeper after decoding a non-programming barcode. Scan the appropriate barcode below to enable or disable the emission of good read beep. Beep type (frequency) and volume are also user programmable. ** Good Read Beep On for Non-programming Barcode Good Read Beep Off for Non-programming Barcode Beep Type Type 1 ** Type 3 Type 2 ** Exit Setup...

  • Page 45: Beep Volume

    Enter Setup Beep Volume ** Loud Medium Beep on Unknown Character Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard (USB HID-KBW). As a result, the engine fails to transmit the unknown characters. Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected. Beep on Unknown Character ** Do Not Beep on Unknown Character ** Exit Setup...

  • Page 46: Good Read Beep For Programming Barcode

    Enter Setup Good Read Beep for Programming Barcode ** Good Read Beep On for Programming Barcode Good Read Beep Off for Programming Barcode Good Read LED ** Good Read LED ON Good Read LED OFF ** Exit Setup...

  • Page 47: Transmit Ngr Message

    Enter Setup Transmit NGR Message Scan a barcode below to select whether or not to transmit a user-defined NGR (Not Good Read) message when a barcode is not decoded. Transmit NGR Message ** Do Not Transmit NGR Message Edit NGR Message To edit an NGR message, scan the Edit NGR Message barcode and the numeric barcodes corresponding to the ASCII values (decimal) of desired characters and then scan the Save barcode. An NGR message can contain 0-7 characters (ASCII value of character: 0-255). Edit NGR Message ** Exit Setup...

  • Page 48: Chapter 7 Data Formatting

    Enter Setup Chapter 7 Data Formatting In many applications, barcode data needs to be edited and distinguished from one another. Usually AIM ID and Code ID can be used as identifiers, but in some special cases customized prefix and terminating character suffix like Carriage Return or Line Feed can also be the alternatives. Data formatting may include: ² Append AIM ID/Code ID/custom prefix before the decoded data Append custom suffix after the decoded data ² Append terminating character to the end of the data ² The following formats can be used when editing barcode data: ² [Code ID] + [Custom Prefix] + [AIM ID] + [DATA] + [Custom Suffix] + [Terminating Character] ² [Custom Prefix] + [Code ID] + [AIM ID] + [DATA] + [Custom Suffix] + [Terminating Character] ** Exit Setup...

  • Page 49: General Settings

    Enter Setup General Settings Enable/Disable All Prefix/Suffix Disable All Prefix/Suffix: Transmit barcode data with no prefix/suffix. Enable All Prefix/Suffix: Allow user to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission. Enable All Prefix/Suffix Disable All Prefix/Suffix Prefix Sequences Code ID+Custom Prefix+AIM ID ** Custom Prefix+Code ID+AIM ID ** Exit Setup...

  • Page 50: Custom Prefix

    Enter Setup Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. Enable Custom Prefix ** Disable Custom Prefix Set Custom Prefix To set a custom prefix, scan the Set Custom Prefix barcode and the numeric barcodes representing the hexadecimal values of a desired prefix and then scan the Save barcode. Refer to Appendix 4: ASCII Table for hexadecimal values of characters. Note: A custom prefix cannot exceed 11 characters. Set Custom Prefix Example: Set the custom prefix to “CODE” Check the hex values of “CODE” in the ASCII Table. (“CODE”: 43, 4F, 44, 45) Scan the Enter Setup barcode. Scan the Set Custom Prefix barcode. Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5”. Scan the Save barcode. ** Exit Setup...
  • Page 51 Enter Setup Scan the Exit Setup barcode. ** Exit Setup...

  • Page 52: Aim Id Prefix

    Enter Setup AIM ID Prefix AIM (Automatic Identification Manufacturers) IDs and ISO/IEC 15424 standards define symbology identifiers and data carrier identifiers. (For the details, see the “Appendix 2: AIM ID Table” section). If AIM ID prefix is enabled, the engine will add the symbology identifier before the scanned data after decoding. Enable AIM ID Prefix ** Disable AIM ID Prefix Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. Enable Code ID Prefix ** Disable Code ID Prefix Restore All Default Code IDs For the information of default Code IDs, see the “Appendix 3: Code ID Table” section. Restore All Default Code IDs ** Exit Setup...

  • Page 53: Modify Code Id

    Enter Setup Modify Code ID Code ID of each symbology can be programmed separately. See the following example to learn how to program a Code ID. Example: Set the Code ID of PDF417 to “p” Check the hex value of “p” in the ASCII Table. (“p”: 70) Scan the Enter Setup barcode. Scan the Modify PDF417 Code ID barcode. Scan the numeric barcodes “7” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. Modify PDF417 Code ID Modify Data Matrix Code ID Modify QR Code Code ID Modify Chinese Sensible Code ID Modify Code 128 Code ID Modify GS1-128 Code ID ** Exit Setup...
  • Page 54 Enter Setup Modify AIM-128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify UPC-E Code ID Modify UPC-A Code ID Modify ISBN Code ID Modify ISSN Code ID Modify Code 39 Code ID Modify Code 93 Code ID Modify Interleaved 2 of 5 Code ID ** Exit Setup...
  • Page 55 Enter Setup Modify ITF-14 Code ID Modify ITF-6 Code ID Modify Codabar Code ID Modify Industrial 25 Code ID Modify Standard 25 Code ID Modify Matrix 25 Code ID Modify COOP 25 Code ID Modify Code 11 Code ID Modify Plessey Code ID Modify MSI/Plessey Code ID Modify GS1 Databar Code ID ** Exit Setup...

  • Page 56: Custom Suffix

    Enter Setup Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. Enable Custom Suffix ** Disable Custom Suffix Set Custom Suffix To set a custom suffix, scan the Set Custom Suffix barcode and the numeric barcodes representing the hexadecimal values of a desired suffix and then scan the Save barcode. Refer to Appendix 4: ASCII Table for hexadecimal values of characters. Note: A custom suffix cannot exceed 11 characters. Set Custom Suffix Example: Set the custom suffix to “CODE” Check the hex values of “CODE” in the ASCII Table. (“CODE”: 43, 4F, 44, 45) Scan the Enter Setup barcode. Scan the Set Custom Suffix barcode. Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5”. Scan the Save barcode. Scan the Exit Setup barcode. ** Exit Setup...
  • Page 57 Enter Setup ** Exit Setup...

  • Page 58: Terminating Character Suffix

    Enter Setup Terminating Character Suffix A terminating character can be used to mark the end of data, which means nothing can be added after it. A terminating character suffix can contain one or two characters. Enable/Disable Terminating Character Suffix To enable/disable terminating character suffix, scan the appropriate barcode below. ** Enable Terminating Character Suffix Disable Terminating Character Suffix ** Exit Setup...

  • Page 59: Set Terminating Character Suffix

    Enter Setup Set Terminating Character Suffix The engine provides a shortcut for setting the terminating character suffix to CR (0x0D) or CRLF (0x0D,0x0A) and enabling it by scanning the appropriate barcode below. ** Terminating Character CR (0x0DV Terminating Character CRLF (0x0D,0x0AV To set a terminating character suffix, scan the Set Terminating Character Suffix barcode and the numeric barcodes representing the hexadecimal value of a desired terminating character and then scan the Save barcode. Refer to Appendix 4: ASCII Table for hexadecimal values of terminating characters. Note: A terminating character suffix cannot exceed 7 characters. Set Terminating Character Suffix Example: Set the terminating character suffix to 0x0D Scan the Enter Setup barcode. Scan the Set Terminating Character Suffix barcode. Scan the numeric barcodes “0” and “D”. Scan the Save barcode. Scan the Exit Setup barcode. ** Exit Setup...

  • Page 60: Chapter 8 Symbologies

    Enter Setup Chapter 8 Symbologies General Settings Enable/Disable All Symbologies If the Disable All Symbologies feature is enabled, the engine will not be able to read any non-programming barcodes except the programming barcodes. Enable All Symbologies Disable All Symbologies Enable/Disable 1D Symbologies If the Disable 1D Symbologies feature is enabled, the engine will not be able to read any 1D barcodes. Enable 1D Symbologies Disable 1D Symbologies Enable/Disable 2D Symbologies If the Disable 2D Symbologies feature is enabled, the engine will not be able to read any 2D barcodes. Enable 2D Symbologies Disable 2D Symbologies ** Exit Setup...

  • Page 61: Video Reverse

    Enter Setup Video Reverse Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below. Regular Barcode Inverse Barcode Video Reverse allows the engine to read barcodes that are inverted. Video Reverse ON: Read both regular barcodes and inverse barcodes. Video Reverse OFF: Read regular barcodes only. The engine shows a slight decrease in scanning speed when Video Reverse is ON. Video Reverse ON ** Video Reverse OFF ** Exit Setup...

  • Page 62: 1D Symbologies

    Enter Setup 1D Symbologies Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 ** Enable Code 128 Disable Code 128 Set Length Range for Code 128 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 63: Gs1-128 (Ucc/Ean-128)

    Enter Setup GS1-128 (UCC/EAN-128V Restore Factory Defaults Restore the Factory Defaults of GS1-128 Enable/Disable GS1-128 ** Enable GS1-128 Disable GS1-128 Set Length Range for GS1-128 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 64: Restore Factory Defaults

    Enter Setup AIM-128 Restore Factory Defaults Restore the Factory Defaults of AIM-128 Enable/Disable AIM-128 ** Enable AIM-128 Disable AIM-128 Set Length Range for AIM-128 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 65: Restore Factory Defaults

    Enter Setup EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 ** Enable EAN-8 Disable EAN-8 ** Exit Setup...

  • Page 66: Transmit Check Digit

    Enter Setup Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit EAN-8 Check Digit Do Not Transmit EAN-8 Check Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code. Enable 2-Digit Add-On Code ** Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code ** Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of EAN-8 barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus add-on barcode. It can also decode EAN-8 barcodes without add-on codes.

  • Page 67: Add-On Code Required

    Enter Setup Add-On Code Required When EAN-8 Add-On Code Required is selected, the engine will only read EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Required ** EAN-8 Add-On Code Not Required EAN-8 Extension Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits. Enable EAN-8 Zero Extend ** Disable EAN-8 Zero Extend ** Exit Setup...

  • Page 68: Restore Factory Defaults

    Enter Setup EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 ** Enable EAN-13 Disable EAN-13 Transmit Check Digit ** Transmit EAN-13 Check Digit Do Not Transmit EAN-13 Check Digit ** Exit Setup...

  • Page 69: Add-On Code

    Enter Setup Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code ** Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code ** Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus add-on barcode. It can also decode EAN-13 barcodes without add-on codes.

  • Page 70: Issn

    Enter Setup ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN ** Disable ISSN ** Exit Setup...

  • Page 71: Add-On Code

    Enter Setup Add-On Code An ISSN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code ** Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code ** Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of ISSN barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes ISSN and ignores the add-on code when presented with an ISSN plus add-on barcode. It can also decode ISSN barcodes without add-on codes. Add-On Code Required When ISSN Add-On Code Required is selected, the engine will only read ISSN barcodes that contain add-on codes. ISSN Add-On Code Required ** ISSN Add-On Code Not Required ** Exit Setup...

  • Page 72: Isbn

    Enter Setup ISBN Restore Factory Default Restore the Factory Defaults of ISBN Enable/Disable ISBN ** Enable ISBN Disable ISBN Set ISBN Format ** ISBN-13 ISBN-10 ** Exit Setup...

  • Page 73: Add-On Code

    Enter Setup Add-On Code An ISBN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code ** Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code ** Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of ISBN barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes ISBN and ignores the add-on code when presented with an ISBN plus add-on barcode. It can also decode ISBN barcodes without add-on codes. Add-On Code Required When ISBN Add-On Code Required is selected, the engine will only read ISBN barcodes that contain add-on codes. ISBN Add-On Code Required ** ISBN Add-On Code Not Required ** Exit Setup...

  • Page 74: Upc-E

    Enter Setup UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E ** Enable UPC-E Disable UPC-E Transmit Check Digit ** Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit ** Exit Setup...

  • Page 75: Add-On Code

    Enter Setup Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code ** Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code ** Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes UPC-E and ignores the add-on code when presented with a UPC-E plus add-on barcode. It can also decode UPC-E barcodes without add-on codes. Add-On Code Required When UPC-E Add-On Code Required is selected, the engine will only read UPC-E barcodes that contain add-on codes. UPC-E Add-On Code Required ** UPC-E Add-On Code Not Required ** Exit Setup...

  • Page 76: Transmit System Character "0

    Enter Setup Transmit System Character “0” The first character of UPC-E barcode is the system character “0”. ** Transmit System Character “0” Do Not Transmit System Character “0” UPC-E Extension Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A. Enable UPC-E Extend ** Disable UPC-E Extend ** Exit Setup...

  • Page 77: Upc-A

    Enter Setup UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A ** Enable UPC-A Disable UPC-A Transmit Check Digit ** Transmit UPC-A Check Digit Do Not Transmit UPC-A Check Digit ** Exit Setup...

  • Page 78: Add-On Code

    Enter Setup Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code ** Disable 2-Digit Add-On Code Enable 5-Digit Add-On Code ** Disable 5-Digit Add-On Code Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of UPC-A barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes UPC-A and ignores the add-on code when presented with a UPC-A plus add-on barcode. It can also decode UPC-A barcodes without add-on codes. Add-On Code Required When UPC-A Add-On Code Required is selected, the engine will only read UPC-A barcodes that contain add-on codes. UPC-A Add-On Code Required ** UPC-A Add-On Code Not Required ** Exit Setup...

  • Page 79: Transmit Preamble Character "0

    Enter Setup Transmit Preamble Character “0” Transmit Preamble Character “0” ** Do not Transmit Preamble Character “0” Note: The preamble character “0” usually does not appear in printed UPC-A barcodes. ** Exit Setup...

  • Page 80: Interleaved 2 Of 5

    Enter Setup Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Set Length Range for Interleaved 2 of 5 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 81: Check Digit Verification

    Enter Setup Check Digit Verification A check digit is optional for Interleaved 2 o 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The engine transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The engine checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted. Transmit Check Digit After Verification: The engine checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted. ** Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 82: Itf-14

    Enter Setup ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check digit. Restore the Factory Defaults of ITF-14 Disable ITF-14 ** Enable ITF-14 But Do Not Transmit Check Digit Enable ITF-14 and Transmit Check Digit Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time. ** Exit Setup...

  • Page 83: Itf-6

    Enter Setup ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check digit. Restore the Factory Defaults of ITF-6 ** Disable ITF-6 Enable ITF-6 But Do Not Transmit Check Digit Enable ITF-6 and Transmit Check Digit Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time. ** Exit Setup...

  • Page 84: Matrix 2 Of 5

    Enter Setup Matrix 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 ** Disable Matrix 2 of 5 Set Length Range for Matrix 2 of 5 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 85: Check Digit Verification

    Enter Setup Check Digit Verification Disable ** Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 86: Industrial 2 Of 5

    Enter Setup Industrial 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Industrial 2 of 5 Enable/Disable Industrial 2 of 5 ** Enable Industrial 2 of 5 Disable Industrial 2 of 5 Set Length Range for Industrial 2 of 5 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 87: Check Digit Verification

    Enter Setup Check Digit Verification ** Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification ** Exit Setup...

  • Page 88: Standard 2 Of 5 Iata 2 Of 5

    Enter Setup Standard 2 of 5 IATA 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 ** Enable Standard 25 Disable Standard 25 Set Length Range for Standard 25 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 89: Check Digit Verification

    Enter Setup Check Digit Verification ** Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification ** Exit Setup...

  • Page 90: Code 39

    Enter Setup Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 ** Enable Code 39 Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character ** Do not Transmit Start/Stop Character ** Exit Setup...

  • Page 91: Set Length Range For Code 39

    Enter Setup Set Length Range for Code 39 Set the Minimum Length Set the Maximum Length Check Digit Verification ** Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification Enable/Disable Code 39 Full ASCII The engine can be configured to identify all ASCII characters by scanning the appropriate barcode below. ** Enable Code 39 Full ASCII Disable Code 39 Full ASCII ** Exit Setup...

  • Page 92: Codabar

    Enter Setup Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar ** Enable Codabar Disable Codabar Set Length Range for Codabar Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 93: Check Digit Verification

    Enter Setup Check Digit Verification ** Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification Transmit Start/Stop Character Transmit Start/Stop Character ** Do not Transmit Start/Stop Character ** Exit Setup...

  • Page 94: Start/Stop Character Format

    Enter Setup Start/Stop Character Format You can choose your desired start/stop character format by scanning the appropriate barcode below. ** ABCD/ABCD as the Start/Stop Character ABCD/TN*E as the Start/Stop Character Start/Stop Character in Uppercase Start/Stop Character in Lowercase ** Exit Setup...

  • Page 95: Code 93

    Enter Setup Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 ** Enable Code 93 Disable Code 93 Set Length Range for Code 93 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 96: Check Digit Verification

    Enter Setup Check Digit Verification Disable ** Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 97: Gs1-Databar (Rss)

    Enter Setup GS1-Databar (RSSV Restore Factory Defaults Restore the Factory Defaults of GS1-Databar Enable/Disable GS1 Databar ** Enable GS1-DataBar Disable GS1-DataBar Transmit Application Identifier “01” ** Transmit Application Identifier “01” Do Not Transmit Application Identifier “01” ** Exit Setup...

  • Page 98: Code 11

    Enter Setup Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 ** Enable Code 11 Disable Code 11 Set Length Range for Code 11 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 99: Transmit Check Digit

    Enter Setup Transmit Check Digit Transmit Check Digit ** Do Not Transmit Check Digit Check Digit Verification Disable ** One Check Digit, MOD11 Two Check Digits, MOD11/MOD11 Two Check Digits, MOD11/MOD9 One Check Digit, MOD11 (Len<=10V One Check Digit, MOD11 (Len<=10V Two Check Digits, MOD11/MOD11 (Len>10V Two Check Digits, MOD11/MOD9 (Len>10V ** Exit Setup...

  • Page 100: Plessey

    Enter Setup Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey ** Enable Plessey Disable Plessey Set Length Range for Plessey Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 101: Check Digit Verification

    Enter Setup Check Digit Verification Disable ** Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification ** Exit Setup...

  • Page 102: Msi-Plessey

    Enter Setup MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey ** Enable MSI-Plessey Disable MSI-Plessey Set Length Range for MSI-Plessey Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 103: Transmit Check Digit

    Enter Setup Transmit Check Digit Transmit Check Digit ** Do Not Transmit Check Digit Check Digit Verification Disable ** One Check Digit, MOD10 Two Check Digits, MOD10/MOD10 Two Check Digits, MOD10/MOD11 ** Exit Setup...

  • Page 104: Symbologies

    Enter Setup 2D Symbologies PDF 417 Restore Factory Defaults Restore the Factory Defaults of PDF 417 Enable/Disable PDF 417 ** Enable PDF 417 Disable PDF 417 Set Length Range for PDF 417 Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 105: Pdf 417 Twin Code

    Enter Setup PDF 417 Twin Code PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. Two of them must have the same direction and similar specifications and be placed closely together. There are 3 options for reading PDF417 twin codes: Single PDF417 Only: Read either PDF417 code. Twin PDF417 Only: Read both PDF417 codes. Both Single & Twin: Read both PDF417 codes. If successful, transmit as twin PDF417 only. Otherwise, try single PDF417 only. ** Single PDF417 Only Twin PDF417 Only Both Single & Twin Transmission order of twin code Order 1: Transmit the one containing more information first. Order 2: Transmit the one containing less information first. ** Order 1 Order 2 ** Exit Setup...

  • Page 106: Qr Code

    Enter Setup QR Code Restore Factory Defaults Restore the Factory Defaults of QR Code Enable/Disable QR Code ** Enable QR Code Disable QR Code Set Length Range for QR Code Set the Minimum Length Set the Maximum Length Micro QR ** Enable Micro QR Disable Micro QR ** Exit Setup...

  • Page 107: Qr Twin Code

    Enter Setup QR Twin Code QR twin code is 2 QR barcodes paralleled vertically or horizontally. Two of them must have the same direction and similar specifications and be placed closely together. There are 3 options for reading QR twin codes: Single QR Only: Read either QR code. Twin QR Only: Read both QR codes. Both Single & Twin: Read both QR codes. If successful, transmit as twin QR only. Otherwise, try single QR only. ** Single QR Only Twin QR Only Both Single & Twin ** Exit Setup...
  • Page 108 Enter Setup Transmission order of twin code Order 1: Transmit the one containing more information first. Order 2: Transmit the one containing less information first. Order 3: If the twin code is paralleled horizontally, transmite the one on the left first; if it is paralleled vertically, transmit the one in the upper position first. Order 1 Order 2 ** Order 3 ** Exit Setup...

  • Page 109: Data Matrix

    Enter Setup Data Matrix Restore Factory Defaults Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix ** Enable Data Matrix Disable Data Matrix Set Length Range for Data Matrix Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 110: Rectangular Barcode

    Enter Setup Rectangular Barcode ** Enable Rectangular Barcode Disable Rectangular Barcode Mirror Image ** Decode Mirror Images Do Not Decode Mirror Images ** Exit Setup...

  • Page 111: Data Matrix Twin Code

    Enter Setup Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. Two of them must have the same direction and similar specifications and be placed closely together. There are 3 options for reading Data Matrix twin codes: Single Data Matrix Only: Read either Data Matrix code. Twin Data Matrix Only: Read both Data Matrix codes. Transmission order: Data Matrix code on the left (in the upper position) followed by the one on the right (in the lower position). Both Single & Twin: Read both Data Matrix codes. If successful, transmit as twin Data Matrix only. Otherwise, try single Data Matrix only. ** Single Data Matrix Only Twin Data Matrix Only Both Single & Twin ** Exit Setup...

  • Page 112: Chinese Sensible Code

    Enter Setup Chinese Sensible Code Restore Factory Defaults Restore the Factory Defaults of Chinese Sensible Code Enable/Disable Chinese Sensible Code Enable Chinese Sensible Code ** Disable Chinese Sensible Code Set Length Range for Chinese Sensible Code Set the Minimum Length Set the Maximum Length ** Exit Setup...

  • Page 113: Chapter 9 Image Control

    Enter Setup Chapter 9 Image Control Ambient Illumination Ambient lighting conditions may vary from one operating environment to another, such as fluorescent lit warehouses or sunlit open spaces. Fluorescent lights may flicker when using AC power source in 50-60Hz. Usually indoor illuminance is around 1,000 lux while outdoor illuminance may reach 60,000 lux or even over 100,000 lux. Two options are provided for ambient illumination settings: Normal Illuminance: applicable to most indoor/outdoor environments. High Illuminance: applicable to special enviroments with super-intense light source. Change to this settings will not take effect until the engine reboots or wakes up from sleep.

  • Page 114: Image Flipping

    Enter Setup Image Flipping The user may get reversed images when the engine is installed in non-standard ways. When it happens, image flipping can be used to right the “wrong”. The following figures illustrate standard image and three flipped images. Fig.8-1 Standard Image: Image the engine should get when it is installed properly and no reflector is ² used in its optical imaging system.
  • Page 115 Enter Setup ** Exit Setup...

  • Page 116: Flip

    Enter Setup Flip ** Do Not Flip Flip Vertically Flip Horizontally Flip Horizontally and Vertically Flip Vertically Flip Vertically Do Not Flip Vertically Flip Horizontally Flip Horizontally Do Not Flip Horizontally ** Exit Setup...

  • Page 117: Chapter 10 Troubleshooting

    Chapter 10 Troubleshooting FAQ Problem: Some barcodes cannot be read. Solution: 1. Find out the barcode type and verify that the barcode type is enabled. If the barcode parameters include check digit verification, select the Disable option. 2. If you do not know the barcode type, enable all symbologies. 3. If they are inverse barcodes (bright images on a dark background), enable the Video Reverse feature. Problem: Incorrect output. Solution: 1. If this problem happens to all barcodes and additional characters appear before/after barcode data, disable all prefix/suffix. 2. If this problem only happens to some barcodes and matches one of the following situations: a) incomplete barcode data: Enable the check digit verification. b) both the first and last characters are asterisks (*): Disable the transmission of start/stop characters of Code 39. c) “a” transmitted as “+A”: Enable Code 39 Full ASCII. Problem: Barcodes can be read, but cannot be displayed. Solution: Verify that the serial port parameter (such as baud rate, data bit and stop bit) settings match the host requirements.
  • Page 118 Problem: Illumination and aiming beams are OFF. Solution: 1. Verify that the engine is properly powered up. 2. Send “?” to the engine. If the engine returns a reply of “!”, then send programming commands to turn on illumination and aimer. Problem: Carriage Return/Line Feed settings. Solution: See the “Terminating Character Suffix” section in Chapter 7.

  • Page 119: Appendix

    Appendix Appendix 1: Factory Defaults Table Parameter Factory Default Remark Programming Barcode Disabled Barcode Programming Do not send Programming Barcode Data Communication Settings Power-Saving Mode Normal Mode: TTL-232 & USB Enabled (Only TTL-232 supported) supported 9600 Baud Rate None Parity Check TTL-232 Data Bit Stop Bit No flow control Hardware Flow Control U.S. USB Country Keyboard Type No conversion Convert Case No delay Inter-Keystroke Delay Do not beep Beep on Unknown Character HID-KBW (optional) Emulate ALT + Keypad Disabled Function Key Mapping Disabled Emulate Numeric Keypad Disabled Code Page Windows 1252 (Latin I) Scan Mode...
  • Page 120 Parameter Factory Default Remark Applicable to Trigger mode, Sense Decode Session Timeout 3,000ms mode, Continuous mode. 0~3,600,000ms Image Stabilization Timeout 500ms 0~1,600ms Sense Mode Operation after Good Read Pause after good read Timeout between Decodes Disabled (Same Barcode) 1,500ms 0~65,535ms Threshold Value of Illumination Change 1~20 Applicable to Trigger mode, Sense Decode Session Timeout 3,000ms mode, Continuous mode. Continuous Mode 0~3,600,000ms Timeout between Decodes 1000ms 0~65,535ms Cellphone Read Mode Disabled Scanning Preferences Decode Area Whole Area Decoding Central Area 20% Illumination & Aiming Illumination...
  • Page 121 Parameter Factory Default Remark Data Formatting Prefix Sequence Custom Prefix+Code ID+AIM ID Disabled Custom Prefix None AIM ID Prefix Disabled Code ID Prefix Disabled Disabled Custom Suffix None Enabled Terminating Character Suffix 0x0D Carriage Return Image Control Ambient Illumination Normal illuminance Image Flipping Do not flip...
  • Page 122 Parameter Factory Default Remark Symbologies Video Reverse Disabled Applicable to all symbologies. Code 128 Code 128 Enabled Maximum Length 127 Minimum Length GS1-128 UCC/EAN-128 GS1-128 Enabled Maximum Length 127 Minimum Length AIM-128 AIM-128 Enabled Maximum Length 127 Minimum Length EAN-8 EAN-8 Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Extend to EAN-13 Disabled EAN-13 EAN-13 Enabled Check Digit...
  • Page 123 Parameter Factory Default Remark ISBN ISBN Enabled ISBN Format ISBN-13 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required UPC-E UPC-E Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Extend to UPC-A Disabled System Character “0” Transmit UPC-A UPC-A Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Preamble Character “0”...
  • Page 124 Parameter Factory Default Remark ITF-14 ITF-14 Enabled Do not transmit Check Digit Matrix 2 of 5 Matrix 2 of 5 Disabled Check Digit Verification Enabled Check Digit Do not transmit Maximum Length 127 Minimum Length Industrial 2 of 5 Industrial 2 of 5 Enabled Check Digit Verification Disabled Check Digit Do not transmit Maximum Length 127 Minimum Length Standard 2 of 5 Standard 2 of 5 Enabled Check Digit Verification Disabled Check Digit Do not transmit Maximum Length 127 Minimum Length Code 39 Code 39 Enabled Check Digit Verification Disabled...
  • Page 125 Parameter Factory Default Remark Codabar Codabar Enabled Check Digit Verification Disabled Check Digit Do not transmit Start/Stop Character Do not transmit Start/Stop Character Format ABCD/ABCD Maximum Length 127 Minimum Length Code 93 Code 93 Enabled Check Digit Verification Enabled Check Digit Do not transmit Maximum Length 127 Minimum Length GS1 Databar GS1 Databar Enabled Application Identifier “01” Transmit Code 11 Code 11 Enabled Check Digit Verification One check digit, MOD11 Check Digit Do not transmit Maximum Length 127 Minimum Length Plessey...
  • Page 126 Parameter Factory Default Remark MSI-Plessey MSI-Plessey Enabled Check Digit Verification One check digit, MOD10 Check Digit Do not transmit Maximum Length 127 Minimum Length PDF 417 PDF 417 Enabled Maximum Length 2710 Minimum Length PDF 417 Twin Code Read single PDF417 only Transmission Order of Twin Code Order 1 QR Code QR Code Enabled Micro QR Enabled Maximum Length 7089 Minimum Length QR Twin Code Read single QR only Transmission Order of Twin Code Order 3 Data Matrix Data Matrix Enabled Rectangular Barcode Enabled Mirror Image Decode Maximum Length...

  • Page 127: Appendix 2: Aim Id Table

    Appendix 2: AIM ID Table Symbology AIM ID Remark ]E0 Standard EAN-13 EAN-13 ]E3 EAN-13 + 2/5-Digit Add-On Code ]E4 Standard EAN-8 EAN-8 ]E4…]E1… EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code ]E0 Standard UPC-E UPC-E ]E3 UPC-E + 2/5-Digit Add-On Code ]E0 Standard UPC-A UPC-A ]E3 UPC-A + 2/5-Digit Add-On Code Code 128 ]C0 Standard Code 128 ]C1 FNC1 is the character right after the start character GS1-128 (UCC/EAN-128V AIM-128 ]C2 FNC1 is the 2nd character after the start character ISBT-128 ]C4 ]I0 No c heck digit verification Interleaved 2 of 5 ]I1 Transmit check digit after...
  • Page 128 Symbology AIM ID Remark ]G0 Standard Code 93 Code 93 ]H0 One check digit, MOD11; transmit check digit ]H1 Two check digits, MOD11/MOD11; transmit check digit Code 11 ]H3 Do not transmit check digit after verification ]H9 No check digit verification GS1-DataBar (RSSV ]e0 Standard GS1-DataBar ]P0 Standard Plessey Plessey ]M0 One check digit, MOD10; transmit check digit ]M1 One check digit, MOD10; do not transmit check digit MSI-Plessey ]M8 Two check digits ]M9 No check digit verification ]X0 Specified by the manufacturer ]X1 No check digit verification Matrix 2 of 5 ]X2 One check digit, MOD10; transmit check digit ]X3 One check digit, MOD11; do not transmit check digit ]X4 Standard ISBN ISBN ]X5...

  • Page 129: Appendix 3: Code Id Table

    Appendix 3: Code ID Table Symbology Code ID Code 128 GS1-128(UCC/EAN-128) AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93 Code 11 Plessey MSI-Plessey GS1 Databar PDF417 QR Code Data Matrix Chinese Sensible Code...

  • Page 130: Appendix 4: Ascii Table

    Appendix 4: ASCII Table Hex Dec Char NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry) ACK (Acknowledgment) BEL (Bell) BS (Backspace) HT (Horizontal Tab) LF (Line Feed)
  • Page 131 Hex Dec Char RS (Request to Send) US (Unit Separator) SP (Space) ! (Exclamation Mark) " (Double Quote) # (Number Sign) $ (Dollar Sign) %...
  • Page 132 ? (Question Mark) @ (AT Symbol) [ (Left / Opening Bracket) \ (Back Slash) ] (Right / Closing Bracket) Hex Dec Char ^ (Caret / Circumflex) _ (Underscore) ' (Grave Accent)
  • Page 133 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 { (Left/ Opening Brace) 124 | (Vertical Bar) 125 } (Right/Closing Brace) 126 ~ (Tilde)

  • Page 134: Appendix 5: Parameter Programming Examples

    Appendix 5: Parameter Programming Examples The following examples show you how to program parameters by scanning programming barcodes. a. Program the Decode Session Timeout Example: Set the decode session timeout to 1500ms Scan the Enter Setup barcode. Scan the Decode Session Timeout barcode. (See the “Decode Session Timeout” section in Chapter 3) Scan the numeric barcodes “1”, “5”, “0” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) b. Program the Time Period from Idle to Sleep Example: Set the time period from idle to sleep to 500ms Scan the Enter Setup barcode. Scan the Time Period from Idle to Sleep barcode. (See the “Auto Sleep” section in Chapter 3) Scan the numeric barcodes “5”, “0” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) c. Program the Image Stabilization Timeout Example: Set the image stabilization timeout to 500ms Scan the Enter Setup barcode. Scan the Image Stabilization Timeout barcode. (See the “Image Stabilization Timeout” section in Chapter 3) Scan the numeric barcodes “5”, “0” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.)

  • Page 135: Program The Timeout Between Decodes (Same Barcode)

    d. Program the Timeout between Decodes (Same BarcodeV Example: Set the timeout between decodes (same barcodeV to 1000ms Scan the Enter Setup barcode. Scan the Timeout between Decodes (Same BarcodeV barcode. (See the “Timeout between Decodes (Same BarcodeV” section in Chapter 3) Scan the numeric barcodes “1”, “0”, “0” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) e. Program the Threshold Value of Illumination Change Example: Set the threshold value of illumination change to 4 Scan the Enter Setup barcode. Scan the Threshold Value of Illumination Change barcode. (See the “Sensitivity” section in Chapter Scan the numeric barcode “4”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) f. Program the Timeout between Decodes Example: Set the timeout between decodes to 500ms Scan the Enter Setup barcode. Scan the Timeout between Decodes barcode. (See the “Timeout between Decodes” section in Chapter 3) Scan the numeric barcodes “5”,“0” and “0”.

  • Page 136: Program The Central Area

    g. Program the Central Area Example: Set the percentage of central area to 20% Scan the Enter Setup barcode. Scan the Specify Central Area barcode. Scan the numeric barcodes “2” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) h. Program the Custom Prefix/Suffix Example: Set the custom prefix to “CODE” Check the hex values of “CODE” in the ASCII Table. (“CODE”: 43, 4F, 44, 45) Scan the Enter Setup barcode. Scan the Set Custom Prefix barcode. (See the “Set Custom Prefix” section in Chapter 6) Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) i. Program the Terminating Character Suffix Example: Set the terminating character suffix to 0x0D Scan the Enter Setup barcode. Scan the Set Terminating Character Suffix barcode. (See the “Set Terminating Character Suffix” section in Chapter 6) Scan the numeric barcodes “0” and “D”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.)

  • Page 137: Program The Code Id

    j. Program the Code ID Example: Set the Code ID of PDF 417 to “p” Check the hex value of “p” in the ASCII Table. (“p”: 70) Scan the Enter Setup barcode. Scan the Modify PDF417 Code ID barcode. (See the “Modify Code ID” section in Chapter 6) Scan the numeric barcodes “7” and “0”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.) k. Program the NGR Message Example: Set the NGR message to “!ERR” Check the hex values of “!ERR” in the ASCII Table. (“!ERR”: 21, 45, 52, 52) Scan the Enter Setup barcode. Scan the Edit NGR Message barcode. (See the “Edit NGR Message” section in Chapter 5) Scan the numeric barcodes “2”, “1”, “4”, “5”, “5”, “2”, “5” and “2”. Scan the Save barcode. Scan the Exit Setup barcode. (If you still need to program other parameter/feature, skip this step.)

  • Page 138: Program The Length Range (Maximum/Minimum Lengths) For A Symbology

    l. Program the Length Range (Maximum/Minimum LengthsV for a Symbology Note: If minimum length is set to be greater than maximum length, the engine only decodes barcodes with either the minimum or maximum length. If you only want to read barcodes with a specific length, set both minimum and maximum lengths to be that desired length. Example: Set the engine to decode Code 128 barcodes containing between 8 and 12 characters Scan the Enter Setup barcode. Scan the Set the Minimum Length barcode. (See the “Set Length Range for Code 128” section in Chapter 7) Scan the numeric barcode “8”. Scan the Save barcode. Scan the Set the Maximum Length barcode. (See the “Set Length Range for Code 128” section in Chapter 7) Scan the numeric barcodes “1” and “2”. Scan the Save barcode.

  • Page 139: Appendix 6: Digit Barcodes

    Appendix 6: Digit Barcodes...

  • Page 141: Appendix 7: Save/Cancel Barcodes

    Appendix 7: Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want. For instance, after reading the Maximum Length barcode and numeric barcodes “1”, “2” and “3”, you scan: ² Delete the Last Digit: The last digit “3” will be removed. ² Delete All Digits: All digits “123” will be removed. ² Cancel: The maximum length configuration will be cancelled. And the engine is still in the setup mode. Save Delete the Last Digit Delete All Digits Cancel...

  • Page 142: Appendix 8: Ascii Function Key Mapping Table

    Appendix 8: ASCII Function Key Mapping Table ASCII Function ASCII Value (HEXV No Function Key Mapping Function Key Mapping NUL (Null char.) Null Ctrl+2 Keypad Enter Ctrl+A SOH (Start of Header) Caps Lock Ctrl+B STX (Start of Text) Null Ctrl+C ETX (End of Text) Null Ctrl+D EOT (End of Transmission) Null Ctrl+E ENQ (Enquiry) Null Ctrl+F ACK (Acknowledgment) Enter...
  • Page 143 ASCII Function Key Mapping Table (ContinuedV The function key mappings of the last five characters in the previous table differ from one keyboard layout to another. Country/ Function Key Mapping Keyboard Layout United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+- Belgium Ctrl+[ Ctrl+< Ctrl+] Ctrl+6 Ctrl+- Scandinavia Ctrl+8 Ctrl+< Ctrl+9 Ctrl+6 Ctrl+- France Ctrl+^ Ctrl+8 Ctrl+$ Ctrl+6 Ctrl+= Germany Ctrl+Ã Ctrl++ Ctrl+6 Ctrl+- Italy Ctrl+\ Ctrl++ Ctrl+6 Ctrl+- Switzerland Ctrl+<...

  • Page 144: Appendix 9: Code Pages List

    Appendix 9: Code Pages List Numeric Barcode Needed Code Page Windows 1252 (Latin I) Windows 1251 (Cyrillic) If need any technical support, feel free to contact our technical support department: Support Department ............. RTSCAN TECHNOLOGY LIMITED Add: F/7, Block C,Ying Da Li Park, Futian Tax-Free Trade Zone,Shenzhen, China Tel: +86-755-32909260 E-mail: support@rtscan.net...

Table of Contents
