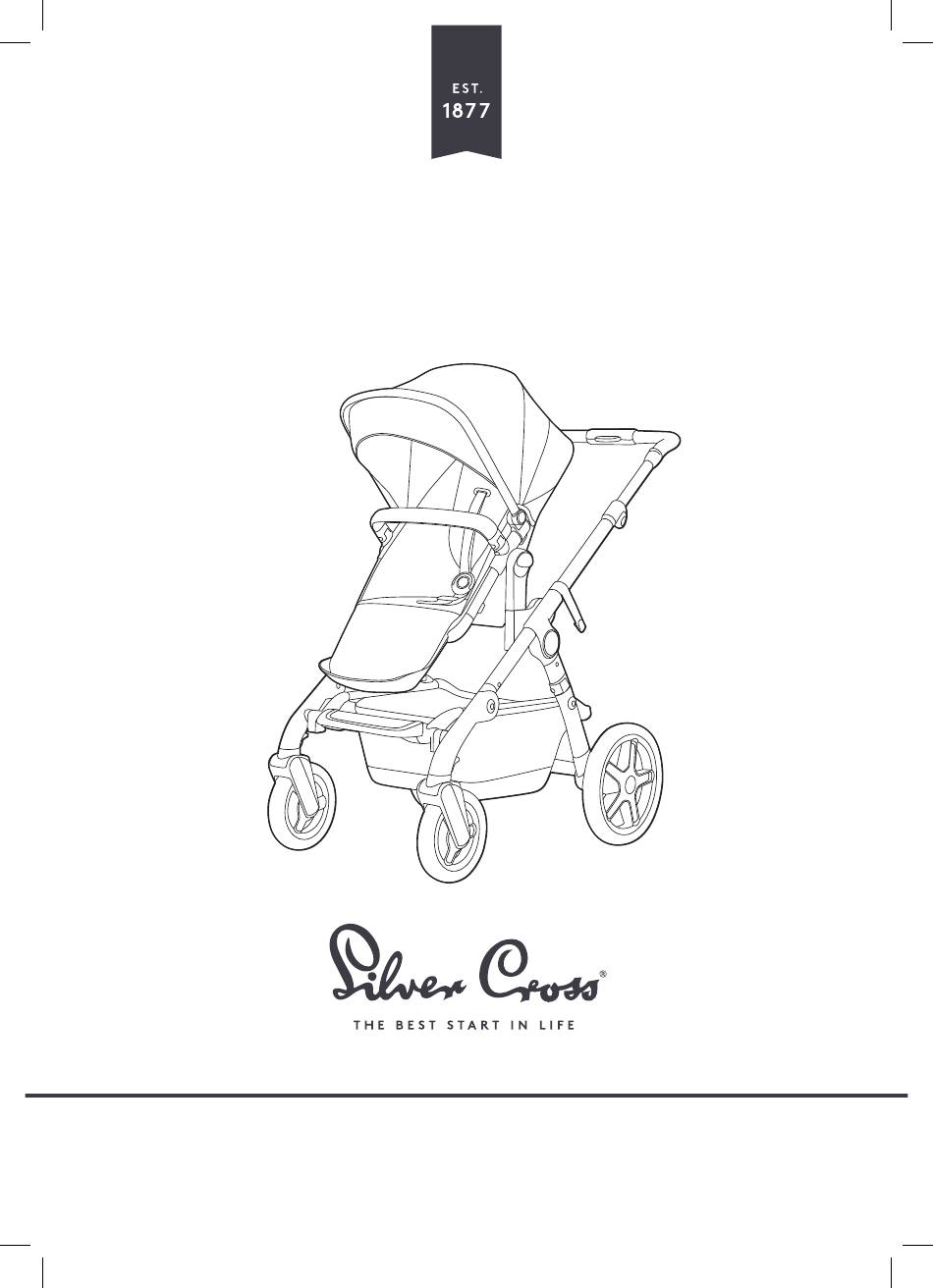

Wave
IMPORTANT: KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Wave Instructions 2016-AUSTRALIAN.indd 1
19/09/2017 16:50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wave and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silver Cross Wave

Summary of Contents for Silver Cross Wave

  • Page 1 Wave IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Wave Instructions 2016-AUSTRALIAN.indd 1 19/09/2017 16:50...
  • Page 2 Contents Check all parts have been supplied. The Wave travel system includes: CHASSIS BOX 1 OF 2 PUSHCHAIR SEAT BOX 2 OF 2 Chassis Pushchair Seat Front Wheels Pushchair Seat Hood Rear Wheels Pushchair Seat Apron Tandem Connectors Bumper Bar...
  • Page 3 Carrycot Mattress Tandem Seat Apron Carrycot Hood Bumper Bar Carrycot Apron Pushchair / Tandem Bumper Bar Seat Raincover Carrycot Raincover Pushchair / Tandem Seat Seat Bug Net Carrycot Bug Net Seat Liner Carrycot Adaptors silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 3 19/09/2017 16:50...
  • Page 4 Your child’s safety may WARNING be a ected if you do not follow these instructions. ALWAYS APPLY THE PARKING Your Wave travel system is a high BRAKE WHEN YOU ARE quality Silver Cross product. STANDING STILL. It meets current safety standards...
  • Page 5 Release the button once the axle is fully inserted into the slot. CHECK THE WHEELS ARE SECURE BY GENTLY PULLING THE WHEELS AWAY FROM THE CHASSIS. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 5 19/09/2017 16:50...
  • Page 6 Release the folding lock and lift the handle upwards. Continue to lift the handle upwards until the chassis ‘clicks’ and locks into position. Check that the chassis is secure by gently pushing downwards on the handle. Wave Instructions 2016-AUSTRALIAN.indd 6 19/09/2017 16:50...
  • Page 7 The chassis has lockable front swivel wheels. Push the swivel wheel lock button downwards to lock the wheels into the xed position. The wheel will lock once it has aligned with the forward direction of travel. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 7 19/09/2017 16:50...
  • Page 8 Press and hold the handle height adjustment button. Slide the handle up or down to required height and release the adjustment button. Slide further up or down as desired until the handle locks and ‘clicks’ into place. Wave Instructions 2016-AUSTRALIAN.indd 8 19/09/2017 16:50...
  • Page 9 To remove the cup holder, unclip the cup holder clamp from the chassis handle. WARNING DO NOT USE CUP HOLDER WITH HOT LIQUIDS. WARNING THE CUP HOLDER IS CAPABLE OF HOLDING A MAXIMUM WEIGHT OF 340g. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 9 19/09/2017 16:50...
  • Page 10 USING WAVE FROM BIRTH 10.1 WITH THE CARRYCOT Preparing the carrycot for use Remove all packaging material from the carrycot and dispose of carefully. ALWAYS ENSURE THE BUMPER BAR IS ATTACHED WHEN YOUR CHILD IS IN THE CARRYCOT. WARNING THIS PRODUCT IS SUITABLE FOR...
  • Page 11 Velcro fastenings in the centre of the carrycot outer. WARNING 10.3 DO NOT ADD A MATTRESS OTHER THAN THE ONE PROVIDED. 10.4 silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 11 19/09/2017 16:50...
  • Page 12 ‘click’ into place. Pull apart gently to ensure the bumper bar is secured in place. 12.1 Wave Instructions 2016-AUSTRALIAN.indd 12 19/09/2017 16:50...
  • Page 13 Slide the back of the carrycot hood fabric over the rear edge of the carrycot and secure using the Velcro patches. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 13 19/09/2017 16:50...
  • Page 14 14.3 The carrycot hood features a pop-out sun visor. To use the 14.2 sun visor, pull out from the inside of the hood. To store, push the sun visor back inside the hood. 14.3 Wave Instructions 2016-AUSTRALIAN.indd 14 19/09/2017 16:51...
  • Page 15 ‘clicks’ in the open or closed position. Attaching the carrycot to the Wave connector The carrycot can be attached to the Wave connector in either the primary or the secondary position. 16.1 Primary position Secondary position Press the circular button on each Wave connector and rotate until it ‘clicks’...
  • Page 16 19.1 The carrycot bug net should be used when the hood is attached to the carrycot. Slide the bug net over the hood and down towards the foot end of the carrycot. Wave Instructions 2016-AUSTRALIAN.indd 16 19/09/2017 16:51...
  • Page 17 The pushchair seat can be attached to the Wave connector in either the primary or the secondary position. Press the circular button on each Wave connector and rotate until it ‘clicks’ into place. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 17 19/09/2017 16:51...
  • Page 18 Please refer to 12.1-12.2 to attach and release the bumper bar 20.1 Hold the pushchair seat above the chassis. Locate the pushchair seat connector posts into the Wave connector slots. Ensure that the pushchair seat ‘clicks’ into place. Preparing the harness 21.1...
  • Page 19 USE THIS HARNESS AT ALL TIMES WARNING NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN THE PRAM/STROLLER BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY POSE A STRANGULATION HAZARD silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 19 19/09/2017 16:51...
  • Page 20 23.2 Attach the hood to the pushchair seat frame by 23.2 pressing down on the hood attachment clips on each side of frame. Wave Instructions 2016-AUSTRALIAN.indd 20 19/09/2017 16:51...
  • Page 21 The pushchair seat hood features a pop-out sun visor. To use the sun visor, pull out from the inside of the hood. To store, push the sun visor back inside the hood. 24.2 24.3 silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 21 19/09/2017 16:51...
  • Page 22 Rotate the pushchair seat upwards or downwards to upright, semi-recline or full 25.3 recline. Release the recline adjustment lever and wait to hear a ‘click’ for each position to lock into place. 26.1 Wave Instructions 2016-AUSTRALIAN.indd 22 19/09/2017 16:51...
  • Page 23 Slide the bug net over the hood and down towards the toe of the pushchair seat or tandem seat. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 23 19/09/2017 16:51...
  • Page 24 IMPORTANT: REMOVE THE CHILD FROM THE PUSHCHAIR SEAT BEFORE DETACHING THE PUSHCHAIR SEAT FROM THE CHASSIS. USING WAVE WITH THE CAR SEAT 30.1 Attaching the Car Seat adaptors to the Wave connectors 30.1 Locate the adaptors into the Wave connector slots on both sides.
  • Page 25 Seat has secured into place. WARNING CHECK THAT THE CAR SEAT IS CORRECTLY SECURED BEFORE USE. Detaching the Car Seat from the Car Seat adapters 32.1 Please refer to the car seat manufacturer instructions. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 25 19/09/2017 16:51...
  • Page 26 Detaching the Car Seat 33.1 adaptors from the Wave connectors 33.1 Press the silver button on the side of each adaptor and pull adaptor upwards to release from Wave connection slots. WARNING THIS CAR SEAT DOES NOT REPLACE A COT OR BED.
  • Page 27 PREPARING WAVE FOR USE IN TANDEM CONFIGURATIONS The chassis can be converted for use in tandem con gurations. Please see images below for Table A possible con gurations. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 27 19/09/2017 16:51...
  • Page 28 34.1 WARNING BEFORE CONVERTING THE WAVE FOR USE IN TANDEM CONFIGURATION, APPLY THE PARKING BRAKE AND REMOVE ANY CAR SEAT OR CARRYCOT. Attaching the tandem connectors 34.1 When standing behind the chassis, please refer to the markings on the tandem connectors to ensure that they are tted correctly.
  • Page 29 The Wave connector must be rotated from the primary position into the secondary position for tandem use. Press the circular button on each Wave connector, and rotate until it ‘clicks’ into place. USING THE CARRYCOT IN TANDEM CONFIGURATION A second carrycot (available separately) can be attached to the 35.1...
  • Page 30 Attaching the carrycot adaptors 37.1 37.1 Carrycot adaptors are available separately. Locate the carrycot adaptors into the Wave connectors on both sides. Ensure the adaptors ‘click’ into place. Attaching the carrycot to the carrycot adaptors 38.1 Hold the carrycot above the chassis.
  • Page 31 Pull both carrycot release handles outwards and lift the carrycot clear of the carrycot adaptors. Detaching the carrycot adaptors from the Wave connectors 40.1 Press the silver button on the side of each adaptor and pull adaptor upwards to release from Wave connection slots.
  • Page 32 Ensure that the tandem seat ‘clicks’ into place. Lift the tandem seat gently to check the tandem seat has locked into place. NOTE: THE TANDEM SEAT CAN ONLY FIT ONTO THE TANDEM CONNECTORS. Wave Instructions 2016-AUSTRALIAN.indd 32 19/09/2017 16:51...
  • Page 33 Wave connectors 43.1 To attach the Car Seat adaptors, locate the adaptors into the attachment slots on the Wave connectors. WARNING THE CAR SEAT ADAPTORS WILL ONLY FIT INTO THE WAVE CONNECTORS. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 33 19/09/2017 16:51...
  • Page 34 Car Seat has locked into place. WARNING CHECK THAT THE CAR SEAT IS CORRECTLY ENGAGED BEFORE USE. Detaching the Car Seat from the Car Seat adapters 45.1 Please refer to the car seat manufacturer instructions. Wave Instructions 2016-AUSTRALIAN.indd 34 19/09/2017 16:51...
  • Page 35 Detaching the Car Seat 46.1 adaptors from the Wave connectors 46.1 Press the silver button on the side of each adaptor and pull adaptor upwards to release from the Wave connectors. Attaching the Car Seat tandem adaptors to the tandem connectors 47.1...
  • Page 36 WARNING CHECK THAT THE CAR SEAT ATTACHMENT DEVICES ARE CORRECTLY ENGAGED BEFORE USE. Detaching the Car Seat from the tandem adapters 49.1 Please refer to the car seat manufacturer instructions. Wave Instructions 2016-AUSTRALIAN.indd 36 19/09/2017 16:51...
  • Page 37 For both adaptors, press the silver button on the side of the adaptor and pull adaptor upwards to release from tandem connectors. WARNING BEFORE FOLDING THE WAVE PUSHCHAIR, THE CAR SEAT TANDEM ADAPTORS MUST BE REMOVED, OTHERWISE DAMAGE WILL BE CAUSED. WARNING THE CAR SEAT SHOULD ALWAYS BE REARWARD FACING.
  • Page 38 MECHANISMS ARE KEPT CLEAR TO AVOID POSSIBLE FINGER ENTRAPMENTS OR INJURIES TO PARTS OF THE BODY. To ensure the Wave chassis folds correctly remove all items from the shopping basket before attempting to fold. If using with a car seat or a carrycot, please ensure each has been removed before folding.
  • Page 39 52.3 WARNING BEFORE FOLDING THE WAVE CHASSIS, THE CAR SEAT ADAPTORS MUST BE REMOVED, OTHERWISE DAMAGE WILL BE CAUSED. The chassis can be folded with a pushchair seat attached and in forward- facing, upright position. The pushchair will not fold in in any other seat positions.
  • Page 40 Safety Notes • DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS The Wave travel system is a high PRAM/STROLLER quality Silver Cross product. It complies with AS/NZS • MAKE SURE CHILDREN ARE 2088:2013 and with correct use CLEAR OF ANY MOVING PARTS...
  • Page 41 NEVER USE ON A STAND. MAXIMUM CAPACITY FOR BASKET: WARNING 5KG. MAXIMUM CAPACITY FOR CUP DO NOT LET OTHER CHILDREN HOLDER: 340G. PLAY UNATTENDED NEAR THE CARRYCOT. MAXIMUM CAPACITY FOR CHANGING BAG: 1KG. silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 41 19/09/2017 16:51...
  • Page 42 Notes Wave Instructions 2016-AUSTRALIAN.indd 42 19/09/2017 16:51...
  • Page 43 Notes silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 43 19/09/2017 16:51...
  • Page 44 Premium Brands Pty Ltd, 10 Capital Court, Braeside Victoria 3195, Australia silvercross.com.au Wave Instructions 2016-AUSTRALIAN.indd 44 19/09/2017 16:51...
