Kaisai Split ECO HOME Operation Instructions Manual

Air-to-water heat pump

Hide thumbs

Table Of Contents

Change for life

Owner's Manual

Original Instructions

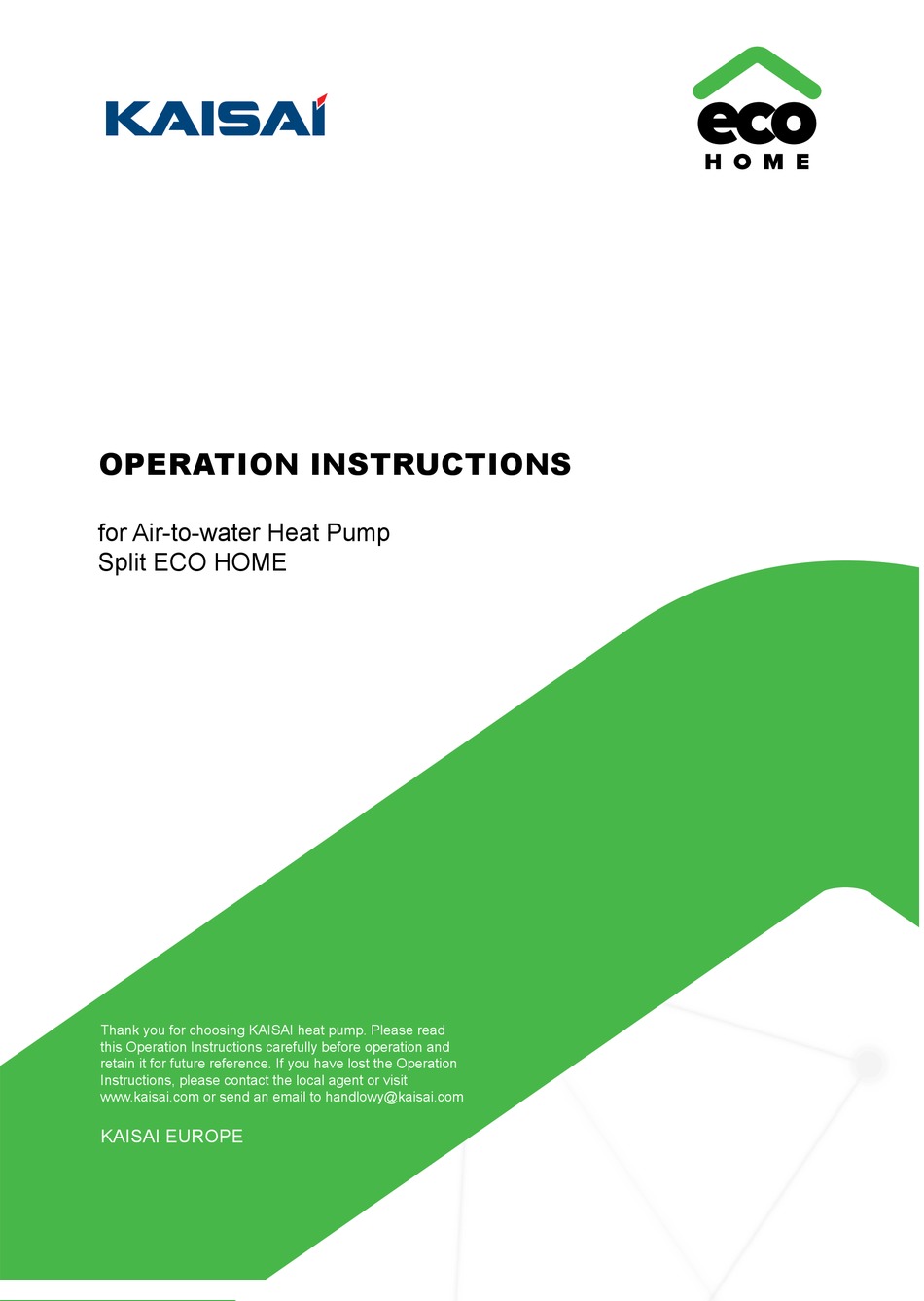

OPERATION INSTRUCTIONS

Air Conditioners

for Air-to-water Heat Pump

Split ECO HOME

Air-to-water Heat Pump Split ECO HOME

Models:

GRS-CQ8.0Pd/NaE-K

GRS-CQ10Pd/NaE-K

GRS-CQ12Pd/NaE-K

GRS-CQ14Pd/NaE-K

GRS-CQ16Pd/NaE-K

GRS-CQ12Pd/NaE-M

GRS-CQ14Pd/NaE-M

GRS-CQ16Pd/NaE-M

Thank you for choosing KAISAI air conditioners. Please read this

Owner's Manual carefully before operation and retain it for future

reference.

If you have lost the Owner's Manual,please contact the local agent

Thank you for choosing KAISAI heat pump. Please read

or visit www.

.com or send an email to global@gree.com.cn for

this Operation Instructions carefully before operation and

retain it for future reference. If you have lost the Operation

the electronic version.

Instructions, please contact the local agent or visit

GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI

www.kaisai.com or send an email to handlowy@kaisai.com

KAISAI EUROPE

SPLIT

TYPE

Table of Contents

Need help?

Do you have a question about the Split ECO HOME and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaisai Split ECO HOME

Page 1 GRS-CQ16Pd/NaE-K GRS-CQ12Pd/NaE-M GRS-CQ14Pd/NaE-M GRS-CQ16Pd/NaE-M Thank you for choosing KAISAI air conditioners. Please read this Owner’s Manual carefully before operation and retain it for future reference. If you have lost the Owner's Manual,please contact the local agent Thank you for choosing KAISAI heat pump. Please read or visit www.
Page 2 Operation Instructions for Air-to-water Heat Pump Split ECO HOME Notices Thank you for selecting KAISAI product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve expected operating effect, we hereby instruct as below: (1) This instruction manual is a universal manual, some functions are only applicable to particular product.
Page 3: Table Of Contents
Operation Instructions for Air-to-water Heat Pump Split ECO HOME Contents Safety Notices (Please be sure to abide ) ..............1 1. External View ......................2 1.1 Keys & Indicating LEDs ....................2 1.2 Standby Page and Homepage ..................3 2. Operation Instructions ....................4 2.1 On/Off ..........................4...
Page 4: Safety Notices (Please Be Sure To Abide )
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Safety Notices (Please be sure to abide ) Do not install the control where it is damp or exposed to direct sunlight. Once the air conditioning unit is installed where possibly subject to electromagnetic interference, shielded twisted pairs should be used as signal lines and other communication lines.
Page 5: External View
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE 1. External View (This effect drawing is just for reference) 1.1 Keys & Indicating LEDs Symbol Name Functional Description Running indicating LED It will light on/off when the unit is turned on/off.
Page 6: Standby Page And Homepage
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Function key no. 4 Function key no. 3 It is intended to perform different functions at difference pages. Function key no. 2 Function key no. 1 [Note] The key icon is just for reference and the real object always prevails.
Page 7: Operation Instructions
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE [Note] "1*": it includes the “Sanitize mode”, “Quiet” mode, “Auto” mode, “Floor debug” mode, “Emergen.mode”, “Holiday mode”, “Forced Cooling” mode, “Forced Heating” mode, and “Debug” mode.
Page 8: Function Setting
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE 2.2 Function Setting It enables the user to set each function. [Operation Instructions] (1) At the homepage, by pressing the Function key no. 1...
Page 9 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Function Settings Full Name Displayed Name Range Default Remarks Cool Heat When the water tank is Running mode Mode Hot water Heat unavailable, then only “Cool” and...
Page 10 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE This setting cannot be changed from “Air” to “Air+hot water” directly but via “Without” this option and the unit will go to Without status. Meanwhile, the control will send out “Without”...
Page 11 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE 2.2.1 Mode It enables the user to select the run mode of the unit. When the water tank is not prepared, then only Cool and Heat modes are available.
Page 12 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE heating, “ ” also should be manually set to “Without” for getting higher leaving water temperature. [Operation Instructions] After “ ” is set to “Without” (see 2.2.28), go to the FUNCTION page and locate “T-water ctrl.”, then, , “High temp.”...
Page 13 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE (d) It will be deactivated when the unit is turned off. 2.2.8 Quiet Timer time period. [Operation Instructions] (1) Go to the FUNCTION page and locate Quiet timer, then, access to the QUIET TIMER setting page.
Page 14 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE (f) This mode works only for the heating/cooling function. 2.2.10 Holiday Release when the user is out. [Operation Instructions] Go to the FUNCTION page and locate “Holiday release”, then, configure it through the Up/Down key , “On”...
Page 15 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE precedence. (e) When Sanitize is activated, “Disinfection” will show on the home page of the control until this operation is Disinfect fail” will show. In this case, by pressing any key, “Disinfect fail” will be cleared or it will be always there.
Page 16 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Save”, a pop-up window will pop up to remind if you are determined to save these settings. If so, press the OK key . If not, press the Return key to not save these settings.
Page 17 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE “Water tank” from “With” to “Without”, then “Hot water” mode will be automatically changed to “Heat”, “Cool+hot water”/ “Heat+hot water” changed to “Cool”/ “Heat”.
Page 18 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE , or this setting without being saved is ineffective. (5) When the setting has been saved, activate the “Clock Timer” at the FUNCTION page.
Page 19 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE (c) The allowed running modes include “Heat” and “Cool” (d) When the start time of “Period 2” is equal to that of “Period 1”, then the set point of “Period 2” takes precedence.
Page 20 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE been installed. [Operation Instructions] (1) At the homepage, by pressing the Function key access to the FUNCTION page, and then locate where “Floor debug” is, after that, press OK key to go to the FLOOR DEBUG setting page.
Page 21 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE at the Parameter View page. (h) Before activating “Floor debug”, please make sure each period for “Floor debug” is not zero, or a dialog box will pop up, warning “Wrong Floor Debug time!”.
Page 22 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE box will pop up, warning “ Please disable the Emergency Mode!”. (h) Upon power failure, the “Emergen. mode” will be defaulted to be “Off”.
Page 23 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE to “1” or “2” or “Off”. [Notes] It will be memorized upon power failure. 2.2.21 Other Heater ntroller. [Operation Instructions] Go to the FUNCTION page and locate Other heater “With”...
Page 24 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE (b) This setting is allowed only when the unit is turned off. 2.2.26 Tank Sensor When the water tank has been installed, one group or two groups of tank sensors can be selected to detect and control the water tank temperature.
Page 25: Parameter Setting (Parameter Set)
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE [Operation Instructions] Go to the FUNCTION page and locate “Air removal “On” or “Off”. [Notes] (a) It will not be memorized upon power failure.
Page 26 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE [Operation Instructions] (1) At the homepage, it is able to go to the PARAMETER page by pressing the Function key no.2 (2) At the Parameter Set page, by the Left/Right key...
Page 27 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE User Setting Displayed Full Name Range(°C) Range(°F) Default Name 7~25°C 45~77°F Water out temperature [Without Floor] [Without Floor] 7°C/45°F[Without Floor] WOT-Cool for cooling 18~25°C 64~77°F...
Page 28 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Lower limit room 22°C/72°F temperature at the Lower RT- Set to default value when 18~23°C 64~73°F Weather-dependent Cool the Weather-dependent Mode for cooling Mode setting changes.
Page 29: View
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE (2) in hea�ng mode , T-room Ctrl.state Room temp./℃ Upper RT-Heat (x1,y'1) Lower WT-Heat (x2,y'2) Lower AT-Heat Upper AT-Heat -20 -15 -10 Ambient temp./℃...
Page 30 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE HP-pump SL-pump Swimming-pump Viewable Components Full Name Displayed Name Status Compressor running state Compressor On/Off Fan 1 running state Fan 1 On/Off Fan 2 running state...
Page 31 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Full Name Displayed Name Outdoor temperature T-outdoor Suction temperature T-suction Discharge temperature T-discharge Defrost temperature T-defrost Plate heat exchanger Water in temperature T-water in PE...
Page 32 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE [Notes] (a) The real-time error will show on the control. Taking Error 2 in the above figure for example, when it is recovered, it will disappear and be replaced by Error 3, and other errors follow the same way.
Page 33 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Water tank water temperature sensor 1 error Tank sens. 1 Water tank water temperature sensor 2 error Tank sens. 2 Solar kit-entering water temp sensor...
Page 34: General Setting
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE 2.4.4 Version View (VERSION) At the version view page, the user is enabled to see the version of the program and the protocol. [Operation Instructions] 1.
Page 35 Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE Full Name Displayed Name Range Default Remarks Temperature unit Temp. unit Celsius/Fahrenheit Celsius Language Language English English On/off memory On/off memory On/Off Time&Date Time&Date...
Page 36: Key Lock
Operation Instructions for Split Versati Operation Instructions for Air-to-water Heat Pump Split ECO HOME SPLIT TYPE 2.6 Key Lock This function can be activated or deactivated through the wired controller. Once it is activated, any key operation will become ineffective.
Page 37 Operation Instructions for Air-to-water Heat Pump Split ECO HOME...
