DIRIS A40/A41
ETHERNET
®
Operating instructions
F
GB
D
I
NL
E
P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRIS A40 ETHERNET and is the answer not in the manual?

Questions and answers

Related Manuals for socomec DIRIS A40 ETHERNET

Summary of Contents for socomec DIRIS A40 ETHERNET

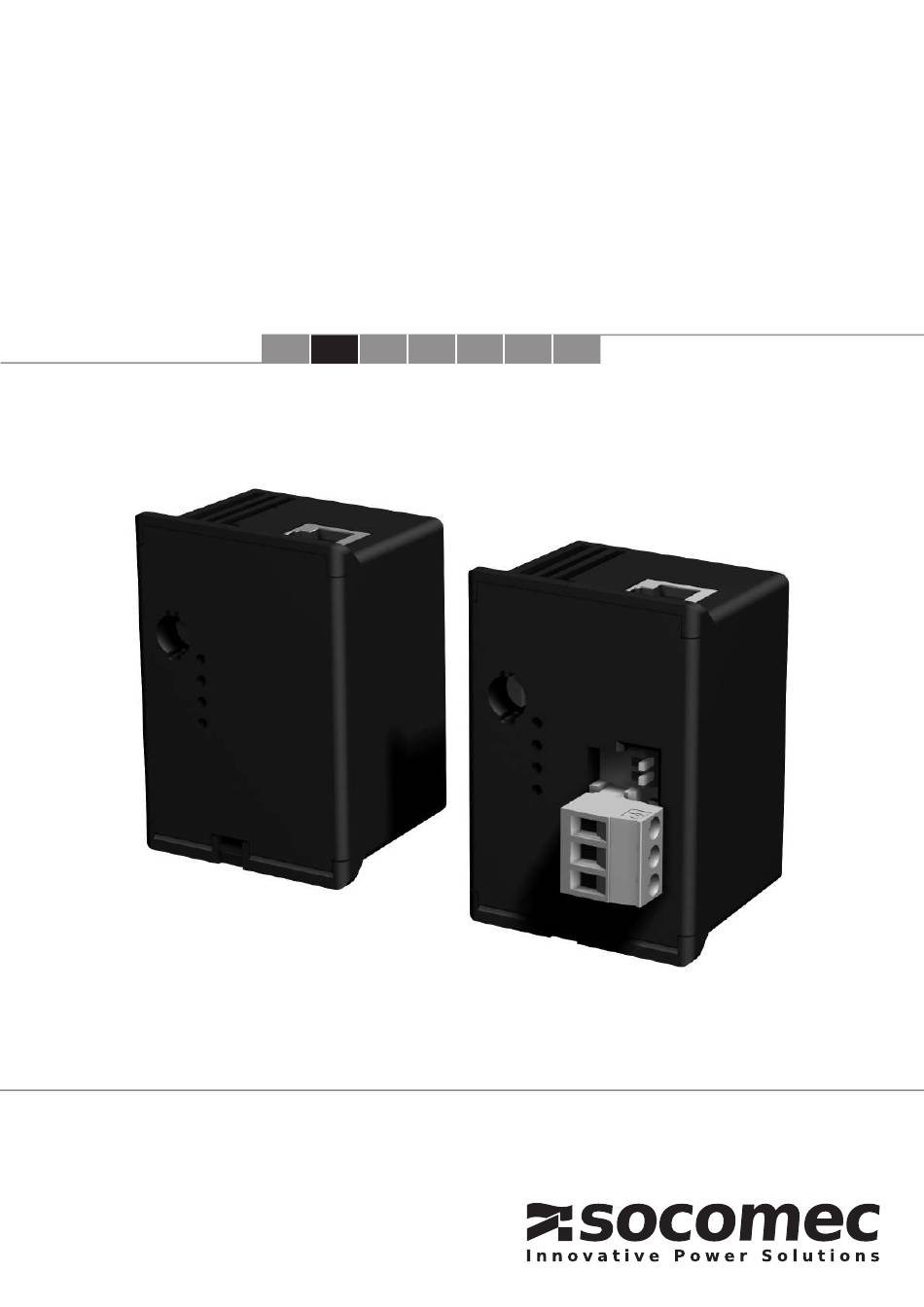

  • Page 1 DIRIS A40/A41 ETHERNET ® Operating instructions...
  • Page 2 DIRIS A40/A41 - Ref.: 536 181 B GB...

  • Page 3: Table Of Contents

    PRELIMINARY OPERATIONS _________________________________________________________ GENERAL INFORMATION _________________________________________________________ INSTALLATION __________________________________________________________________________ CONNECTION _____________________________________________________________________ VISUAL DIAGNOSTIC _____________________________________________________________ PROGRAMMING ________________________________________________________________________ ETHERNET CONFIGURATION ON DIRIS A40/A41 _______________________________ IP ADDRESS _______________________________________________________________________ MASK _____________________________________________________________________________ GATEWAY _________________________________________________________________________ DHCP _____________________________________________________________________________ WEBSERVER _____________________________________________________________________ ENVIRONMENTAL CONDITIONS AND TYPE OF TEST _________________________ INTERFACE SPECIFICATIONS: SUPPLY ________________________________________ RS485 _____________________________________________________________________________...

  • Page 4: Preliminary Operations

    DIRIS A40/A41 - RS485 - ETHERNET ® PRELIMINARY OPERATIONS For personnel and product safety please read the • t he product has not been damaged during transit, contents of these operating instructions carefully • t he product reference number conforms to your before connecting. order, Check the following points as soon as you receive the • t he package contains the product and the operating DIRIS A40/A41 package: instructions.

  • Page 5: Installation

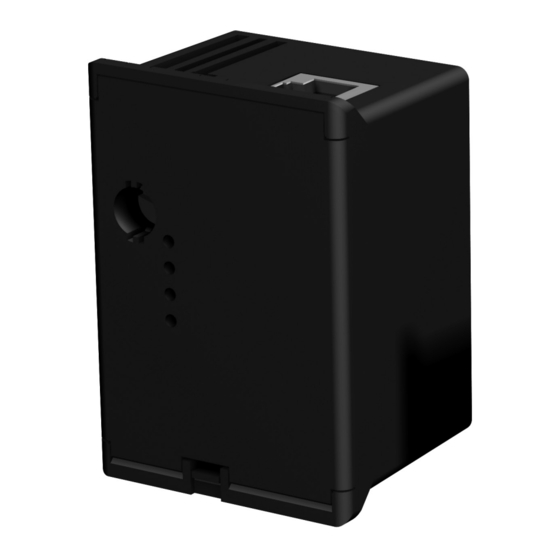

    DIRIS A40/A41 - RS485 - ETHERNET ® INSTALLATION CONNECTION The module is fitted onto the back of the DIRIS A40/A41 in one of the 4 positions provided. The DIRIS A40/A41 must be switched off Fix the module in one of the four positions. Follow indications when connecting the termi- nal.

  • Page 6: Visual Diagnostic

    DIRIS A40/A41 - RS485 - ETHERNET ® INSTALLATION VISUAL DIAGNOSTIC > LED indicators Colour Status Description NOT LIT No internal electrical supply Firmware is re-initialising Hardware is faulty Yellow Loading phase of the software, waiting to start FLASHING AT 1Hz Error during the start-up phase Green Operating system functioning NOT LIT...

  • Page 7: Programming

    ETHERNET DIRIS A40/A41 - RS485 - ® PROGRAMMING ETHERNET CONFIGURATION ON DIRIS A40/A41 This involves setting up the IP parameters for the The factory setting is: DIRIS connected to the gateway • IP address: 192.168.1.1 IP address (Rth Adr IP) : •...

  • Page 8: Ip Address

    DIRIS A40/A41 - RS485 - ETHERNET ® PROGRAMMING ADRESSE IP : > For example: Programming the address 191.158.1.7 CLASS A = 191 DIRIS A40/A41 - Ref.: 536 181 B GB...
  • Page 9 ETHERNET DIRIS A40/A41 - RS485 - ® PROGRAMMING ADRESSE IP : > For example: Programming the address 191.158.1.7 CLASS D = 158 DIRIS A40/A41 - Ref.: 536 181 B GB...
  • Page 10 DIRIS A40/A41 - RS485 - ETHERNET ® PROGRAMMING ADRESSE IP : > For example: Programming the address 191.158.1.7 CLASS C = 1 > For example: Programming the address 191.158.1.7 CLASS C = 7 DIRIS A40/A41 - Ref.: 536 181 B GB...

  • Page 11: Mask

    ETHERNET DIRIS A40/A41 - RS485 - ® PROGRAMMING MASQUE: > For example: 255.255.255.0 The principle is the same as for the IP address GATEWAY: > For example: 0.0.0.0 The principle is the same as for the IP address DIRIS A40/A41 - Ref.: 536 181 B GB...

  • Page 12: Dhcp

    DIRIS A40/A41 - RS485 - ETHERNET ® PROGRAMMING DHCP : > WARNING: The DHCP function is not recommended. Contact your IT networks administrator. DIRIS A40/A41 - Ref.: 536 181 B GB...

  • Page 13: Webserver

    ETHERNET DIRIS A40/A41 - RS485 - ® PROGRAMMING WEBSERVER > The Web server makes the following available: The Webserver can be accessed by entering the product’s IP address into your internet browser. - The main DIRIS database parameters. - The main instant and average meter readings. For example: IP address of the DIRIS : 192.168.1.0 URL address: http://192.168.1.0/index.htm...

  • Page 14: Environmental Conditions And Type Of Test

    DIRIS A40/A41 - RS485 - ETHERNET ® PROGRAMMING ENVIRONMENTAL CONDITIONS AND TYPE OF TEST > Electromagnetic compatibility: Description Standard Level Electrostatic discharge IEC 61000-4-2 4 kV contact 8 kV air Modulated A IEC 61000-4-3 10 V/m (80 MHz – 1 GHz) electromagnetic radiation 3 V/m (1,4 GHz – 2 GHz) 1 V/m (2,0 GHz – 2,7 GHz) Magnetic fields IEC 61000-4-8 50 Hz / 60 Hz frequency factor...

  • Page 15: Communication

    A : NEW COMMUNICATION TABLE FROM 01/2009 These new tables are available for all new Socomec products on sale from January 2009. The aim is to have common tables for common values, irrespective of the Socomec product. We recommend that you use these new tables whe- never possible for developing your applications.
  • Page 16 DIRIS A40/A41 - RS485 - ETHERNET ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 2 > TABLE C650 Hex : Energy monitoring Decimal Hex. No. of Description Unit JBUS function address address words available 50768 C650 hour meter 1/100 h 50770 C652 Reserved for manufacturer...
  • Page 17 ETHERNET DIRIS A40/A41 - RS485 - ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 3 > TABLE C750 Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51058 C772 max/avg U23 V/100 51060 C774 max/avg U31 V/100 51062...
  • Page 18 DIRIS A40/A41 - RS485 - ETHERNET ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 4 > TABLE C850 Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51305 C869 phase power factor 1 -: leading and + : lagging 0,001 51306...
  • Page 19 ETHERNET DIRIS A40/A41 - RS485 - ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 6 > TABLE C950Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51556 C964 Harmonic I2 row 7 0,001 51557 C965 Harmonic I3 row 7 0,001 51558 C966 Harmonic IN row 7...
  • Page 20 DIRIS A40/A41 - RS485 - ETHERNET ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 6 > TABLE C950Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51610 C99A Harmonic IN row 33 0,001 51611 C99B Harmonic I1 row 35 0,001 51612 C99C Harmonic I2 row 35...
  • Page 21 ETHERNET DIRIS A40/A41 - RS485 - ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 6 > TABLE C950Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51664 C9D0 Harmonic I2 row 61 0,001 51665 C9D1 Harmonic I3 row 61 0,001 51666 C9D2 Harmonic IN row 61...
  • Page 22 DIRIS A40/A41 - RS485 - ETHERNET ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 6 > TABLE C950Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51717 CA05 Harmonic U12 row 33 0,001 51718 CA06 Harmonic U23 row 33 0,001 51719 CA07 Harmonic U31 row 33...
  • Page 23 ETHERNET DIRIS A40/A41 - RS485 - ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 6 > TABLE C950Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51770 CA3A Harmonic V2 row 5 0,001 51771 CA3B Harmonic V3 row 5 0,001 51772 CA3C Harmonic V1 row 7...
  • Page 24 DIRIS A40/A41 - RS485 - ETHERNET ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 6 > TABLE C950Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 51824 CA70 Harmonic V2 row 41 0,001 51825 CA71 Harmonic V3 row 41 0,001 51826 CA72 Harmonic V1 row 43...
  • Page 25 ETHERNET DIRIS A40/A41 - RS485 - ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 7 > TABLE E000 Hex (continued) Decimal Hex. No. of Description Unit JBUS function address address words available 57351 E007 TP secondary : 60 : 60 V 100 : 100 V 110 : 110 V 115 : 115 V...
  • Page 26 DIRIS A40/A41 - RS485 - ETHERNET ® COMMUNICATION A : NEW COMMUNICATION TABLE FROM 01/2009 9 > TABLE E200 Hex : Ethernet configuration Decimal Hex. No. of Description Unit JBUS function address address words available 57856 E200 Action : 0xA1 : Eeprom backup configuration 0xB2 : Product Reset 6;...
  • Page 27 ETHERNET DIRIS A40/A41 - RS485 - ® NOTES DIRIS A40/A41 - Ref.: 536 181 B GB...
  • Page 28 SOCOMEC - Ref.: 536 181 B GB - 06 / 12 Socomec worldwide ThE UnITED KInGDOM SOCOMEC Ltd UK - Knowl Piece - Wilbury Way Hitchin Hertfordshire SG4 0TY Tel. 01462 440033 Fax 01462 431143 info.scp.uk@socomec.com In EUROPE In ASIA...
