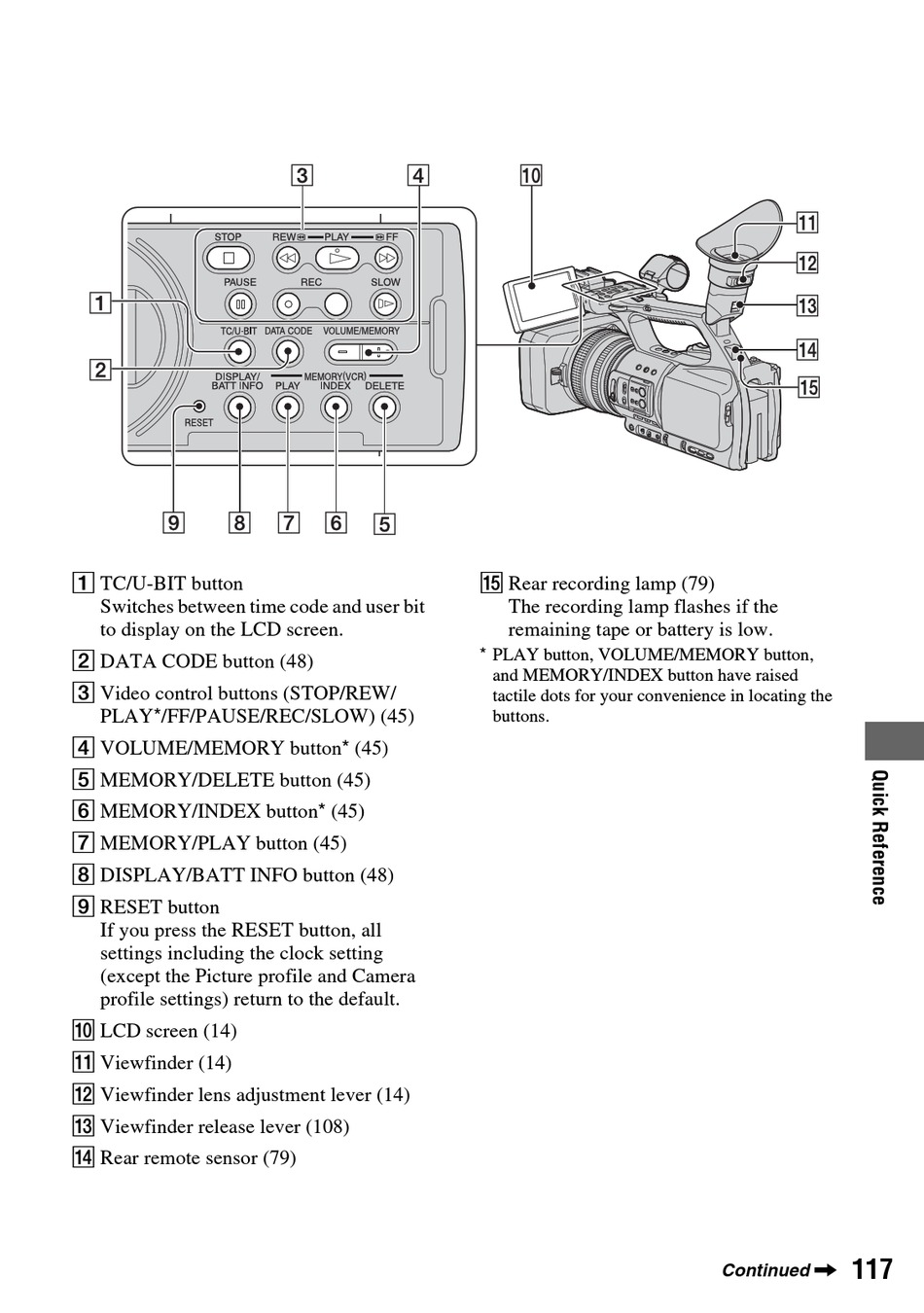

A TC/U-BIT button
Switches between time code and user bit
to display on the LCD screen.
B DATA CODE button (48)
C Video control buttons (STOP/REW/
PLAY*/FF/PAUSE/REC/SLOW) (45)
D VOLUME/MEMORY button* (45)
E MEMORY/DELETE button (45)
F MEMORY/INDEX button* (45)
G MEMORY/PLAY button (45)
H DISPLAY/BATT INFO button (48)
I RESET button
If you press the RESET button, all
settings including the clock setting
(except the Picture profile and Camera
profile settings) return to the default.
J LCD screen (14)
K Viewfinder (14)
L Viewfinder lens adjustment lever (14)
M Viewfinder release lever (108)
N Rear remote sensor (79)
O Rear recording lamp (79)
The recording lamp flashes if the
remaining tape or battery is low.
* PLAY button, VOLUME/MEMORY button,
and MEMORY/INDEX button have raised
tactile dots for your convenience in locating the
buttons.
117
Continued ,
