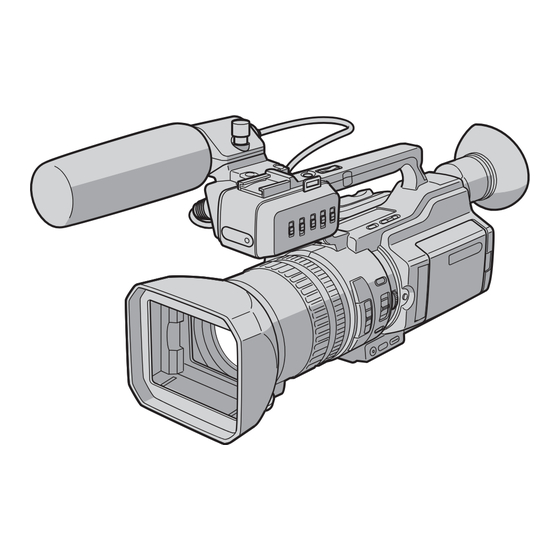

Page 1: Operating Instructions
Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. DSR-PD170 Serial No.
Page 3: Declaration Of Conformity
With your Digital camcorder, you can capture life’s precious moments with superior picture and sound quality. Your Digital camcorder is loaded with advanced features, but at the same time it is very easy to use. You will soon be producing home video that you can enjoy for years to come.
Page 4: Table Of Contents
About i.LINK ... 144 Troubleshooting ... 146 Self-diagnosis display ... 152 Warning indicators and messages ... 153 Using your camcorder abroad ... 155 Maintenance information and precautions .. 156 Specifications ... 161 Quick Reference Identifying the parts and controls ... 162 Quick Function Guide ...
Page 5: Quick Start Guide
Install the supplied microphone with the model name (ECM-NV1) facing upward. Be sure to connect the microphone plug to the INPUT1 connector. Connecting the power cord Use the battery pack when using your camcorder outdoors (p. 11). Connect the plug with its v mark facing toward the LCD panel side.
Page 6: Recording A Picture
B mark direction to open the LCD panel. POWER NOTE Do not pick up your camcorder by holding the viewfinder, the LCD panel, the battery pack, or the microphone. PLAY Open the shutter of the hood with a lens cap.
Page 7: Getting Started
— Getting Started — Using this manual As you read through this manual, buttons and settings on your camcorder are shown in capital letters. e.g. Set the POWER switch to CAMERA. When you carry out an operation, you can hear a beep or a melody sound to indicate that the operation is being carried out.
Page 8: Precautions On Camcorder Care
•Do not directly shoot the sun. Doing so might cause your camcorder to malfunction. Take pictures of the sun in low light conditions such as dusk. •Do not let your camcorder get wet. Keep your camcorder away from rain and sea water. Letting your camcorder get wet may cause your camcorder to malfunction.
Page 9: Checking Supplied Accessories
Checking supplied accessories Make sure that the following accessories are supplied with your camcorder. 1 Wireless Remote Commander (1) (p. 170) 2 AC-L15A/L15B AC Adaptor (1), Power cord (1) (p. 12) 3 NP-F570 rechargeable battery pack (1) (p. 11, 12) 4 Size AA (R6) battery for Remote Commander (2) (p.
Page 10: Step 1 Installing The Microphone
Step 1 Installing the microphone Install the supplied microphone. Be sure to connect the microphone plug to the INPUT1 connector. (1) Attach the wind screen to the microphone. (2) Loosen the microphone holder screw and open the cover. (3) Place the microphone into the holder with the model name (ECM-NV1) facing upward, close the cover, and tighten the screw.
Page 11: Step 2 Preparing The Power Supply
Step 2 Preparing the power supply Installing the battery pack Install the battery pack to use your camcorder outdoors. (1) Lift up the viewfinder. (2) Insert the battery pack in the direction of the V mark on the battery pack. Slide the battery pack until it clicks.
Page 12: Charging The Battery Pack
Your camcorder operates only with the “InfoLITHIUM” battery pack (L series). (1) Open the DC IN jack cover and connect the AC Adaptor supplied with your camcorder to the DC IN jack with the plug’s v mark facing toward the LCD panel side.
Page 13: Charging Time
Approximate minutes of recording time when you use a fully charged battery Numbers in parentheses “( )” indicate the time using a normally charged battery. You cannot use the NP-500/510/710 battery pack on your camcorder. * Approximate minutes when recording while you repeat recording start/stop, zooming and turning the power on/off.
Page 14: Playing Time
•Some types of battery packs may not be sold in your region or country. •Approximate recording time and continuous playing time at 25°C (77°F). The battery life will be shorter if you use your camcorder in a cold environment. What is ”InfoLITHIUM?”...
Page 15: Connecting To A Wall Outlet
Step 2 Preparing the power supply Connecting to a wall outlet When you use your camcorder for a long time, we recommend that you power it from a wall outlet using the AC Adaptor. (1) Open the DC IN jack cover and connect the AC Adaptor to the DC IN jack on your camcorder with the plug’s v mark facing toward the LCD panel side.
Page 16: Step 3 Setting The Date And Time
POWER switch to CAMERA or MEMORY unless you set the date and time settings. If you do not use your camcorder for about four months, the date and time may be cleared from memory (bars may appear) because the built-in rechargeable battery installed in your camcorder will have been discharged (p.158).
Page 17: Step 4 Inserting A Cassette
Step 4 Inserting a cassette (1) Install the power source (p. 11). (2) While pressing the small blue button on the EJECT switch, slide it in the direction of the arrow. After the cassette lid is opened, the cassette compartment automatically opens. (3) Push the middle portion of the back of the cassette to insert it.
Page 18: Recording - Basics
The picture now being shot is displayed on the LCD screen, and it disappears from the viewfinder screen. (5) Press START/STOP. Your camcorder starts recording. The “REC” indicator appears. The camera recording lamps located on the front and rear of your camcorder light up.
Page 19: Usable Cassettes
Transition between the last scene you recorded and the next scene is smooth as long as you do not eject the cassette even if you turn off your camcorder. When you use a tape with cassette memory, however, you can make the transition smooth even after ejecting the cassette if you use the end search function (p.
Page 20: Adjusting The Lcd Screen
If you turn the LCD panel over so that it faces the other way in standby or recording mode, the mode). To close the LCD panel, set it vertically and swing it into the camcorder body until it clicks. Note When the LCD panel is open, no picture will be displayed on the viewfinder.
Page 21: Adjusting The Brightness Of The Lcd Screen
You can record in a low position to get an interesting recording angle. Lift up the viewfinder or rotate the LCD panel with the screen facing up to record from a low position. In this case, it is useful to use the REC START/STOP located on the handle or front of the camcorder. START/ STOP...
Page 22: Adjusting The Viewfinder
Recording a picture After recording (1) Set the POWER switch to OFF (CHG). (2) Close the LCD panel. (3) Eject the cassette. (4) Remove the battery pack. Adjusting the viewfinder If you record pictures with the LCD panel closed, check the picture with the viewfinder. Adjust the viewfinder lens to your eyesight so that the images in the viewfinder come into sharp focus.
Page 23: Using The Zoom Feature
•When the handle zoom switch is set to OFF, you cannot operate the handle zoom lever. •The handle zoom switch does not interlock with the zoom lever of the camcorder. When you shoot close to a subject If you cannot get a sharp focus, press the “W” side of the power zoom lever until the focus is sharp.
Page 24: Indicators Displayed During Recording
Recording a picture Using the digital zoom – Zoom greater than 12× Zoom greater than 12× is performed digitally, if you set D ZOOM to 24× or 48× in the menu settings. The digital zoom function is set to OFF as a default setting (p. 105). If you use the digital zoom function, the picture quality deteriorates.
Page 25: Shooting Backlit Subjects (Back Light)
Recording a picture Time code The time code indicates the recording or playback time, “00:00:00:00” (hours : minutes : seconds : frames). You cannot rewrite only the time code. You can preset the time code. The time code can be preset or be reset during recording (p. 90). You can select the drop frame or non-drop frame system using the menu.
Page 26: Spot Light
Recording a picture Spot light This function prevents people’s faces, for example, from appearing excessively white when shooting subjects lit by strong light, such as in the theater. Press SPOT LIGHT in standby, recording, or memory mode. indicator appears on the LCD screen or in the viewfinder. To cancel, press SPOT LIGHT again.
Page 27: Checking The Recording - End Search / Editsearch / Rec Review
Press END SEARCH in standby mode. The camcorder rewinds or fast-forwards the tape and the last five-second recorded picture is played back. After playback the camcorder turns to standby mode. You can monitor the sound from the speaker or headphones.
Page 28: Playback - Basics
You can monitor the playback picture on the LCD screen. If you close the LCD panel, you can monitor the playback picture in the viewfinder. You can also control playback using the Remote Commander supplied with your camcorder. (1) Install the power source and insert the recorded tape.
Page 29 Playing back a tape When monitoring on the LCD screen You can turn the LCD panel over and move it back to the camcorder body with the LCD screen facing out. When you close the LCD panel You cannot monitor the sound from the speaker. However, when the LCD panel is turned over to view on the LCD screen, you can monitor the sound from the speaker.
Page 30: Using The Data Code Function
– The tape was recorded by the camcorder without the date and time set. Data code When you connect your camcorder to the TV, the data code also appears on the TV screen (p. 33). Note on the date/time indicator Recording date/time is not displayed during shooting, however, it is automatically recorded on the tape.
Page 31: Various Playback Modes
•The previous picture may remain as a mosaic image during playback. When the playback pause mode lasts for five minutes Your camcorder automatically enters the stop mode. To resume playback, press N. Slow playback Slow playback can be performed smoothly on your camcorder, however, this function does not work for a signal output through the DV Interface.
Page 32 Playing back a tape Note on DV-formatted tapes You can play back DV-formatted tapes on this camcorder if the tape is recorded in SP mode. “DV SP” appears on the LCD screen or in the viewfinder during playback. You cannot play back DV-formatted tapes recorded in LP mode.
Page 33: Viewing The Recording On Tv
(video) plug of the A/V connecting cable. Connect the S video cable (optional) to the S video jacks on both your camcorder and the TV or the VCR. This connection produces higher quality DVCAM/DV format pictures.
Page 34: Advanced Recording Operations
– While the fader function is set or in use. – While the digital effect function is set or in use. •Do not shake the camcorder during tape photo recording, the recorded image may be blurred. To do tape photo recording using the Remote Commander Press PHOTO on the Remote Commander.
Page 35: Shooting With All The Pixels - Prog. Scan
In this mode, the resolution of the still picture is clearer than in the normal mode. This camcorder takes in an image every 1/15 of a second, which may cause the image of a moving object to go out of focus. This camcorder is originally programed to record in the normal TV format.
Page 36: Using The Guide Frame
Note The guide frame indicates only a rough level. The size and position of the guide frame do not affect the setting of the camcorder. If you set GUIDEFRAME to ON The other screen indicators are also displayed on the LCD screen or in the viewfinder.
Page 37: Using The Wide Mode
During recording You cannot operate the wide mode function. When you cancel the wide mode, set your camcorder to the standby mode and then set 16:9WIDE to OFF in the menu settings. Connection for a TV Pictures recorded in the 16:9WIDE mode automatically appear on the TV screen at full size when: –...
Page 38: Using The Fader Function
Using the fader function You can fade the picture in or out to give your recording a professional appearance. FADER OVERLAP* WIPE* DOT* (Random) * Fade in only MONOTONE When fading in, the picture gradually changes from black-and-white to color. When fading out the picture gradually changes from color to black-and-white.
Page 39 – Interval recording – Cut recording When the OVERLAP, WIPE, or DOT indicator appears Your camcorder automatically stores the image recorded on a tape. As the image is being stored, the fader indicator flashes fast, and the playback picture appears. POWER...
Page 40: Using Special Effects - Digital Effect
Using special effects – Digital effect You can add special effects to recorded pictures using the various digital functions. The sound is recorded normally. STILL You can record a still image so that it is superimposed on a moving picture. FLASH (FLASH MOTION) You can record still images successively at constant intervals.
Page 41 Using special effects – Digital effect (1) In standby or recording mode, press DIGITAL EFFECT. The digital effect indicator appears. (2) Turn the SEL/PUSH EXEC dial to select the desired digital effect mode. The digital effect indicator changes as follows: STILL y FLASH y LUMI.
Page 42 Using special effects – Digital effect Notes •The following functions do not work in digital effect mode: – Fader – Tape Photo recording – Shutter speed (1/30 or smaller) adjustment •The following functions do not work in old movie mode: –...
Page 43: Shooting With Manual Adjustment
Shooting with manual adjustment Under normal conditions, this unit automatically makes various adjustments as it shoots. However, you can adjust the following functions manually to suit your preference. Functions you can adjust by setting the AUTO LOCK selector to the center (auto lock release) position Iris, gain, shutter speed, and white balance Functions you can adjust in menu settings...
Page 44: Adjusting The Iris
Adjust the iris manually depending on the depth of field. (1) Set the AUTO LOCK selector to the center (auto lock release) position while the camcorder is in standby, recording, or memory mode. (2) Press IRIS. The iris indicator appears on the LCD screen or in the viewfinder.
Page 45: Adjusting The Gain
Adjusting the gain (1) Set the AUTO LOCK selector to the center (auto lock release) position while the camcorder is in standby, recording, or memory mode. (2) Press GAIN. The gain indicator appears on the LCD screen or in the viewfinder.
Page 46: Adjusting The Shutter Speed
Adjusting the shutter speed (1) Set the AUTO LOCK selector to the center (auto lock release) position while the camcorder is in standby, recording, or memory mode. (2) Press SHUTTER SPEED. The shutter speed indicator appears on the LCD screen or in the viewfinder.
Page 47: Using The Nd Filter
Shooting with manual adjustment Using the ND filter Using the ND filter (the ND filter 1 setting corresponds to 1/4 of the quantity of light and the ND filter 2 setting corresponds to 1/32 of the quantity of light), you can record a picture clearly by adjusting light amounts, even if you shoot under too bright conditions.
Page 48: Shooting With The Zebra Pattern
Shooting with manual adjustment Shooting with the zebra pattern You can set the camcorder to display a zebra pattern (diagonal stripes) in the portion of the picture on the LCD screen or in the viewfinder with a subject whose brightness exceeds a certain level.
Page 49: Releasing The Steadyshot Function
Shooting with manual adjustment Releasing the SteadyShot function When the SteadyShot function is working, the camcorder compensates for camera- shake. You can release the SteadyShot function when you do not need to use it. The indicator appears on the LCD screen or in the viewfinder. Do not use the SteadyShot function when shooting a stationary object with a tripod.
Page 50: Adjusting The Ae Shift
Shooting with manual adjustment Adjusting the AE shift You can adjust the AE shift in accordance with shooting conditions and a subject. (1) Press AE SHIFT in standby, recording, or memory mode. The AE shift indicator appears on the LCD screen or in the viewfinder. (2) Turn the SEL/PUSH EXEC dial to adjust the brightness.
Page 51: Adjusting The White Balance
(1) Set the AUTO LOCK selector to the center (auto lock release) position while the camcorder is in standby, recording, or memory mode. (2) Press WHT BAL. The white balance indicator appears on the LCD screen or in the viewfinder.
Page 52 10 seconds after setting the POWER switch to CAMERA to get a better adjustment when: – You detach the battery for replacement. – You bring your camcorder outdoors from the interior of a house, or vice versa. If the indicator does not stop flashing after you press the SEL/PUSH EXEC dial The white balance cannot be set.
Page 53: Adjusting The Recording Level Manually - Sound Recording Level
Adjusting the recording level manually – Sound recording level You can adjust the recording sound level. Use headphones to monitor the sound when you adjust it. You can adjust the channel 1 and channel 2 separately. Selecting the channel to be adjusted manually (1) Set the POWER switch to CAMERA or VCR.
Page 54 Adjusting the recording level manually– Sound recording level To adjust the recording level automatically Set AGC CH1 to ON when you automatically adjust the recording level of the channel 1. And set AGC CH2 to ON when you automatically adjust the recording level of the channel 2. When the recording level is adjusted manually The recording level indicator appears at the lower-right on the LCD screen or in the viewfinder.
Page 55: Connecting An Optional External Microphone
(1) Loosen the microphone holder screw and open the cover. (2) Detach the supplied microphone and unplug the cable from the camcorder. (3) Connect the microphone (optional) to the INPUT1 or INPUT2 connector. (4) Select the channel to be used, using the REC CH SELECT switch. Used...
Page 56 We recommend that you set MIC NR to OFF in the menu settings in the following cases: •When you use the external microphone at a distance from the camcorder. •When the REC CH SELECT switch is set to CH1 and you will not record any audio via the INPUT2 connector.
Page 57: Presetting The Adjustment For Picture Quality - Custom Preset
Presetting the adjustment for picture quality – Custom preset You can preset the camcorder to record the picture with the desired picture quality. When presetting, adjust the picture by shooting a subject and checking the picture displayed on a TV using the menu settings.
Page 58 RETURN, then press the SEL/PUSH EXEC dial. To check the custom preset setting Press CUSTOM PRESET while the camcorder is in standby, recording or memory mode. The custom preset setting appears on the LCD screen or in the viewfinder.
Page 59: Focusing Manually
Focusing manually You can gain better results by manually adjusting the focus in the following cases: •The autofocus mode is not effective when shooting – subjects through glass coated with water droplets – horizontal stripes – subjects with little contrast with backgrounds such as walls and sky •When you want to change the focus from a subject in the foreground to a subject in the background •Shooting a stationary subject when using a tripod...
Page 60: Interval Recording
Interval recording You can make a time-lapse recording by setting the camcorder to automatically record and standby sequentially. You can achieve an excellent recording for flowering, emergence, etc., with this function. [a] Recording time [b]Waiting time (1) Press MENU to display the menu in standby mode.
Page 61 Interval recording (6) Turn the SEL/PUSH EXEC dial to select ON, then press the dial. (7) Press MENU to erase the menu display. The interval recording indicator flashes. (8) Press START/STOP to start interval recording. The interval recording indicator lights up. I NTERVAL MENU To cancel the interval recording...
Page 62: Frame By Frame Recording - Cut Recording
You can make a recording with a stop-motion animated effect using cut recording. To create this effect, alternately move the subject a little and make a cut recording. We recommend that you use a tripod, and operate the camcorder using the Remote Commander after step 6.
Page 63: Superimposing The Date And Time On A Picture
Superimposing the date and time on a picture You can superimpose the date/time indication directly on the picture, besides the date/ time display as data code. (1) Press MENU to display the menu in standby mode. (2) Turn the SEL/PUSH EXEC dial to select (3) Turn the SEL/PUSH EXEC dial to select DATE REC, then press the dial.
Page 64: Marking An Index
“INDEX MARK” and after the indicator disappears, the index marking is complete. The camcorder starts index-marking at the 11th frame from the recording start point. An index signal will be recorded on cassette memory about 0.3 sec, and on a tape about five seconds.
Page 65: Advanced Playback Operations
INDEX SEARCH t TITLE SEARCH t DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator (4) Press . or > on the Remote Commander to select the index point for playback. Your camcorder automatically starts playing back at the selected index point. POWER To stop searching Press x.
Page 66 > on the Remote Commander to search for the next index point. Your camcorder automatically starts playback at the selected index point. Each time you press . or >, your camcorder searches for the previous or next index point.
Page 67: Searching The Boundaries Of Recorded Tape By Title - Title Search
INDEX SEARCH t TITLE SEARCH t DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator (4) Press . or > on the Remote Commander to select the title for playback. Your camcorder automatically starts playback of the scene having the title that you selected. POWER To stop searching Press x.
Page 68: Searching A Recording By Date - Date Search
INDEX SEARCH t TITLE SEARCH t DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator (4) Press . or > on the Remote Commander to select the date for playback. Your camcorder automatically starts playback at the beginning of the selected date. POWER To stop searching Press x.
Page 69: Searching For The Date Without Using Cassette Memory
Searching a recording by date – Date search Note If one day’s recording is less than two minutes, your camcorder may not accurately find the point where the recording date changes. In the mark •The bar in the •The mark in the If a tape has a blank portion between recorded portions The date search function may not work correctly.
Page 70: Searching For A Photo - Photo Search/Photo Scan
INDEX SEARCH t TITLE SEARCH t DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t no indicator (4) Press . or > on the Remote Commander to select the date for playback. Your camcorder automatically starts playback of the photo having the date that you selected. POWER To stop searching Press x.
Page 71 (4) Press . or > on the Remote Commander to select a photo for playback. Each time you press . or >, your camcorder searches for the previous or next photo. Your camcorder automatically starts playback of the photo.
Page 72: Playing Back A Tape With Digital Effects
•To record pictures that you have processed using the digital effect function, record the pictures on the VCR, using your camcorder as a player. Pictures processed by the digital effect function Pictures processed by the digital effect function are not output through the Interface.
Page 73: Editing
— Editing — Dubbing a tape Using the A/V connecting cable Connect your camcorder to the VCR using the A/V connecting cable supplied with your camcorder. Recording quality by analog input, however, is not satisfying for professional use. Before a dubbing Set DISPLAY to LCD in the menu settings.
Page 74 With this connection, you do not need to connect the yellow (video) plug of the A/V connecting cable. Connect an S video cable (optional) to the S video jacks of both your camcorder and the VCR. This connection produces higher quality DVCAM/DV format pictures.
Page 75: Dubbing Only Desired Scenes - Digital Program Editing
•If you start recording from the very beginning of the tape, the first few seconds of the tape may not record properly. Be sure to allow about 10 seconds’ lead before starting the recording. Preparation 1: Connecting the VCR Connect your camcorder and the VCR as shown on page 73 and 74.
Page 76 Remove the cassette from the camcorder beforehand. We recommend that you prepare a pen and paper for notes. When you connect to a Sony VCR using an i.LINK cable, the setup below is not necessary. (1) Insert a recordable tape into the VCR.
Page 77 (14)Turn the SEL/PUSH EXEC dial to select Errors in editing If you connect your camcorder to Sony equipment with the DV jack, the range of errors is within +/– 5 frames. The range may become wider in the following conditions: •The interval between CUT-IN and CUT-OUT is less than five seconds (p.
Page 78 Dubbing only desired scenes - Digital program editing Operation 1: Making Programs (1) Insert the tape for playback into your camcorder, and insert a tape for recording into the VCR. (2) Press MENU to display the menu. (3) Turn the SEL/PUSH EXEC dial to select (4) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT, then press the dial.
Page 79 Dubbing only desired scenes - Digital program editing (6) Press the SEL/PUSH EXEC dial, or MARK on the Remote Commander. The CUT-IN point of the first program is set, and the top part of the program mark changes to light blue. (7) Search for the end of the first scene you want to insert using the video operating buttons, then pause playback (p.
Page 80: Erasing All Programs
Operation 2: Performing a digital program editing (Dubbing a tape) Make sure your camcorder and VCR are connected. When you use a video camera recorder, set its POWER switch to VCR. (1) Select VIDEO EDIT in the menu settings. Turn the SEL/PUSH EXEC dial to select START, then press the dial.
Page 81: Using With An Analog Video Unit And A Pc - Signal Convert Function
You can convert the analog input signal to the digital signal and output it from the DV Interface on this camcorder. You can capture images and sound from an analog video unit connecting a PC which has i.LINK (IEEE1394) connector to your camcorder.
Page 82: Recording Video Or Tv Programs
Use your camcorder as a recorder. (1) Insert a blank tape (or a tape you want to record over) into your camcorder. If you want to record a tape from the VCR, insert a recorded tape into the VCR.
Page 83 Your camcorder works in the commander mode, VTR 2. Commander modes 1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid remote control misoperation. If you use another Sony VCR in the commander mode VTR 2, we recommend changing the commander mode or covering the sensor of the VCR with black paper.
Page 84 DV products. With digital-to-digital connection, video and audio signals are transmitted in digital form for high-quality editing. (1) Insert a blank tape (or a tape you want to record over) into your camcorder, and insert the recorded tape into the VCR.
Page 85 If you record a still picture in playback pause mode via the DV Interface The recorded picture becomes rough. And when you play back the picture using your camcorder, the picture may jitter. Before recording Press DISPLAY and make sure that the DV IN indicator appears on the LCD screen or...
Page 86: Audio Dubbing
Audio dubbing You can record an audio sound to add to the original sound on a tape by connecting audio equipment or a microphone. If you connect audio equipment, you can add sound to your recorded tape by specifying the starting and ending points. The original sound will not be erased.
Page 87 Audio dubbing Dubbing with the AUDIO CH1/CH2 jacks : Signal flow Notes • You can dub a sound only on a tape recorded in Fs32K mode of the DVCAM format. • When dubbing with the INPUT1/INPUT2 connectors, you can check the recorded picture on the LCD screen, in the viewfinder, or on the screen of equipment connected with the VIDEO jack, and you can check the recorded sound by using headphones.
Page 88: Adding An Audio Sound On A Recorded Tape
(2) Set the POWER switch to VCR on your camcorder. (3) Locate the recording start point by pressing N. Then press X at the point where you want to start recording to set your camcorder to the playback pause mode.
Page 89 You cannot record on the tape. Slide the write-protect tab to release the write protection. We recommend that you add new sound on a tape recorded with your camcorder If you add new sound on a tape recorded with another camcorder (including an other DSR-PD170), the sound quality may deteriorate.
Page 90: Setting Time Values
Setting time values The camcorder uses two types of time values: time code values and user bits. The time value is displayed on the LCD screen, in the viewfinder, or on the display window. The time code and user bits can be set only in DVCAM mode.
Page 91 REC RUN: Time code value advances only while recording. When making the time code continuous at back space editing, select this setting. FREE RUN: Time code advances freely regardless of the camcorder’s current operation mode. For more information on the running mode, see “Making the time code continuous at back space editing”...
Page 92 When the camcorder is in recording pause mode, the recorded time code is read from the tape and synchronized to the internal time code generator.
Page 93 Setting time values Setting the user bits value You can set the user bits as eight-digit hexadecimal values (base 16) to have the date, time, scene number, and other information inserted into the time code. (1) Set the POWER switch to VCR or CAMERA. (2) Press MENU to display the menu.
Page 94: Switching The Time Value
Setting time values Switching the time value TC/U-BIT Press TC/U-BIT. Each time you press TC/U-BIT, the time value changes between the time code and user bits. TC: Displays the time code. This is indicated as “00:00:00:00” or “00:00.00:00”. U-BIT: Displays user bits. This is indicated as “00 00 00 00”. Time code/user bits Note The time code and user bits cannot be displayed properly if the tape does not have time...
Page 95: Superimposing A Title
Superimposing a title If you use a tape with cassette memory, you can superimpose the title while recording or after recording. When you play back the tape, the title is displayed for five seconds from the point where you superimposed it. You can select one of eight preset titles and two custom titles (p.
Page 96 If the tape has a blank portion in the middle of the recorded parts The title may not be displayed correctly. The titles superimposed with your camcorder The point you superimposed the title may be detected as an index signal when searching a recording with other video equipment.
Page 97 Superimposing a title Title setting •The title color changes as follows: WHITE y YELLOW y VIOLET y RED y CYAN y GREEN y BLUE •The title size changes as follows: SMALL y LARGE You cannot input more than 12 characters in LARGE size. •If you select the title size “SMALL,”...
Page 98: Erasing A Title
Superimposing a title Erasing a title (1) Set the POWER switch to VCR or CAMERA. (2) Press MENU to display the menu. (3) Turn the SEL/PUSH EXEC dial to select (4) Turn the SEL/PUSH EXEC dial to select TITLEERASE, then press the dial. The title erase display appears.
Page 99: Making Your Own Titles
Making your own titles You can make up to two titles and store them in cassette memory. Each title can have up to 20 characters. (1) Press TITLE in the standby, playback, or playback pause mode. (2) Turn the SEL/PUSH EXEC dial to select (3) Turn the SEL/PUSH EXEC dial to select CUSTOM1 SET or CUSTOM2 SET, then press the dial.
Page 100: To Change A Title You Have Stored
Making your own titles To change a title you have stored In step 3, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want to change, then press the SEL/PUSH EXEC dial. Turn the SEL/PUSH EXEC dial to select [C], then press the dial to delete the title.
Page 101: Labeling A Cassette
Labeling a cassette If you use a tape with cassette memory, you can label a cassette. The label can consist of up to 10 characters and is stored in cassette memory. When you insert the labeled cassette and set the POWER switch to VCR, CAMERA, or MEMORY, the label is displayed for about five seconds.
Page 102 Labeling a cassette To change the label you have made Insert the cassette to change the label, and operate in the same way as you do to make a new label. If you set the write-protect tab of the tape to lock You cannot label the tape.
Page 103: Erasing The Cassette Memory Data
Erasing the cassette memory data You can erase data stored in cassette memory, each item’s data can be erased separately. You can also erase all items’ data once. Erasing each item’s data separately (1) Set the POWER switch to VCR or CAMERA. (2) Press MENU to display the menu display.
Page 104: Erasing All The Data In Cassette Memory
Erasing the cassette memory data Erasing all the data in cassette memory (1) Set the POWER switch to VCR or CAMERA. (2) Press MENU to display the menu display. (3) Turn the SEL/PUSH EXEC dial to select (4) Turn the SEL/PUSH EXEC dial to select ERASE ALL, then press the dial. (5) Turn the SEL/PUSH EXEC dial to select OK, then press the dial.
Page 105: Customizing Your Camcorder
— Customizing Your Camcorder — Changing the menu settings To change the mode settings in the menu settings, select the menu items with the SEL/ PUSH EXEC dial. The default settings can be partially changed. First, select the icon, then the menu item and then the mode.
Page 106 FREE RUN Time code advances freely regardless of the camcorder’s current operation mode. When adjusting the discrepancy between time code value and real time. Makes the time code continuous at back space editing. Regardless of the TC RUN setting, the running mode is automatically set to REC RUN.
Page 107 Reduces the sound of wind input from the INPUT1 connector (ON) or not (OFF). Reduces the sound of wind input from the INPUT2 connector (ON) or not (OFF). appears. Your camcorder prevents excessive (continued on the following page) POWER switch...
Page 108 Meaning To play back the CHs 1/2 audios from each channel. However, if you play back the audios via the camcorder’s speaker, the audios are mixed. To play back the CH1 audio from both channels 1/2. To play back the CH2 audio from both channels 1/2.
Page 109 •Formatting erases the protected image data on the “Memory Stick.” Notes on formatting •Optional “Memory Stick”s have been formatted at the factory. Formatting with this camcorder is not required. •While the display shows “FORMATTING,” do not turn the POWER switch, press any button, or eject the “Memory Stick”...
Page 110 Changing the menu settings Icon/item Mode CM SEARCH z ON TAPE TITLE — TITLE DSPL z ON TITLEERASE — ITEM ERASE — ERASE ALL — REC MODE z DVCAM AUDIO MODE z FS32K Notes on AUDIO MODE •You cannot dub an audio sound on a tape recorded in the Fs48K (16-bit) mode. •When playing back a tape recorded in the Fs48K (16-bit) mode, you cannot adjust the balance in AUDIO MIX.
Page 111 Meaning To display the remaining tape indication: • for about eight seconds after your camcorder is turned on and calculates the remaining amount of tape • for about eight seconds after a cassette is inserted and your camcorder calculates the remaining amount of tape •...
Page 112 TV or VCR will not appear on the LCD screen even when your camcorder is connected to outputs on the TV or VCR (except using an i.LINK cable). •You cannot erase the date and time superimposed using the DATE REC function.
Page 113: Memory Stick" Operations
Your camcorder compresses image data in JPEG format (extension .jpg). Typical image data file name 100-0001: As displayed on the LCD screen or in the viewfinder of the camcorder. Dsc00001.jpg: As displayed on your PC screen. Before using a “Memory Stick”...
Page 114 If you insert a “Memory Stick Duo” without a Memory Stick Duo adaptor by mistake, hold the camcorder so the Memory Stick slot is facing down, then hold the lid aside using a toothpick or similar object to let the “Memory Stick Duo” slide out.
Page 115 Using a “Memory Stick” – introduction Inserting a “Memory Stick” Insert the “Memory Stick” with the Sony logo pointing toward the LCD panel and the b mark pointing inward. Access lamp To eject a “Memory Stick” Push the “Memory Stick” inward, then release your finger. The “Memory Stick” comes out a little.
Page 116: Image Quality Settings
, then press the dial. Meaning This is the highest image quality in this camcorder. The number of still images you can record is fewer than FINE. The image is compressed to about 1/3.
Page 117 The approximate number of images you can record on a “Memory Stick”(optional) The approximate number of images you can record on a “Memory Stick” that is formatted using this camcorder varies depending on which image quality mode you select and the complexity of the subject. 16 MB type...
Page 118: Recording Still Images On A "Memory Stick" - Memory Photo Recording
Stick” – Memory Photo recording You can record still images on a “Memory Stick.” Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to the right (unlock) position.
Page 119: Recording Images Continuously
While you are recording a still image You can neither turn off the power nor press PHOTO. When you press PHOTO on the Remote Commander Your camcorder immediately records the image that is on the screen when you press the button. Recording images continuously You can record still images continuously.
Page 120 [ MENU ] : END Continuous shooting settings Setting MULTI SCRN Your camcorder shoots nine still images at about 0.5 sec intervals If the capacity of the “Memory Stick” becomes full ” FULL” appears on the screen, and you cannot record still pictures on this “Memory Stick.”...
Page 121: Superimposing A Still Image In A "Memory Stick" On A Moving Picture - Memory Mix
Superimposing a still image in a “Memory Stick” on a moving picture – MEMORY MIX You can superimpose a still image you have recorded on a “Memory Stick” on the top of the moving picture you are recording. M. CHROM (Memory chromakey) You can swap a blue area of a still image such as an illustration or a frame with a moving picture.
Page 122 Superimposing a still image in a “Memory Stick” on a moving picture – MEMORY MIX Before operation Insert a recorded “Memory Stick” and a tape to be recorded into your camcorder. (1) Set the POWER switch to CAMERA. (2) Press MEMORY MIX in standby mode.
Page 123 The thumbnail image may not be displayed clearly. Image data modified with personal computers or shot with other equipment You may not be able to play them back with your camcorder. When the auto logo insert function is activated You cannot use memory mix function.
Page 124: Recording An Image From A Tape As A Still Image
Recording an image from a tape as a still image Your camcorder can read moving picture data recorded on a tape and record it as a still image on a “Memory Stick.” Your camcorder can also take in moving picture data through the input connector and record it as a still image on a “Memory Stick.”...
Page 125: Recording A Still Image From Other Equipment
With this connection, you do not need to connect the yellow (video) plug of the A/V connecting cable. Connect an S video cable (optional) to the S video jacks of both your camcorder and the VCR/TV. This connection produces higher quality DVCAM/DV format pictures.
Page 126 Recording an image from a tape as a still image When recording the image through the DV Interface DV Interface i.LINK : Signal flow i.LINK cable (optional)
Page 127: Copying Still Images From A Tape - Photo Save
Using the search function, you can automatically take in only still images from tapes and record them on a “Memory Stick” in sequence. Before operation •Insert a recorded tape into your camcorder and rewind the tape. •Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to VCR.
Page 128 Insert another “Memory Stick” and repeat the procedure from step 2. When the access lamp is lit or flashing Never shake or strike your camcorder. Also, do not turn the power off, eject the “Memory Stick” or remove the battery pack. Otherwise, the image data breakdown may occur.
Page 129: Viewing A Still Picture - Memory Photo Playback
Press MEMORY PLAY again. To play back recorded images on a TV screen •Connect your camcorder to the TV with the A/V connecting cable supplied with your camcorder before operation. •When operating memory photo playback on a TV or on the LCD screen, the image quality may appear to have deteriorated.
Page 130: Viewing A Still Picture – Memory Photo Playback
Stick.” •When the data file name is flashes, the file may be broken or the file format does not correspond to your camcorder. Playing back six recorded images at a time (index screen) You can play back six recorded images at a time. This function is especially useful when searching for a particular image.
Page 131 Stick. For details, refer to the operating instructions of your accessory. •Do not modify the directory of the file that corresponds to the DCF98 standard. The modified file will not be read. •If you use the new “Memory Stick,” be sure to use it first with this camcorder.
Page 132: Copying An Image Recorded On A "Memory Stick" To Tapes
You can copy still images or titles recorded on a “Memory Stick” and record them to a tape. Before operation Insert a tape for recording and a “Memory Stick” for playback into your camcorder. (1) Set the POWER switch to VCR. (2) Using the video control buttons, search for a point where you want to record the desired still image.
Page 133 You cannot record the index screen. Image data modified with personal computers or shot with other equipment You may not be able to copy them with your camcorder. If you press DISPLAY in standby or recording mode You can see memory playback and the file name indicators in addition to the indicators pertinent to tapes, such as the time code indicator.
Page 134: Playing Back Images Continuously - Slide Show
Select the desired image using MEMORY +/– buttons before step 2. To view the recorded images on TV Connect your camcorder to a TV with the A/V connecting cable supplied with your camcorder before operation. If you change the “Memory Stick” during operation Be sure to follow the steps again from the beginning.
Page 135: Preventing Accidental Erasure - Image Protection
To prevent accidental erasure of important images, you can protect selected images. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch is set to the right (unlock) position.
Page 136: Deleting Images
You can delete images stored in a “Memory Stick.” Deleting selected images Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY or VCR. Make sure that the LOCK switch is set to the right (unlock) position.
Page 137 You can delete all the unprotected images in a “Memory Stick.” Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to the right (unlock) position.
Page 138 Deleting images To cancel deleting all the images in the “Memory Stick” Select RETURN in step 5, then press the SEL/PUSH EXEC dial.
Page 139: Writing A Print Mark - Print Mark
You can specify the recorded still image to be printed out. This function is useful for printing out still images later. Your camcorder conforms with the DPOF (Digital Print Order Format) standard for specifying the still images to print out.
Page 140: Additional Information
Recorder’s format Cassette’s format DVCAM This digital camcorder complies with DVCAM format. Though mini DV cassettes can be used for recording, we recommend you to use mini DVCAM cassettes to get the most out of high reliability of DVCAM format. The recording time of mini DV cassettes is 2/3 shorter than that indicated on the mini DV cassettes.
Page 141 Compatibility of DVCAM and DV formats Compatibility on editing using DV connectors When this digital camcorder is connected to other DVCAM or DV video equipment using DV connectors, the recording format of edited tapes is defined according to recorder’s format as described below.
Page 142: Usable Cassettes
The IC memory is built in the cassette with cassette memory. Using this IC memory, your camcorder can read, write, and search data such as the date of recording or titles. The functions using the cassette memory require successive signals recorded on the tape.
Page 143: Audio Mode
When affixing a label on the mini DVCAM/mini DV cassette Be sure to affix a label only on the locations as illustrated below [a] so as not to cause malfunction of your camcorder. After using the mini DVCAM/mini DV cassette Rewind the tape to the beginning, put the cassette in its case, and store it in an upright position.
Page 144: About I.link
Tips •i.LINK, a nickname for IEEE 1394 that Sony proposed, is a trademark supported by a majority of companies worldwide. •IEEE 1394 is an international standard defined by IEEE, The Institute of Electrical and Electronics Engineers, Inc.
Page 145 For details on dubbing your camcorder to your VCR equipped with DV Interface, see page 74, 84. Your camcorder is available for use with other devices equipped with Sony i.LINK (DV Interface) connector. Beware that some of the video equipment such as the Digital Televisions, the DVD recorders/players or the MICROMV recorders/players are equipped with the i.LINK...
Page 146: Troubleshooting
If you run into any problem using your camcorder, use the following table to troubleshoot the problem. If the problem persists, disconnect the power source and contact your Sony dealer or local authorized Sony service facility. If “C:ss:ss” appears on the LCD screen, display window or in the viewfinder, the self-diagnosis display function has worked.
Page 147 •The tape has run out. c Rewind the tape. (p. 31) •The video head may be dirty. c Clean the heads using the Sony DVM12CL cleaning cassette (optional). (p. 157) •The volume is turned to minimum. c Turn up the volume. (p. 28) •AUDIO MIX is set to the CH3/4 side in the menu settings.
Page 148 Troubleshooting Symptom Displaying the recorded date, date search function does not work. The new sound now being added, or that has been added to the recorded tape is not heard. The title is not displayed. The sound is muted or images do not appear when monitoring images through In the recording and playback modes...
Page 149 Use a charged battery pack. (p. 11, 12) •Moisture condensation has occurred. c Remove the cassette and leave your camcorder for at least one hour to acclimatize. (p. 156) •The gold-plated connector of the tape is dirty or dusty.
Page 150 Check the connection and set up the selector position. (p. 73) • Setting program on a blank portion of the tape is attempted. c Set the program again on a recorded portion. (p. 79) • Your camcorder and the VCR are not synchronized. c Synchronize them. (p. 76)
Page 151 •The AC Adaptor is disconnected. c Connect it properly. •The battery pack malfunctions. c Contact your Sony dealer or local authorized Sony service facility. •The POWER switch is not set to OFF (CHG). c Set it to OFF (CHG).
Page 152: Self-Diagnosis Display
Disconnect the power cord of the AC Adaptor or remove the battery pack. After reconnecting the power source, operate your camcorder. •A malfunction that you cannot service has occurred. c Contact your Sony dealer and inform them of the 5-digit code. (example: E:61:10) On the LCD screen or in the...
Page 153: Warning Indicators And Messages
•The self-diagnosis display function is activated (p. 152).* % Moisture condensation has occurred* Fast flashing: •Eject the cassette, turn off your camcorder, and leave it for about one hour with the cassette compartment open (p. 156). Warning indicator as to cassette memory Slow flashing: •No tape with cassette memory is inserted (p.
Page 154: Warning Messages
Check if the “Memory Stick” is inserted properly, or insert the “Memory Stick” with logo data. The data setting of the logo insert system is corrupted. Consult your Sony dealer or local authorized Sony service facility.
Page 155: Using Your Camcorder Abroad
Using your camcorder abroad Using your camcorder abroad You can use your camcorder in any country or region with the AC Adaptor supplied with your camcorder within 100 V to 240 V AC, 50/60 Hz. Use a commercially available AC plug adaptor [a], if necessary, depending on the design of a wall outlet [b].
Page 156: Maintenance Information And Precautions
Moisture condensation If your camcorder is brought directly from a cold place to a warm place, moisture may condense inside your camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or your camcorder may not operate correctly.
Page 157 LCD screen or in the viewfinder. If the above problem, [a] or [b] occurs, clean the video heads for 10 seconds with the Sony DVM12CL cleaning cassette (optional). Check the picture and if the above problem persists, repeat cleaning.
Page 158 Noise may appear on the image. •Do not touch the LCD screen with a sharp-pointed object. •If your camcorder is used in a cold place, a residual image may appear on the LCD screen. This is not a malfunction. •While using your camcorder, the back of the LCD screen may heat up. This is not a malfunction.
Page 159 Camcorder care •Remove the tape, and periodically turn on the power, operate the CAMERA and VCR sections and play back a tape for about three minutes when your camcorder is not to be used for a long time. •Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens, remove them with a soft cloth.
Page 160 •If you touch the liquid, wash it off with water. •If the liquid get into your eyes, wash your eyes with a lot of water and then consult a doctor. If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.
Page 161: Specifications
Specifications Video camera recorder System Video recording system 2 rotary heads Helical scanning system Audio recording system Rotary heads, PCM system Quantization: Fs32 kHz (12 bits, channels 1/2, channels 3/4), Fs48 kHz (16 bits, channels 1/2) Video signal NTSC color, EIA standards Usable cassette Mini DVCAM cassette with the mark printed...
Page 162: Quick Reference
7 FADER button (p. 39) 8 BACK LIGHT button (p. 25) These are trademarks. When using additional filters We recommend that you use Sony made filters. 9 END SEARCH button (p. 27) 0 EDITSEARCH buttons (p. 27) qa IRIS dial (p. 44) qs IRIS button (p.
Page 163: Identifying The Parts And Controls
Identifying the parts and controls qh Speaker qj LCD screen (p. 20) qk LCD BRIGHT buttons (p. 21) ql VOLUME buttons (p. 28) w; MEMORY PLAY button (p. 129) wa DISPLAY button (p. 29) ws MEMORY – button (p. 122, 129) wd DATA CODE button (p.
Page 164 [b], then remove it. When attaching the eyecup, fit it onto the camcorder and slide it all the way along grooves until it stops. • Do not pull the eyecup inward or with excessive force [c]. Doing so may damage the eyecup.
Page 165 Identifying the parts and controls rs Remote sensor rd Camera recording lamp (p. 18) rf INPUT1 REC CH SELECT switch (p. 10) rg INPUT1 INPUT LEVEL selector (p. 10) Attaching/removing the hood with a lens cap To attach the hood with a lens cap, fit the line on the hood to the corresponding line on the lens frame, then screw the hood clockwise and tighten the lower hood fixing screw.
Page 166 POWER switch (p. 18) yk START/STOP button (p. 18) yl SHUTTER SPEED button (p. 46) u; Access lamp (p. 115) Attaching the shoulder strap Attach the shoulder strap supplied with your camcorder to the hooks for the shoulder strap.
Page 167 AUDIO CH1/CH2 jack (p. 33, 73, 82, 87) DV Interface (p. 74, 84, 126) This “i.LINK” mark is a trademark of Sony Corporation and indicates that this product is in agreement with IEEE 1394- 1995 specifications and their revisions.
Page 168 Be sure to screw the lens all the way until it stops. Notes •This wide conversion lens is dedicated for the 58-mm-dia filter of the Sony digital camcorder. •Do not apply impact to the digital camcorder. Be careful especially when you attach the conversion lens.
Page 169 Identifying the parts and controls Attaching the wide conversion lens with the lens hood 1 Attach the base hood for the wide conversion lens and then screw the left lens hood fixing screw. 2 Attach the wide conversion lens. 3 Attach the front hood for the wide conversion lens. Attaching the hood cap 1 Attach the hood cap strap to the grip belt.
Page 170: Remote Commander
Identifying the parts and controls Remote Commander The buttons that have the same name on the Remote Commander as on your camcorder function identically to the buttons on your camcorder. 1 Transmitter Point toward the remote sensor to control your camcorder after turning on your camcorder.
Page 171 •Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid remote control misoperation. If you use another Sony VCR in the commander mode VTR 2, we recommend changing the commander mode or covering the sensor of the VCR with black paper.
Page 172: Operation Indicators
Identifying the parts and controls Operation indicators 1 Cassette memory (p. 142) 2 Remaining battery time (p. 24) 3 Zoom (p. 23)/Data file name (p. 113) 4 Digital effect (p. 40)/FADER (p. 38)/ MEMORY MIX (p. 121) 5 16:9WIDE (p. 37)/PROG. SCAN (p. 35) 6 Warnings (p.
Page 173: Quick Function Guide
•Scanning scenes recorded in the photo mode You can insert the selected logo or mark on the moving picture being shot. For details, refer to the operating instructions (for the auto logo insert function) supplied with this camcorder. BACK LIGHT (p. 25) Spotlight mode (p. 26) FADER (p.
Page 174: Index
Index A, B A/V connecting cable ... 33, 73, 82 Accessory shoe ... 167 AC Adaptor ... 12 Adjusting shutter speed ... 46 Adjusting viewfinder ... 22 AE SHIFT ... 50 Audio dubbing ... 86 AUDIO LEVEL ... 54 AUDIO MIX ... 108 AUDIO MODE ...
Page 176 Printed on 100% recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink. Printed in Japan...

This manual is also suitable for:

Dsr-pd170

Sony DSRPD170 Operating Instructions Manual

Getting Started

Recording - Basics

Playback - Basics

Advanced Recording Operations

Advanced Playback Operations

Editing

Customizing Your Camcorder

?Memory Stick” Operations

Additional Information

Quick Reference

Quick Links

Operating Instructions

Related Manuals for Sony DSRPD170

Summary of Contents for Sony DSRPD170

This manual is also suitable for:

Table of Contents
