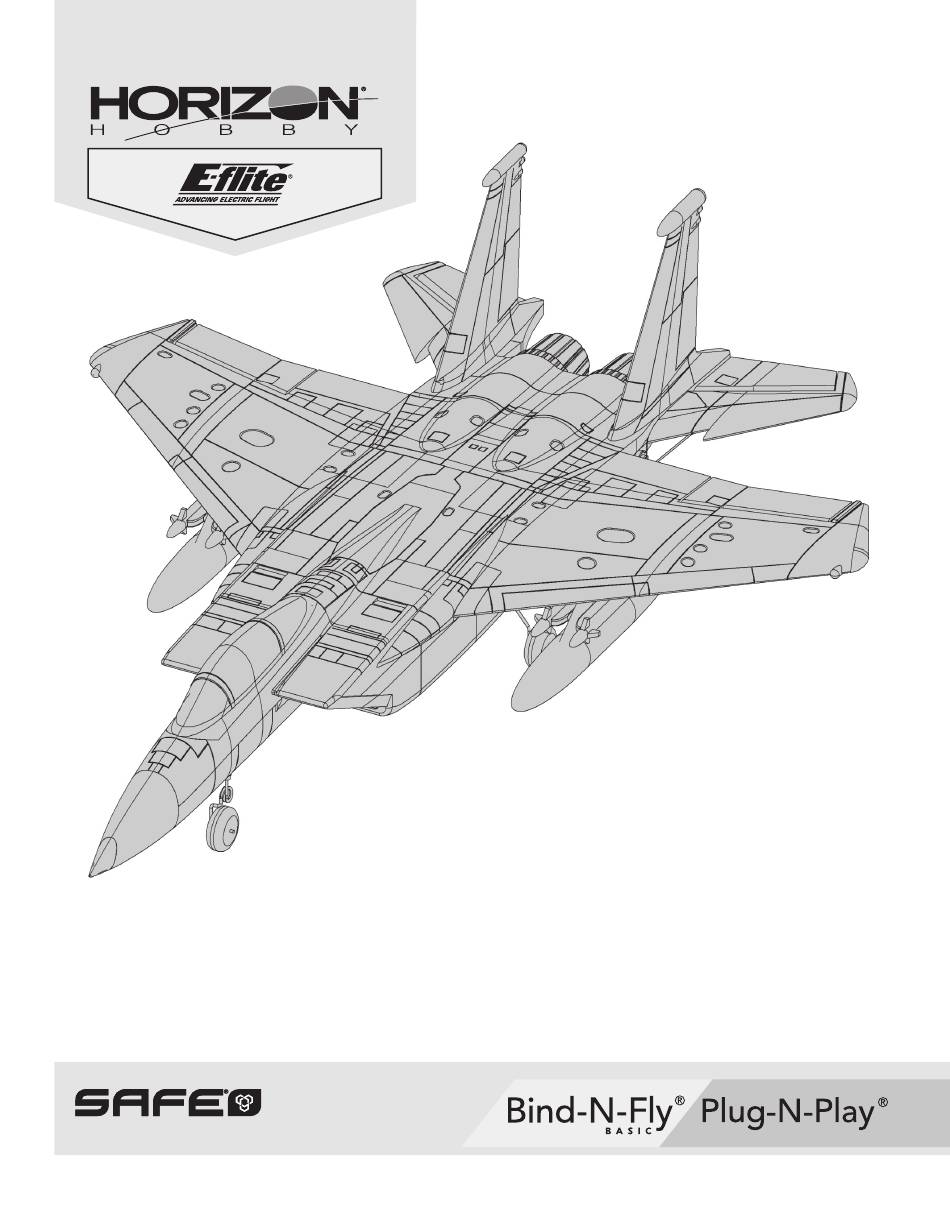

- Page 1 F-15 Eagle 64mm EDF Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE ® Select Technology, Optional Flight Envelope Protection...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi... -
Page 3: Table Of Contents
Box Contents Quick Start Information Set up your transmitter using the Transmitter Setup transmitter setup chart Hi Rate Low Rate Travel and Aileron 15mm 12mm Dual Rates Elevator 18mm 14mm 88mm +/-3mm back from leading Center of Gravity (CG) edge of wing at the fuselage. Flight Timer Setting 3 minutes Components... -
Page 4: Select Technology (Bnf Basic)
Set Servo Travel to 100% for more information. Set Throttle Cut to -130% Expo After fi rst fl ights, you may adjust expo in your transmitter for each channel to fi t your fl ying style. F-15 Eagle 64 mm... -
Page 5: Model Assembly
Model Assembly Landing Gear Installation 1. Install the nose gear with set screws. Use thread locking compound on the set screws. The fl at spot will make the connection straight and secure. 2. Install the main gear with covers using the M2x8 fl at head screws. Wing Installation 1. - Page 6 1. Apply medium CA to the base of the vertical stabilizers where they meet the fuselage. 2. Fit the vertical stabilizer in place on the fuselage. Make sure the vertical stabilizers are straight up and down and point straight. F-15 Eagle 64 mm...
- Page 7 Model Assembly Continued Missile Installation 1. Attach the missiles on each side of the tanks using medium CA glue. TIP: Along the line where the Missile rack and the Fuel Tank connect, use a T-Pin or Hobby Knife to poke several small holes through the paint to help the glue adhere.
-
Page 8: Pnp Receiver Selection And Installation
Make sure it is mounted as fl at as possible with the label facing up and the wires facing back. You may need to use servo extensions for the aileron and elevator. F-15 Eagle 64 mm... -
Page 9: Transmitter And Receiver Binding / Safe Select (Bnf Basic)
Transmitter and Receiver Binding / Enabling and Disabling SAFE Select (BNF Basic) This product requires an approved Spektrum ™ DSM2 ® /DSMX ® compatible Switching ON SAFE Select Binding Sequence transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. -
Page 10: Battery Installation And Esc Arming
Repeat the process to assign a different switch if desired. If no switch 100% is assigned, SAFE will be active at all times. TIP: SAFE Select is assignable on any unused Channels 5–9 F-15 Eagle 64 mm... -
Page 11: Clevis Installation And Control Centering
Clevis Installation and Control Centering Clevis Adjustment • Slide the clevis retainer off of the clevis to adjust the position on the control horn. • Carefully spread the clevis, then insert the clevis pin into the desired hole in the control horn. •... -
Page 12: Control Surface Direction
fl y the aircraft. Check receiver orientation and AS3X programming. Once the AS3X system is active, control surfaces may move rapidly. This is normal. AS3X remains active until the battery is disconnected. F-15 Eagle 64 mm... -
Page 13: In Flight Trimming (Bnf Basic)
In Flight Trimming (BNF Basic) During your fi rst fl ight, trim the aircraft for level fl ight at 3/4 throttle. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s fl ight path. Three After adjusting the trim, do not touch the control sticks for 3 seconds. This allows the receiver to Seconds learn the correct settings to optimize AS3X performance. -
Page 14: Post Flight
5 seconds Incorrect response to the Incorrect direction settings in the DO NOT fl y. Correct the direction settings using a AS3X programmer AS3X Control Direction Test receiver, which can cause a crash F-15 Eagle 64 mm... -
Page 15: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Reset controls with throttle stick and throttle trim at Throttle not at idle and/or throttle trim too high lowest setting Aircraft will not respond Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater to throttle but responds to other controls Throttle channel is reversed... -
Page 16: Ama National Model Aircraft Safety Code
(b) An inexperienced pilot is assisted by an experienced pilot. 4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or comply with comparable standards. F-15 Eagle 64 mm... -
Page 17: Limited Warranty
Product Support Inquiry, or call the toll free telephone number Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the referenced in the Warranty and Service Contact Information section to product purchased (the “Product”) will be free from defects in materials... -
Page 18: Contact Information
EMC Directive. EFL9775 F-15 Eagle 64mm EDF BNF BASIC; Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives. -
Page 19: Replacement Parts
Servocomando: 9 g 54° direzione Pilote : Souffl ante électrique F-15 EFL9793 Pilot: F-15 Eagle 64mm EDF Pilot: F-15 Eagle 64mm EDF Pilota: F-15 Eagle 64 mm EDF Eagle 64 mm AR636 AS3X-Sportempfänger mit Récepteur AR636 AS3X Sport Ricevitore AR636 AS3X Sport a 6... - Page 20 © 2018 Horizon Hobby, LLC. E-fl ite, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Prophet, EC3, and the Horizon Hobby logo are trademarks or regis- tered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
