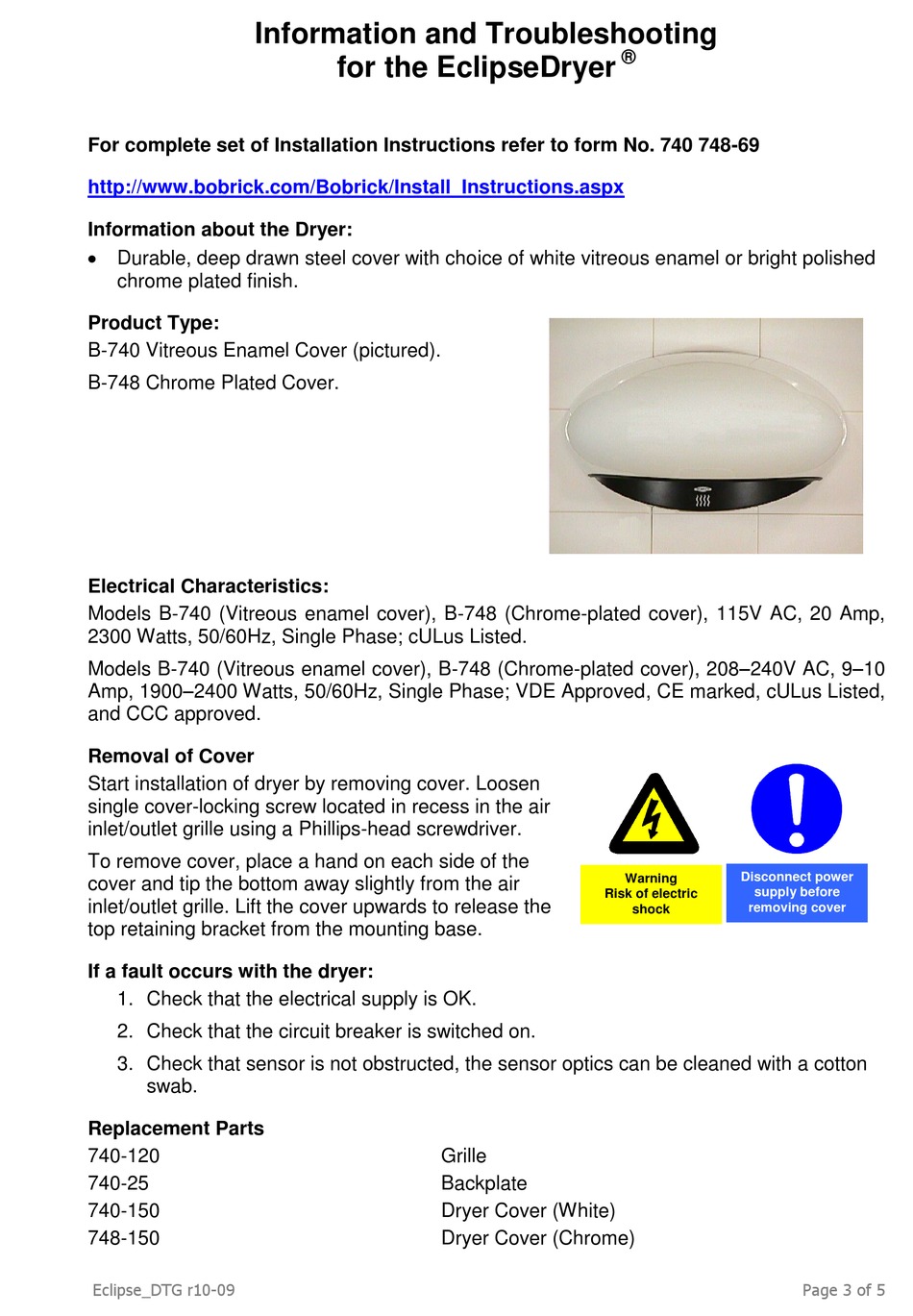

Information and Troubleshooting

For complete set of Installation Instructions refer to form No. 740 748-69
http://www.bobrick.com/Bobrick/Install_Instructions.aspx
Information about the Dryer:
 Durable, deep drawn steel cover with choice of white vitreous enamel or bright polished
chrome plated finish.
Product Type:
B-740 Vitreous Enamel Cover (pictured).
B-748 Chrome Plated Cover.
Electrical Characteristics:
Models B-740 (Vitreous enamel cover), B-748 (Chrome-plated cover), 115V AC, 20 Amp,
2300 Watts, 50/60Hz, Single Phase; cULus Listed.
Models B-740 (Vitreous enamel cover), B-748 (Chrome-plated cover), 208–240V AC, 9–10
Amp, 1900–2400 Watts, 50/60Hz, Single Phase; VDE Approved, CE marked, cULus Listed,
and CCC approved.
Removal of Cover
Start installation of dryer by removing cover. Loosen
single cover-locking screw located in recess in the air
inlet/outlet grille using a Phillips-head screwdriver.
To remove cover, place a hand on each side of the
cover and tip the bottom away slightly from the air
inlet/outlet grille. Lift the cover upwards to release the
top retaining bracket from the mounting base.
If a fault occurs with the dryer:
1. Check that the electrical supply is OK.
2. Check that the circuit breaker is switched on.
3. Check that sensor is not obstructed, the sensor optics can be cleaned with a cotton
swab.
Replacement Parts
740-120
740-25
740-150
748-150
Eclipse_DTG r10-09
for the EclipseDryer
Grille
Backplate
Dryer Cover (White)
Dryer Cover (Chrome)
®
Disconnect power
Warning
supply before
Risk of electric
removing cover
shock
Page 3 of 5
